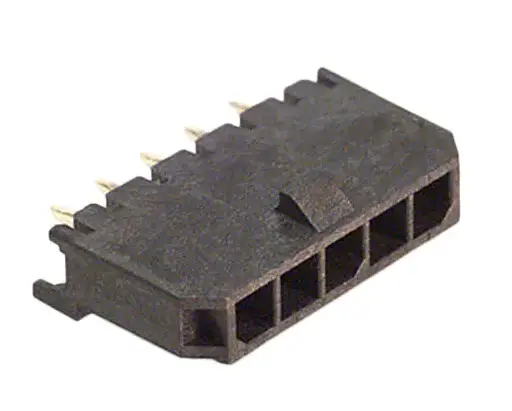

molex 0436500516 Solder ST Top Entry Thru-Hole Micro-Fit 3.0 Tray
- Part Number: 0436500213
- Status: Active
- Overview: Micro-Fit Connector System
- Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 2 Circuits, with Solder Tab, Gold, Glow-Wire Capable, Black, Tape and Reel
Documents
- 3D Model (PDF)
- 3D Model
- Drawing (PDF)
- Product Specification 436500001-PS-JA-000 (PDF) Product Specification 436500001-PS-KO-000 (PDF) Product Specification 436500001-PS-SP-000 (PDF) Product Specification PS-43650-001 (PDF) Packaging Specification 436500001-PK-000 (PDF) Packaging Specification 708730000-PK-000 (PDF)
- Test Summary 430450005-TS-000 (PDF)
- Test Summary 430450006-TS-000 (PDF)
- Test Summary TS-43045-001-001 (PDF)
- Test Summary TS-43045-002-001 (PDF)
- Test Summary TS-46235-001-001 (PDF) Datasheet (PDF)
- Symbol Footprint Data SYM-43650-0212-001 (PDF) RoHS Certificate of Compliance (PDF)
EU ELV Not Relevant
- EU RoHS China RoHS
Compliant
REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status
Low-Halogen
For more information, please visit Contact US
- China ROHS Green Image
- ELV Not Relevant
- RoHS Phthalates Not Contained
Search Parts in this Series 43650 Series
Mates With Micro-Fit 3.0 Receptacle Housing 43645 <br>Micro-Fit 3.0 TPA Receptacle Housing 171850 <br> Micro-Fit 3.0 Cable Assembly 2147502021 , 2147502022 , 2147502023 , 2147512021 , 2147512022 , 2147512023
Agency Certification
- CSA LR19980
- UL E29179
General
- Product Family PCB Headers
- Series 43650
- Application Power, Wire-to-Board
- Comments High Temperature|Square Pin|Offset Through Hole Mounting|Solder Type<P><P>This Molex product is manufactured from a material that has the following ratings, tested by independent agencies a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13.. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition – household and similar electrical appliances – safety, section 30 Resistance to heat and fire. <P><P> The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). <P> If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options
- Overview Micro-Fit Connector System
- Product Name Micro-Fit 3.0
- UPC 800754250108
Physical
- Breakaway No
- Circuits (Loaded) 5
- Circuits (maximum) 5
- Color – Resin Black
- Durability (mating cycles max) 30
- Flammability 94V-0
- Glow-Wire Capable Yes
- Mated Height 17.27mm
- Material – Metal Brass
- Material – Plating Mating Gold
- Material – Plating Termination Tin
- Material – Resin High Temperature Thermoplastic
- Net Weight 0.870/g
- Number of Rows 1
- Orientation Vertical
- PCB Locator Yes
- PCB Retention Yes
- PCB Thickness – Recommended 1.60mm
- Packaging Type Tray
- Pitch – Mating Interface 3.00mm
- Plating min – Mating 0.381µm
- Plating min – Termination 2.540µm
- Polarized to PCB Yes
- Shrouded Fully
- Stackable No
- Surface Mount Compatible (SMC) Yes
- Temperature Range – Operating -40° to +125°C
- Termination Interface: Style Through Hole – Kinked Pin
Electrical
- Current – Maximum per Contact 8.5A
- Voltage – Maximum 600V
Solder Process Data
- Duration at Max. Process Temperature (seconds) 030
- Lead-freeProcess Capability SMC&WAVE
- Max. Cycles at Max. Process Temperature 003
- Process Temperature max. C 260
Material Info
Reference – Drawing Numbers
- Packaging Specification PK-70873-0811-001
- Product Specification 436500001-PS-JA-000, 436500001-PS-KO-000, 436500001-PS-SP-000, PS-43650-001
- Sales Drawing SD-43650-006-001
- Symbol/Footprint Data SYM-43650-0515-001
- Test Summary 430450006-TS-000, TS-43045-001-001, TS-43045-002-001, TS-46235-001-001
This document was generated on 10/05/2021
PLEASE CHECK WWW.MOLEX.COM FOR THE LATEST PART INFORMATION
