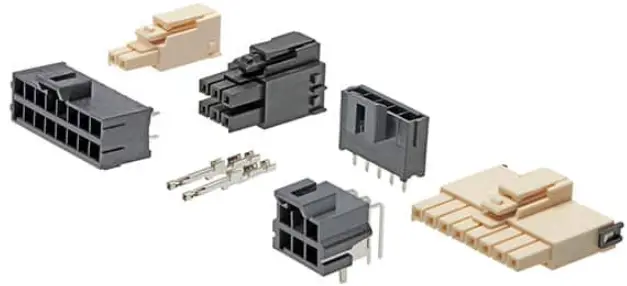

molex 0436500509 Connector Headers and PCB Receptacles

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Documents

• 3D Model (PDF) Packaging Specification 708730000-PK-000 (PDF)
• Drawing (PDF) Test Summary 430450004-TS-000 (PDF)
• 3D Model Test Summary TS-43045-001-001 (PDF)
• Product Specification 436500001-PS-JA-000 (PDF) Test Summary TS-43045-002-001 (PDF)
• Product Specification 436500001-PS-KO-000 (PDF) Test Summary TS-46235-001-001 (PDF)
• Product Specification 436500001-PS-SP-000 (PDF) Datasheet (PDF)
• Product Specification PS-43650-001 (PDF) Symbol Footprint Data SYM-43650-0509-001 (PDF)
• Packaging Specification 436500001-PK-000 (PDF) RoHS Certificate of Compliance (PDF)

Agency Certification

• CSA LR19980
• UL E29179

General

• Product Family PCB Headers
• Series 43650
• Application Power, Wire-to-Board
• Comments “””””””High Temperature|Square Pin|Solder Type<P><P>This Molex product is manufactured from material that has the following ratings, tested by independent agencies:. a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13.. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition – household and similar electrical appliances – safety, section 30 Resistance to heat and fire. <P><P> The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product enduse standard(s). <P> If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options.”
• Overview Micro-Fit Connector System
• Product Name Micro-Fit 3.0
• UPC 800755008418

Physical

• Breakaway No
• Circuits (Loaded) 5
• Circuits (maximum) 5
• Color – Resin Black
• Durability (mating cycles max) 30
• Flammability 94V-0
• Glow-Wire Capable Yes
• Mated Height 6.98mm
• Material – Metal Brass
• Material – Plating Mating Tin
• Material – Plating Termination Tin
• Material – Resin High-Temperature Thermoplastic
• Net Weight 0.949/g
• Number of Rows 1
• Orientation Right Angle
• PCB Locator Yes
• PCB Retention Yes
• PCB Thickness – Recommended 1.60mm
• Packaging Type Embossed Tape on Reel
• Pitch – Mating Interface 3.00mm
• Plating min – Mating 2.540μm
• Plating min – Termination 2.540μm
• Polarized to PCB Yes
• Shrouded Fully
• Stackable No
• Temperature Range – Operating -40° to +105°C
• Termination Interface: Style Surface Mount

Electrical

• Current – Maximum per Contact 8.5A
• Voltage – Maximum 600V

Solder Process Data

• Duration at Max. Process Temperature (seconds) 030
• Lead-free process Capability REFLOW
• Max. Cycles at Max. Process Temperature 003
• Process Temperature max. C 260

Material Info

Reference – Drawing Numbers

• Packaging Specification 436500001-PK-000, 708730000-PK-000
• Product Specification 436500001-PS-JA-000, 436500001-PS-KO-000, 436500001-PS-SP-000, PS-43650-001
• Sales Drawing SD-43650-004-000
• Symbol/Footprint Data SYM-43650-0509-001
• Test Summary 430450004-TS-000, TS-43045-001-001, TS-43045-002-001, TS-46235-001-001

EU ELV
Not Relevant

EU RoHS China RoHS
Compliant

REACH SVHC

• Contained Per – D(2021)4569-DC (8 July 2021)
• Dibutylbis(pentane-2,4- dionato-O,O’)tin
• 2-Ethylhexyl 10- ethyl-4,4-dioctyl-7- oxo-8-oxa-3,
• Phenol, 2-(2Hbenzotriazol- 2-yl)-4,6- bis(1,1-dim
• C.I. Direct Black 38 Dibutyltin-dichloride 1,2-dimethoxyethane 1,2-
• Benzenedicarboxylic acid, bis(3- methylbutyl)
• Disodium 3,3′-[[1,1′- Biphenyl]-4,4′- Diylbis(Azo)
• Octamethylcyclotetrasiloxane
• Decamethylcyclopentasiloxane
• Dodecamethylcyclohexasiloxane Octanoic acid, 2,2,3,3,4,4,5,5,6,6,7,7,8,8,8- pen
• Benzo(ghi)perylene
• Dipentyl phthalate
• 2-(2H-Benzotriazol-2- yl)-4,6-
• ditertpentyl phenol Perfluorohexane-1-
• sulphonic acid and its salts
• Perfluorononan-1- oic acid (2,2,3,3,4,4,5,5,6,6,7
• Dioctyltin dilaurate, stannane, dioctyl-, bis(co Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]o
• Pyrene
• Fluoranthene
• Perfluorobutane
• sulfonic acid (PFBS) and its sal
• Tris(4-nonyl phenyl, branched and linear)
• phosphine Nonadecafluorodecanoic acid (PFDA) and its sodium
• Zirconia
• Aluminosilicate
• Refractory Ceramic
• Fiber 1,2- Benzenedicarboxylic acid, dipentyl ester, br diisohexyl phthalate 1,2-
• Benzenedicarboxylic acid, hexyl ester, bra
• 2-(2H-Benzotriazol-2- yl)-4-(tert-butyl)-6- (sec-b 2-(2H-Benzotriazol-2- yl)-4,6-
• ditertpentylphenol
• Cadmium
• Lead
• Lead(II,IV)-oxide
• Cadmium-oxide
• Diboron-trioxide
• Decabromodiphenylether 1,2-bis(2- methoxyethoxy)ethane
• 1,2-Dimethoxyethane
• bis(2-methoxyethyl) ether
• Tris(2-chloroethyl)
• phosphate
• Lead chromate
• molybdate sulfate red
• Lead chromate
• Bis(tributyltin) oxide
• Alkanes, C10-13,
• chloro
• Cobalt-dichloride
• Cadmium
• Dipentyl phthalate
• Imidazolidine-2-thione
• Phenanthrene N,N-dimethyl formamide
• 4-aminoazobenzene [Phthalato(2-)]dioxotrilead
• Silicic acid (H2Si2O5),
• barium salt (1:1), lead- Sulfurous Acid, Lead Salt, Dibasic
• Cyanamide, lead(2+) salt (1:1)
• Lead titanium
• zirconium oxide
• Dioxobis(stearato)trilead
• Tetralead-trioxidesulphate
• Pentalead-tetraoxidesulphate
• Lead-titanium-trioxide
• Lead-dinitrate
• Halogen-Free
• Status
• Low-Halogen

For more information, please visit Contact US

• China ROHS
• Green Image
• ELV
• Not Relevant
• RoHS Phthalates
• Not Contained

Search Parts in this Series
43650 Series

Mates With
Micro-Fit 3.0 Receptacle Housing 43645 <br>Micro-Fit 3.0 TPA Receptacle Housing 171850 <br>Micro-Fit TPA Cable Assembly 145132 <br> Micro-Fit 3.0 Cable Assembly 2147501051 , 2147501052 , 2147501053 , 2147511051 , 2147511052 , 2147511053
