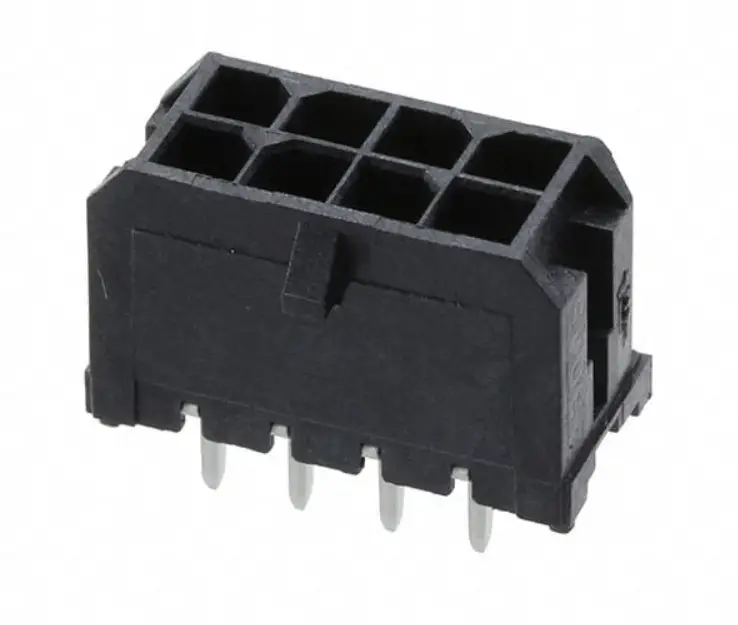

Molex 0430450818 Micro-fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row Instruction Manual (+ PDF)

General
Product Family	PCB Headers
Series	43045
Application	Power, Wire-to-Board
Comments	“””””””High Temperature\|Square Pin\|Solder Type This Molex product is manufactured from material that has the following ratings, tested by independent agencies:. a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13.. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition – household and similar electrical appliances – safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product enduse standard(s). If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options.”””””””
Overview	Micro-Fit Connector System
Product Name	Micro-Fit 3.0
UPC	800754372046

Physical
Breakaway	No
Circuits (Loaded)	8
Circuits (maximum)	8
Color – Resin	Black
Durability (mating cycles max)	30
Flammability	94V-0
Glow-Wire Capable	Yes
Mated Height	17.64mm
Material – Metal	Brass
Material – Plating Mating	Tin
Material – Plating Termination	Tin
Material – Resin	High Temperature Thermoplastic
Net Weight	1.458/g
Number of Rows	2
Orientation	Vertical
PCB Locator	Yes
PCB Retention	Yes
PCB Thickness – Recommended	1.60mm
Packaging Type	Embossed Tape on Reel
Pitch – Mating Interface	3.00mm
Plating min – Mating	0.254µm
Polarized to PCB	Yes
Shrouded	Fully
Stackable	No
Surface Mount Compatible (SMC)	N/A
Temperature Range – Operating	-40° to +105°C
Termination Interface: Style	Surface Mount

Electrical
Current – Maximum per Contact	8.5A
Voltage – Maximum	600V

Solder Process Data
Duration at Max. Process Temperature (seconds)	030
Lead-free Process Capability	REFLOW
Max. Cycles at Max. Process Temperature	003
Process Temperature max. C	260

Material Info

Reference – Drawing Numbers
Packaging Specification	430450002-PK-000
Product Specification	430450001-PS-KO-000, 430450001-PS-SP-000, PS-43045-001
Sales Drawing	SD-43045-007-001
Symbol/Footprint Data	SYM-43045-0818-001
Test Summary	430450004-TS-000, TS-43045-001-001, TS-46235-001-001

Part Number:	0430450818
Status:	Active
Overview:	Micro-Fit Connector System
Description:	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 8 Circuits, with Solder Tab, Tin, Glow-Wire Capable, Black, Tape and Reel

EU ELV
Not Relevant

EU RoHS China RoHS
Compliant

REACH SVHC
Not Contained Per – D(2021)4569-DC (8 July 2021)
Halogen-Free Status
Low-Halogen
For more information, please visit Contact US

China ROHS: Green Image
ELV: Not Relevant
RoHS Phthalates: Not Contained

Search Parts in this Series
43045 Series

Mates With
Micro-Fit 3.0 Receptacle Housing 43025
Micro-Fit 3.0 TPA Receptacle Housing 172952 . Micro-Fit 3.0 Cable Assembly 245132 , 214755 , 214756 . Micro-Fit TPA Cable Assembly 45132
