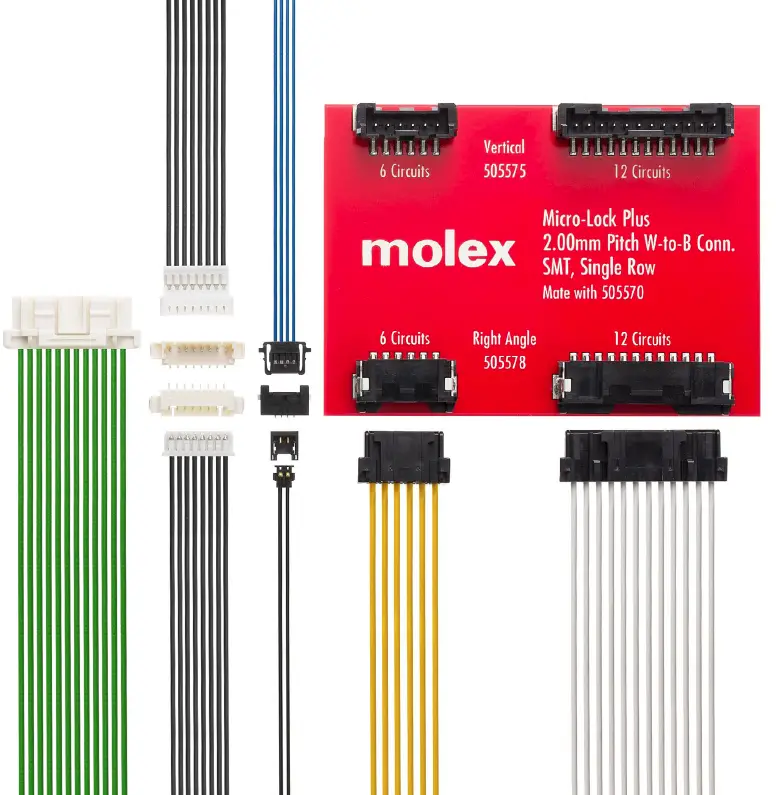

molex Micro-Lock Plus Wire-to-Board Connector System
PSBU – CORE SIGNAL CONNECTORS
| CATEGORY / PITCH (MM) | 0.80/1.00/1.20 | 1.25 | 1.50 | 2.00 | 2.50 |
|
|
OneBlade |
PicoBlade |
Pico-SPOX |
Micro-Latch / Milli-Grid |
Mini-SPOX |
|
|
Pico-Clasp | Micro-Lock Plus |
CLIK-Mate |
Micro-Lock Plus / iGrid |
Mini-Lock |
|
| Zero-Hachi Pico-Lock Pico-EZmate Pico-EZmate Plus |
Pico-Lock | Pico-Lock / Micro-One |
BASIC
Offers:
- Basic minimum necessary functions of connector
- Friction Lock
- Unshrouded Housings
- Tin Plated Terminals
ENHANCED
Offers:
- Additional values over Basic connector
- Positive Locking
- Gold Plating Available
- TPA Options

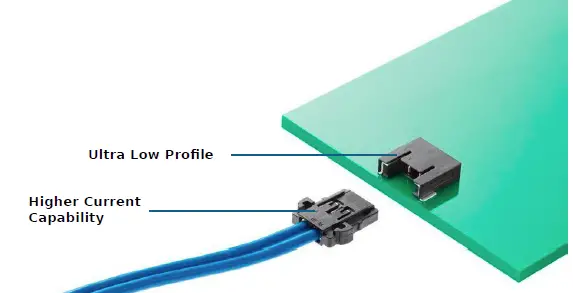

PRO
Offers:
- Lowest Profile
- Higher Current Density
- Integrated ISL
(Independent Secondary Lock)
CORE SIGNAL CONNECTORS
0.80 – 2.50MM PITCH

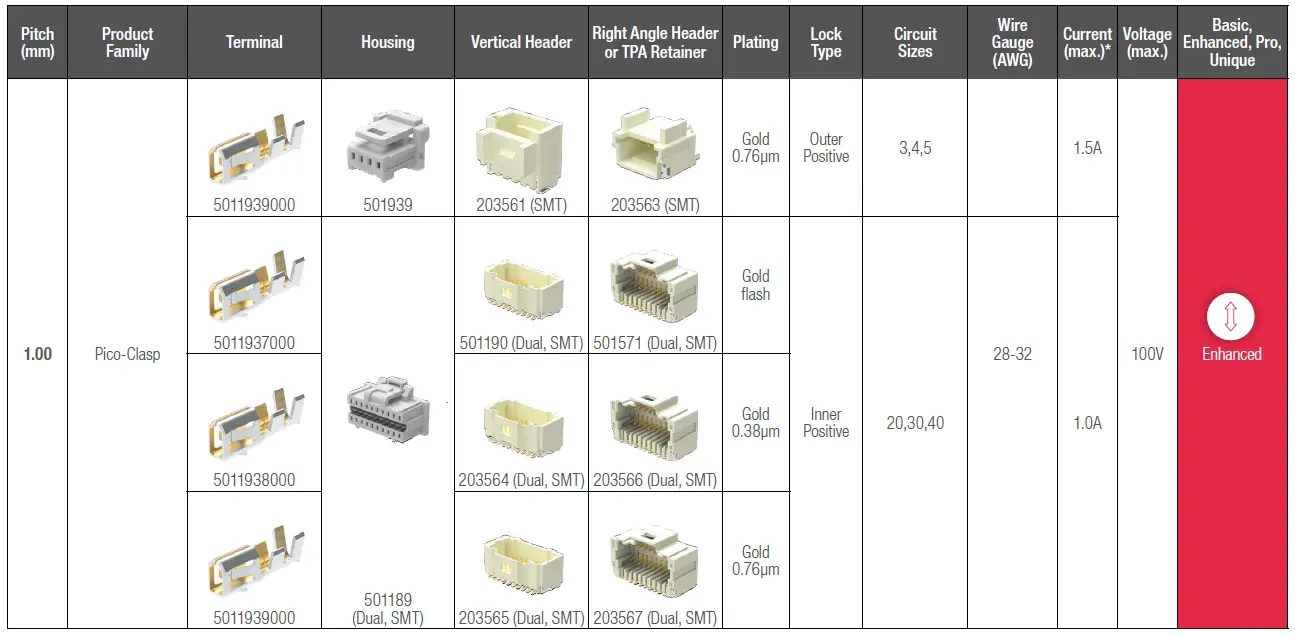

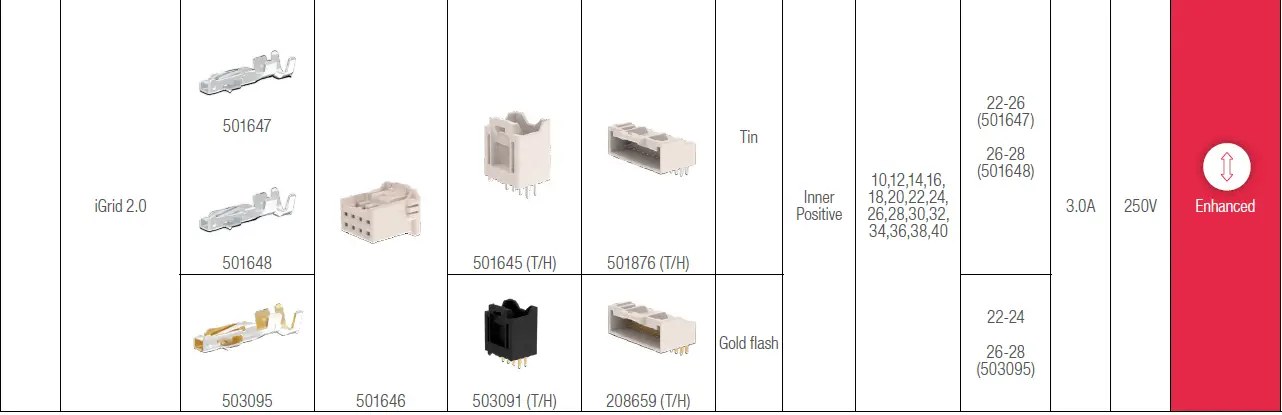

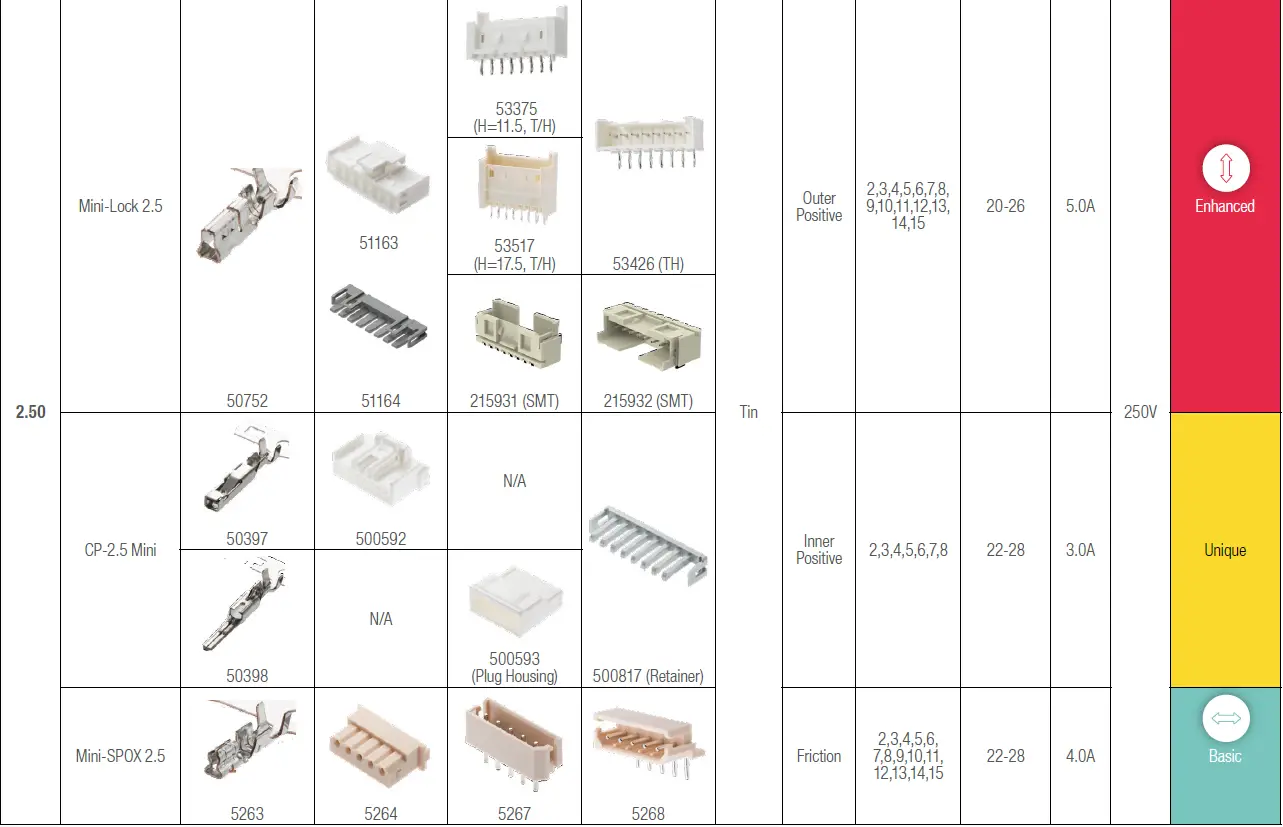

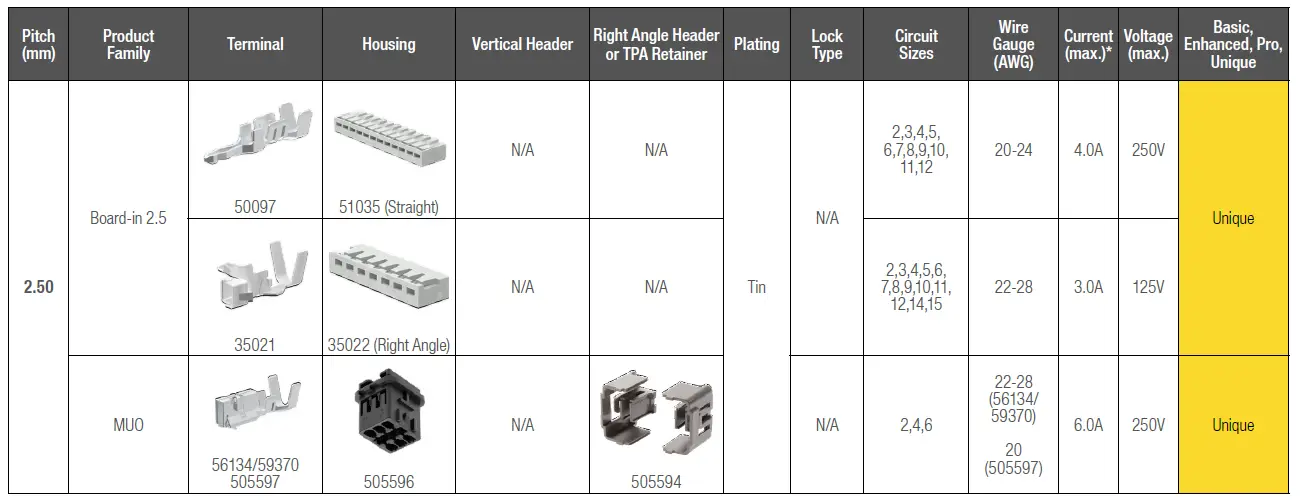

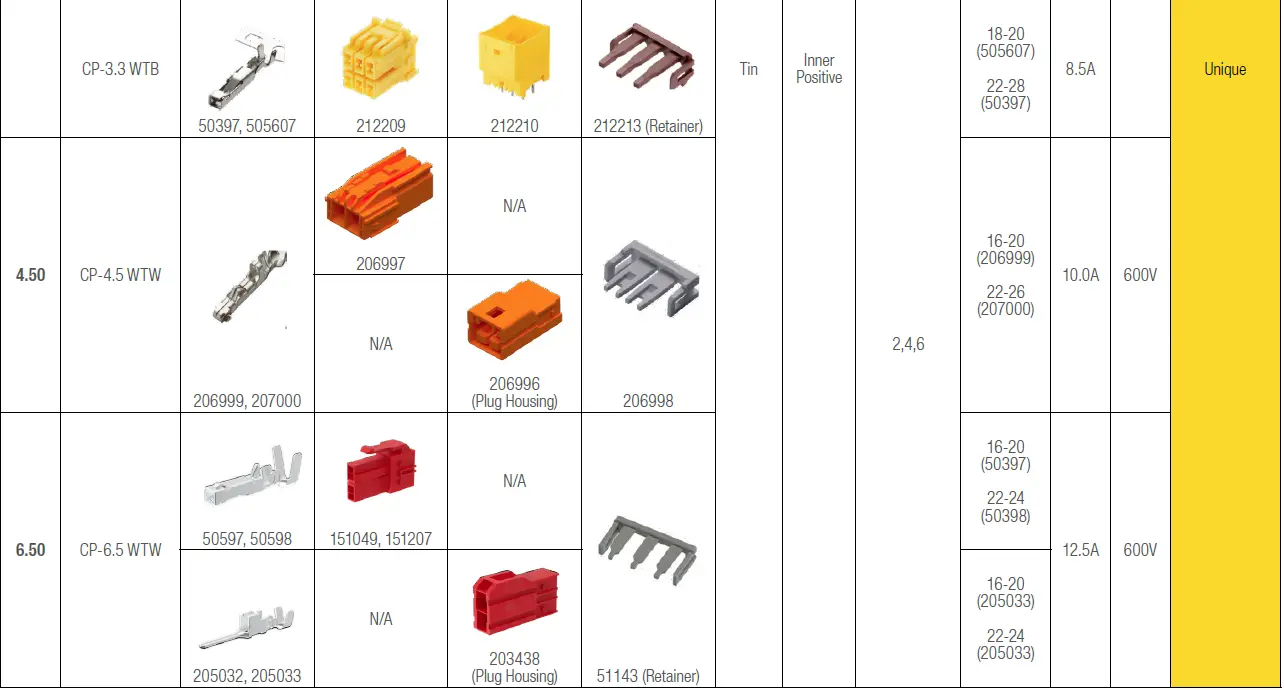

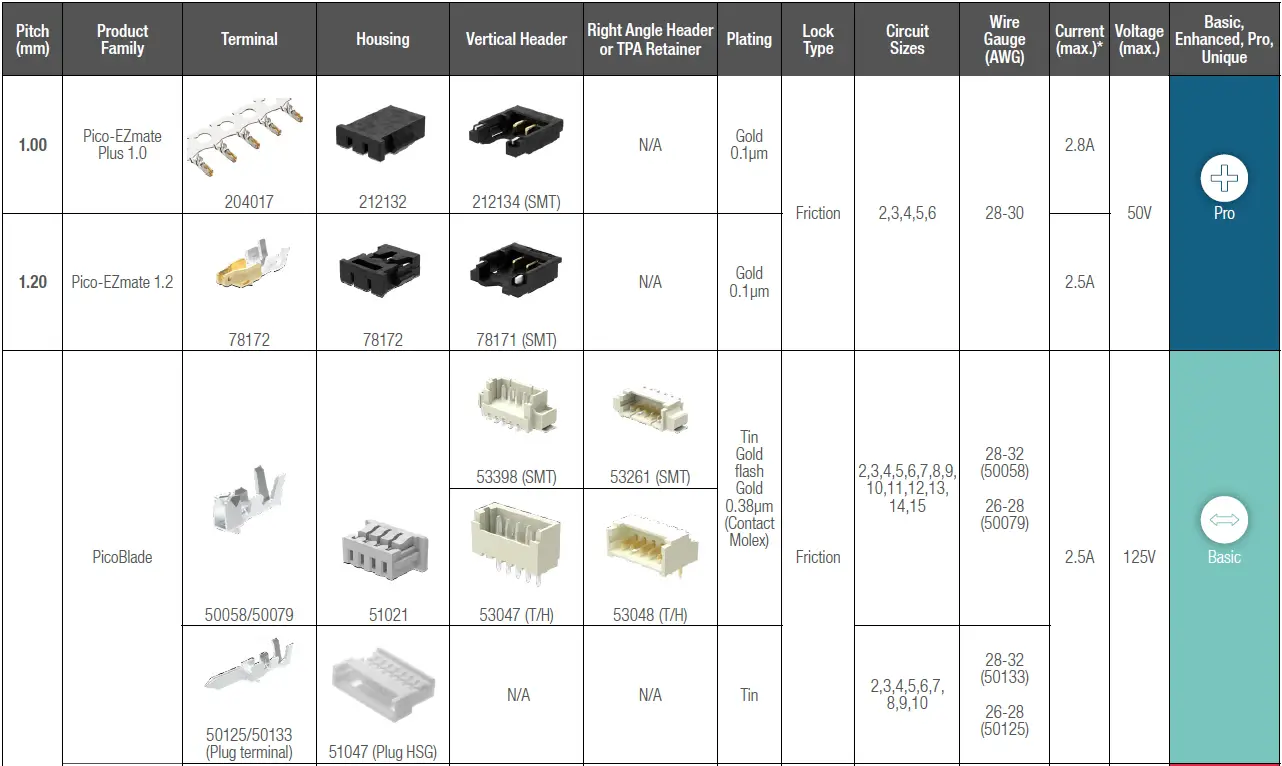

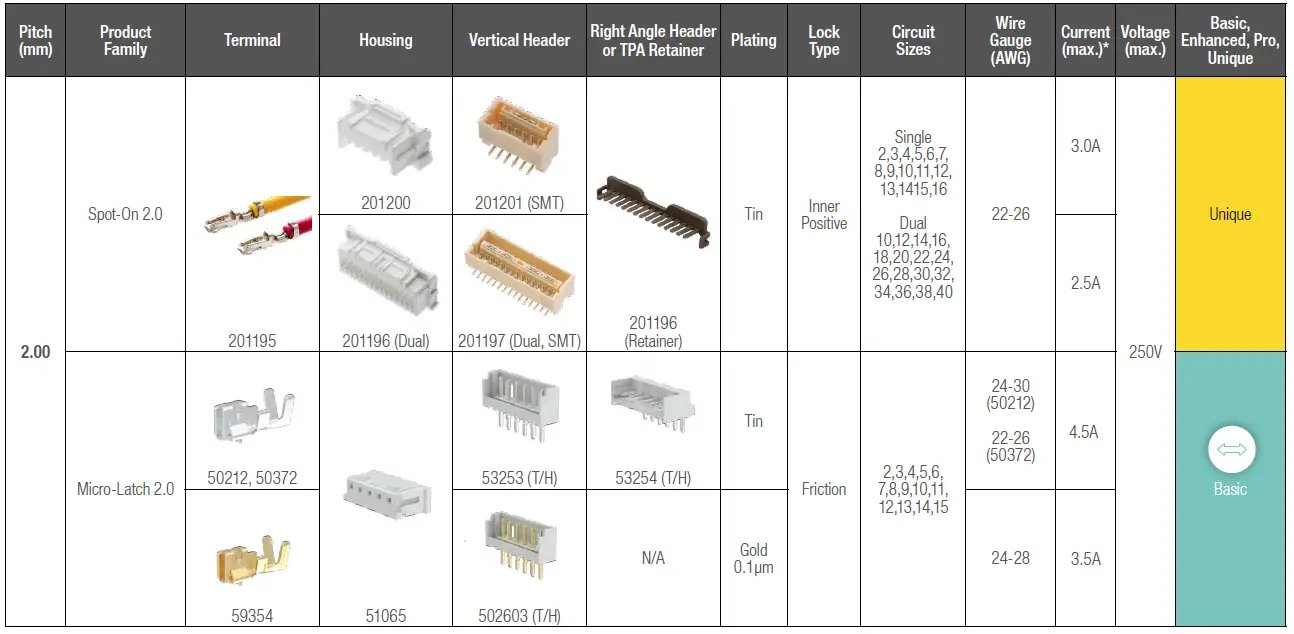

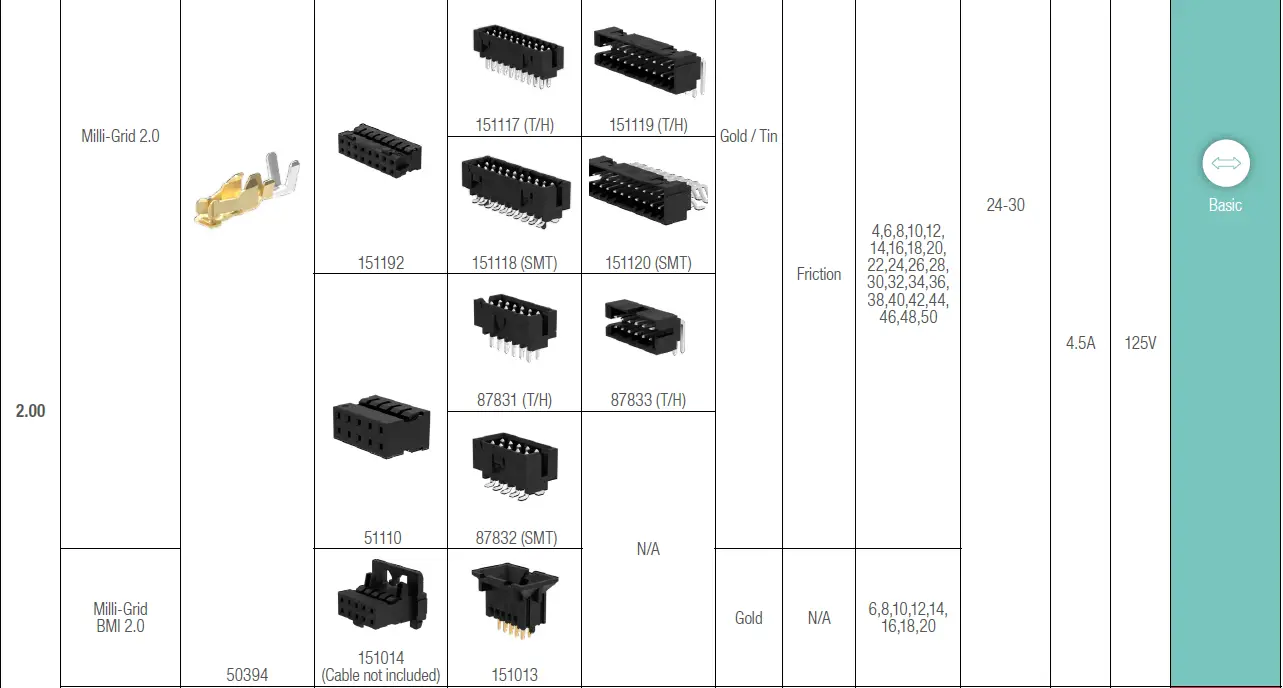

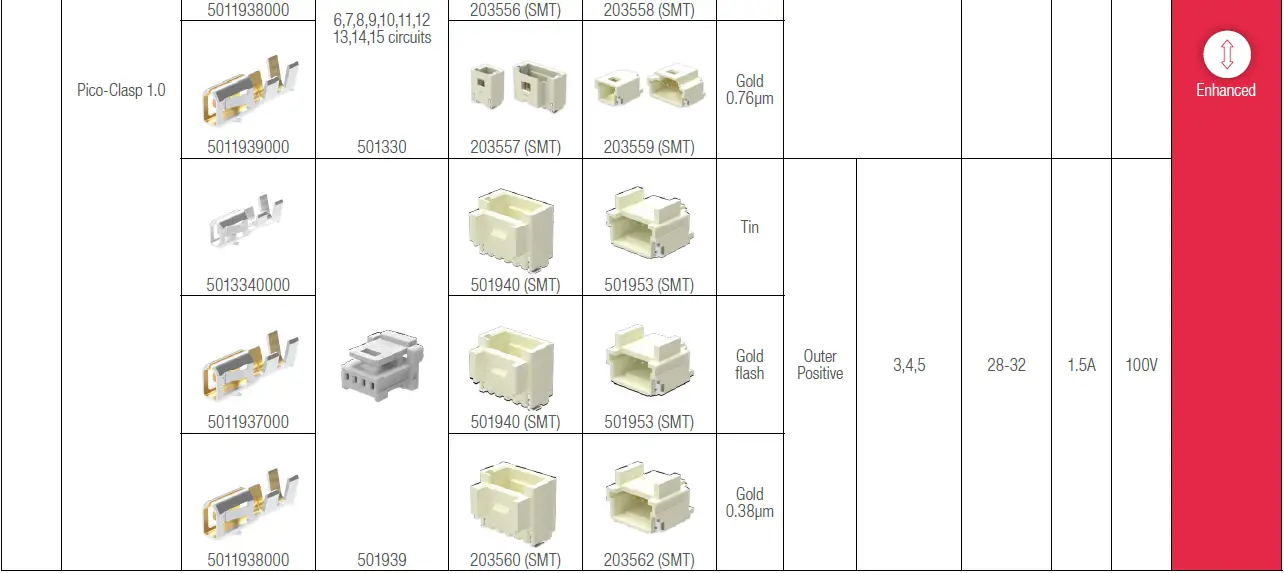

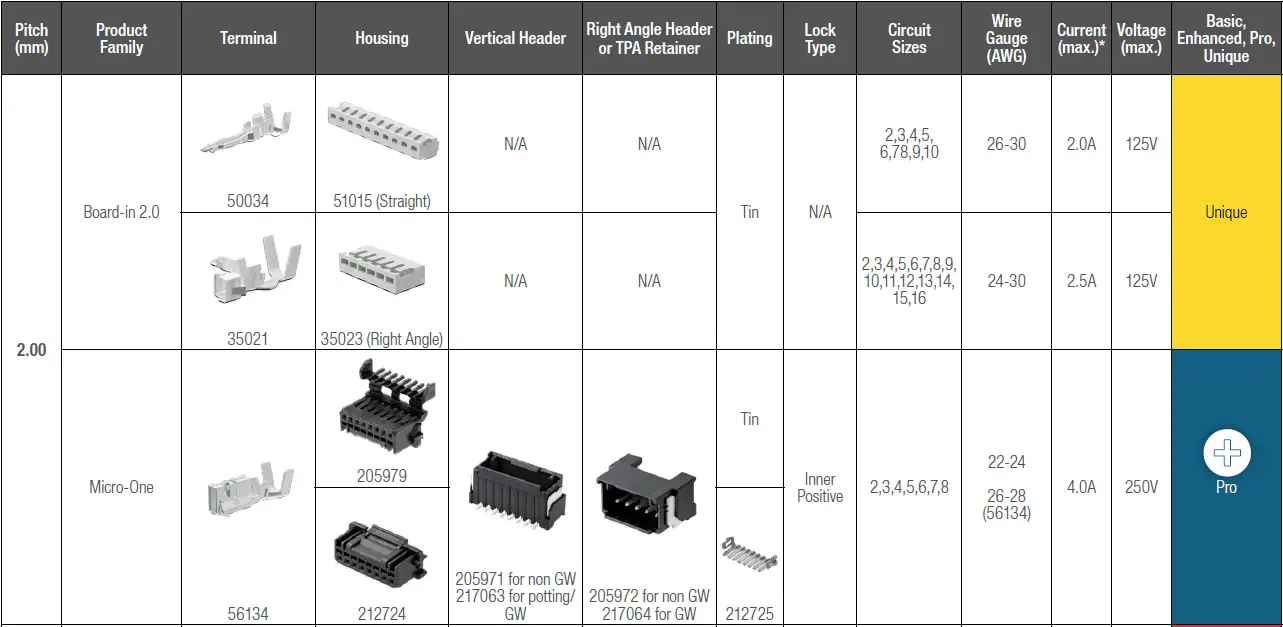

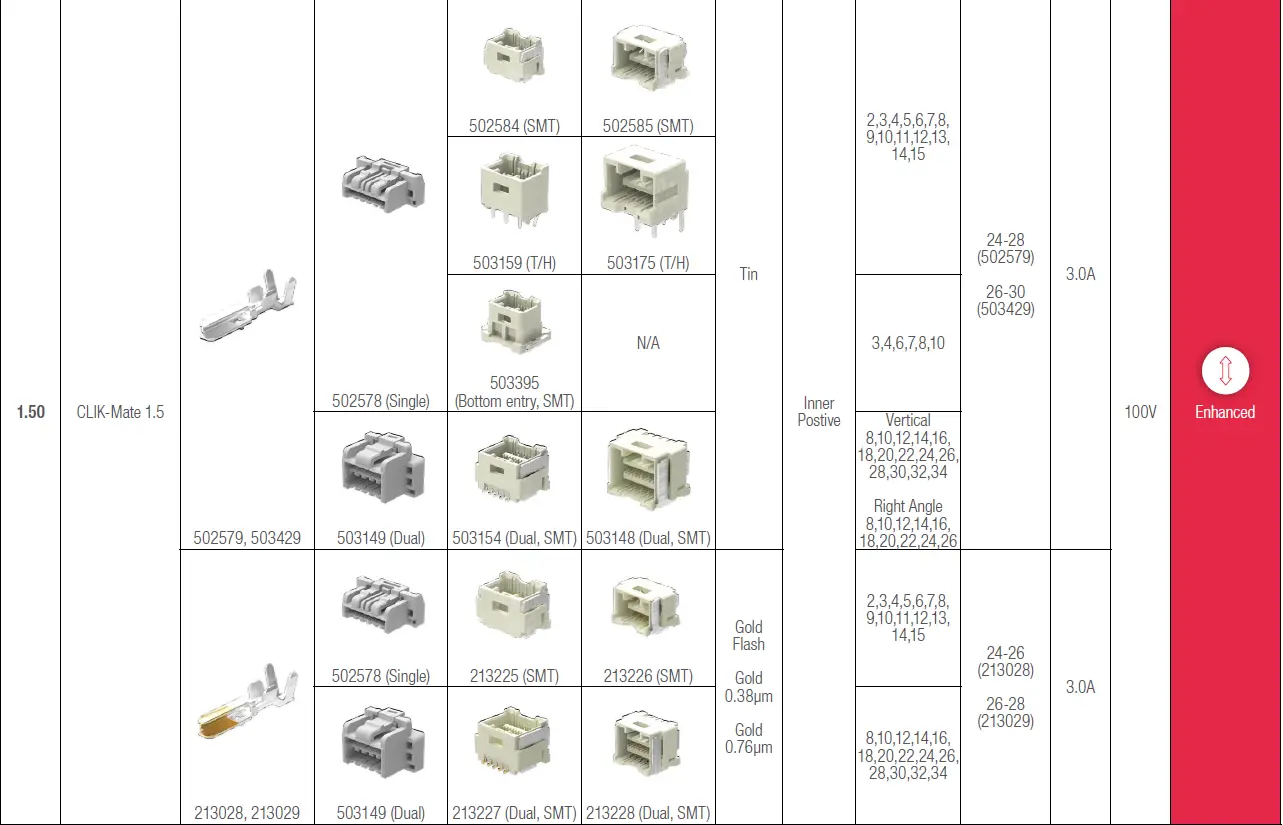

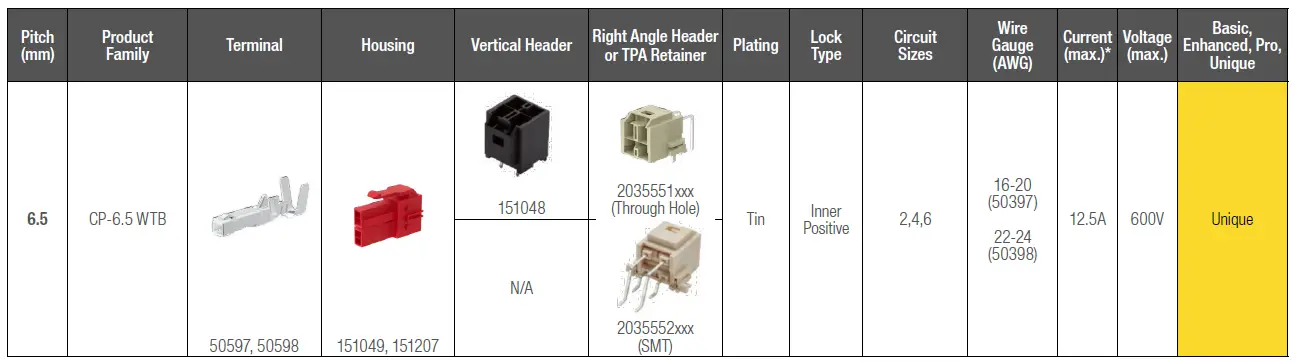

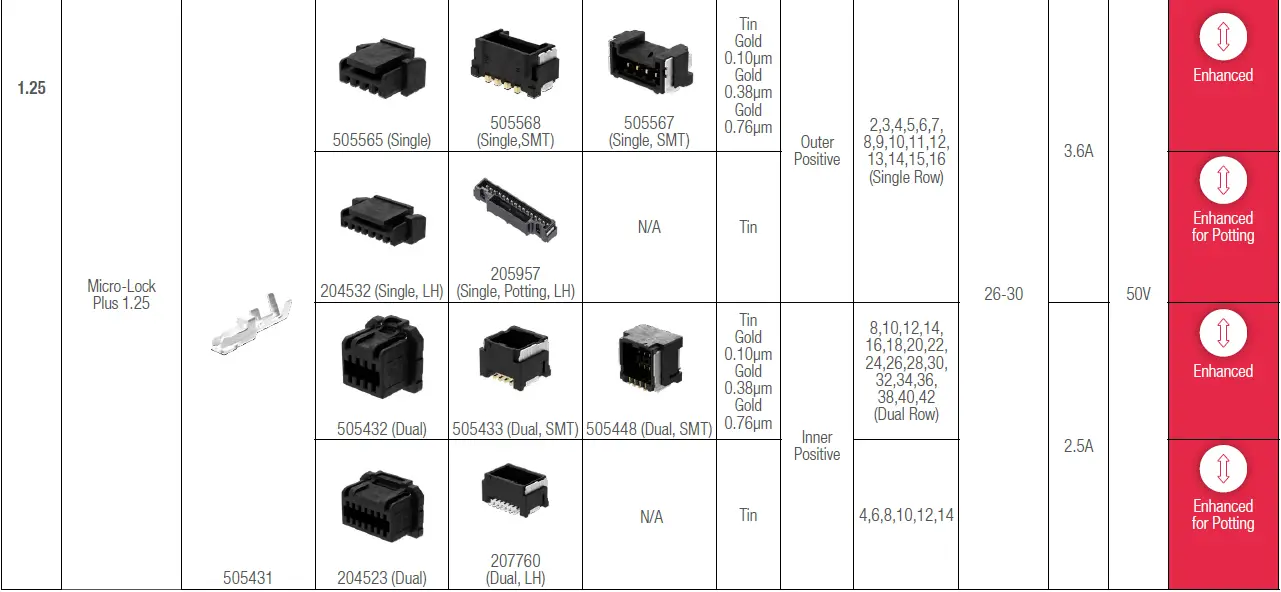

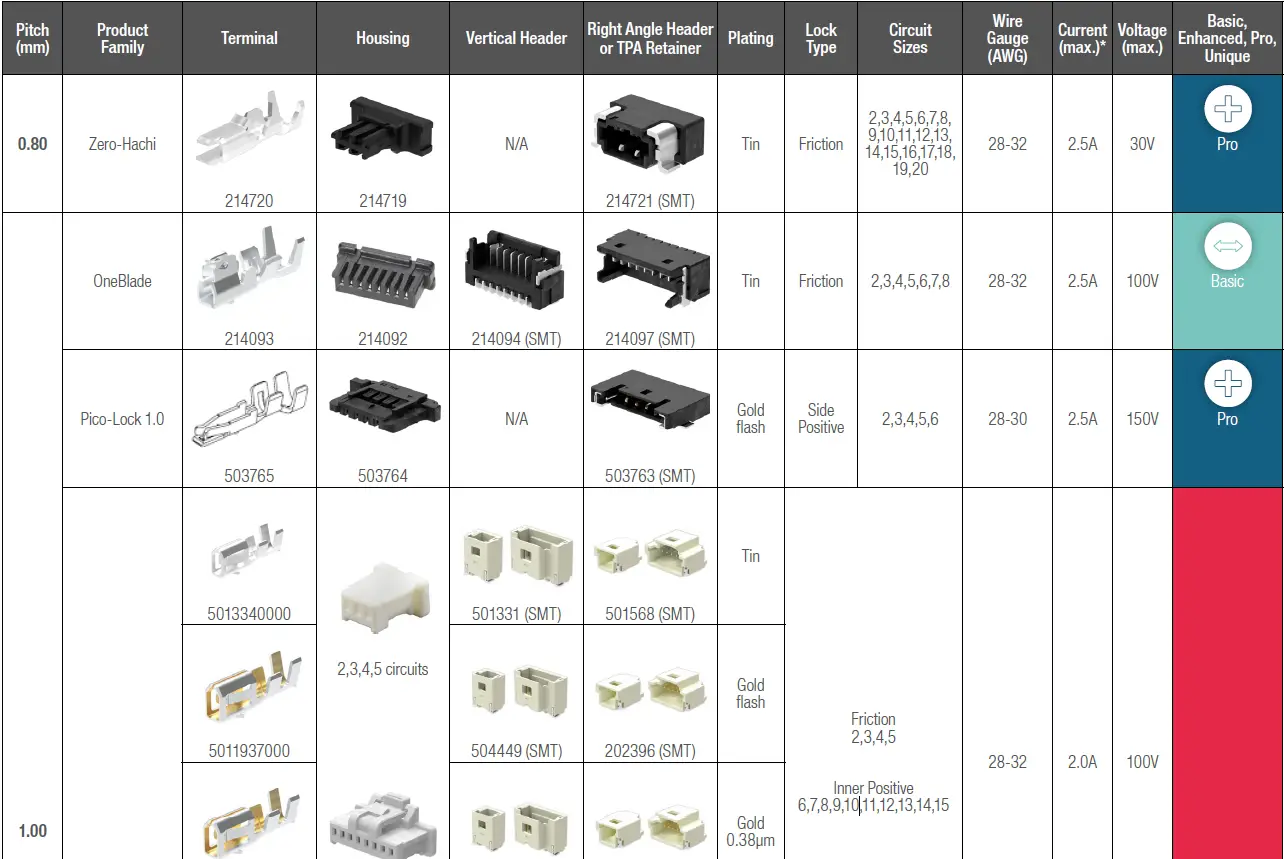

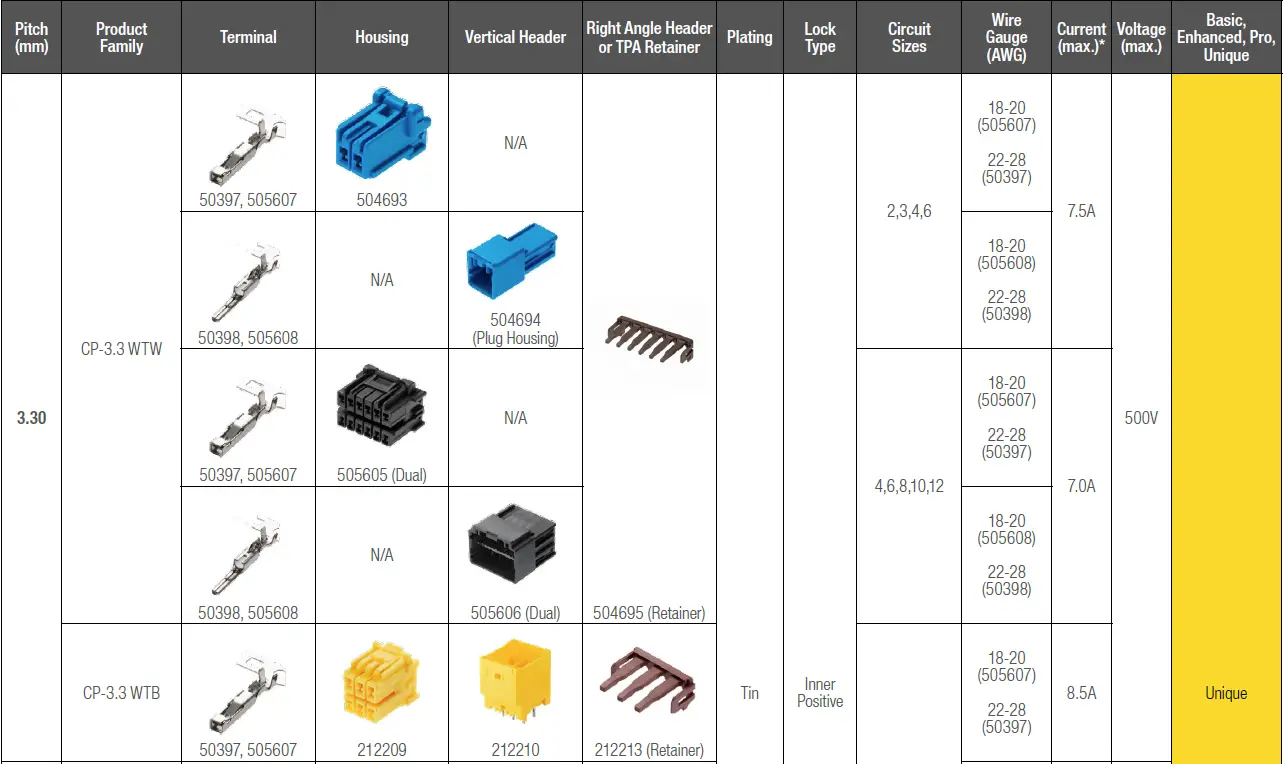

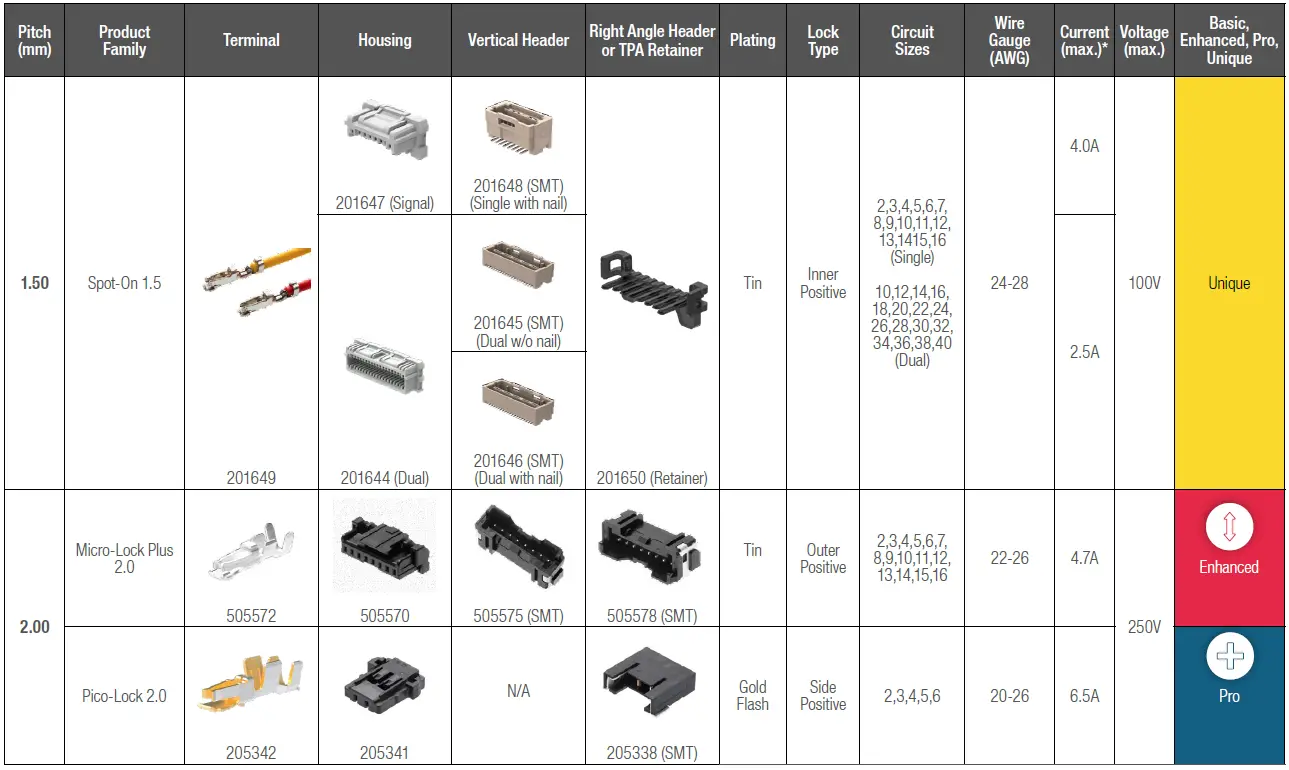

Ordering Information
When using minimum circuit size and maximum wire gauge. Current (max.) is for reference only.
www.molex.com/link/wtb_signal.html
Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners.
