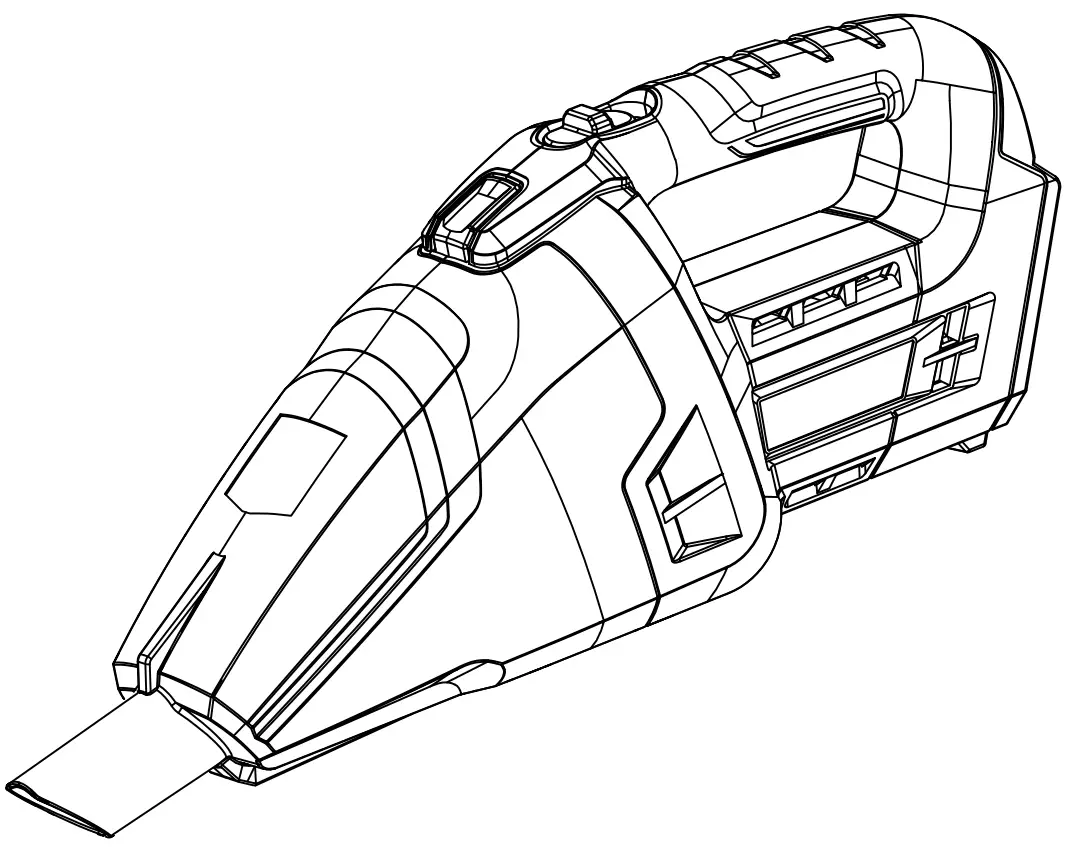

HART vHPHV50 20 Volt Hand Vacuum
REPAIR SHEET
BRAND
HART
MODEL NO.
HPHV50
DESCRIPTION
20 Volt Hand Vac

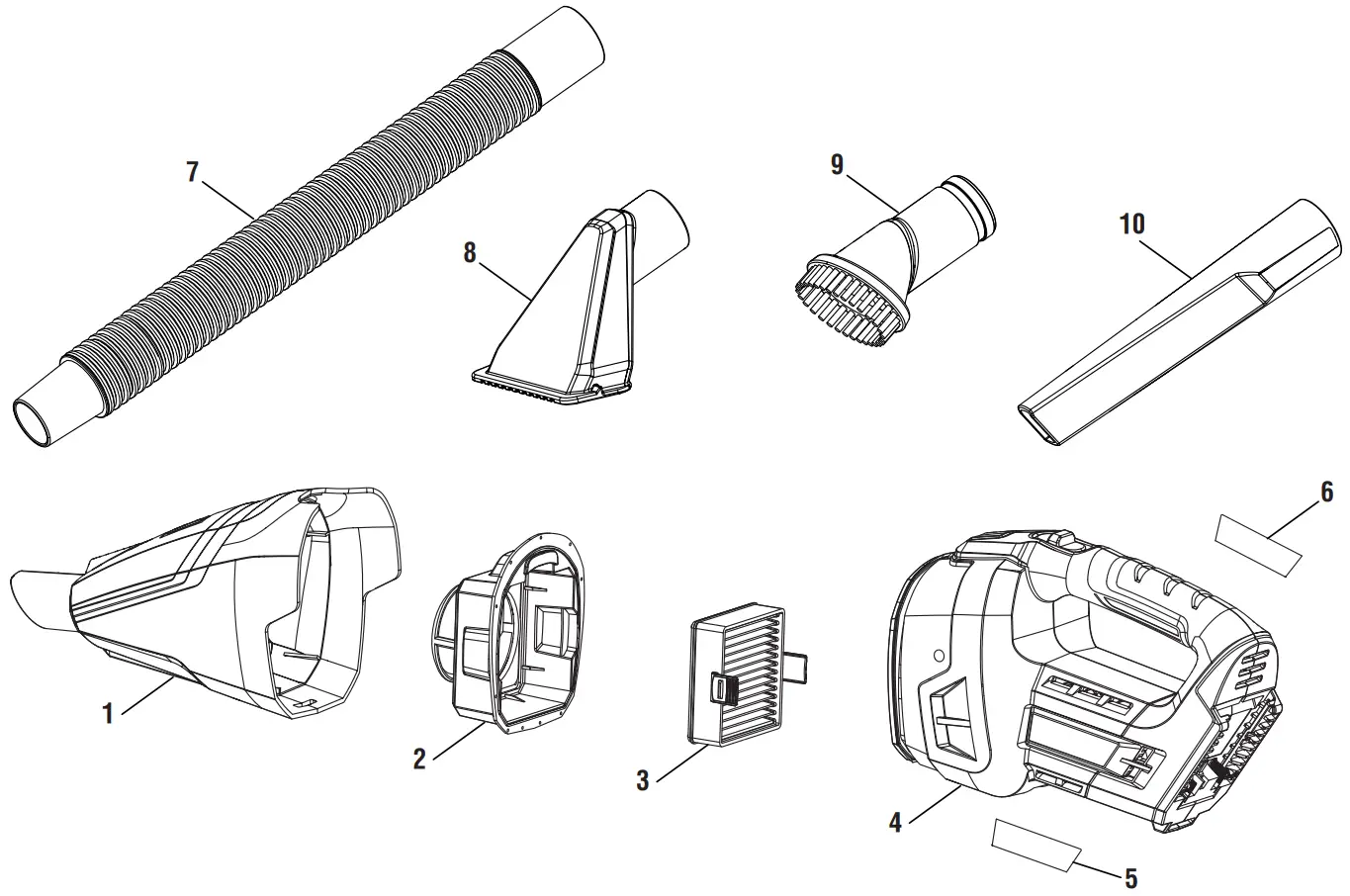

PARTS LIST
1 | 539139001 | Dust Bowl | 1 |
2 | 538597001 | Screen Assembly | 1 |
3 | 533907002 | Filter | 1 |
4-CN | 206951001 | Main Housing Assembly | 1 |
4-VN | 206951003 | Main Housing Assembly | 1 |
5 | 941114252 | Logo Label | 1 |
6-CN | 941122503 | Data Label | 1 |
6-VN | 941123152 | Data Label | 1 |
7 | 315723002 | Extension Nozzle (2 ft.) | 1 |
8 | 536709002 | Utility Nozzle | 1 |
Not Shown: | |||
998000041 | Operator’s Manual (961153101 – CN) (961153352 – VN) |
If a key number has multiple part numbers, please order the part that corresponds with the country of origin shown on the product’s data label. CN = China VN = Vietnam
HART CONSUMER PRODUCTS, INC.
P.O. Box 1348, Anderson, SC 29622 | 1-800-776-5191 | www.HARTtools.com
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.
