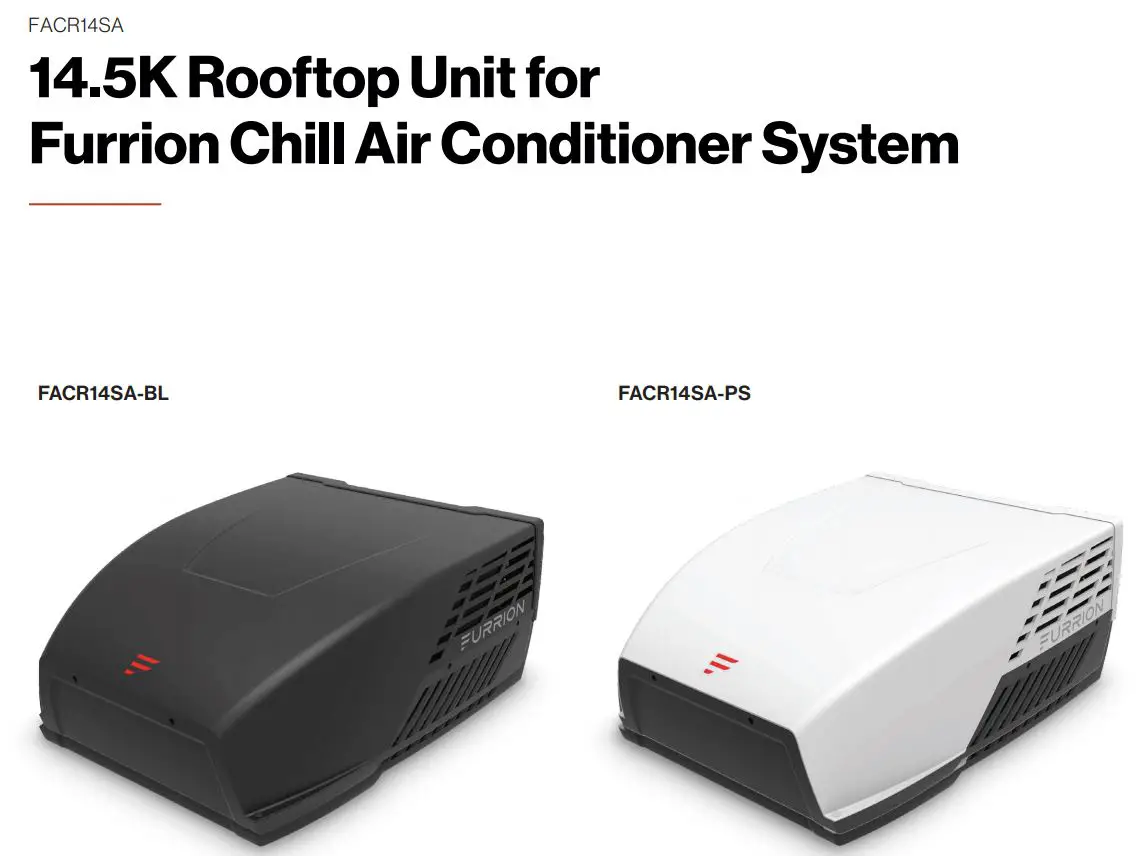

14.5K Rooftop Unit for Furrion Chill
Air Conditioner System User Guide
Main Features
Specifications
Performance
Capacity — 14,500 BTU
EER — 2.13
Set Temperature Range — 60°F to 86°F (16°C to 30°C)
Outdoor Sound Pressure Level — 80dB
IP class — IP24
Refrigerant — R410A
Electrical
Volts/Frequency/Phase — 115V/60Hz/1Ph
Power (Cooling) — 1,620 Watts
Amps (Cooling) — 14.6
Features
Eco-friendly Refrigerant — ✓
Rubber Damper — ✓
Dual Fan Motors — ✓
Thermo-insulated Heat — ✓
Exchanger Enclosure
3 Fan Speeds (High/Med/Low) — ✓
Overload Protection — ✓
Dimensions & Weight

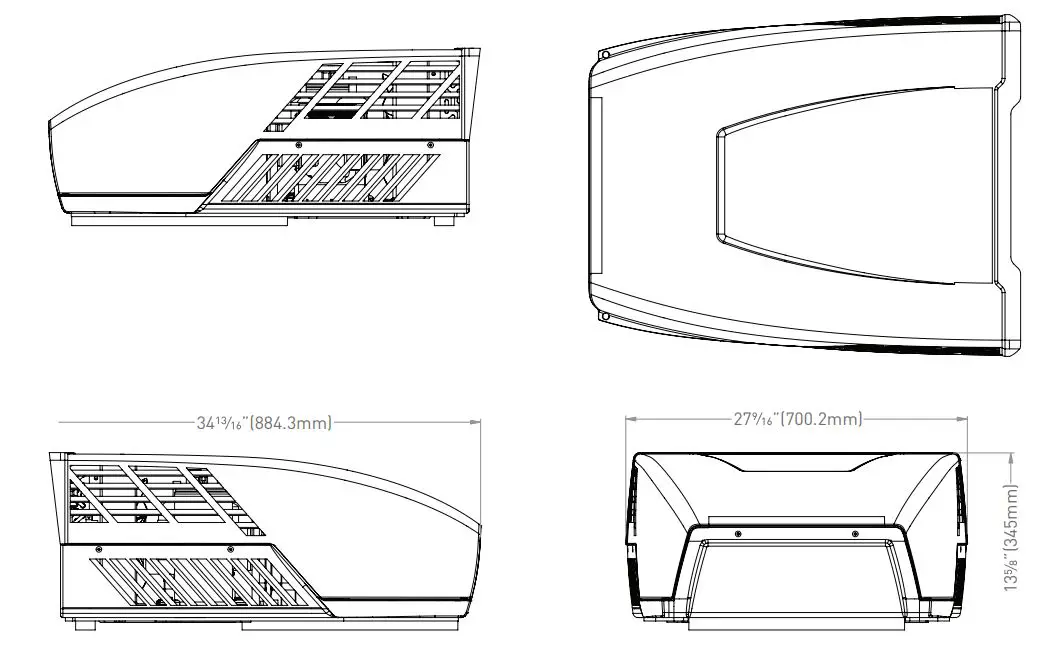

Product Dimension (WxHxD) — 27.56 x 13.62 x 34.81″
(700.2 x 345 x 884.3mm)
Packaging Dimension (WxHxD) — 35.69 x 28.44 x 15.5″
(906 x 722 x 393mm)
Net Weight (lbs/kg) — 79.4 / 36
Gross Weight (lbs/kg) — 88.2 / 40
Container Load Information
20′ Container Load (pcs) — 120
40′ Container Load (pcs) — 252
40’HQ Container Load (pcs) — 252

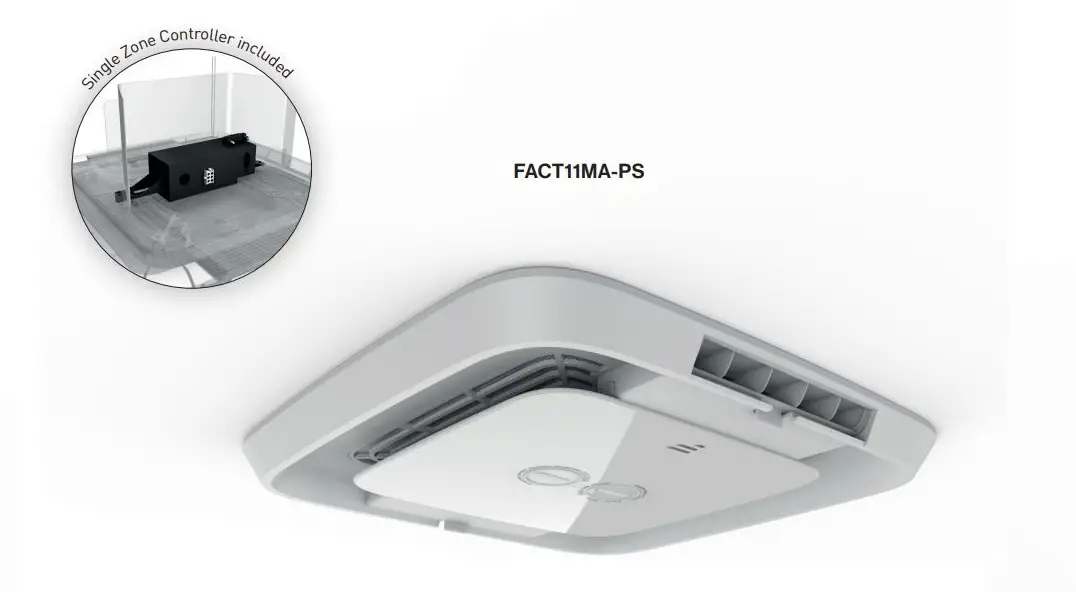

FACT11MA
Air Distribution Box with Manual Control for Furrion Chill Air Conditioner System
Main Features
Air Distribution Box
Single/Multi-Zone Controller
Specifications
Air Distribution Box
Mechanical Control — 8 positions
Two Way Air Outlet — ✓
Indoor Sound Pressure Level — 60dB
Controller
Input Power — AC 115V
Frequency — 60Hz
Compressor & Condenser Fan — AC 115V/20A
3 Evaporator Fan Motor Relay — AC 115V/5A
Temperature Range — 64.4°F to 86°F (18°C to 30°C)
Container Load Information
Air Distribution Box
20′ Container Load (pcs) — 836
40′ Container Load (pcs) — 1,704
40’HQ Container Load (pcs) — 1,955
Single/Multi-Zone Controller
40’HQ Container Load (pcs) — 37,240
Dimensions & Weight

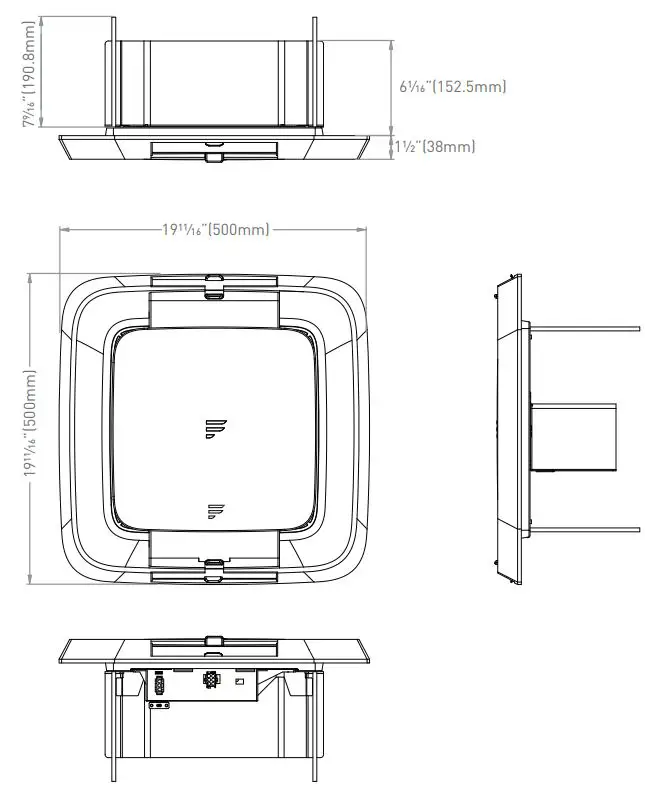

Air Distribution Box
Product Dimension (WxHxD) — 19.69 x 13.62 x 19.69″ (500 x 242.6 x 500mm)
Packaging Dimension (WxHxD) — 20.44 x 20.5 x 5.38″ (530 x 520 x 135mm)
Net Weight (lbs/kg) — 6.7 / 3
Gross Weight (lbs/kg) — 8.6 / 3.9

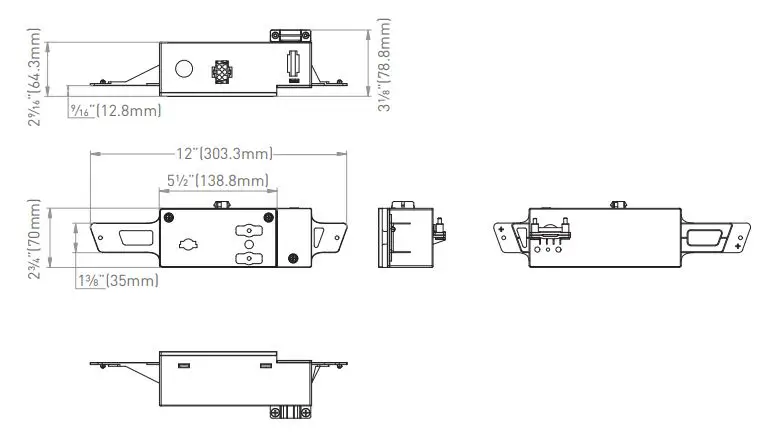

Single Zone Controller
Product Dimension (WxHxD) — 12 x 3.13 x 2.75″ (303.3 x 78.8 x 70mm)
Packaging Dimension (WxHxD) — 25 x 12.44 x 13.44″ (635 x 315 x 340mm)
Net Weight (lbs/kg) — 30.9 / 14
Gross Weight (lbs/kg) — 33.1 / 15
* Note: “”=Equipped
