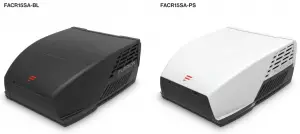

15.5K Rooftop Unit for Furrion Chill Air Conditioner System
15.5K Rooftop Unit
Main Features
Specifications
Performance | |
| Capacity | 15,500 BTU |
| EER | 2.19 |
| Set Temperature Range | 60°F to 86°F (16°C to 30°C) |
| Outdoor Sound Pressure Level | 80dB |
| IP class | IP24 |
| Refrigerant | R410A |
Electrical | |
| Volts/Frequency/Phase | 115V/60Hz/1Ph |
| Power (Cooling) | 1,720 Watts |
| Amps (Cooling) | 15.4 |
Features
| Eco-friendly Refrigerant | √ |
| Rubber Damper | √ |
| Dual Fan Motors | √ |
| Thermo-insulated Heat | √ |
| Exchanger Enclosure | |
| 3 Fan Speeds (High/Med/Low) | √ |
| Overload Protection | √ |

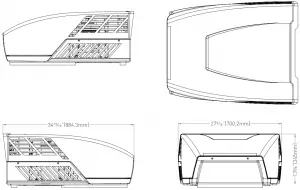

Dimensions & Weight
| Product Dimension (WxHxD) | 27.56 x 13.62 x 34.81″ (700.2 x 345 x 884.3mm) |
| Packaging Dimension (WxHxD) | 35.69 x 28.44 x 15.5″ (906 x 722 x 393mm) |
| Net Weight (lbs/kg) | 81.6 / 37 |
| Gross Weight (lbs/kg) | 90.4 / 41 |
Container Load Information
| 20′ Container Load (pcs) | 120 |
| 40′ Container Load (pcs) | 252 |
| 40’HQ Container Load (pcs) | 252 |
Air Distribution Box
Main Features
Air Distribution Box
Single/Multi Zone Controller
Specifications
Air Distribution Box | |
| Mechanical Control | 8 positions |
| Two Way Air Outlet | √ |
| Indoor Sound Pressure Level | 60dB |
Controller | |
| Input Power | AC 115V |
| Frequency | 60Hz |
| Compressor & Condenser Fan | AC 115V/20A |
| 3 Evaporator Fan Motor Relay | AC 115V/5A |
| Temperature Range | 64.4°F to 86°F (18°C to 30°C) |
Container Load Information
Air Distribution Box | |
| 20′ Container Load (pcs) | 836 |
| 40′ Container Load (pcs) | 1,704 |
| 40’HQ Container Load (pcs) | 1,955 |
Single/Multi Zone Controller | |
| 40’HQ Container Load (pcs) | 37,240 |

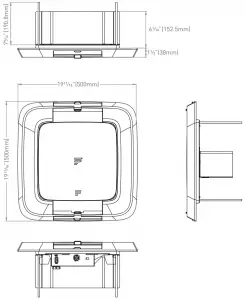

Dimensions & Weight
Air Distribution Box | |
| Product Dimension (WxHxD) | 19.69 x 13.62 x 19.69″ (500 x 242.6 x 500mm) |
| Packaging Dimension (WxHxD) | 20.44 x 20.5 x 5.38″ (530 x 520 x 135mm) |
| Net Weight (lbs/kg) | 6.7 / 3 |
| Gross Weight (lbs/kg) | 8.6 / 3.9 |

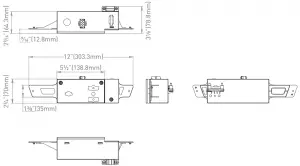

Single Zone Controller | |
| Product Dimension (WxHxD) | 12 x 3.13 x 2.75″ (303.3 x 78.8 x 70mm) |
| Packaging Dimension (WxHxD) | 25 x 12.44 x 13.44″ (635 x 315 x 340mm) |
| Net Weight (lbs/kg) | 30.9 / 14 |
| Gross Weight (lbs/kg) | 33.1 / 15 |
* Note: “√”=Equipped
Customer Service & Technical Support:
Email: [email protected]
Tel : (888) 354 5792
Web: www.furrion.com
