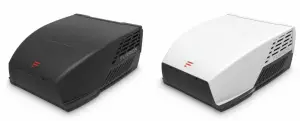

FACR15SA FACR15SA-BL FACR15SA-PS 15.5K Rooftop unit for Furrion Chill Air Conditioner System User Guide
Features
- ULTRA QUIET
- EASY INSTALL
- HIGH ENERGY EFFICIENC
- AERODYNAMIC DESIGN
- PROFILE
- HIGH COOLING CAPACITY
- UV RESISTANT
- LIGHTWEIGHT
- VIBRATIONSMARTTM
- CLIMATESMARTTM
- AVAILABLE IN BLACK OR WHITE
- Advanced cooling performance
- Fit for manual and electronic air distribution box
- Dual fans run more efficiently and reduce operating noise
- Cleanable and replaceable air filter
- Available in stylish black and white options
- Fit for ducted or non-ducted cooling systems
- Aerodynamic rooftop design reduces wind resistance
- UV resistant cover, base and rear grill

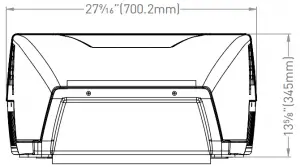

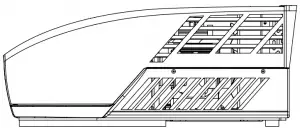

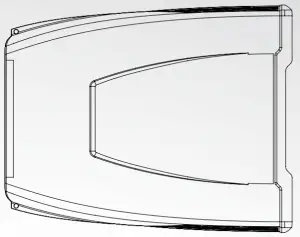

Demission
Specifications
| Performance | |
| Capacity | 3760W |
| EER | 2.19 |
| Set Temperature Range | 60°F to 86°F/16°C to 30°C |
| Outdoor Sound Pressure Level | 80dB |
| Outdoor Sound Pressure Level | IP24 |
| Refrigerant | R410A |
| Electrical | |
| Volts/Frequency/Phase | 115V/60Hz/1Ph |
| Power (Cooling) | 1720Watts |
| Amps (Cooling) | 15.4 |
Features
| Eco-friendly Refrigerant | √ |
| Rubber Damper | √ |
| Dual Fan Motors | √ |
| Thermo-insulated Heat Exchanger Enclosure | √ |
| 3 Fan Speeds (High/Med/Low) | √ |
| Overload Protection | √ |
Packaging Information
| Packaging Type | Master Carton Box |
| Quantity Per Box (pcs | 1 |
| Individual Packaging Dimensions (W x H x D) | 3511⁄16” x 287⁄16” x 151⁄2” (906 x 722 x 393mm |
| Individual Packaging Gross Weight (lbs/kg | 90.4 / 41 |
| Individual Packaging Net Weight (lbs/kg) | 81.6 / 37 |
Container Load Information
| 20′ Container Load (pcs) | 120 |
| 40′ Container Load (pcs) | 252 |
| 40’HQ Container Load (pcs) | 252 |
