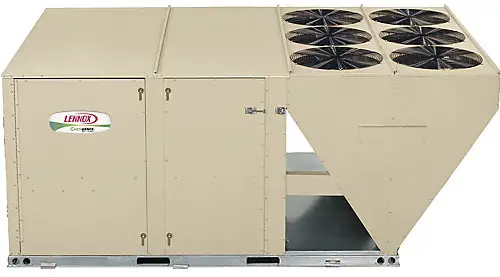

LENNOX 360 20-to 30-Ton Packaged Rooftop Units User Guide
20- to 30-Ton Packaged Rooftop Performance Data (Gas or Electric Heat)
| Size(Tons) | 20 Ton | 25 Ton | 25 Ton | 30 Ton | 30 Ton |
| Efficiency | High | High | High | High | High |
| Model Number | LCH / LGH 242H4V | LCH / LGH 300H4V | LCH / LGH 300H4M | LCH / LGH 360H4V | LCH / LGH 360H4M |
| Blower Type | VAV | VAV | MSAV | VAV | MSAV |
| Net Cooling Capacity (Btuh) | 238,000 | 300,000 | 300,000 | 350,000 | 350,000 |
| Cooling Stages | 4 | 4 | 4 | 4 | 4 |
| Nominal Supply Air (cfm) | 6800 | 8100 | 8100 | 8600 | 8600 |
| IEER | 15.5 | 14.3 | 14.4 | 13.5 | 14.0 |
| EER | 12.3 (LGH) 12.5 (LCH) | 11.6 | 11.6 | 10.6 (LGH) 10.8 (LCH) | 10.6 (LGH) 10.8 (LCH) |
| Gas Heat Size, (kBtuh)( stages) | 260 (4) 360 (4) 480 (4) | 260 (4) 360 (4) 480 (4) | 260 (4) 360 (4) 480 (4) | 260 (4) 360 (4) 480 (4) | 260 (4) 360 (4) 480 (4) |
| Electric Heat Size (kW) | 30, 45, 60, 90, 120 | ||||
| Blower Motor Size (HP) | 5, 7.5, 10 | 5, 7.5, 10 | 5, 7.5, 10 | 5, 7.5, 10 | 5, 7.5, 10 |
| Net. Weight (lbs.) G/E | 3,107 | 3,107 | 3,107 | 3,107 | 3,107 |
| Net. Weight (lbs.) E/E | 2,997 | 2,997 | 2,997 | 2,997 | 2,997 |
| Weight—Shipping (lbs.) G/E | 3,317 | 3,317 | 3,317 | 3,317 | 3,317 |
| Weight—Shipping (lbs.) E/E | 3,207 | 3,207 | 3,207 | 3,207 | 3,207 |
| Cabinet Size—H x W x L (in.) | 65 x 91 x 145 | ||||
| Filter (Quantity/Size ) | (12) 20 x 20 x 2 | ||||
| Sound (dBA) | 95 | 95 | 95 | 95 | 95 |
Unit MCA & MOCP Electrical Data (Standard Indoor Fan Motor)
| LGH/LCH | Voltage | HP | MCA | MOCP |
| 242H | 208-230/3 | 7.5 | 99 | 110 |
| 460/3 | 7.5 | 54 | 60 | |
| 575/3 | 7.5 | 38 | 45 | |
| 300H | 208-230/3 | 7.5 | 135 | 150 |
| 460/3 | 7.5 | 64 | 70 | |
| 575/3 | 7.5 | 49 | 50 | |
| 360H | 208-230/3 | 7.5 | 145 | 150 |
| 460/3 | 7.5 | 71 | 80 | |
| 575/3 | 7.5 | 54 | 60 |
| Factory- and Field-Installed Options | |||||||
| Option | Factory | Field | Option | Factory | Field | ||
| Cooling | Indoor air quality | ||||||
| Drain Pan Overflow Switch | • | • | MERV 8 Filters | • | • | ||
| PVC or Copper Condensate Drain Trap | • | • | MERV 13 Filters | • | • | ||
| Stainless Steel Condensate Drain Pan | • | • | MERV 16 Filters | • | |||
| Blower | Replacement Media Filter with Metal Mesh | • | |||||
| IAQ (CO2) Sensors | • | ||||||
| Blower – Supply Air Motors | • | ||||||
| Electrical | |||||||
| Blower – Supply Air Drive Kits | • | ||||||
| Heating | Electrical Voltage | • | |||||
| Disconnect Switch | • | • | |||||
| Combustion Air Intake Extensions | • | ||||||
| GFI Service Outlets | • | • | |||||
| Gas Heat Input | • | ||||||
| Weatherproof Cover for GFI | • | ||||||
| Low Temperature Vestibule Heater | • | ||||||
| Phase Monitor | • | ||||||
| LPG/Propane Conversion Kits | • | ||||||
| Electric Heat | • | • | |||||
| Stainless Steel Heat Exchanger | • | ||||||
| SCR (Silicon Controlled Rectifier) Electric Heat Control4 | • | ||||||
| Vertical Vent Extension | • | ||||||
| Cabinet | Economizer | ||||||
| Combination Coil/Hail Guards | • | Economizer – Downflow or Horizontal with Barometric Relief | • | • | |||
| Corrosion Protection (indoor coil/outdoor coil) | • | ||||||
| Economizer Controls – Sensible | • | ||||||
| Controls | |||||||
| Economizer Controls – Single Enthalpy | • | • | |||||
| CS3000, CS7500, and CS8500 Commercial Thermostats | • | Economizer Controls – Differential Enthalpy | • | • | |||
| Economizer Controls – Global Control | • | ||||||
| Blower Proving Switch | • | • | |||||
| Downflow or Horizontal Barometric Relief Dampers- Hood Furnished | • | • | |||||
| BACnet® Module | • | • | |||||
| LonTalk® Module | • | • | Outdoor air | ||||
| Novar® LSE | • | ||||||
| Manual Outdoor Air Dampers | • | ||||||
| L Connection® Building Automation System | • | ||||||
| Motorized Outdoor Air Dampers | • | • | |||||
| Dirty Filter Switch | • | • | |||||
| Power exhaust | |||||||
| Fresh Air Tempering | • | • | |||||
| High Static with VFD | • | ||||||
| Smoke Detector Supply and/or Return | • | • | |||||
| Supply Static Limit Switch | • | High Static with VFD and Bypass | • | ||||
| Discharge Air Temperature Sensor | • | Standard Static | • | • | |||
| Humiditrol condenser reheat | |||||||
| Humiditrol® Dehumidification System | • | ||||||
| Humiditrol Sensor Kit, Remote mounted | • | ||||||
| Roof curbs/ceiling diffusers | |||||||
| Roof Curbs | • | ||||||
| Ceiling Diffusers | • | ||||||

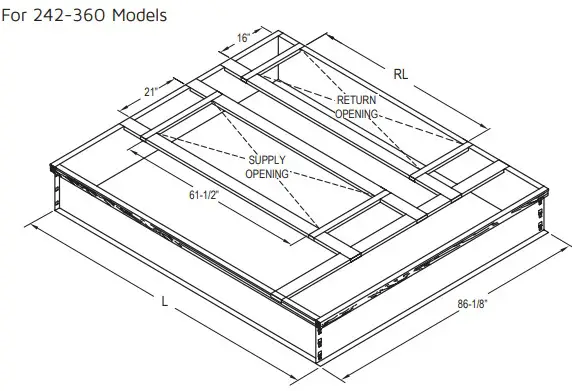

| Model No. | Length | Return Air |
| L | RL | |
| 242 to 360 | 115-1/8 | 79-1/2 |
Visit us at www.lennox.com For the latest technical information, www.lennoxcommercial.com Contact us at 1-800-4-LENNOX
©2023 Lennox Industries, Inc. (14G47) 3/23 PC92164
