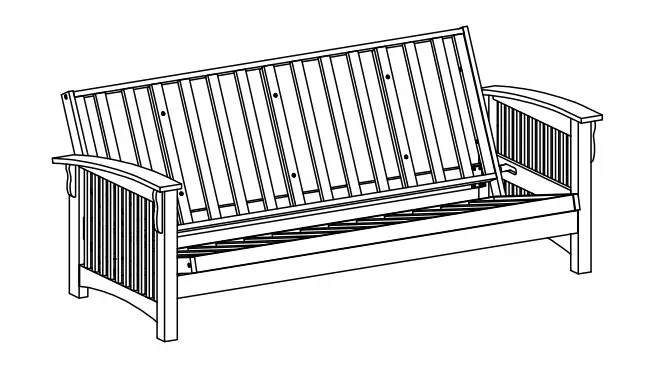

All Wood Futon Frame
Natural Oak Color
2302359
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE
If parts are missing or damaged, we will gladly ship your replacement parts free of charge. Visit www.dhpfumiture.com/eng/replacement-parts or call Toll-Free at 1-800-267-1739
https://helpcenter.dhpfurniture.com/hc/en-us
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Read Before Beginning Assembly
- Call our toll free number if you need
- Work in a spacious area and near where the unit will be used, preferably on a carpet, or use a piece of the cardboard packaging to protect your floor and
- Recommended # of people needed for assembly: 2 (however it is always better to have an extra hand). The estimated assembly time is 1 h 30 min.
- Make sure all parts are included. Most parts are labeled or stamped on the raw edge.
- Read each step It is very important that each step of the instructions is performed in the correct order. If these steps are not followed in sequence, assembly difficulties will occur.
- You can visit our site https://helpcenter.dhpfurniture.com (Scan below QR-code if you possess a smartphone or tablet) for assembly videos and more!
https://helpcenter.dhpfurniture.com/hc/en-us
Caution
- This product is designed for home use and not intended for commercial
- This product contains small Please ensure that they are kept away from small children.
- Do not use power tools to assemble your Power tools that may strip or damage the parts.

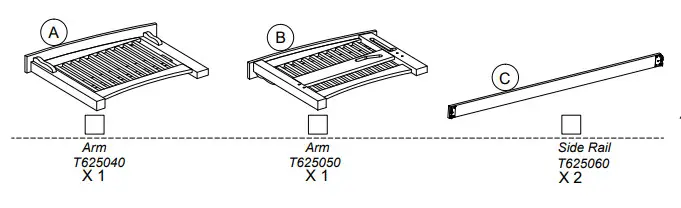

Parts
Replacement Part. Visit www.dhpfurniture.com/eng/replacement-parts
All in 02 box
√ Before you throw the package, please use the Check box to identify the parts and ensure that you have all the parts needed for the assembly.

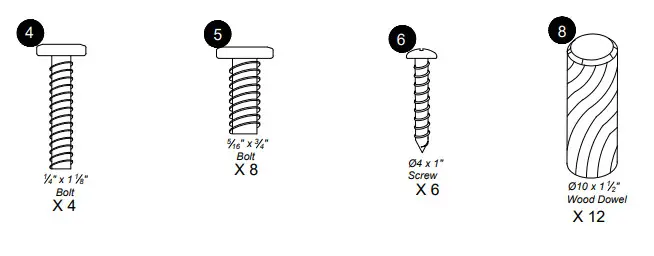

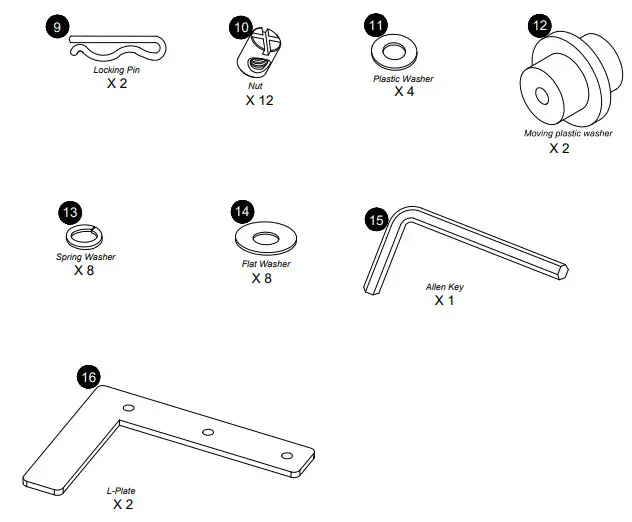

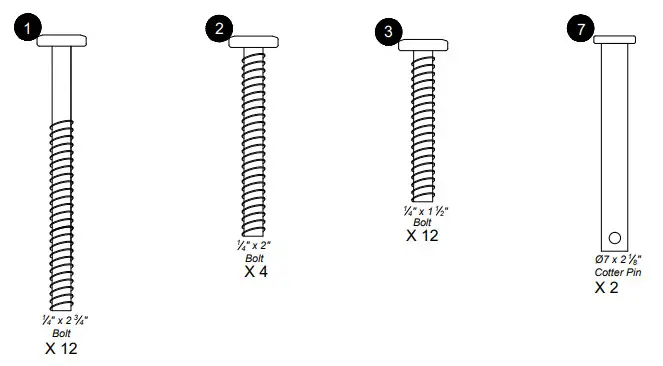

Hardware Pack
Hardware Pack #: T2302359-00
Color: Zinc.
Please do not completely tighten all the hardware until the entire assembly is complete unless otherwise indicated in the step-by-step instruction.
The Screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.

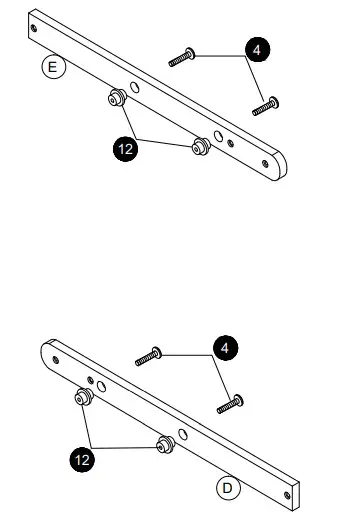

Step 1
Attach the
to the part D and E with
as shown.

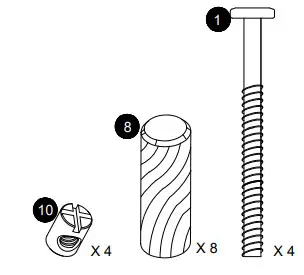

Step 2

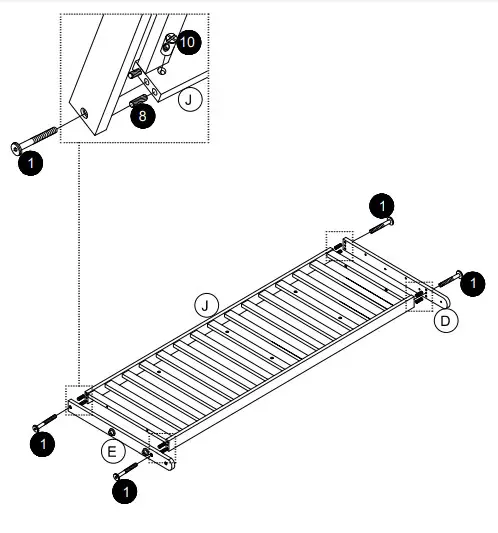

Attach the part D & E to J with
the,
and
as shown.
Step 3

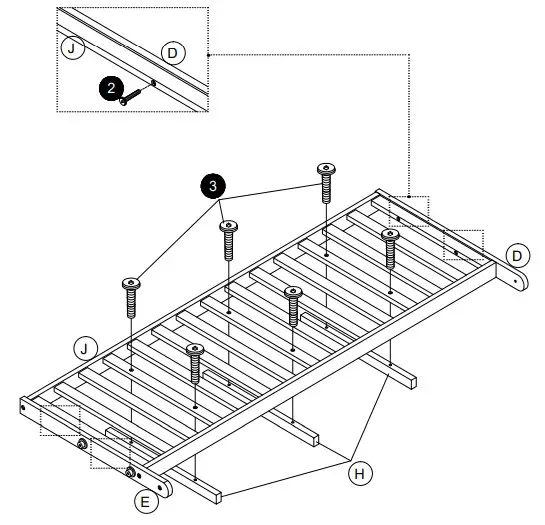

Attach H×3 to J with
as shown.
Attach D and E to J with
as shown.

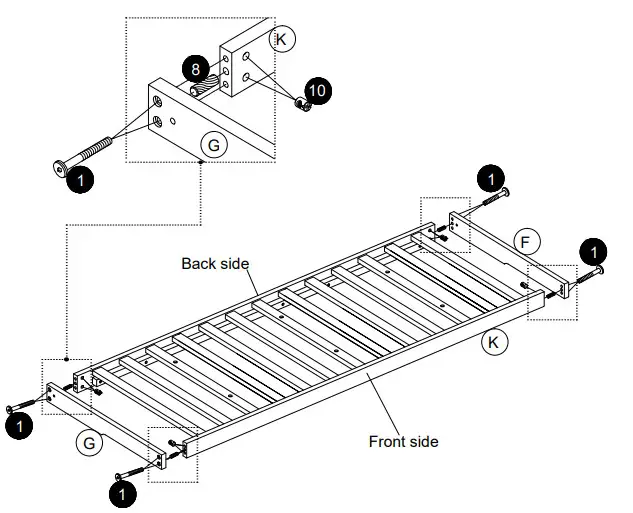

Step 4

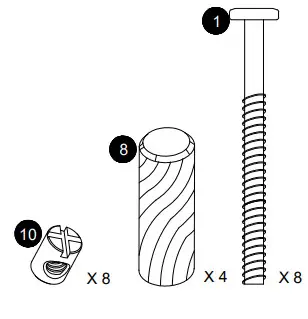

Attach the part D & E to J with the , and as shown.
Step 5

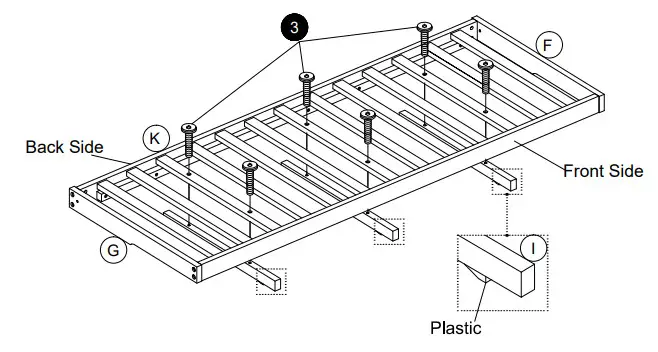

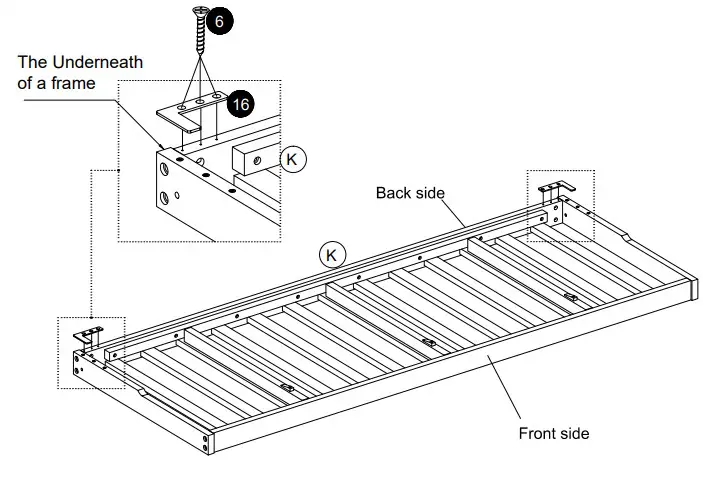

Attach I× 3 to K with bolt as shown.
Step 6
Turn over the subassembly from the previous step.
Attach the
to part K with
as shown.
Step 7

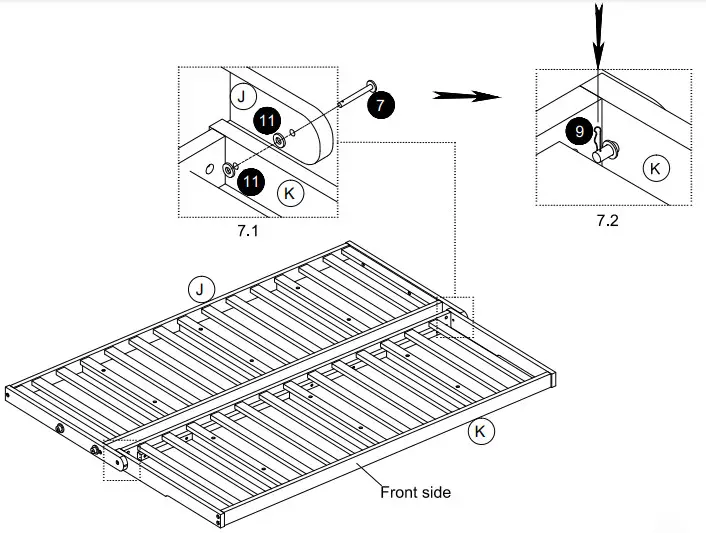

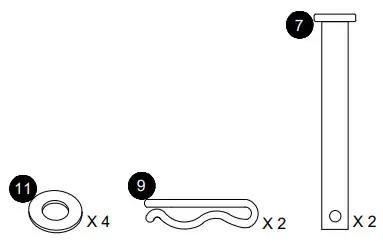

Connect the backrest and seat frame use as
,
shown.
Use the
lock the pin as shown.
Step 8

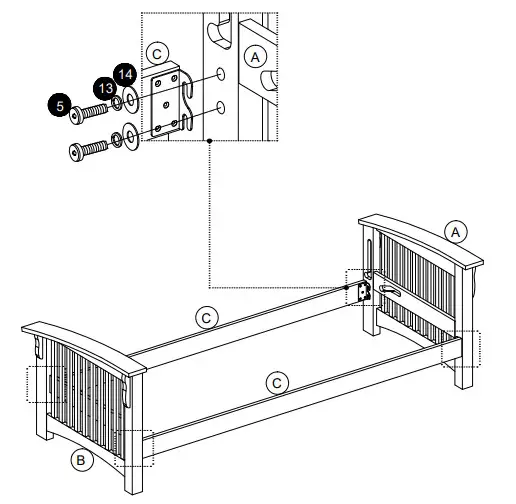

Attach C×2 to the A and B with
,
and
as shown.
Please DO NOT fully tighten bolts
Step 9

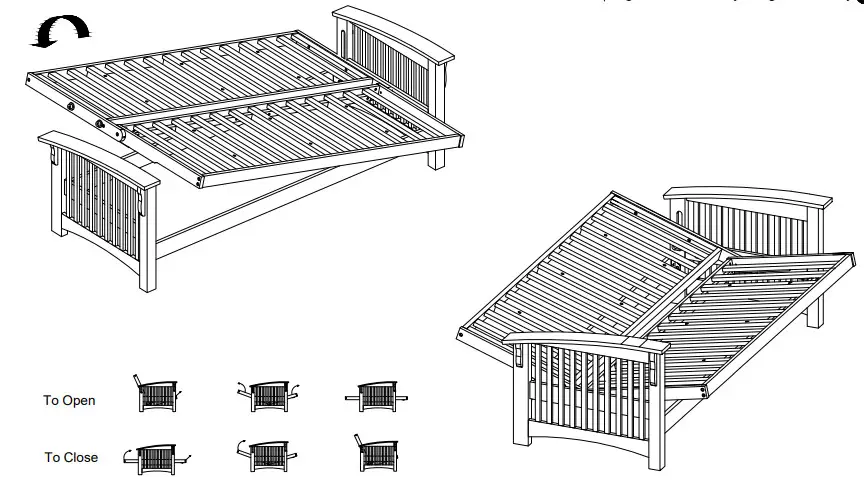

Attach the full-frame to the arm by put the moving plastic washer to the grove on arm.
Tighten all screwes by using an Allen key

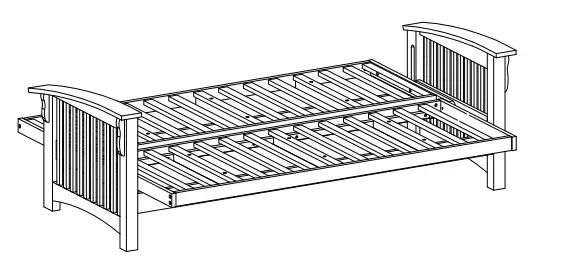

Helpful hints
- Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
- Your DPH furniture can be disassembled and reassembled to move.
Weight Limit: 600LB / 272 Kg
TO AVOID TIPPING, DO NOT SIT, LAY OR STAND ON THE EDGE OF THE UNIT WHEN THE FUTON IS IN A SLEEPING POSITION.
