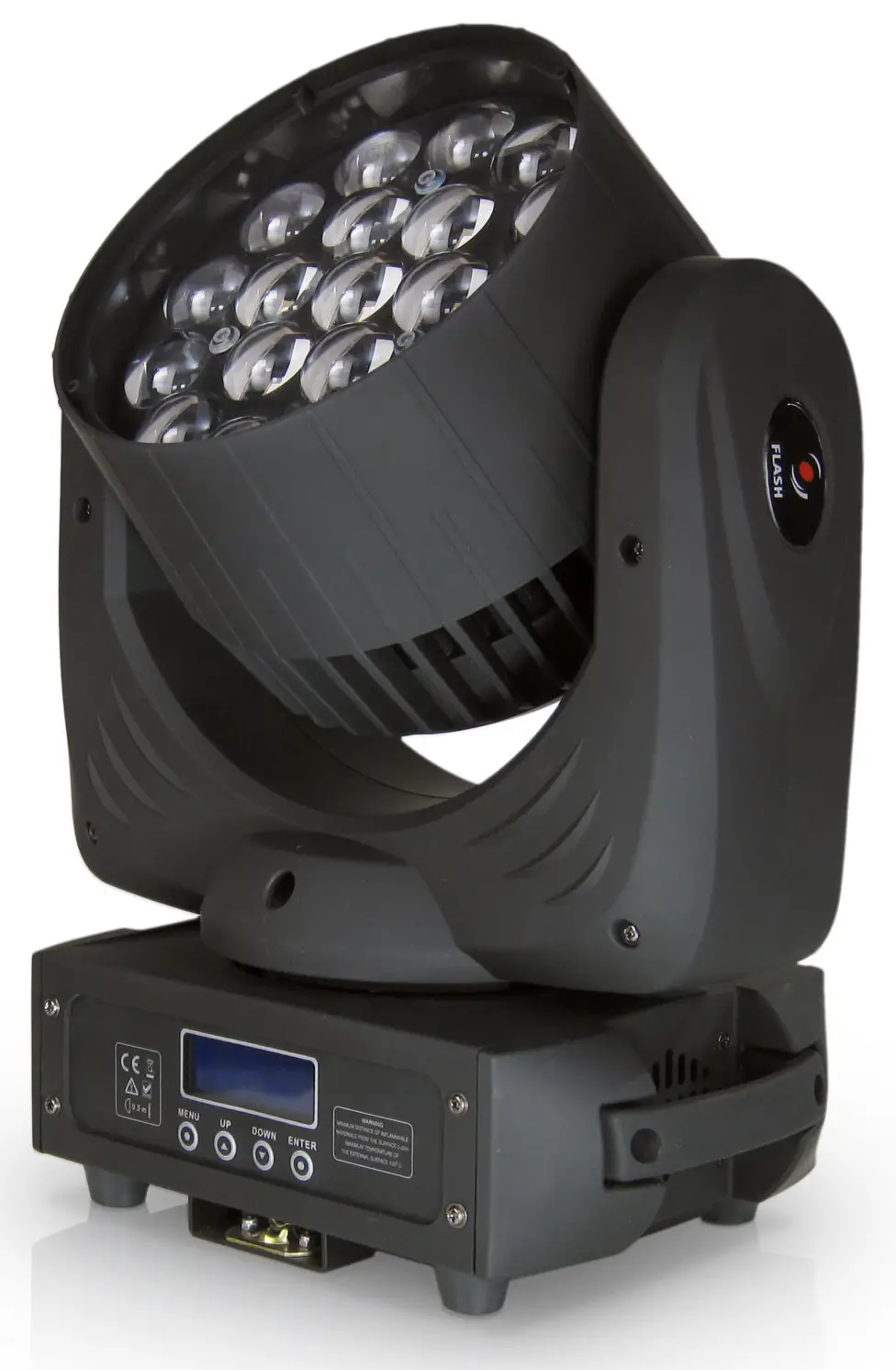

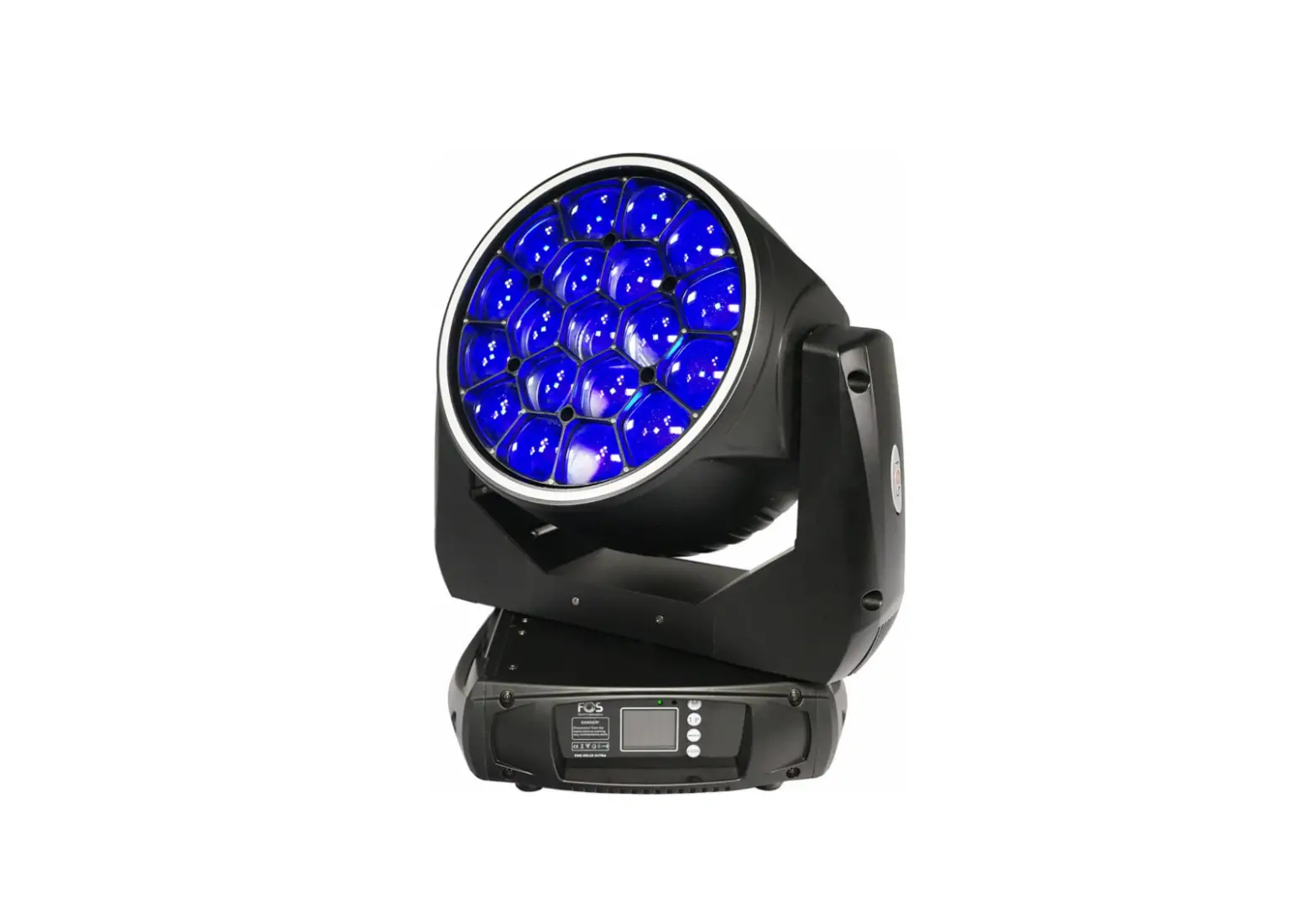

Flash F7100754 Moving Head Wash User Manual

FLASH F7100754 Moving Head Wash User Manual

Thank you for your patronage!
We are confident that our excellent products and service can satisfy you.
For your own safety, please read this user manual carefully before installing the device.
In order to install, operate, and maintain the lighting safety correctly.
We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly

CAUTION!
Keep this device away from rain and moisture!

CAUTION!
Unplug mains lead before device’s installation,cleaning and maintenance!

Every person involved with the installation, operation and maintenance of this device has to:

• be qualified
• follow carefully the instructions of this manual

INTRODUCTION

Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:

1. One power in cable
2. One 3 Pin DMX cable(5 Pin optional)
3. Two mounted brackets
4. One safety rope
5. One English user manual
   （Flight case, Clamps are optional, please contact your dealer）
   Please check carefully that there is no damage caused by transportation. Should there be any questions, please consult your dealer and don’t install this device.

GENERAL GUIDELINES

This device is a lighting effect for a professional use on stages, TV, in discotheques, theaters, etc., The device was designed for indoor use only.

This fixture is only allowed to be operated with the max alternating current which stated in the technical specifications in 6 th page of this manual.
Lighting effects are not designed for permanent operation. Consistent operation breaks may ensure that the device will serve you for a long time without defects.

Do not shake the device. Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture ordust. Please don’t project the beam onto combustible substances. The minimum distance between light-output from the projector and the illuminated surface must be more than 0,5 meter.
If you use the quick lock cam in hanging up the fixture, please make sure the quick  lock fasteners turned in thequick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit  operation by persons notqualified for operating the device. Most damages are the result of unprofessional operation.

Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to short-circuit, burns, electric shock, crash, etc

SAFETY INSTRUCTIONS

CAUTION
Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching wires!

This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

1. In order to guarantee the product’s life, please don’t put it in the damp places or even the environment over 60degress.
2. Always mount this unit in safe and stable matter.

The qualified professionals are allowed to carry out the lamp installation, operation and maintenance, but they must guarantee to operate in strict accordance with the instructions referred to.

Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. The arising condensation could damage the device. Leave the device switched off until it has reached room temperatures.
This device falls under protection-classⅠ . Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.

Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean
that the device is defective, it should decrease gradually.
Please don’t project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

CAUTION!
Never touch the device during operation!
The housing may heat up!

CAUTION!
Never look directly into the light source,
As sensitive persons may suffer an epileptic shock.

Please be aware that damages caused by manual modifications to be the device are not subject to warranty. Keep away from children and non-professionals.

CLEANING AND MAINTENANCE

1. To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
2. Do not spill water or other liquids into or on to your unit.
3. During long periods of non-use, disconnect the unit’s main power.
4. It should be installed in a well-ventilated place, at a distance of 50 centimeters or more with the walls. At the same time, please check if the fan and ventilation holes are unobstructed.

The following points have to be considered during the inspection

1. All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded.
2. There must not be any deformations on the housing. Fixations and installations spots(ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances.
4. The electric power supply cables must not show any damage, material fatigue or sediments. Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed.

CAUTION!
Disconnect from mains before starting maintenance operation!

In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to the lights.

1. Clean the inside and outside lens each week to avoid the weakness of the lights due to accumulation of dust.
2. Clean the fan each week.
3. A detailed electric check by approved electrical engineer each three month, make sure that the circuit contacts are in good condition, prevent the poor contact of circuit from overheating.

We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol or solvents

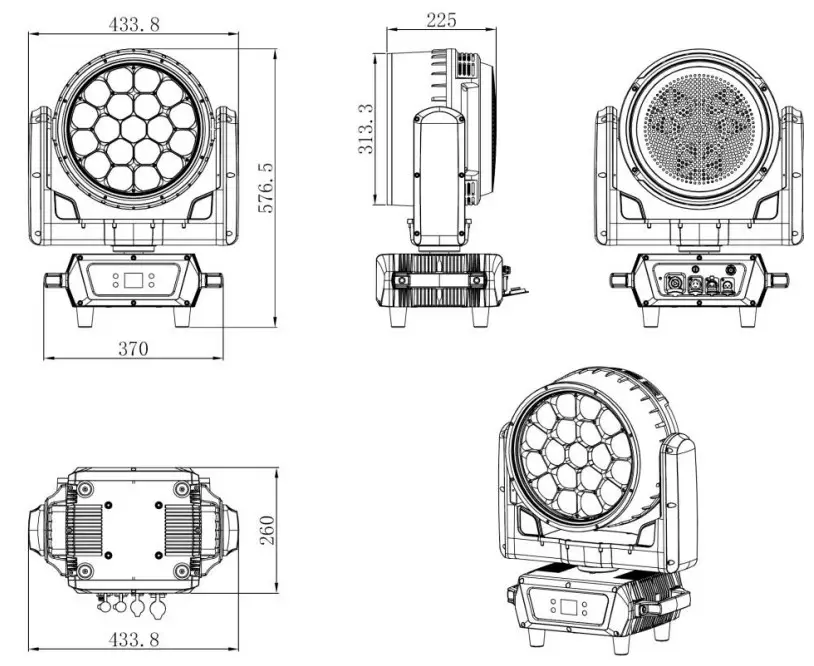

DRAWING（mm）

TECHNICAL PARAMETERS

Power supply

AC100V-240V/50-60Hz
Power consumption: 900W

Optic

Osram 19*40W RGBW 4 in1 High bright LEDs
Individual LED control
Average life: 50,000 hrs
Color temperature：2500～10000K
PMMA Lens with glass lighting pipe CRI up to 95

Effect

Zoom angle: 3-60°;
Wash/Beam/Graphic/Effects function
Front lens can rotated infinity
LED halo ring with rainbow effect
With“vortex”and “kaleidoscope” effects
Variable built-in dynamic effects
4 Liner dimming curves
2 color mode (RGBW)
Strobe: 1-25 hz, random and pulse flash

Control

Pan/Tilt: 540/216°
Control mode: DMX512/RDM/Master Slave
DMX channels: 22/26/36/97

Body

Alumininum die casting with fire-proof housing in IP65
Intelligent cooling system with overheating protection and speed adjustable fans
1.77 inch OLED display avoiding signal bothering with display flip, the password: 1111
Magnetic code for highest precision positioning
Software updating by DMX connector
Seetronic powercon ture1 IP
XLR in & out: 3-pin & optional 5-pin
Optional folding clamp for easy installation

Weight&Size

Net weight: 21kg
Gross weight: 26kg
Fixture size: 432*333*485mm
Cartbox size: 610*530*450mm

MOUNTING AND INSTALLATION

Cautions:
For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture from a periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.
Clamp Mounting: The B-Eye provides a unique mounting bracket assembly that integrates the bottom of the base, the included “Omega Bracket,” and the safety cable rigging point in one unit (see the illustration below). When mounting this fixture to truss be sure to secure an appropriately rated clamp to the included omega bracket using a M10 screw fitted through the center hole of the “omega bracket”. As an added safety measure be sure to attached at least one properly rated safety cable to the fixture using on of the safety cable rigging point integrated in the base assembly

1. Omega Bracket
2. Satoly Clamp
3. Safety Cable
4. 1/4 Turn Quick-Look Fastoners


Regardless of the rigging option you choose for your B-Eye, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle.

DMX-512 CONTROL CONNECTIONS

Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving heads be connected together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator:

1. Ground
2. Data (-)
3. Data (+)


For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.

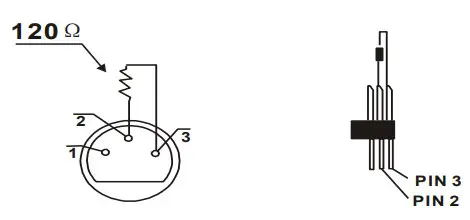

The DMX terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.

MENU FUNCTION: Press menu for 3seconds to unlock

CHANNEL MODE

STRIP 22CH

STRIP 26CH

SHAPE 36CH

EXTENDED RGBW-97

SHAPE MODE DESCRIPTION

CONCEPTS: FOREGROUND AND BACKGROUND

The powerful shapes engine allows the user to set all the possible parameters relating to the pixels of the light in an organic way, with a distinction between the pixels affected by a selected “image”  and the ones that are notaffected by that specific image (more properly called SHAPE from now on).

The macro called “ring 2″ will, as an example, involve all the pixels that compose the ring of the unit, while the middle pixel and the 1 smaller ring will not be affected by the shape. The involved pixels will belong to the”Foreground” layer, while all the remaining pixels will belong to the “Background” layer.

Pixels on the foreground take the colour the user will select specifically for them using the dedicated channels, while the remaining pixels will all maintain the colours related to the washlight.

Note of Foreground Shape Effect:

Shapes will be available while (Dimmer CH12),(Strobe CH11), (Shape dimmer CH29), (Foreground strobe CH33), (Shape color CH25/26/27/28) turned on then selecting the Shapes on (Shape Selection CH22) with different speed on (Shape Speed CH23)

Background Effect: Meanwhile the (BG dimmer CH30), (BG strobe CH34), (Color RGBW CH1/3/5/7) turned on. (CH value mentioned above is based on SHAPE MODE L10Rotation)

Vortex effect: With Shape slot 3(Ring 2 on Shape Selection Value 10) and Zoom rotation turned on. SHAPE SELECTION*SHAPE SPEED*SHAPE OFFSET*SHAPE FADE*BACKGROUND SELECT

REMARK

The product has perfect performance and intergrity packing. All users should be strictly comply with the warning and operating instructions as stated. Or we aren’t in charge of any result by misusing.
Any damage resulting by misuse is not within the Company’s warranty.
Any fault or problem caused by neglecting the manual is also not in the charge of dealers.
Errors and omissions for every information given in this manual excepted.
All information is subject to change without prior notice.

www.flash-butrym.pl
