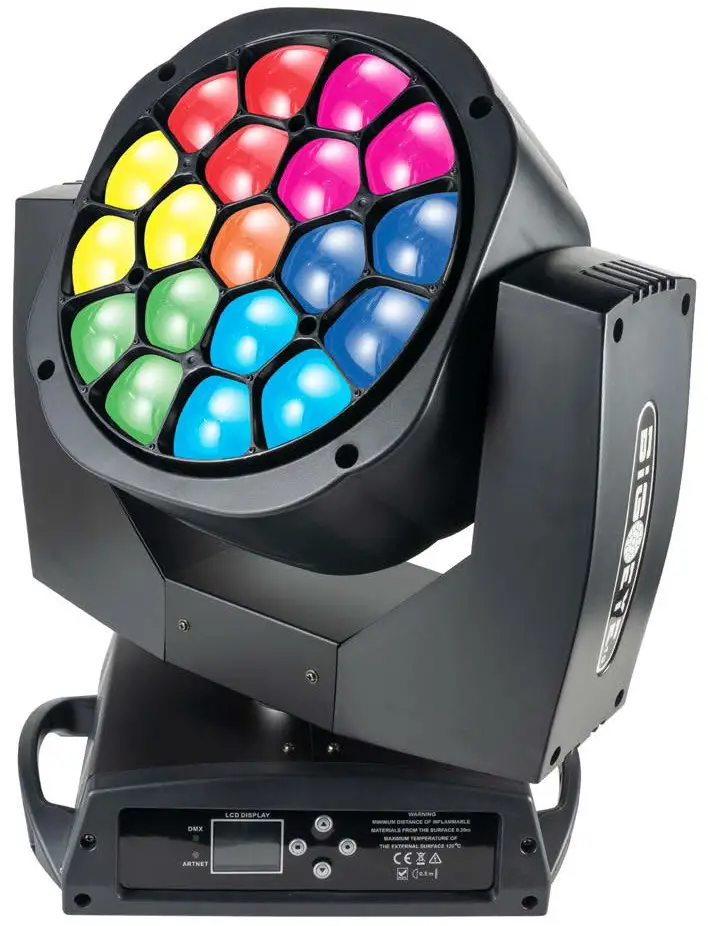

FLASH F7100768 LED Moving Head

Product Information

Product Usage Instructions

Safety Information

• Keep this User Manual for future consultation.
• If you sell the fixture to another user, make sure they also receive this instruction booklet.
• In case of serious operating problems, stop using the fixture immediately and do not attempt to repair it yourself.
• Unpack and check for transportation damage before using the fixture.
• Ensure that the voltage and frequency of the power supply match the power requirements of the fixture.
• Ground the yellow/green conductor to earth to avoid electric shock.
• Disconnect the main power before servicing and maintenance.
• Use a safety chain when fixing the fixture and always handle it by taking its base, not just its head.
• Repairs should be carried out by authorized technical assistance centers using the same type of spare parts.
• Do not connect the device to any dimmer pack.
• Avoid touching any wire during operation to prevent electric shock hazards.
• Do not expose the fixture to rain or moisture to reduce the risk of electrical shock or fire.
• Replace the housing if it is visibly damaged.
• Avoid looking directly at the light spot while the fixture is on.

Connection
The device is equipped with the following interfaces:

1. DMX (in/out): XLR 3(5)-pin socket
2. Power (in/out): powerCON socket

The connection is performed using a cable with XLR-female to XLR-Male plugs.

• WARNING! The Led Moving Head (LMH) has a powerful pan and tilt motor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is standing unsecured on a surface. Do not apply power to the LMH unless the base is securely fastened to a surface or to rigging hardware.
• WARNING! Use 2 clamps to rig the fixture. Do not hang the fixture from only one clamp. Lock each clamp with both 1/4-turn fasteners. Fasteners are locked only when turned a full 900 clockwise.
• WARNING! When clamping the fixture to a truss or other structure at any other angle than with the yoke hanging vertically downwards, use two clamps of half-coupler type. Do not use any type of clamp that does not completely encircle the structure when fastened.

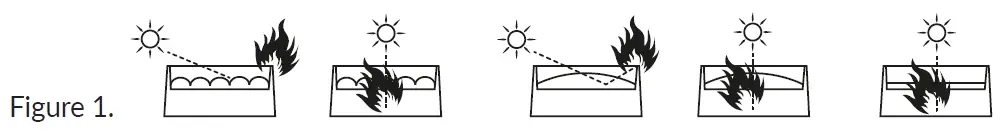

• WARNING! Position or shade the head so that the front lens will not be exposed to sunlight or any other strong light source from any angle – even for a few seconds. See Figure 1. The LMH lens can focus the sun’s rays, creating a potential fire hazard and causing damage.
• IMPORTANT! Do not point to strong light output from other fixtures at the LMH, as intense illumination can damage the display.

INTRODUCTION

THANK YOU FOR PURCHASING 19x15W BIG EYE. FOR SAFETY REASONS AND TO ENSURE A TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS. In the latest version of this Head, the colors in the macro channel have been improved, making them more natural and consistent with the pattern. The colors on the dimmers, power, and parameters remain the same as in the previous version (F7100547).

SAFETY INFORMATION

• Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet.
• Unpack and check carefully there is no transportation damage before using the fixture.
• Before operating, ensure that the voltage and frequency of the power supply match the power requirements of the fixture.
• It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
• Disconnect the main power before servicing and maintenance.
• Use a safety chain when fixing this fixture. Don’t handle the fixture by taking its head only, but always by taking its base.
• Maximum ambient temperature is: 40°C Don’t operate it where the temperature is higher than this.
• In the event of a serious operating problem, stop using the fixture immediately. Never try to repair the fixture by yourself.
• Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.
• Do not connect the device to any dimmer pack.
• Do not touch any wire during operation and there might be a hazard of electric shock.
• To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain or moisture.
• The housing must be replaced if they are visibly damaged.
• Do not look directly at the light spot while the fixture is on.

PRODUCT INFORMATION

• Light Source: 19 pcs x 15W 4in1 LEDs
• Power consumption: 300W
• Power supply voltage: 110-245V, 50/60Hz AC
• PAN range: 540°
• TILT range: 270°
• Beam angle (min/max): 4°-60°
• Color: RGBW
• Zoom: Yes
• LED outline stripe effect
• Operating modes: DMX 512, Auto-running, Master/Salve, Sound active
• DMX channel mode 21/35/78/78/97/112
• IP Rating: IP65
• Housing made: ABS
• Integrated fastening hooks
• Cooling: Active
• AC IN/OUT: PowerCon
• 3-Pin XLR DMX Input/Output
• Net Weight: 14.4 kg
• Weight with packaging: 59 kg (2x MH+Case)
• Dimensions: H(48)xW(40)xD(26) cm
• Dim. (case): H(59)xW(74)xD(46) cm

INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. The equipment must be fixed by professionals. And it must be fixed at a place that is out of the touch of people and has no one pass by or under it.

AVAILABLE VERSIONS:

F7100767 [EAN 5905358808474]:
2x Moving Heads 19x15W Big Eye SET ver.05.23 + Case (SET)

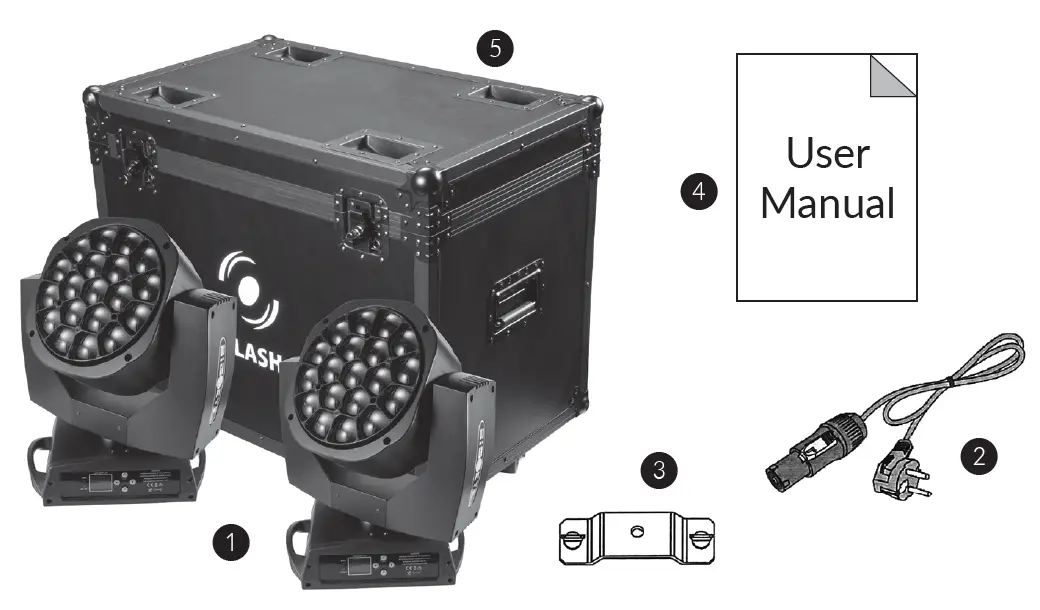

The following item are included inside the case:

1. Moving Head (2pcs)
2. powerCON cable (2pcs)
3. Omega clamp (4pcs)
4. User manual (1pc)
5. Transport Case

F7100768 [EAN 5905358808481]:
1x Moving Head 19x15W Big Eye SET ver.05.23 (carton package)

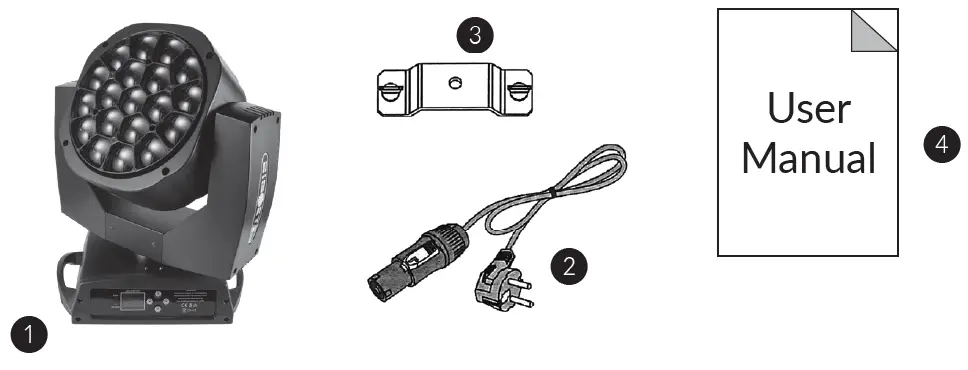

The following item are included inside the box:

1. Moving Head (1pc)
2. powerCON cable (1pc)
3. Omega clamp (2pcs)
4. User manual (1pc)

CONNECTION

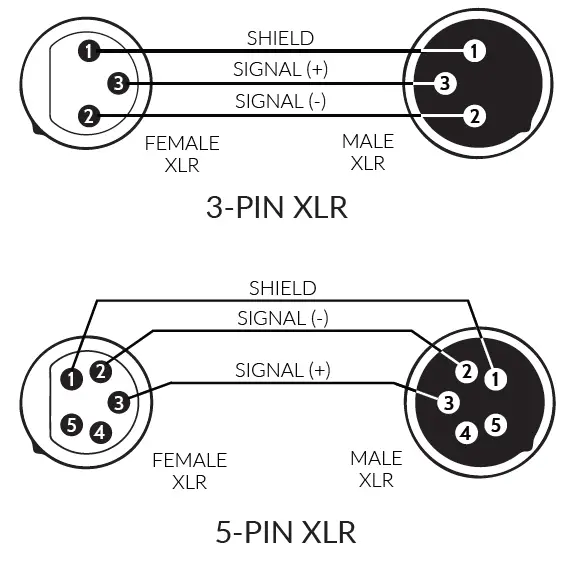

The device is equipped with the following interfaces:

1. DMX (in/out): XLR 3(5)-pin socket
2. Power (in/out): powerCON socket

The connection is performed using cable with XLR-female -> XLR-Male plugs.

CAUTION!
At the last fixture, the DMX signal has to be terminated with a terminator. Solder a 120Ω resistor between signal (-) and signal (+) into a XLR plug and plug it in the DMX output of the last fixture.

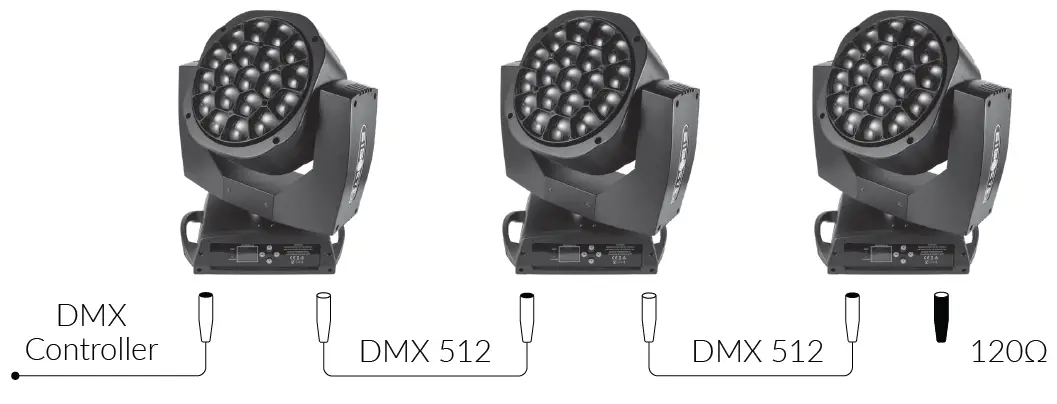

Diagram of connection of devices by DMX cable.

IMPORTANT!
The maximum number of devices connected in series via power cable is 6 pcs.

The connection is performed using power cable with powerCON TRUE1 connector (included). The device must be operated by qualified personnel.

CAUTION!
In the case of cable damage do not attempt to repair. Repla-cement or repair can be made only on the manufacturer or by a person with appropriate permissions

Using lamp, the change rate of power voltage should be within ±10%, if the voltage is too high, it will shorten the light’s life; if it’s not enough, the lamp will be dark. Please restart it after turning off light for 20 mi-nutes until full-cooling. Frequent switching will reduce the life span of lamps and bulbs; intermittent using will improve the life of bulbs and lamps.

Voltage Specification

DMX CHART

21 CH

35 CH

RGB

RGBW

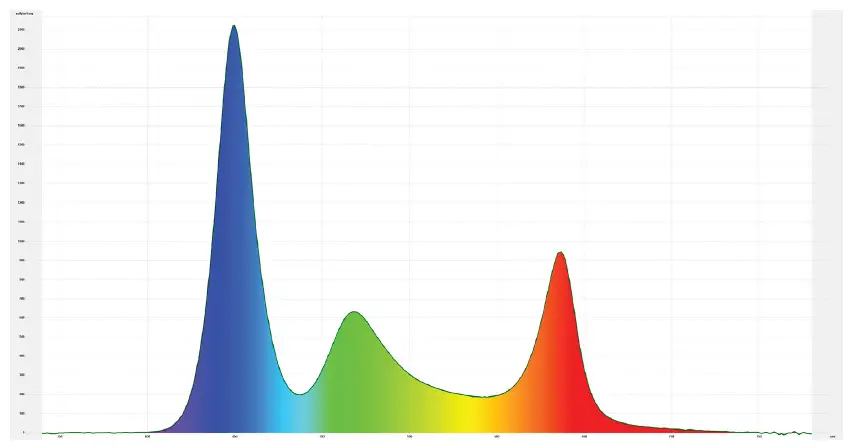

PHOTOMETRIC

Distance 1m:

26280,24 lx 6480 K Ra 75

Measurements under laboratory conditions were made on a spectrometer GL SPECTIS 1.0

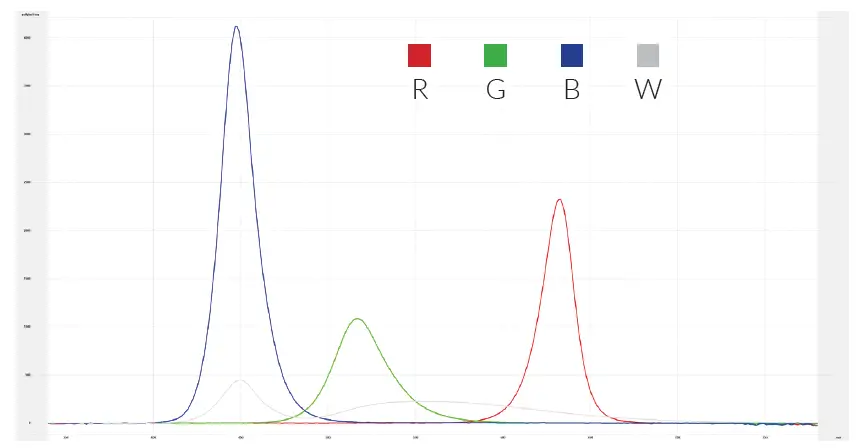

RGBW
