Flash F7110001 Moving Head 17r Beam Ip65 User Manual

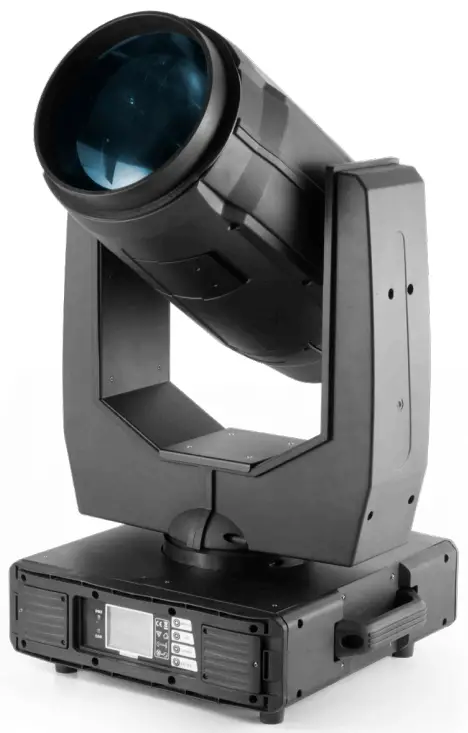

MOVING HEAD
17R BEAM IP65
User Manual
F7110001

INTRODUCTION

THANK YOU FOR PURCHASING THE 17R MOVING HEAD BEAM IP65. FOR SAFETY REASONS AND TO ENSURE A TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS.

SAFETY INFORMATION

• Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet.
• Unpack and check carefully there is no transportation damage before using the fixture.
• Before operating, ensure that the voltage and frequency of the power supply match the power requirements of the fixture.
• It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
• Disconnect main power before servicing and maintenance.
• Use a safety chain when fixing this fixture.
  Don’t handle the fixture by taking its head only, but always by taking its base.
• Do not use the device in high humidity conditions. Use in -10°C to +35°C
• In the event of a serious operating problem, stop using the fixture immediately. Never try to repair the fixture by yourself. Repairs carried out by unskilled people can lead to
  damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.
• Do not connect the device to any dimmer pack.
• Do not touch any wire during operation and there might be a hazard of electric shock.
• To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain or moisture.
• The housing must be replaced if they are visibly damaged.
• Do not look directly at the 17R light beam while the fixture is on.

WARNING! The device must be connected to the power supply in order to avoid condensation. Working temperature from -30°C to + 50°C.
WARNING!
WARNING! The 17R MOVING HEAD BEAM IP65 has a powerful pan motor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is standing unsecured on a surface. Do not apply power to the 17R MOVING HEAD BEAM IP65 unless the base is securely fastened to a surface or to rigging hardware.
WARNING! Use 2 clamps to rig the fixture. Do not hang the fixture from only one clamp.
Lock each clamp with both 1/4-turn fasteners. Fasteners are locked only when turned a full 90º clockwise.
WARNING! When clamping the fixture to a truss or other structure at any other angle than with the yoke hanging vertically downwards, use two clamps of half-coupler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
WARNING! Position or shade the head so that the front lens will not be exposed to sunlight or any other strong light source from any angle – even for a few seconds. See Figure 2. The 17R MOVING HEAD BEAM IP65 lens can focus the sun’s rays, creating a potential fire hazard and causing damage.
IMPORTANT! Do not point to the strong light output from other fixtures at the 17R MOVING HEAD BEAM IP65, as intense illumination can damage the display.

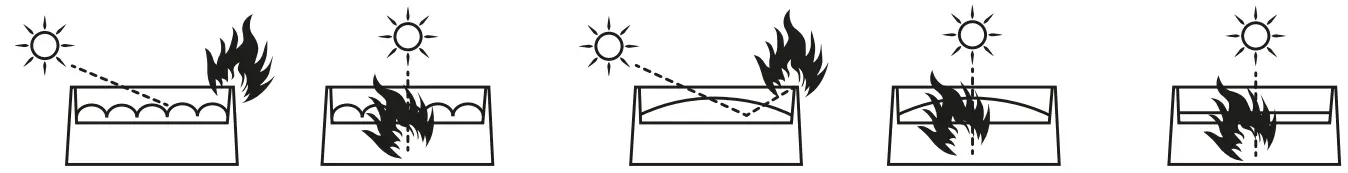

Figure 2. Lenses can focus sunlight and strong light, presenting a risk of fire and damage to the fixture.
Shield or shade the head if necessary.

PRODUCT INFORMATION

• Light Source: 17R MSD
• PAN range: 5400
• TILT range: 2100
• Color: Interchangeable color wheel with 14 colors + Open
• Effects: GOBO wheel with 17 fixed gobos + open High-speed shake effect, 2 facet prism rotating, Frost filter
• 16 and 20 DMX channel mode.
• 3-Pin XLR DMX input/output
• Power supply: 100 – 240V AC, 50-60Hz
• Power consumption: 600 W
• Net Weight: 30kg
• Dimensions: H(75 )Wx(42)xD(38,5) cm
• Dim. (case): H(83/72/ )Wx(97)xD(93,5) cm
• Weight (case): 56,6 kg

INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure in which you are attaching the unit is secure and is able to support a weight of 10 times the unit’s weight. Also always use a safety cable that can hold 12 times the weight of the unit when installing the fixture. The equipment must be fixed by professionals. And it must be fixed at a place that is out of the touch of people and has no one pass by or under it.

CONNECTION

The device is equipped with the following interfaces:

1. DMX (in/out): XLR 3-pin socket
2. Power (in/out): powerCON socket

5.1 Connecting DMX signal

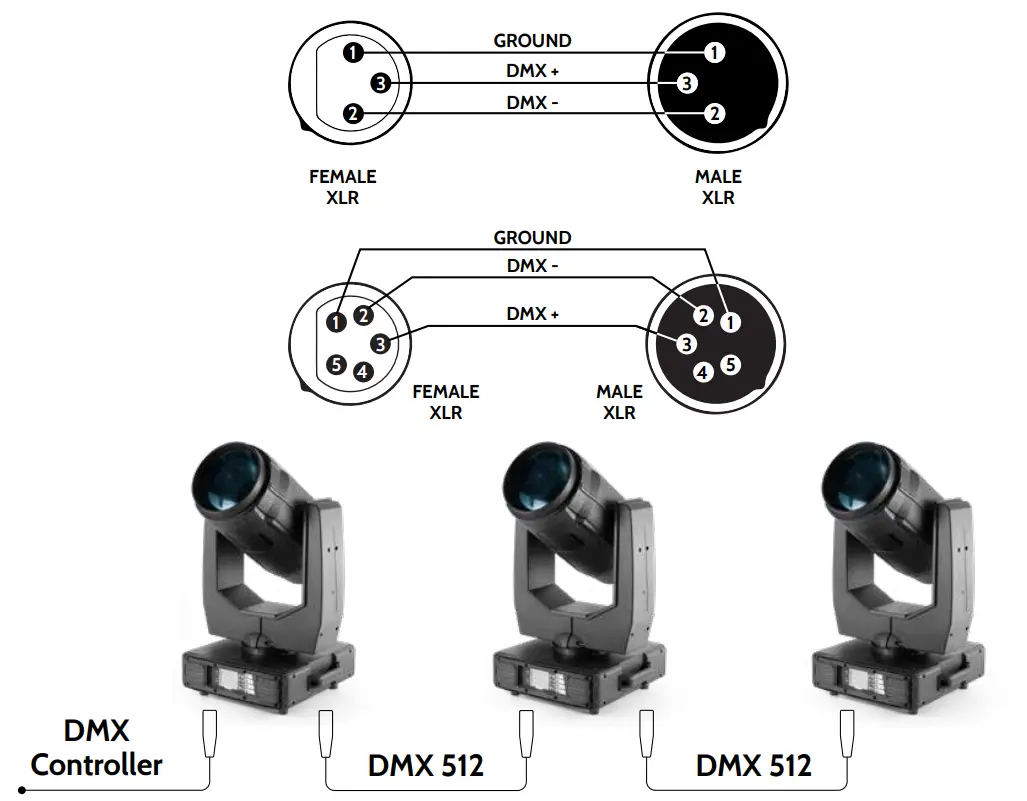

The connection is performed using a cable with XLR-female -> XLR-Male plugs.
CAUTION! At the last fixture, the DMX signal has to be terminated with a terminator. Solder a 120Ω resistor between signal (-) and signal (+) into an XLR plug and plug it in the DMX output of the last fixture.

5.2 Voltage specification

5.3 Connecting power supply
The connection is performed using a power cable with a PowerCon connector (included). The device must be operated by qualified personnel.
Make sure that the power grid supply parameters are consistent with device parameters and that limitations are not exceeded.
CAUTION! In the case of cable, damage does not attempt to repair. Replacement or repair can be made only by the manufacturer or by a person with appropriate permissions.
Using a lamp, the change rate of power voltage should be within ± 10%, if the voltage is too high, it will shorten the light’s life; if it’s not enough, the lamp will be dark. Please restart it after turning off the light for 20 minutes until full cooling. Frequent switching will reduce the life span of lamps and bulbs; intermittent using will improve the life of bulbs and lamps.
WARNING! The device must be connected to the power supply in order to avoid condensation.
Working temperature from -30°C to + 50°C.

DMX CHANNELS

16 CH Mode

20 CH Mode

F7110001
www.flash-butrym.pl
