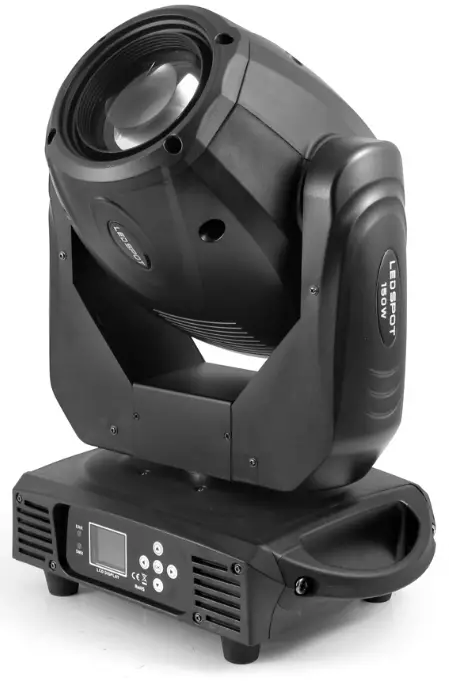

FLASH F7100545 3in1 150W Moving Head

INTRODUCTION

THANK YOU FOR PURCHASING Moving Head 150W 3in1. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS.

SAFETY INFORMATION

• Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet.
• Unpack and check carefully there is no transportation damage before using the fixture.
• Before operating, ensure that the voltage and frequency of the power supply match the power requirements of the fixture.
• It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
• Disconnect the main power before servicing and maintenance.
• Use a safety chain when fixing this fixture. Don’t handle the fixture by taking its head only, but always by taking its base.
• The maximum ambient temperature is: 400C Don’t operate it where the temperature is higher than this.
• In the event of a serious operating problem, stop using the fixture immediately. Never try to repair the fixture by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.
• Do not connect the device to any dimmer pack.
• Do not touch any wire during operation and there might be a hazard of electric shock.
• To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain or moisture.
• The housing must be replaced if they are visibly damaged.
• Do not look directly at the LED light spot while the fixture is on.

WARNING!

• WARNING! The Moving Head 150W 3in1 has a powerful pan motor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is standing unsecured on a surface. Do not apply power to the Moving Head 150W 3in1 unless the baase is securely fastened to a surface or to rigging hardware.
• WARNING! Use 2 clamps to rig the fixture. Do not hang the fixture from only one clamp. Lock each clamp with both 1/4-turn fasteners. Fasteners are locked only when turned a full 900 clockwise.
• WARNING! When clamping the fixture to a truss or other structure at any other angle than with the yoke hanging vertically downwards, use two clamps of half-coupler type. Do not use any type of clamp that does not completely encircle the structure when fastened.

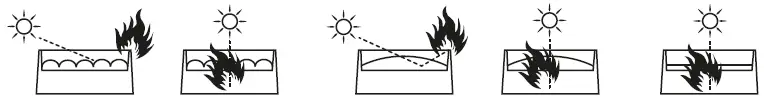

• WARNING! Position or shade the head so that the front lens will not be exposed to sunlight or any other strong light source from any angle – even for a few seconds. See Figure 2. The Moving Head 150W 3in1 lens can focus the sun’s rays, creating a potential fire hazard and causing damage.
• IMPORTANT! Do not point strong light output from other fixtures at the Moving Head 150W 3in1, as intense illumination can damage the display.

Lenses can focus sunlight and strong light, presenting a risk of fire and damage to the fixture. Shield or shade the head if necessary.

PRODUCT INFORMATION

• Light Source: 1pcs. 3in1 LED 120W
• PAN range: 5400
• TILT range: 2000
• Zoom range: 90-180
• Color: RGBW
• Color wheel – 9 colors + white
• 3-plane prism, rotated in two directions at variable speed
• Gobo wheel: Rotary: 6 gobos + white, wheel rotation and shake. Fixed: 9 gobos + white, wheel rotation and shake.
• Zoom: Yes
• Frost filter: Yes
• 16 DMX channel mode.
• 3-Pin XLR DMX input/output
• Power supply: 100-245V AC, 50-60Hz
• Power consumption: 250W
• Net Weight: 7,6 kg
• Weight with packaging: 57,2 kg (4x Moving Heads + Case)
• Dimensions: H(42,5)xW(28)xD(21,5) cm
• Dim. (case): H(62,5 )xW(70)xD(63) cm

INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times the weight of the unit when installing the fixture. The equipment must be fixed by professionals. And it must be fixed at a place that is out of the touch of people and has no one pass by or under it.

CONNECTION

The device is equipped with the following interfaces:

1. DMX (in/out): XLR 3-pin socket
2. Power (in/out): powerCON socket

Connecting DMX signal
The connection is performed using a cable with XLR-female -> XLR-Male plugs.

CAUTION!
At the last fixture, the DMX signal has to be terminated with a terminator. Solder a 120Ω resistor between signal (-) and signal (+) into an XLR plug and plug it in the DMX output of the last fixture.

Voltage specification

Connecting power supply
The connection is performed using a power cable with a PowerCon connector (included). The device must be operated by qualified personnel.

Make sure that the power grid supply parameters are consistent with device parameters and that limitations are not exceeded.

CAUTION!
In the case of cable, damage does not attempt to repair. Replacement or repair can be made only by the manufacturer or by a person with appropriate permissions. Using a lamp, the change rate of power voltage should be within ± 10%, if the voltage is too high, it will shorten the light’s life; if it’s not enough, the lamp will be dark. Please restart it after turning off the light for 20 minutes until full cooling. Frequent switching will reduce the life span of lamps and bulbs; intermittent using will improve the life of bulbs and lamps.

Advanced

Password is:
up up up down down down To verify press enter.

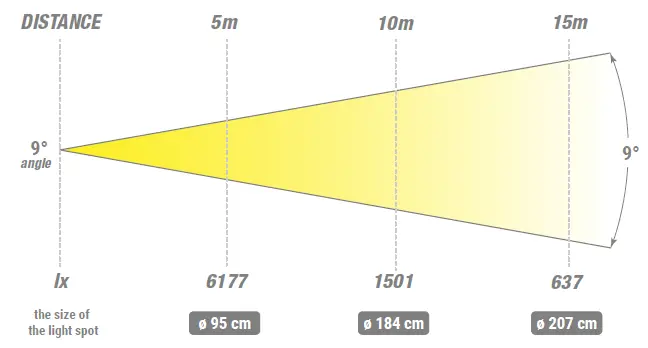

Photometric Data

DMX CHANNELS

Setting

Manual control
Press enter then into the edit status. Press up or down to change the channel’s value, and press enter again to choose tens place edit. Press enter again to choose ones to place to edit. Press enter once more to exit edit.

System information

Advanced
Password is up up up down down down. To verify press enter.

16 CH Mode

Reset

Colour

Stop/Strobe

Dimmer

Gobo 1

Gobo 1 Rotation

Gobo

Prism

Focus

Zoom

• Zoom
• PAN FINE
• TILT
• TILT FINE
• PAN-TILT TIME
