Flash-butrym F7100569 Led Moving Head User Manual

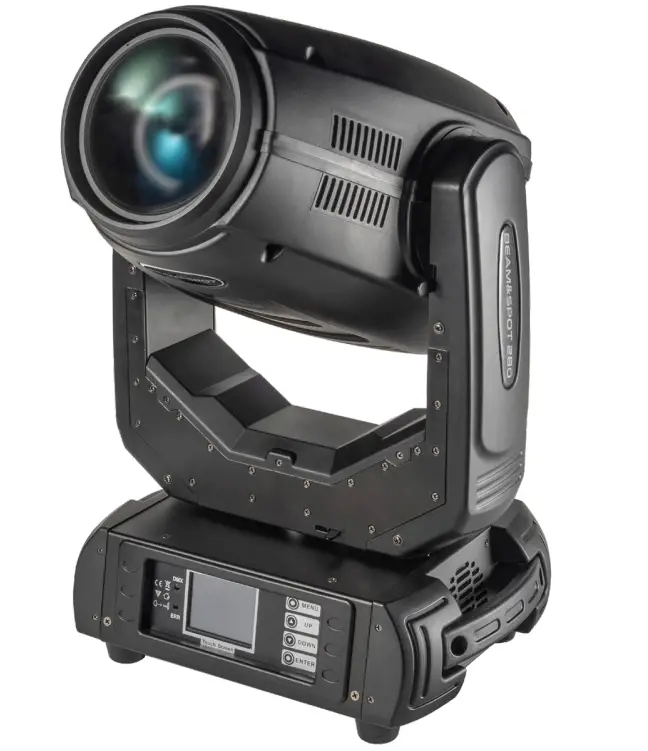

Butrym F7100569 LED Moving Head
User Manual

THANK YOU FOR PURCHASING THIS FLASH-BUTRYM PRODUCT. BEFORE BEGINNING TO OPERATE THIS UNIT, PLEASE READ THE  INSTRUCTIONS CAREFULLY TO ENSURE THE BEST POSSIBLE PERFORMANCE.

INTRODUCTION

THANK YOU FOR PURCHASING HYBRID 10R. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS.

SAFETY INFORMATION

• Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet.
• Unpack and check carefully there is notransportation damage before using the fixture.
• Before operating, ensure that the voltage andfrequency of power supply match the powerrequirements of the fixture.
• It’s important to ground the yellow/greenconductor to earth in order to avoid electricshock.
• Disconnect main power before servicing andmaintenance.
• Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only, but always by taking its base.
• Maximum ambient temperature is: 40°C Don’t operate it where the temperature is higher than this.
• In the event of serious operating problem, stop using the fixture immediately. Never try to repair the fixture by yourself. Repairs carried out by unskilled people can lead  to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.
• Do not connect the device to any dimmer pack.
• Do not touch any wire during operation and there might be a hazard of electric shock.
• To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain or moisture.
• The housing must be replaced if they are visibly damaged.
• Do not look directly at the 10R light spot while the fixture is on.

WARNING

WARNING! The Led Moving Head (LMH) has a powerful pan motor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is  standing unsecured on a surface. Do not apply power to the LMH unless the baase is securely fastened to a surface or to rigging hardware.
WARNING! Use 2 clamps to rig the fixture. Do not hang the fixture from only one clamp. Lock each clamp with both 1/4-turn fasteners. Fasteners are locked only when  turned a full 900 clockwise.
WARNING! When clamping the fixture to a truss or other structure at any other angle than with the yoke hanging vertically downwards, use two clamps of half-coupler  type. Do not use any type of clamp that does not completely encircle the structure when fastened.
WARNING! Position or shade the head so that the front lens will not be exposed to sunlight or any other strong light source from any angle – even for a few seconds. See  Figure 1. The LMH lens can focused the sun’s rays, creating a potential fire hazard and causing damage.
IMPORTANT! Do not point strong light output from other fixtures at the LMH, as intense illumination can damaged the display.

Figure 1. Lenses can focused sunlight and strong light, presenting a risk of fire and damage to the fixture.
Shield or shade the head if necessary.

PRODUCT INFORMATION

• Light Source: 10R lamp (Single color)
• Power consumption: 400W
• Power supply voltage: 110-240V, 50/60Hz AC
• PAN range: 540°
• TILT range: 270°
• Beam angle (min/max): 0°-4°
• Color: Color wheel – 13 colors + white (open)
• Zoom: Yes
• Focus: Electronic
• Gobo wheel: Roto Gobo: 9 indexed,
• Fixed Gobo: 10 interchangeable gobos, indexed
• Prism: 6-facet linear prism – indexing,
• 8-faced circural rotating prism – indexing
• Operating modes: DMX 512, Auto-running,
• Master/Salve, Sound active,
• Frost filter: Yes
• 16/24 DMX channel mode.
• IP Rating: IP20
• Housing made: ABS
• Cooling: Active
• AC IN/OUT: powerCON
• 3-Pin XLR DMX Input/Output
• Net Weight: 16,8 kg
• Dimensions: H(59)xW(36)xD(27) cm

INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that  the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times  of the weight of the unit when installing the fixture. The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of people and has no one pass by or under it.

CONNECTION

The device is equipped with the following interfaces:

1. DMX (in/out): XLR 3(5)-pin socket
2. Power (in/out): powerCON socket

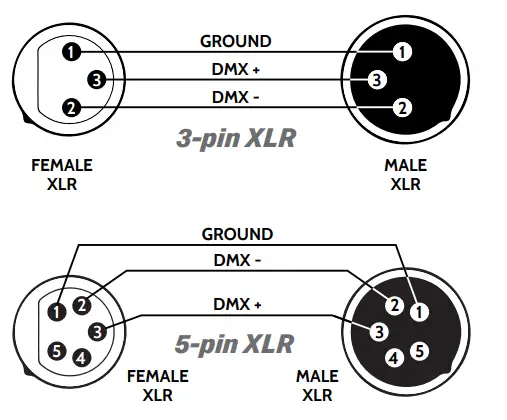

5.1 Connecting DMX signal
The connection is performed using cable with XLR-female -> XLR-Male plugs.

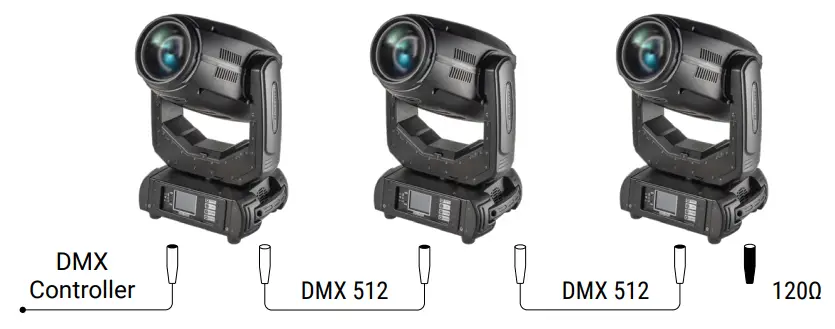

CAUTION! At the last fixture, the DMX signal has to be terminated with a terminator. Solder a 120Ω resistor between signal (-) and signal (+) into a XLR plug and plug it  in the DMX output of the last fixture.

User Manual

5.2 Voltage specification

5.3 Connecting power supply
The connection is performed using power cable with Power on connector(included). The device must be operated by qualified personnel.
Make sure that the power grid supply parameters are consistent with device parameters and limitations are not exceeded.

CAUTION! In the case of cable damage do not attempt to repair.
Replacement or repair can be made only on the manufacturer or by a person with appropriate permissions.
Using lamp, the change rate of power voltage should be within ±10%, if the voltage is too high, it will shorten the light’s life; if it’s not enough, the lamp will be dark. Please  restart it after turning off light for 20 minutes until full-cooling. Frequent switching will reduce the life span of lamps and bulbs; intermittent using will improve the life of  bulbs and lamps.

5.5 Set DMX Address Code

1. Press „Menu” to „Set DMX Address”, and press „ENTER” keys to enter into.
2. Show „Set DMX Address DMX Address: 001”, Press the „UP and DOWN” keys to amended.

DMX CHANNELS 16/24 CH Mode
