FLASH F7100337 LED PAR 18×15 Light

INTRODUCTION

THANK YOU FOR PURCHASING LED PAR 18×15 RGBWA+UV 6in1. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS

SAFETY INFORMATION

• Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet.
• Unpack and check carefully there is no transportation damage before using the fixture.
• Before operating, ensure that the voltage and frequency of power supply match the power requirements of the fixture.
• It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
• Disconnect main power before servicing and maintenance.
• Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only, but always by taking its base.
• Maximum ambient temperature is: 400C Don’t operate it where the temperature is higher than this.
• In the event of serious operating problem, stop using the fixture immediately. Never try to repair the fixture by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.
• Do not connect the device to any dimmer pack.
• Do not touch any wire during operation and there might be a hazard of electric shock.
• To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain or moisture.
• The housing must be replaced if they are visibly damaged.
• Do not look directly at the LED light spot while the fixture is on.

WARNING!

Do not point strong light output from other fixtures at the LED PAR, as intense illumination can damaged the display.

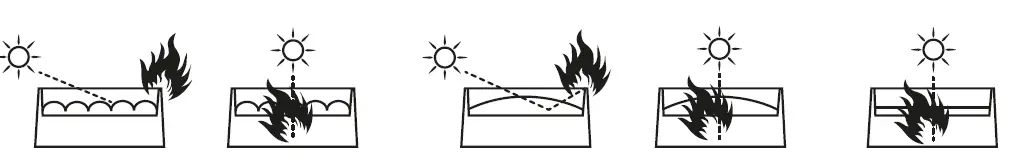

Lenses can focused sunlight and strong light, presenting a risk of fire and damage to the fixture. Shield or shade the head if necessary.

PRODUCT INFORMATION

• Light source: 18pcs x 15W LEDs
• Power supply: AC 100V/240V 50/60Hz,
• Power Consumption: 192W
• Signal: DMX 512
• Housing: Aluminium
• 3-Pin XLR DMX input/output
• Net Weight: 0,6kg
• Dimensions: H(30)xW(30)xD(15) cm
• Package: Carton Box

INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of people and has no one pass by or under it.

CONNECTION

The device is equipped with the following interfaces:

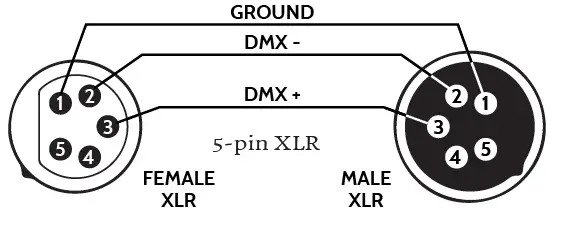

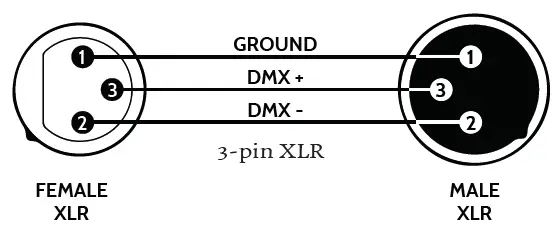

1. DMX (in/out): XLR 3(5)-pin socket
2. Power (in/out): powerCON socket

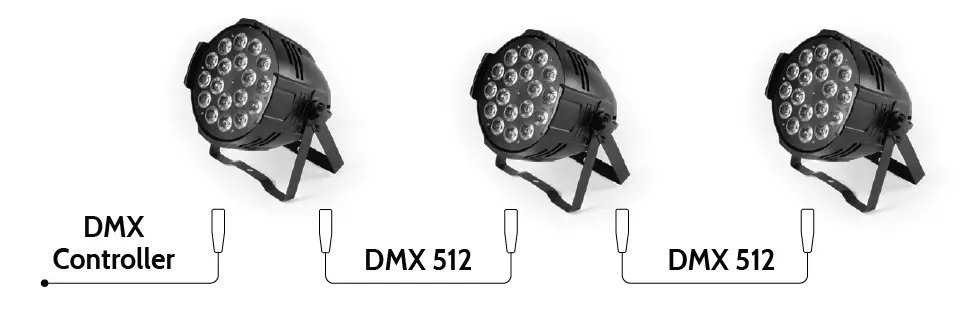

Connecting DMX signal

The connection is performed using cable with XLR-female -> XLR-Male plugs.
CAUTION! At the last fixture, the DMX signal has to be terminated with a terminator. Solder a 120Ω resistor between signal (-) and signal (+) into a XLR plug and plug it in the DMX output of the last fixture.

Voltage specification

Connecting power supply

• The connection is performed using power cable with PowerCon connector (included). The device must be operated by qualified personnel.
• Make sure that the power grid supply parameters are consistent with device parameters and limitations are not exceeded.

CAUTION! In the case of cable damage do not attempt to repair. Replacement or repair can be made only on the manufacturer or by a person with appropriate permissions.

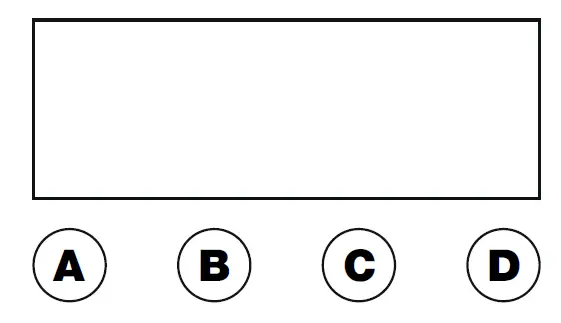

• A. Function
• B. Up
• C. Down
• D. Enter

HOW TO OPERATE?

• Press button A, there will be eight different effects.
• The fist two numeric stands for functions
• The last two numeric stands for DMX address, or speed.
• You can modify it with B or C button.
• D button is to confirm while you settled.

DMX CHANNELS

www.flash-butrym.pl
