Flash F7300242 Light Box Moon 1 User Manual

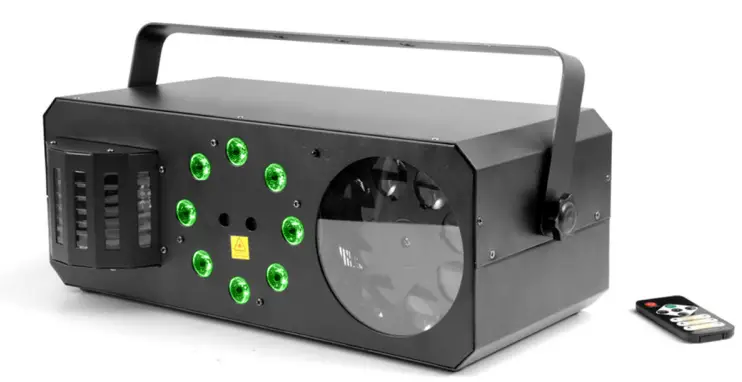

Flash F7300242 LIGHT BOX MOON 1

INTRODUCTION

THANK YOU FOR PURCHASING LIGHT BOX MOON 1. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS.

SAFETY INFORMATION

•  Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet.
•  Unpack and check carefully there is no transportation damage before using the fixture.
•  Before operating, ensure that the voltage and frequency of power supply match the power requirements of the fixture.
• It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
•  Disconnect main power before servicing and maintenance.
•  Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only, but always by taking its base.
•  Do not use the device in high humidity conditions. Use in 20°C to +35°C
•  In the event of serious operating problem, stop using the fixture immediately. Never try to repair the fixture by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.
• Do not connect the device to any dimmer pack.
• Do not touch any wire during operation and there might be a hazard of electric shock.
•  To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain or moisture.
•  The housing must be replaced if they are visibly damaged.

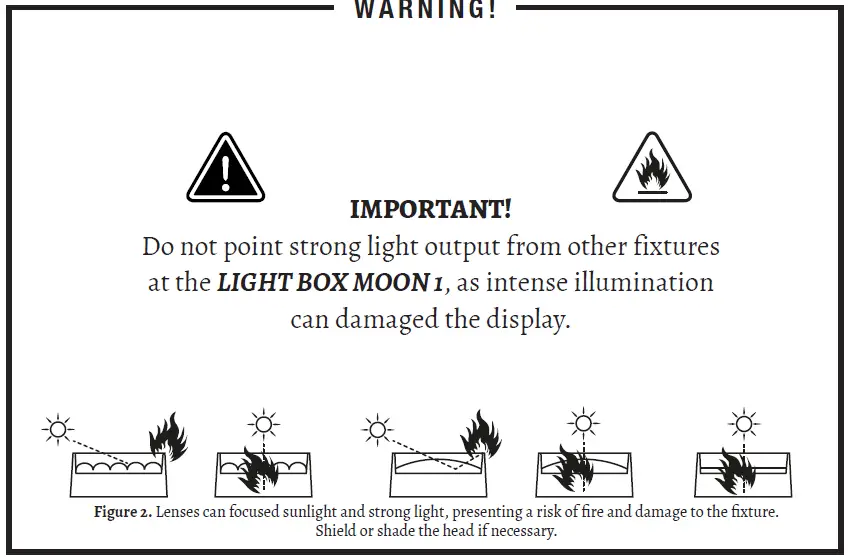

•  Do not look directly at the LED light spot while the fixture is on.

WARNING! The device must be connected to the power supply in order to avoid condensation.

PRODUCT INFORMATION

• Power supply voltage: 230V
• Voltage frequency: 50/60Hz
• Display: LED – 4 characters
• Number of DMX channels: 23
•  Control interface: 4 buttons
• Operating modes: DMX512, Auto, Sound-controlled, Master / Slave
• Features: Remote control
•  AC IN: IEC – C14
• IP Rating: IP20
• Housing made: ABS
•  Cooling: Active
•  Dimension: 44x24x16 cm (45x30x21 cm)
•  Weight: 3,6 kg (4kg)
• Type of packaging: Carton Box

INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of people and has no one pass by or under it.

CONNECTION

The device is equipped with the following interfaces:

1. DMX (in/out): XLR 3(5)-pin socket
2. Power (in/out): powerCON socket

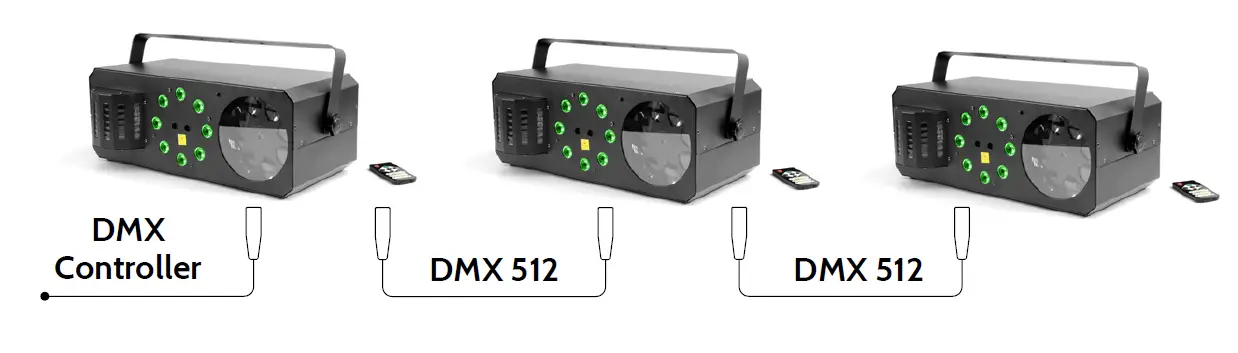

CAUTION! At the last fixture, the DMX signal has to be terminated with a terminator. Solder a 120Ω resistor between signal (-) and signal (+) into a XLR plug and plug it in the DMX output of the last fixture

Voltage specification

Connecting power supply
The connection is performed using power cable with PowerCon connector (included). The device must be operated by qualified personnel. Make sure that the power grid supply parameters are consistent with device parameters and limitations are not exceeded.

CAUTION! In the case of cable damage do not attempt to repair. Replacement or repair can be made only on the manufacturer or by a person with appropriate permissions.

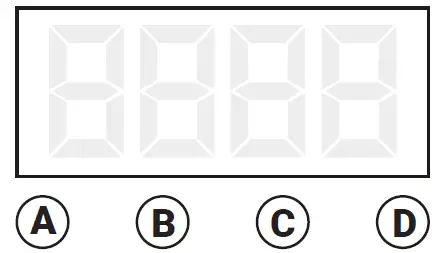

LED Display function

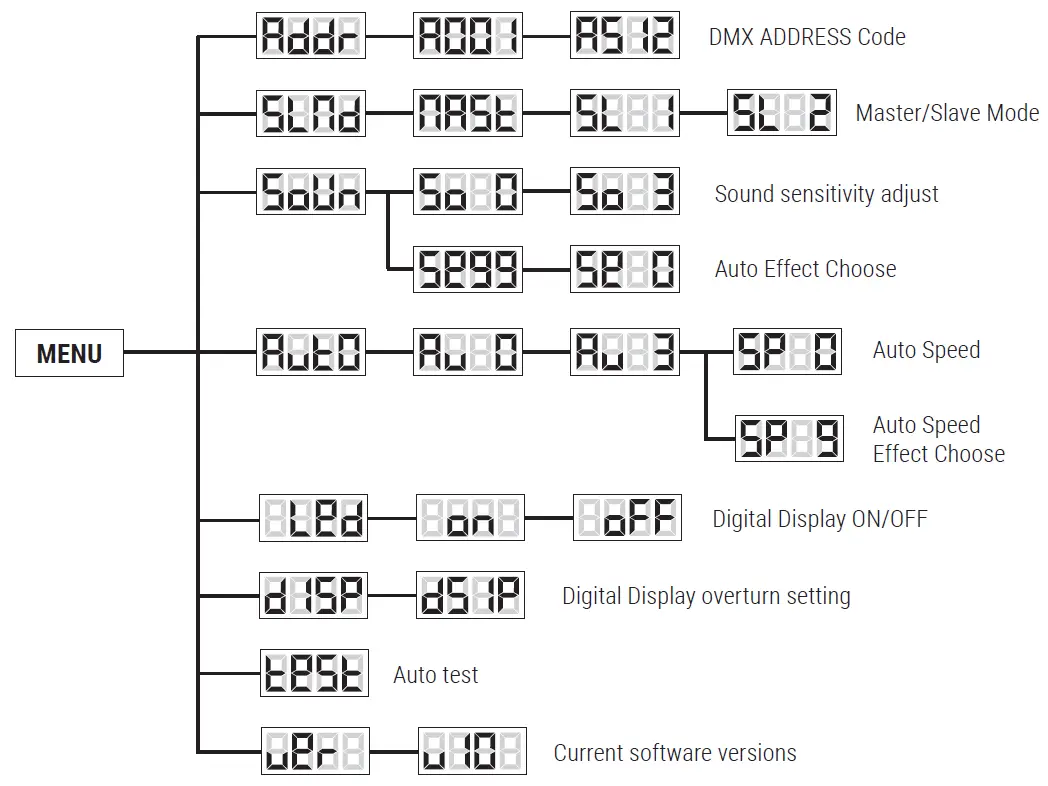

(Press button „Enter” to enter) LED display window function control table, all the function are selected and than press D key to save confirm.

DMX 23CH
