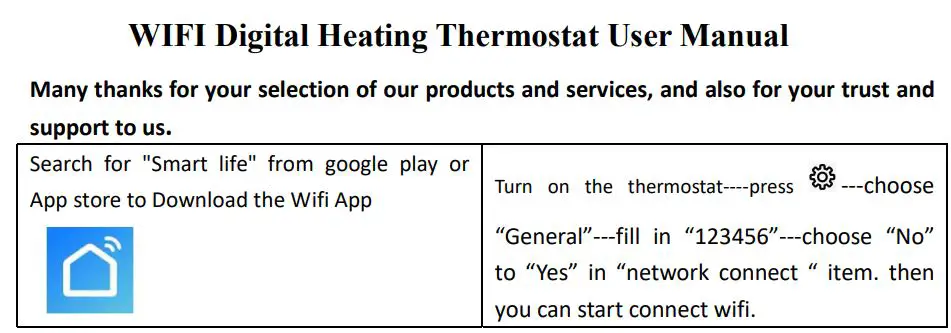

htc HYT001 WIFI Digital Heating Thermostat User Manual
Features
- (A) High resolution TFT IPS 480*480 screen
- (B) 0.5°C accuracy keeps temperature within the level you set.
- (C) Children lock to prevent mis operation by children
- (D) Data memory when power is off.
- (E) Holiday mode make you enjoy more comfortable temperature in holiday
- (F) The temperature of external sensor can be checked
Product Specifications
☆ Power: 90-240Vac 50/60Hz
☆ Range of temperature display:：1~70°C
☆ Display accuracy:：0.5°C
☆ Insulating condition: Normal environment
☆ Probe sensor:：NTC(10k)1%
☆ Running program: Set per 1 week as a cycle
☆ Contact capacity:：3A/(WW);16A/(WE)
☆ Output: Switch relay
☆ Limit temperature range:：1~70°C
☆ Installation: recessed type (in the wall)
☆ Range of temperature adjustment:：5~35°C
☆ Size(mm)：86*86*15mm
Description of icon

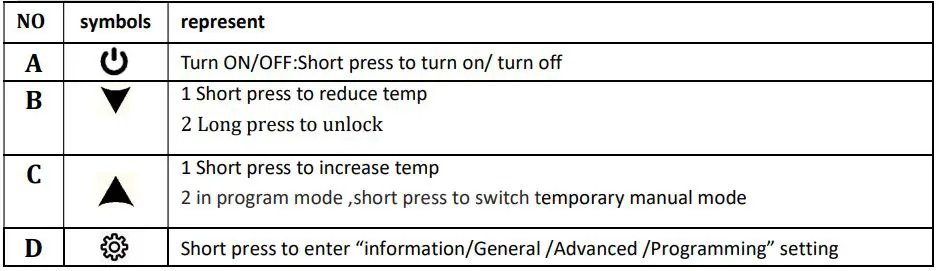

Operation key
Information –General –Advanced—Programming Parameters you should fill in password (123456) when you enter them each time.( you can change it in advanced option

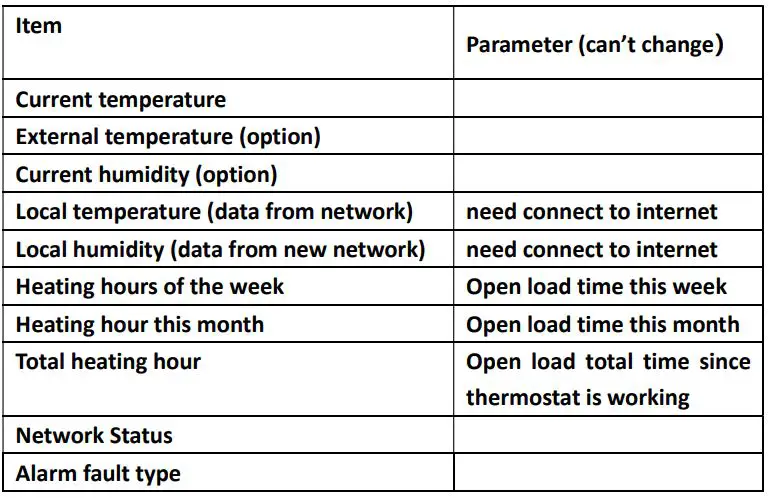

1 Information

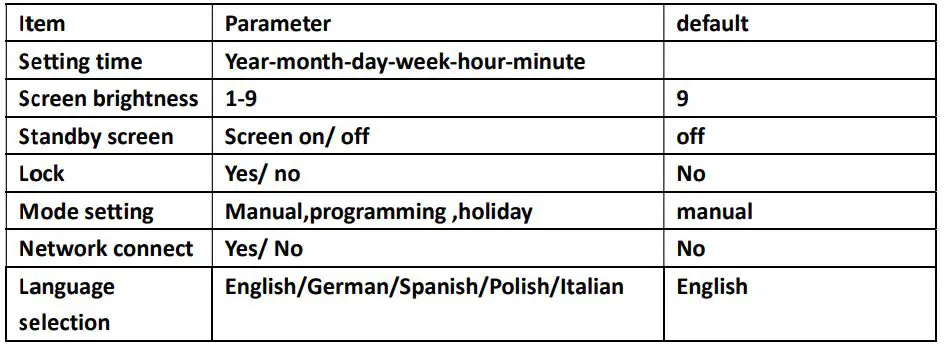

2 General

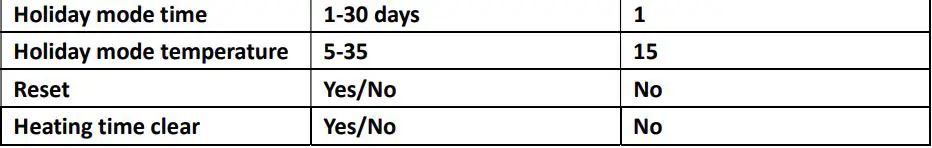

3 Advanced

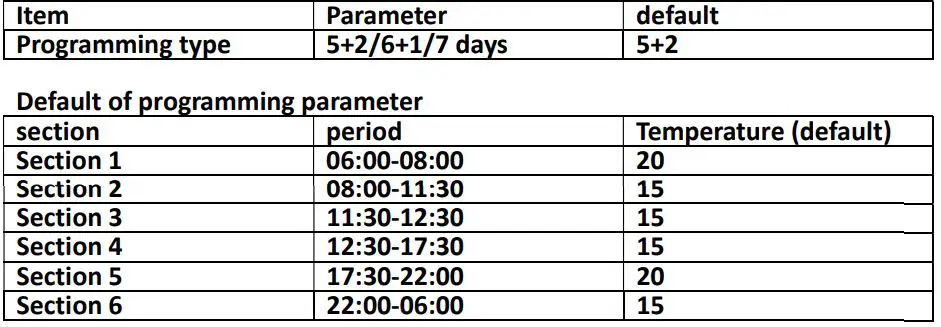

4 Programming parameters
