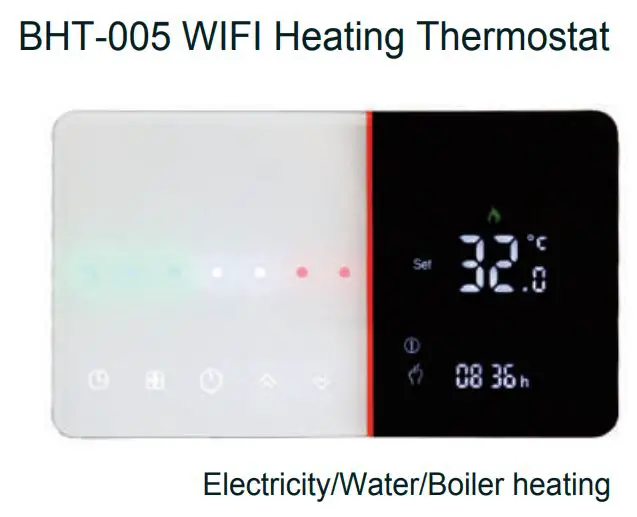

tuya BHT-005 Wifi Heating Thermostat User Manual
WELCOME
Thank you for choosing our thermostat. We are committed to bringing together high-end technology, high-quality production technology, safe and reliable materials to produce high-quality and inexpensive products. The new sliding control thermostat helps you creating a comfortable life. Please read this manual for comprehensive product information. In the same time, ensure that professionals install the thermostat and comply with all local regulations.
IN THE BOX YOU WILL FIND
Thermostat *1
Manual*1
QC Passed* 1
Screw *2
External sensor (optional)* 1
ABOUT YOUR THERMOSTAT
BHT-005 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems. It can be used in smart controlling houses, shopping malls, and industrial places. Before use, please confirm the specific model of this product and the corresponding heating equipment. Please read the wiring diagram to identify the model or contact the merchant.
FEATURES
On Appearance
- Piano style sounds like a Chopin’s nocturnes;
- Gradient-color-change-sliding touch;
- Weather, humidity, and ultraviolet display;
- PM 2.5 in APP
- 2.5D arc chamfer;
- Hidden LCD screen;
- Unique design &enjoyable touch;
- Ultra-thin embedded panel, perfectly fit all walls;
- Suitable for European hidden box;
On Functionality
- Modbus, WIFI version, etc., to meet all your needs;
- Temperature control accuracy (±0.5¥);
- Power-off protection to avoid loss of data settings;
- Weekly 5+1+1days &6 period programmable settings; energy-saving, cost-saving, environment-friendly;
- Support local grouping/sharing, centralize controlling hundreds of products;
- Support Tall, Amazon echo, Google Home;
- APP (iOS/android) automatically obtains the local temperature and humidity, PM2.5 and creates smart scenes.
- It supports all regions and languages of the world and provides comprehensive services.
MODEL DEFINITION
GA: Water heating, 5A
GB: Electric floor Heating, 16A
GC: Water/Gas Boiler, 5A
N: Modbus version;
W: wifi version
Example: BHT-005 GAW

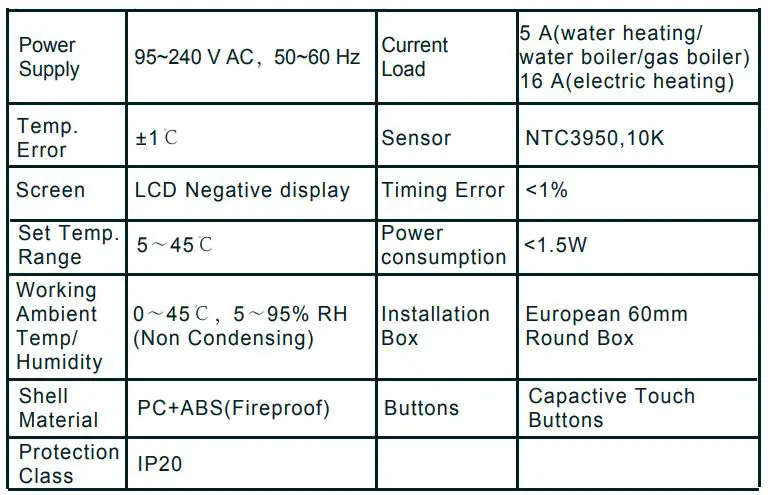

TECHNICAL DATA

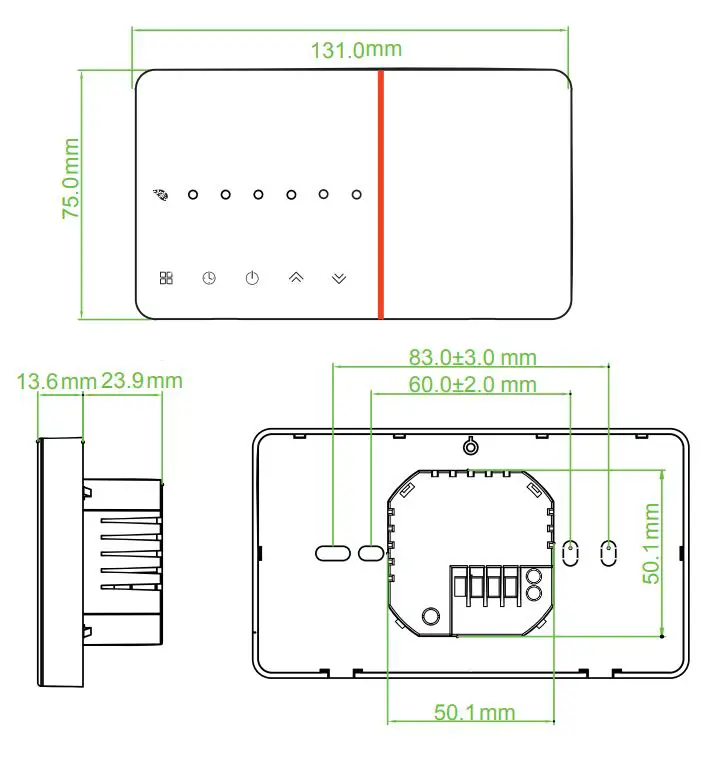

DIMENSION
BEFORE WIRING AND INSTALLING
Precautions before installation
- Be sure this product is suitable for your heating equipment before installation;
- Be sure to keep the power off before installation or maintenance;
- Follow the wiring diagram for wiring strictly;
- Be sure that it is fastened and suitable when installing to the wall,
- Do not pull the cable hard, it may damage the product;
- Bend it to an appropriate angle first, if hard plastic wire is used in installation,
- Only professionalism can install;
- Please contact the after-sales service for any equipment failure, please do not try to repair it yourself;
- After installation, please read this manual to double check normal safety;
CAUTION
Electrical Shock or Equipment Damage Hazard. Can shock individuals or short equipment circuitry. Disconnect power supply before installation.

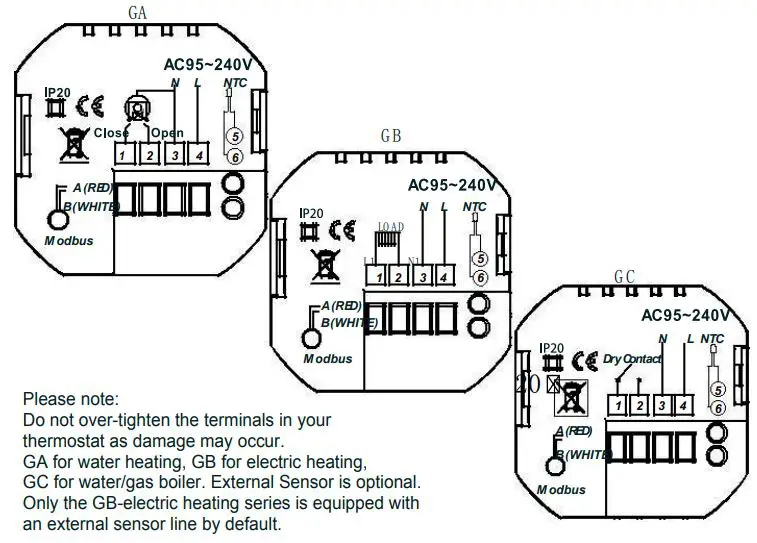

WIRING

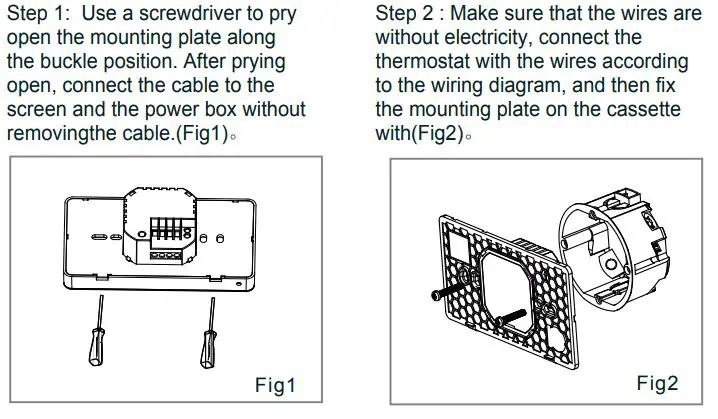

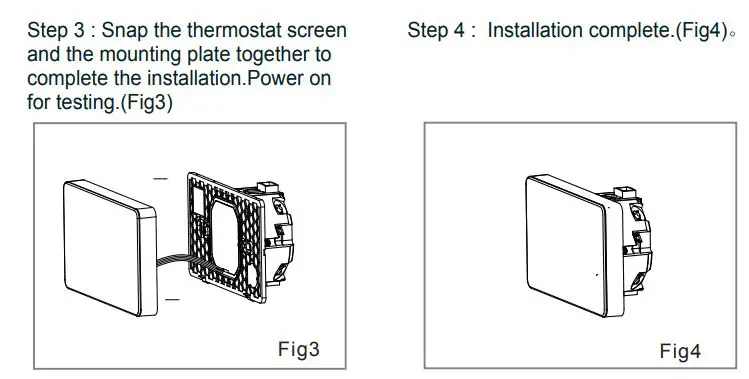

INSTALLATION

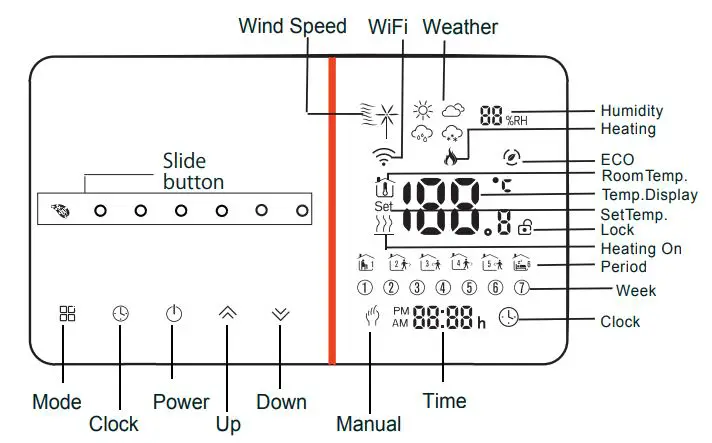

HOME SCREEN QUICK REFERENCE
- Display humidity, weather.
- The weather data uploaded to thermostat 3-4 minutes after thermostat is connected to the Internet.
It would be updated every 30 mins.

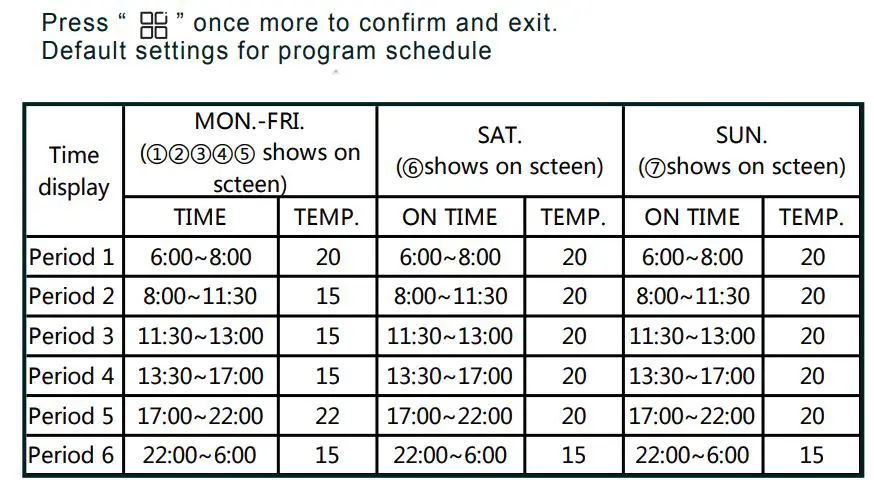

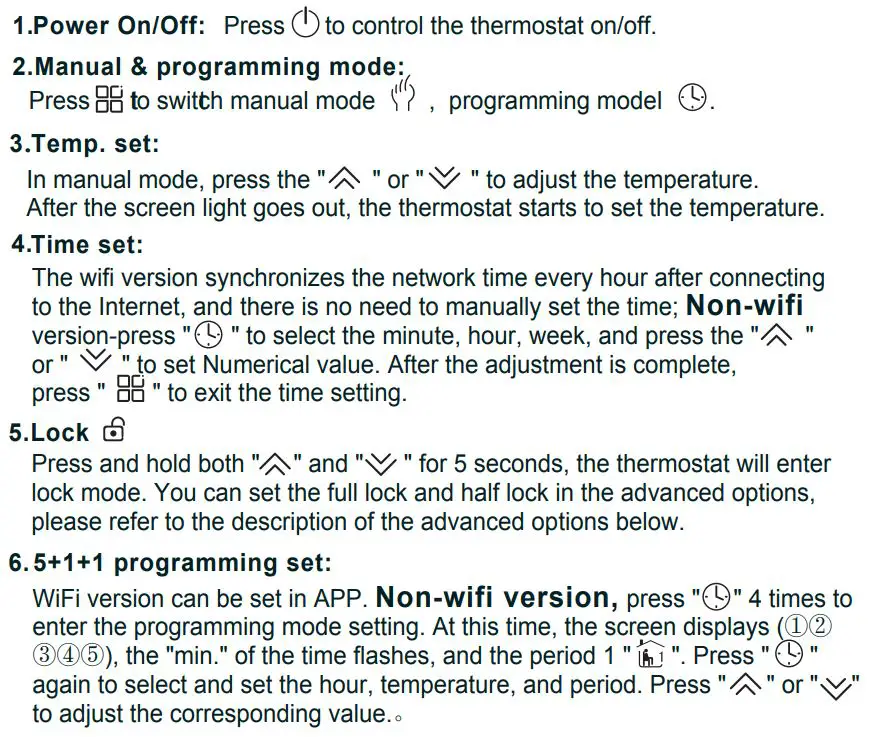

Operation
ABOUT WIFI
WI-FI CONNECTION
When first time using Wi-Fi thermostat, you must configure the Wi-Fi signal and settings on your smartphone or tablet. This will allow communication of your connected devices.
Step 1 Download your APP cFig1-1
Search for “Smart life” in Apple Store or Google Play or scan the QR code above (Figure 1-2) by browser to complete account registration and installation according to the guidance of the APP.
Step 2. Connect the thermostat Follow the steps below to complete the connection and setup.

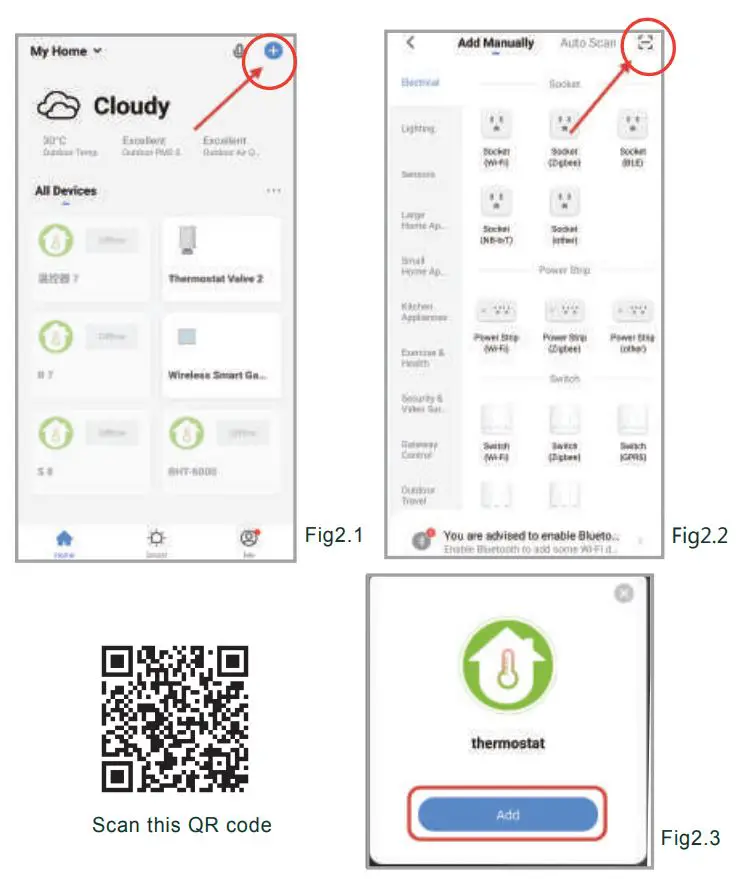

Method 1: Scan the QR code to configure the network guide (Fig 2.1-Fig 2.3)
https://smartapp.tuya.com/s/p?p=N8bUqOZ8HBQjU0K0&v=1.0

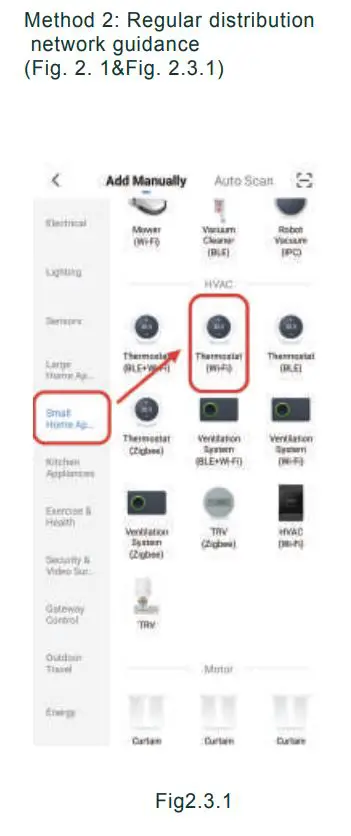

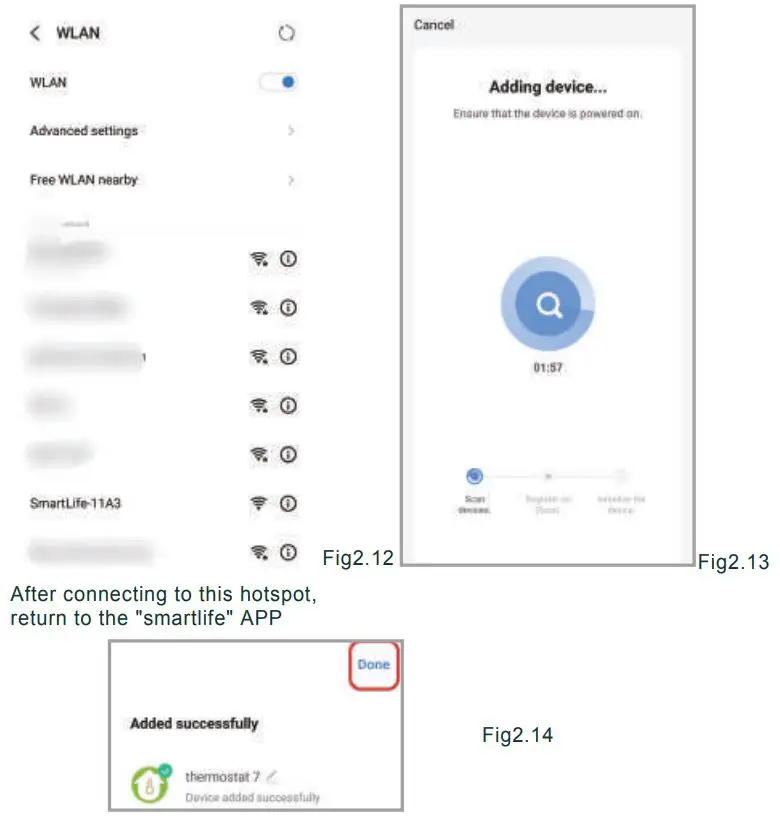

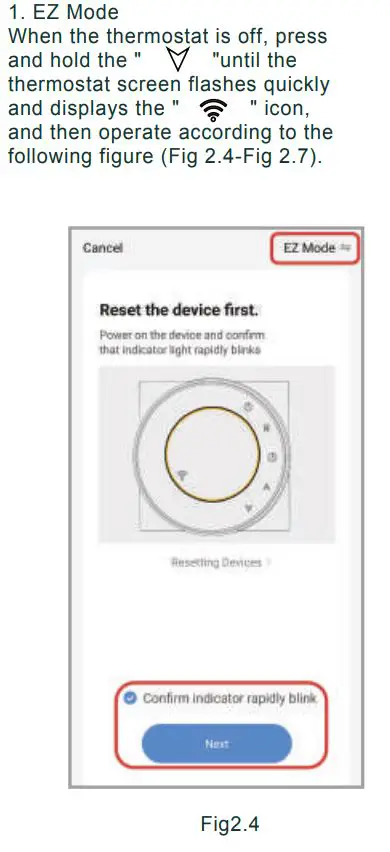

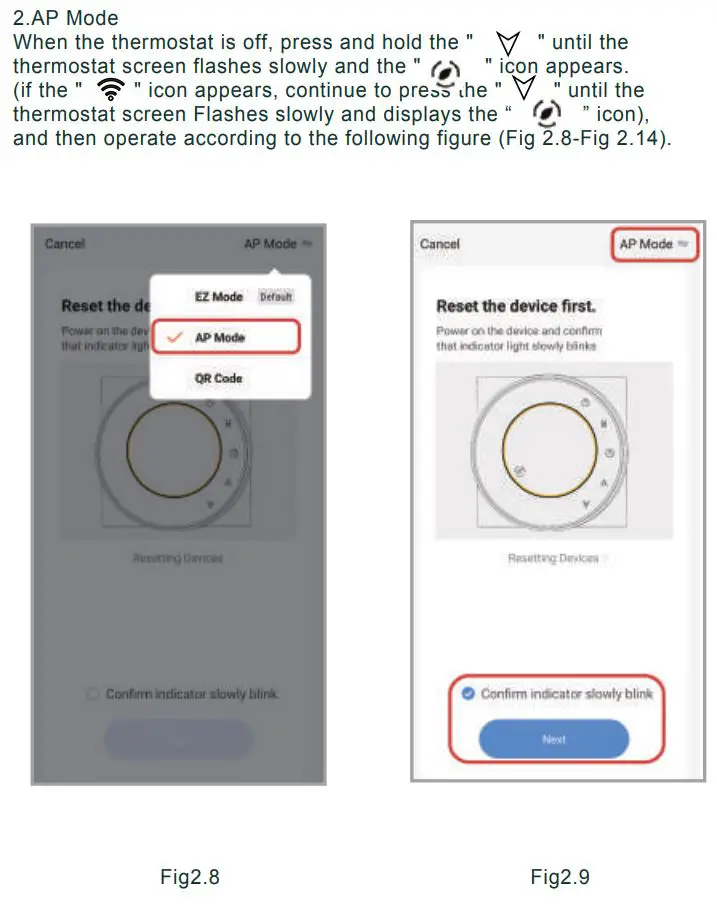

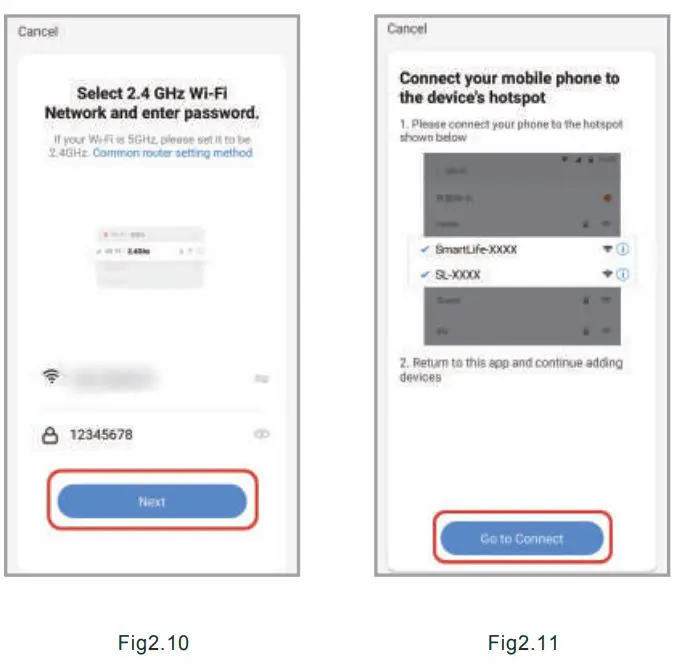

Network distribution mode:

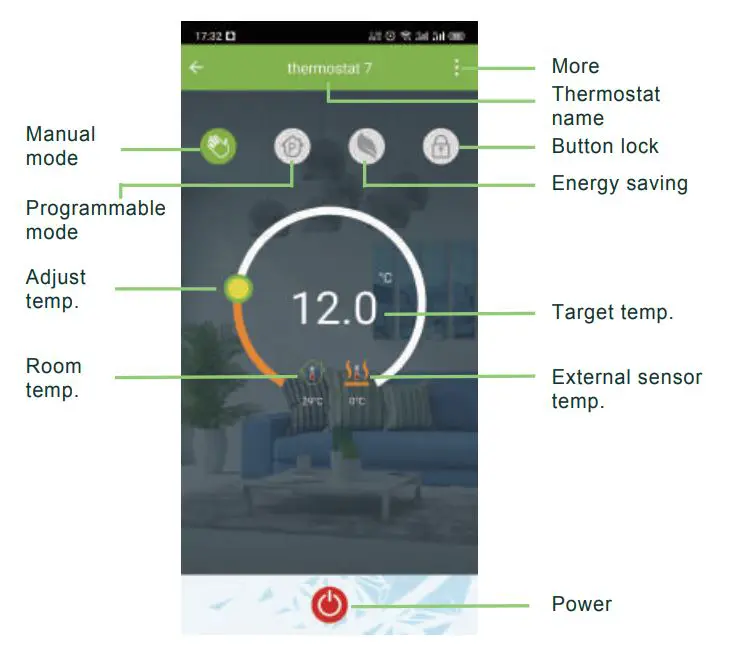

APP operation interface description (heating thermostat)

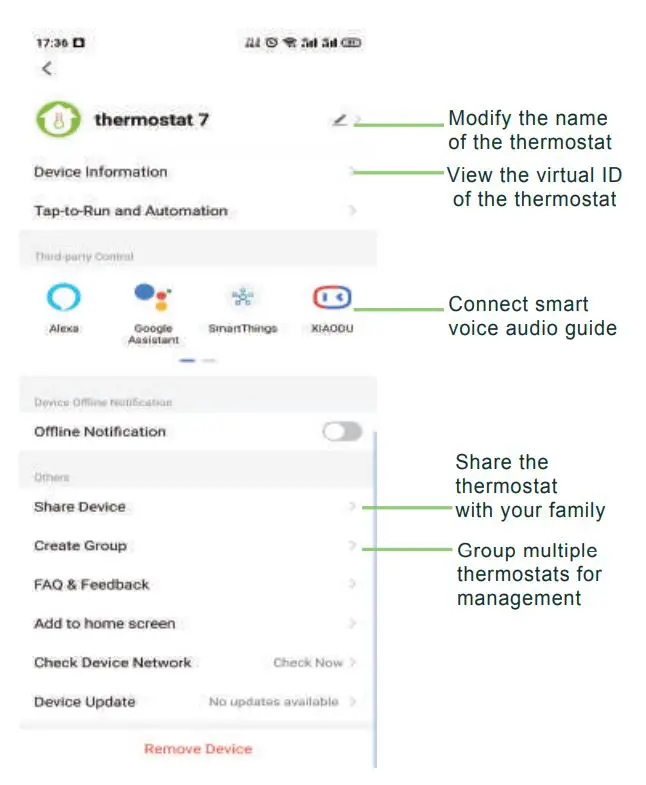

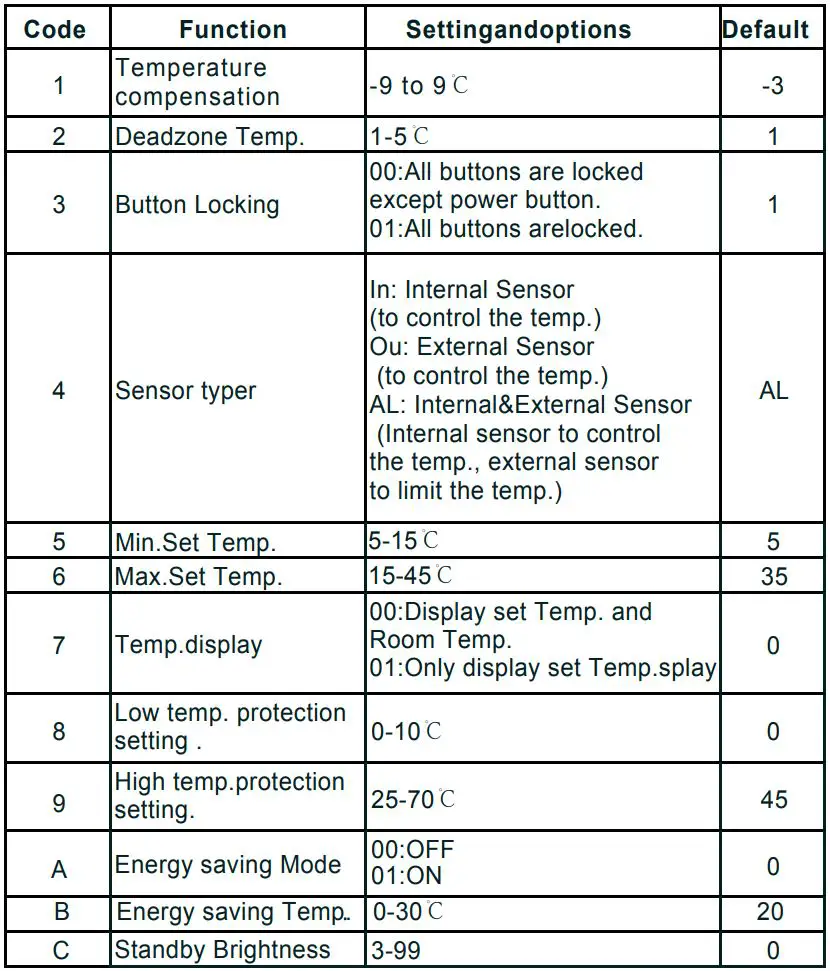

MORE SETTINGS

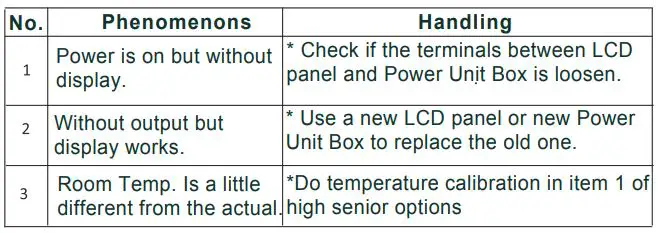

SIMPLE EXCEPTION HANDLING
SERVICE
24-months warranty since date of purchase Service beyond the warranty period may need charge. More details, please contact us.
