GLOBAL WiFi Heating Thermostat
55*55mm wifi heating thermostat manual
Search “Smart life” or “Smart RM”APP on Google play or APP store to download it .
- Turn on the thermostat, press and hold the key combination“ ” and “ ” Activate WIFI distribution network icon
- APP advance setting password is 123456

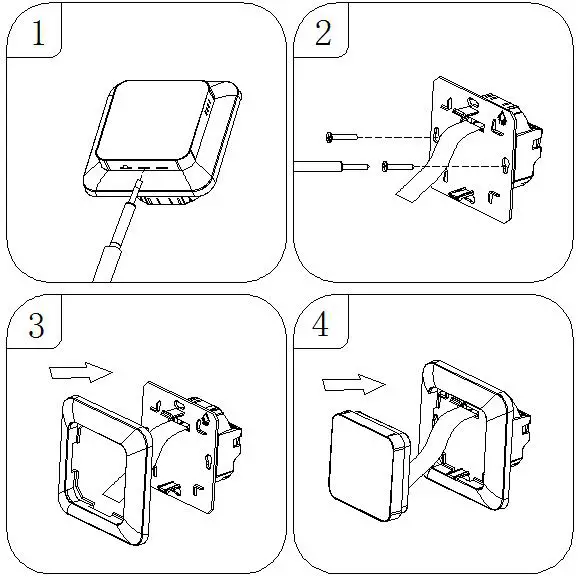

Installation
Specifications
- Power：90-240Vac 50/60HZ
- Sensor:：NTC(10k)1%
- Current：5A/250V(WW)；16A/250V(WE)
- Set temperature range 1~70°C
- Default set temperature range：5~35℃
- Accuracy：±0.5℃
- External：options（NTC）
- Size：55*55mm(without frame)
Display icon

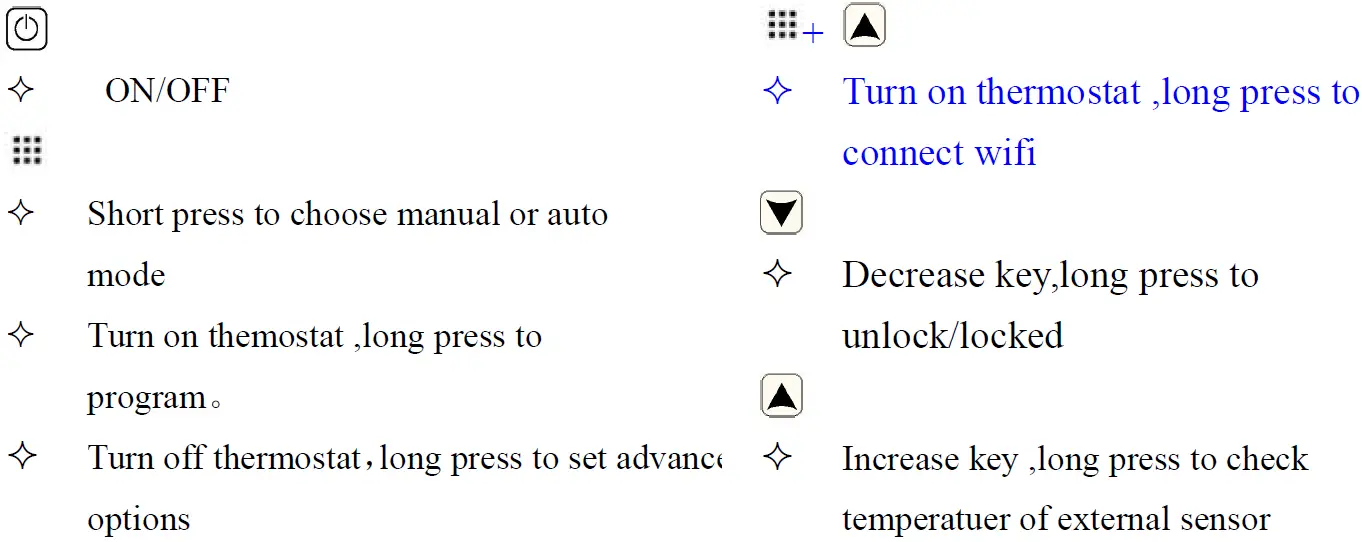

Operation key
Setting time
Turn on thermostat，long press to enter setting interface,short press to choose,then short press to set time，next press to choose hour ,minute and week
Holiday mode
Turn on thermostat，long press to enter setting interface，short press to choose ,then short to enter，After short press to choose days and temperature

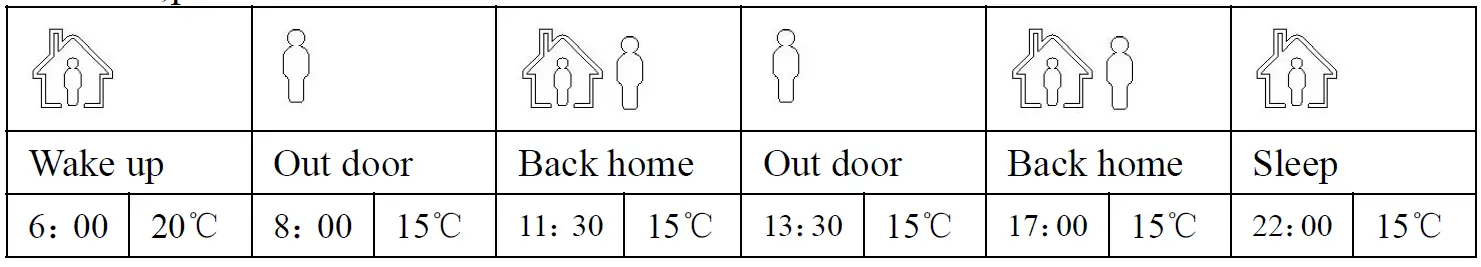

Programmable
Turn on thermostat，long press to enter setting interface，Short press to choose ,then short to program，short press to choose hour ,minute and temperature. After finished,press to exist
Advance option A
Turn off thermostat，long press to enter From A1-AE，short to choose item,press ,to adjust parameter
| No. | Items | Parameter | Default |
| A1 | Measure Temperature Calibration | -9-+9℃ | 0.5℃ Accuracy Calibration |
| A2 | Hysteresis temperature | 0.5-2.5℃ | 1℃ |
| A3 | Child lock | 0：half lock； 1：full lock | 0 |
| A4 | Power with memory function | 0 ：Power with memory function 1： Shutdown power after power off 2： Shutdown power after power on | 0 |
| A5 | Backlight time | 5~30S | 10 |
| A6 | Programmable | 0：5+2 ; 1： 6+1 ; 2： 7 | 0 |
| A7 | The lowest of setting temperature | 1-10 | 5 |
| A8 | The highest of setting temperature | 20-70 | 35 |
| A9 | Low temperature protection | 1：1℃-10℃ 2：more than10℃，display【–】，mean closed this function | 5 |
| AA | High temperature protection | 1：35℃-70℃ 2：less than 35℃，display【–】，mean closed this function | 45 |
| AB | High temperature protection hysteresis | 1~9 | 2 |
| AC | Running temperature of open window function | 10~20 ,less 10 display– ， mean closed this function | 15 |
| AD | Running time of open window function | 10~20 min | 10 |
| AE | Reset | Long press until whole display |
Advance option B
Turn off thermostat，long press to enter。Short press to choose item。
| No. | item | Parameter | Default |
| BN | Choose sensor | N1 :inner sensor N2: external sensor N3: inner & external sensor | N1 |
| BC | Descaling function | 0 :closed 1 :open | 0 |
| Bo | Procedure version | V1.0 long press to reset advance option B parameter |
Return difference : limit valve of external sensor is 45℃ for factory default (AA),value of external sensor control return difference (AB) is 2. when temperature rise to 45℃,then relay stop working and will remind high temperature production alarm. If temperature decline to 43℃relay continue to work and heating alarm will be relieved. (it can be operated ,only when indoor temperature is lower than setting temperature )
Sensor fault display:please choose correct working way of built-in and external sensor, if choose wrongly or sensor fault (breakdown), “E1” or “E2” will be displayed on the screen. Thermostat will stop heating until the fault is eliminated
Warranty：
We offer the warranty of 18 months, from the sales day. The products of our company can have lifetime warranty ,if it is not the quality problems, or beyond the warranty period, we will charge for the after-sale service.

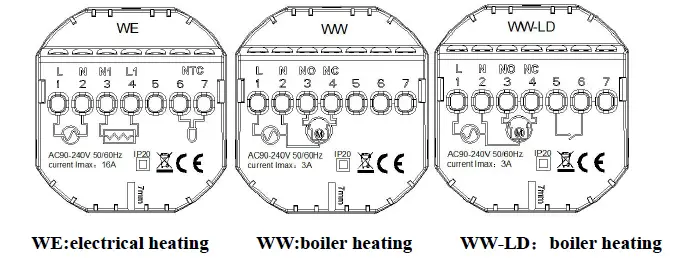

Wiring
WE: electrical heating
WW :boiler heating
WW-LD：boiler heating
