Hanwha Techwin SBP-187WMW Wall and Pole Mount User Manual
Product Features
This is a mount used to install the LPR camera (example: TNO-7180R) on vertical structures such as walls or vertical round pillars of at least 60 mm. (For compatible models, please visit our website.)
Package
- WALL&POLE MOUNT

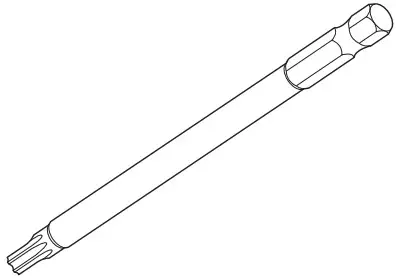

- DRIVER BIT (T30)
- SCREW (4EA)
Optional Accessory

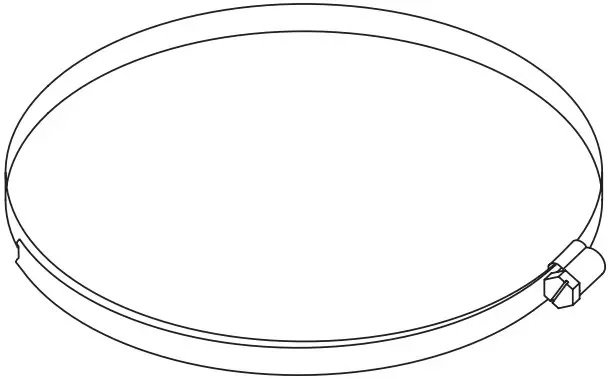

STAINLESS STEEL MOUNT STRAP :SBP-100S
Installation Precautions
- Make sure that the installation place can endure at least 4 times of the total weight of the Wall&Pole Mount and Camera.
- Each anchor bolt must be capable of withstanding an extraction force of 700 kg.
- When installing the product outdoors, use interlocking devices made of stainless steel.

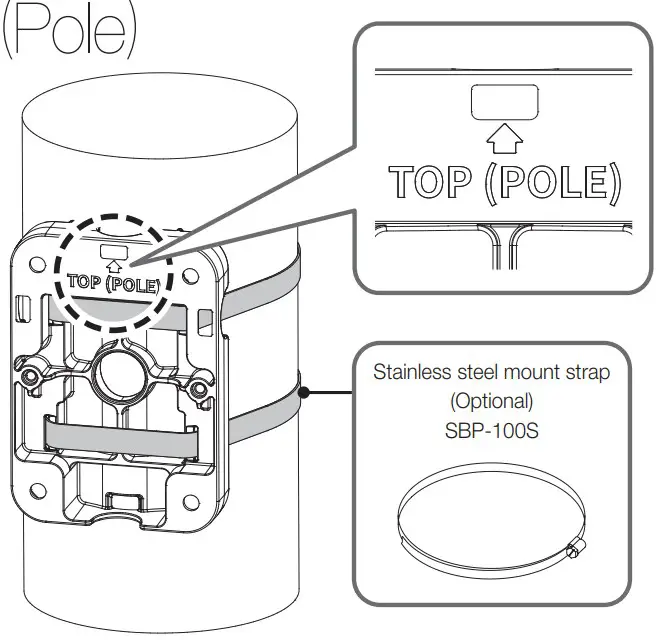

- The Wall & Pole Mount can be installed directly on walls or vertical round pillars of at least 60 mm

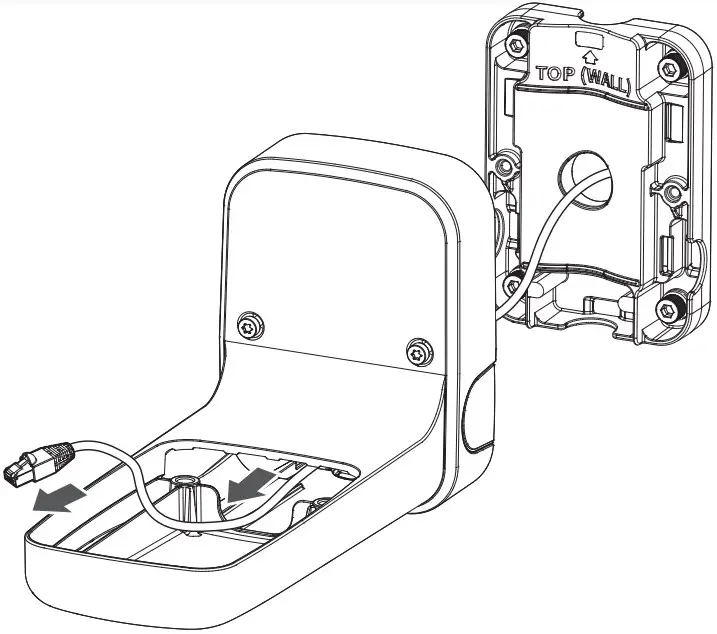

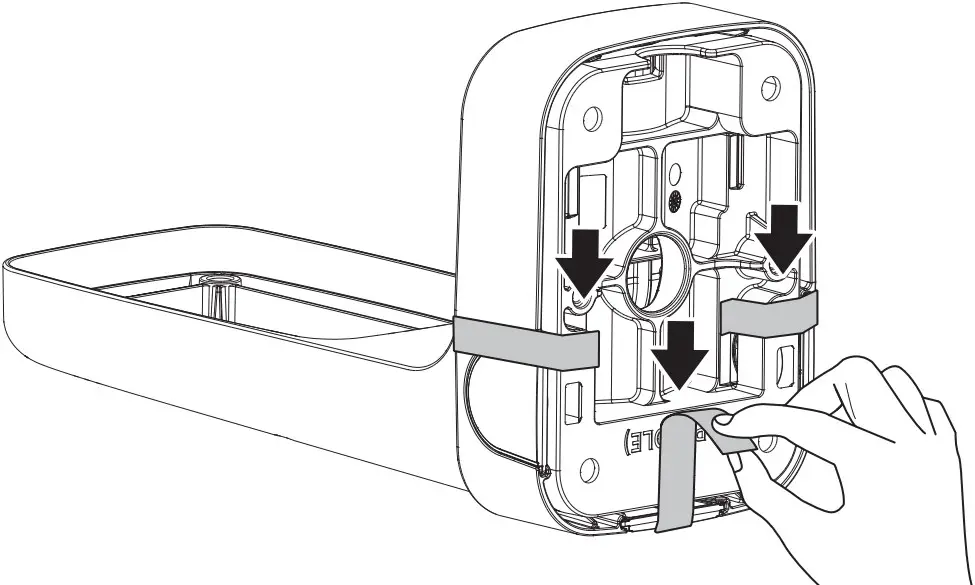

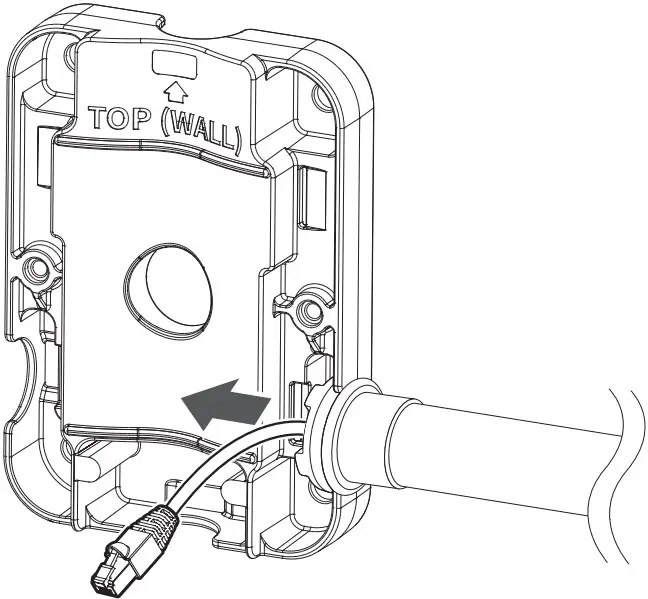

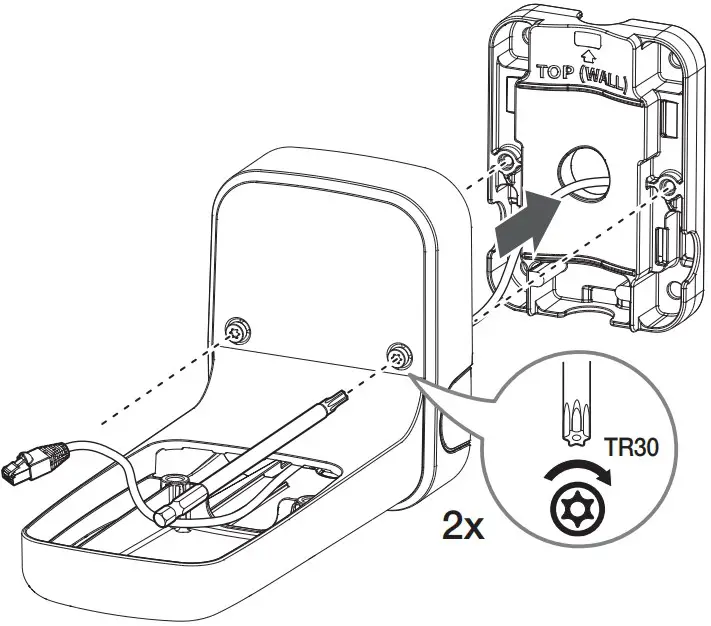

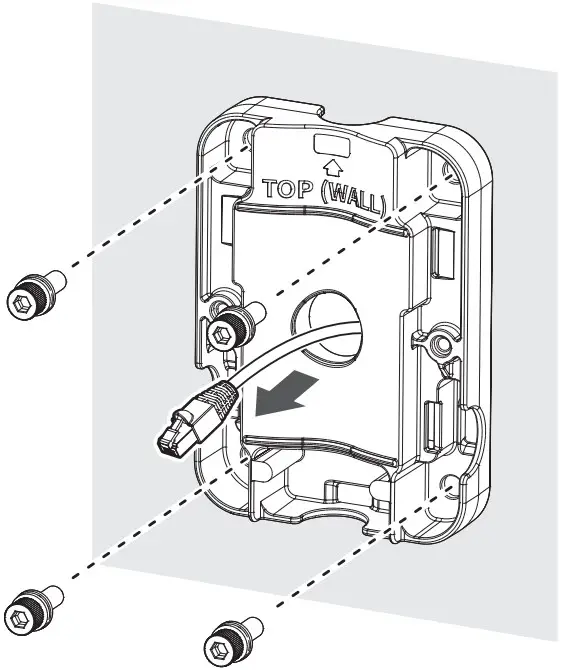

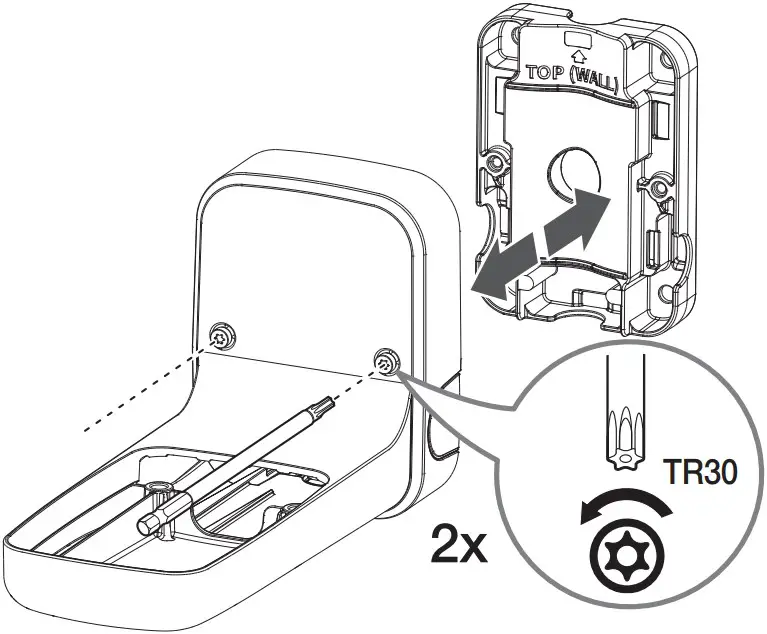

Installation

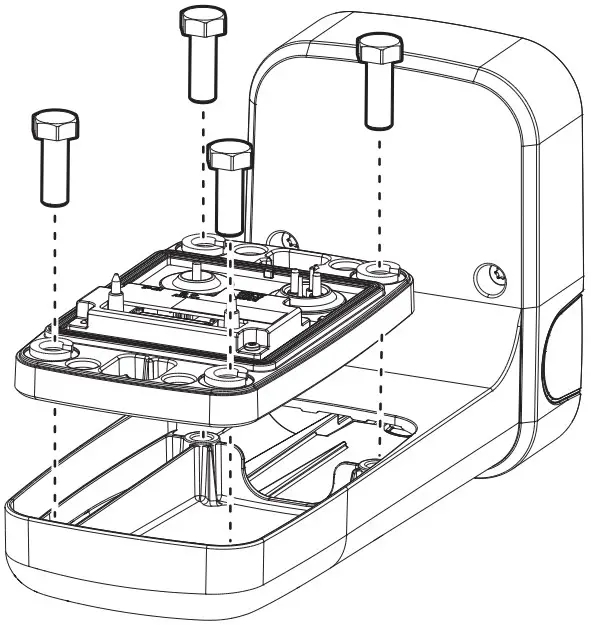

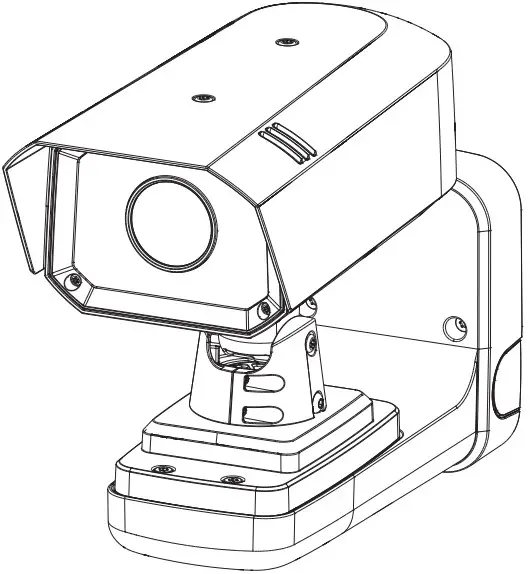

Camera Installation
* For the detailed camera mount method, see the Quick Guide for the camera you want to install.
