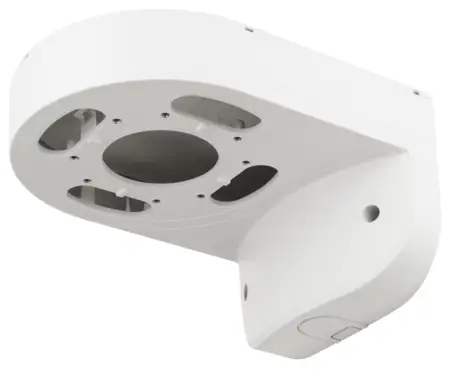

SBP-160WMW1 Wall and Pole Mount
User Manual
Wall&Pole Mount
SBP-160WMW1

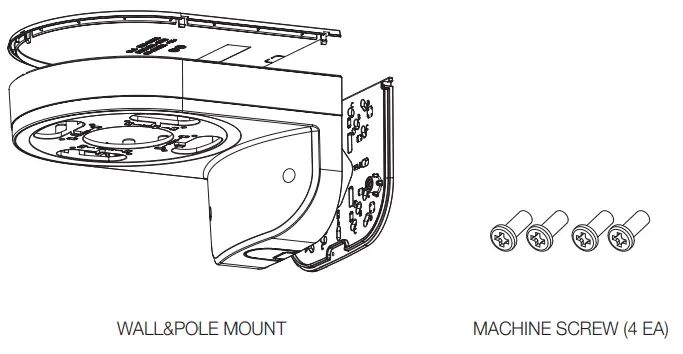

Package

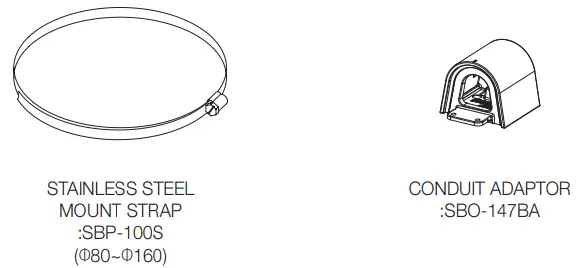

Optional Accessory
Product Features

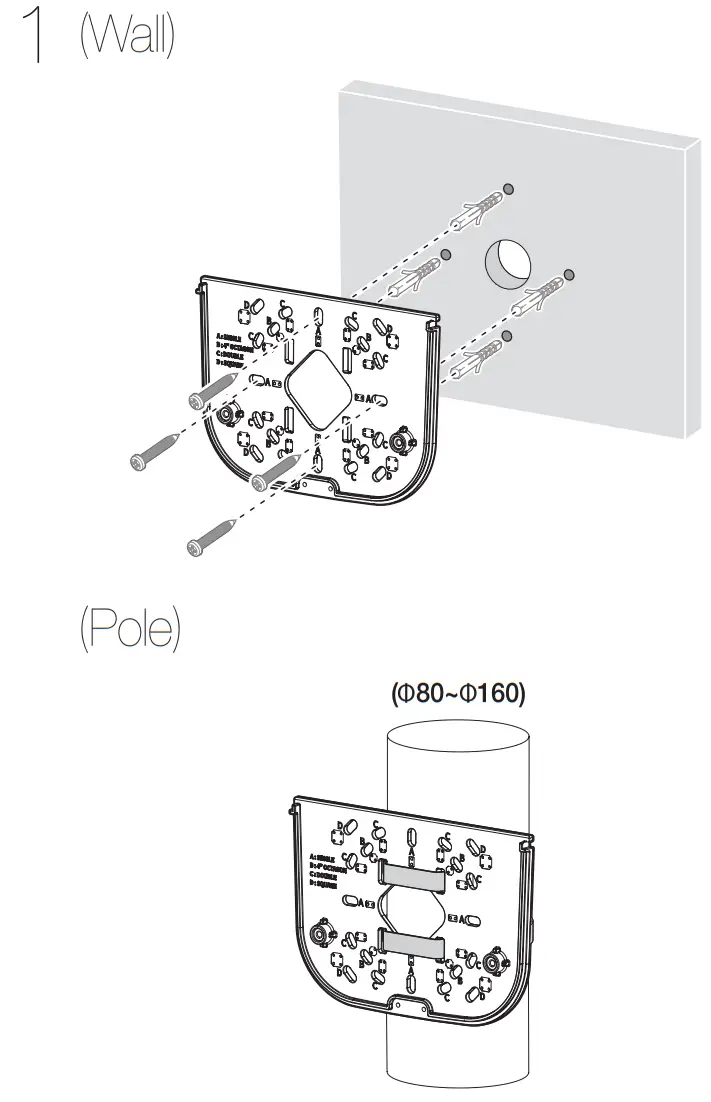

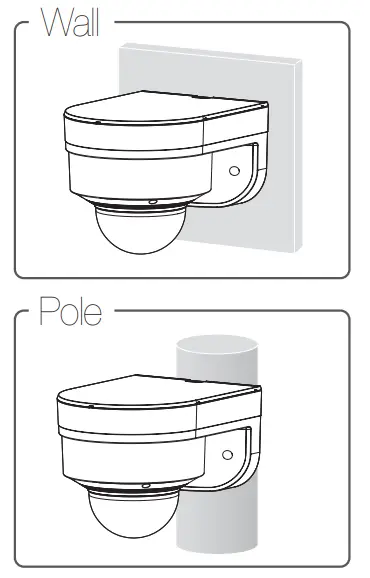

This product is a mounting bracket used to install a camera on a vertical structure, such as a wall, or on a pole with a diameter of 80-180mm. (For compatible models, please visit our website.)
Installation Precautions
- Make sure that the installation place can endure at least 4 times of the total weight of the Wall&Pole Mount and Camera.
- Each anchor bolt must be capable of withstanding an extraction force of 700 kg.
- When installing the product outdoors, use interlocking devices made of stainless steel.
 |  |
 |  |
