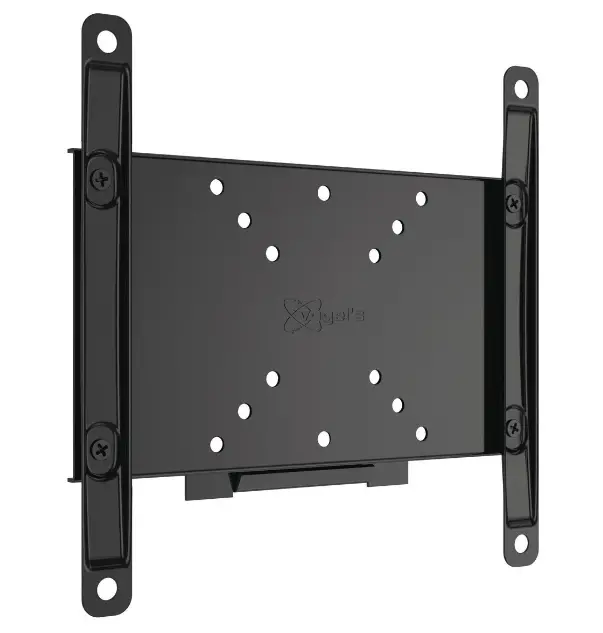

vogel s PFW 4000 Series Wall Mounts

Instructions

Maximum security in public places
A straightforward wall mount with the renowned Vogel’s quality. A simple and affordable solution for installing displays in public spaces where supervision is limited. Displays can be locked in two ways for an optimal theft-prevention solution.

Attractive design and price
The 4000 Series offers a reliable Vogel’s wall mount for displays from 10″ to 80″. The wall mounts ensure a completely flat wall installation and are available in fixed and tilting versions. The tilt function can be adjusted in steps, making higher mounted displays easy to see and read.

Always level
Specially shaped drill holes allow the position of the wall plate to be adjusted once it has been mounted to the wall. This ensures that the mount is always level. Everything you need for installation is supplied in the box, including high-quality mounting materials. This ensures that you have everything to hand.

Key features

Tilt in steps 0º, 7º, 12º and 15º
VESA max. 600×400 mm
Fixed tilt position
Autolock®
Locking bar and padlock

4000 SERIES

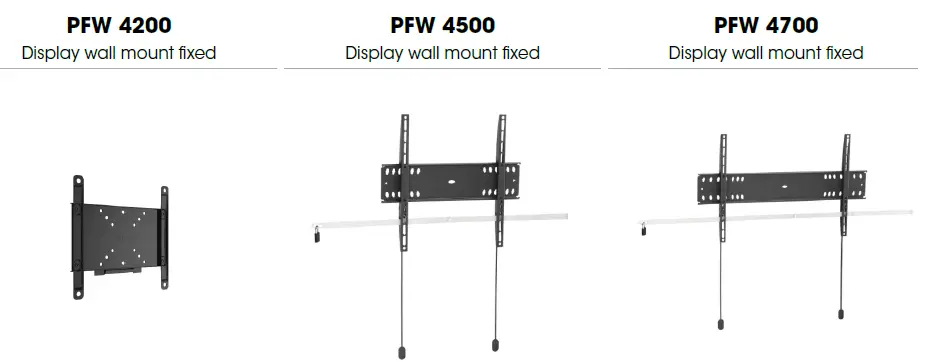

Specifications

Max. weight load (kg)	30	50	75
Min. screen size (inch)	10	42	55
Max. screen size (inch)	43	55	80
Tilt
Lockable	●	●	●

Guarantee 5 years

General

Colour	Black	Black	Black
Article number	7042000	7045000	7047000
EAN single box	8712285330988	8712285338601	8712285338649

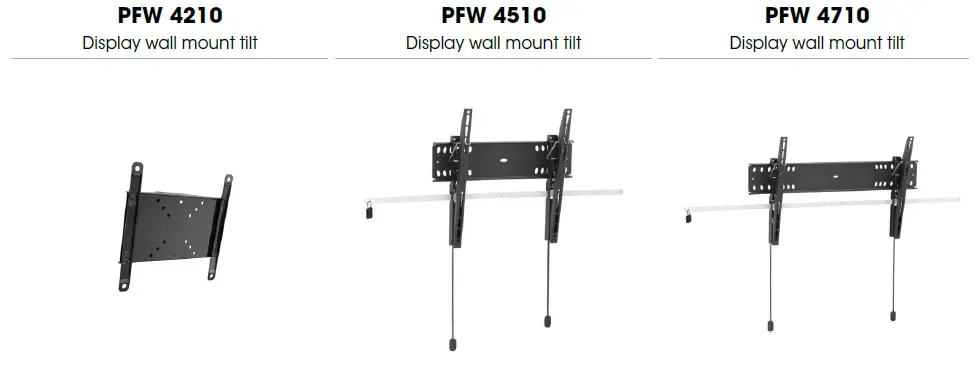

Specifications

Max. weight load (kg)	30	50	75
Min. screen size (inch)	10	42	55
Max. screen size (inch)	43	55	65
Tilt	Tilt up to 15°	Tilt up to 15°	Tilt up to 15°
Lockable	●	●	●
Min. distance to the wall (mm)	53	52	52
Min. VESA hole pattern (mm)	50 x 50	100 x 100	100 x 100
Max. VESA hole pattern (mm)	200 x 200	400 x 400	600 x 400
