RAYCHEM Heating System Tank Heater Installation Kit
DESCRIPTION

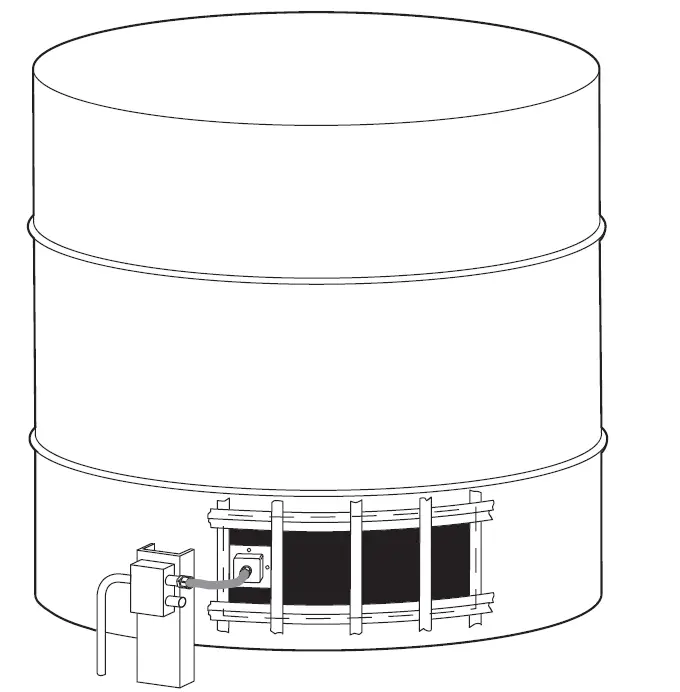

- The nVent RAYCHEM RHS installation kit is used for attaching RHS tank heaters to a tank wall. The kit contains materials for mounting up to two RHS tank heaters. RHS-H-500 and RHS-L-150 heaters will each require approximately one adhesive tube; RHS-H-1000 and RHS-L-300 heaters will each require approximately one and one half tubes of adhesive; and RHS-H-1400 and RHS-L-420 heaters will each require two tubes of adhesive.
- The installation kit must be used in conjunction with the nVent RAYCHEM Heating System Installation Instructions (H55207). For technical support call (800) 545-6258.
Note: Do not use the RTV adhesive if the date stamp has expired. Contact your nVent representative for a new kit. nVent requires the use of GE RTV106 for installing RHS heaters.
APPROVALS
Ordinary and Hazardous Locations
Class I, Div. 2, Groups B, C, DClass II, Div. 1 & 2, Groups E, F, GClass IIIAll hazardous location applications must be engineered by nVent.
T-ratings:
- Low-watt heaters: T4AHigh-watt heaters
- (Class I): T2CHigh-watt heaters
- (Class II & III): Contact nVent

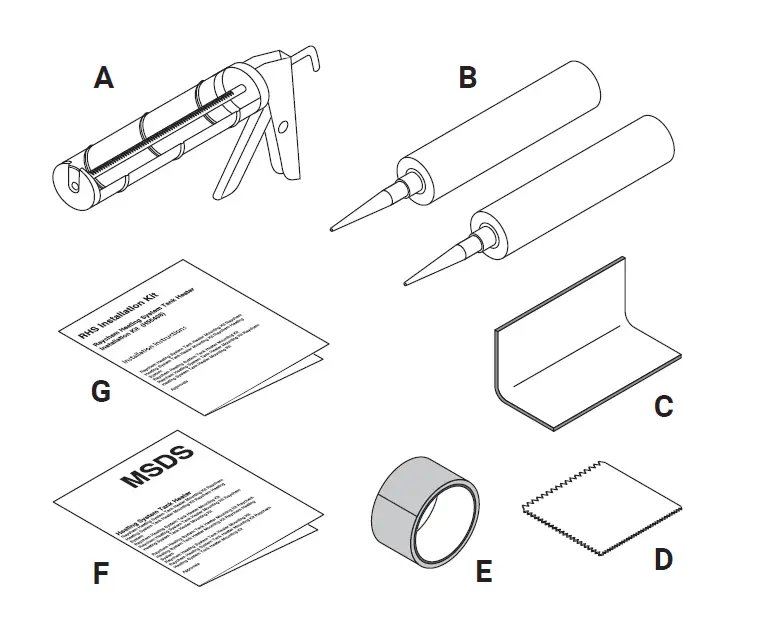

KIT CONTENTS
Item /Qty /Description
- A 1 Caulking gun
- B 2 RTV adhesive tubes
- C 1 Wedge
- D 1 Trowel
- E 1 AT-180 tape (30 feet)
- F 1 MSDS VEN/0004
- G 1 Installation instructions
CAUTION:
Uncured adhesive can irritate eyes. Read warnings on tube. Consult MSDS VEN/0004 for additional information
North America
Tel +1.800.545.6258
Fax +1.800.527.5703
[email protected]
Europe, Middle East, Africa
Tel +32.16.213.511
Fax +32 16 21 36 04
[email protected]
Asia Pacific
Tel +86.21.2412.1688
Fax +86.21.5426.3167
[email protected]
Latin America
Tel +1.713.868.4800
Fax +1.713.868.2333
[email protected]
©2021 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without notice. RAYCHEM-IM-H55408-RHSKit-EN-2105
