SC T HD10-4K6G 4K60Hz 1 x 10 HDMI Distribution Amplifier
Model : HD10-4K6G, 4K60Hz 1 x 10 HDMI Distribution Amplifier
Introduction
HD10-4K6G is a 1 x 10 HDMI splitter that supports resolution up to 4K@60Hz 4:4:4 and can distribute one HDMI source to 10 HDMI displays. The splitter also supports EDID that can easily work with any display with a different resolutions.
Features
- Splits 1 HDMI into 10 HDMI signals.
- Resolution up to 4K@60Hz 4:4:4.
- Supports EDID management.

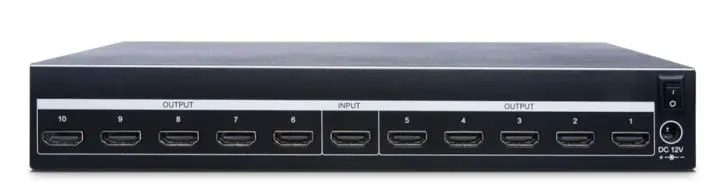

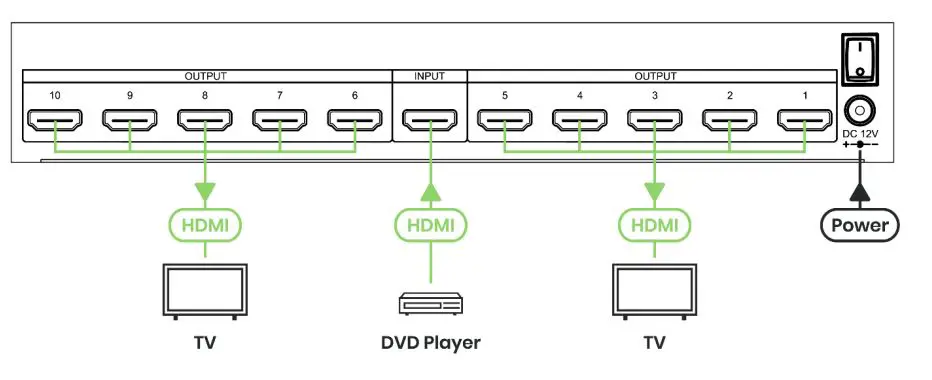

Installation View

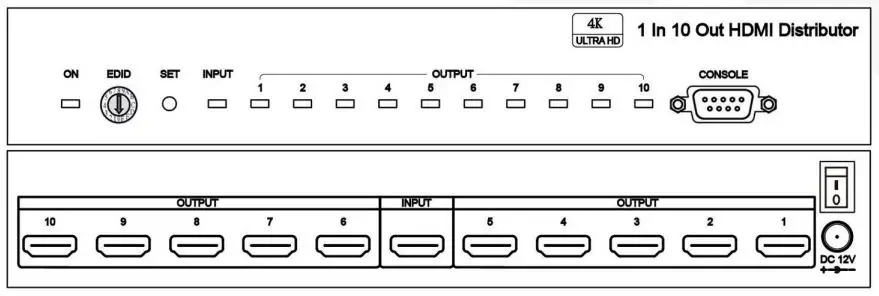

Panel View
HD10- 4K6G Front Panel Function
| Panel | Function |
| ON (Power LED) | Power on/off |
| EDID (Rotary Switch) | Select 0~F to set up EDID |
| SET ( Button) | EDID setup button |
| INPUT (LED) | HDMI input Indication |
| OUTPUT (LED) | HDMI Output indication |
| CONSOLE (RS232) | Firmware update |
EDID Setting
| Rotary Switch | Function: |
| 1~A | Copy output 1~10 monitor EDID |
| 0 | Default 1080P 2 channel audio |
| B | Default 1080P Multi channel audio. |
| C | Default 4K3G 2 channel audio |
| D | Default 4K3G Multi channel audio |
| E | Default 4K6G 2 channel audio. |
| F | Default 4K6G Multi channel audio |
*After select the rotary 0-F, then press “set” button to complete EDID setting
Console Port
R232 interface connect to PC for firmware updated
Specification
| ITEM NO. | HD10-4K6G |
| Support | |
| Compliance | HDMI 2.0, HDCP 1.4, 2.2, DVI 1.0 |
| Max. Video Resolution | 4K@60Hz 4:4:4 |
| Audio Format | LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio |
| Ports & Interfaces | |
| Video Input | 1 x HDMI Type A |
| Video Output | 10 x HDMI Type A |
| EDID Selector | 1 x BCD (Rotary SW 0-F) Switch |
| RS232 Interface (Console) | 1 x DB9 Female (Firmware Update) |
| Power | |
| Power Supply | DC 12V 1.5A |
| Power Consumption | 800mA (Max) |
| Ambient Temperature | |
| Operation | 0 to 60℃ |
| Storage | -20 to 85℃ |
| Humidity | up to 95% |
| Physical Characteristics | |
| Dimensions | 253 x 139 x 40mm |
| Weight | 850g |
