SC T HDMI Distributor Amplifier HD04-4K6G User Manual

Introduction

HD04-4K6G is a 1 x 4 HDMI splitter that supports resolution up to 4K@60Hz 4:4:4 and can distribute one
HDMI source to 4 HDMI displays. The splitter also supports EDID that can easily work with any display with different resolution.

Features

• Splits 1 HDMI into 4 HDMI signals.
• Resolution up to 4K@60Hz 4:4:4.
• Supports EDID management.

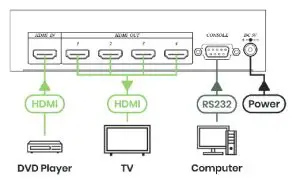

Installation View

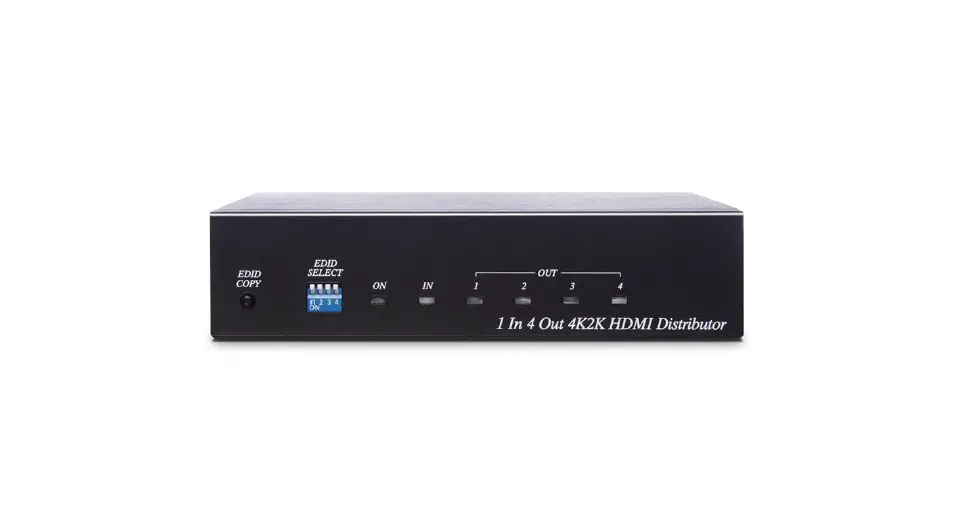

Panel View

HD04-4K6G LED Indication

POWER Green on: Power on
INPUT Blue on: HDMI Input connected
OUTPUT1 Blue on: HDMI output 1 connected
OUTPUT2 Blue on: HDMI output 2 connected
OUTPUT3 Blue on: HDMI output 3 connected
OUTPUT4 Blue on: HDMI output 4 connected

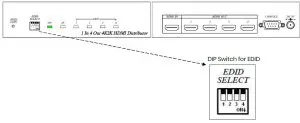

HD04-4K DIP Switch instruction

DIP Switch 1~4 OFF: Default as EDID 1080P

• Switch ON 1: Output 1 as EDID source.
• Switch ON 2: Output 2 as EDID source.
• Switch ON 3: Output 3 as EDID source.
• Switch ON 4: Output 4 as EDID source.
• Over 1 DIP switches ON: EDID analysis and re-generate a set of EDID for all screen resolution.
  ※ Examples：Output 1,2 are different resolution screen, move the DIP switch 1, 2 at ON position and press “ EDID COPY” button, then re-generate a new a set of EDID to support both two monitors screen resolution.

EDID COPY Button Instruction

Press “EDID COPY” button, start to learning and writing EDID.
Remark：Over 2 port EDID learning, audio will only support two channel audio.

Console Port

R232 interface connect to PC for firmware updated.
