CHE-HDBT250 Pro AV-IT HDBaseT 4K60 18G HDMI Extender Kit
CHE-HDBT250 Pro AV/IT HDBaseTTM 4K60 18G HDMI Extender Kit with
Audio, RS232, IR, PoC up to 492ft
VER 1.0
The CHE-HDBT250 is a high-performance HDMI extender kit that
includes a transmitter unit and a receiver unit. The transmitter
unit captures the HDMI input signal and transmits it via a single
Cat5e/6 cable to the receiver unit. The extender kit supports HDCP
2.2 / HDCP 1.4 and DVI 1.0 compliant, and has a video bandwidth of
18Gbps.
The CHE-HDBT250 has a maximum extended transmission distance of
up to 394ft / 120 meters for 4K2K signal and up to 492ft / 150
meters for 1080P signal. It also supports one HDMI loop output on
the transmitter, de-embedded audio to analog stereo output on the
receiver, bi-directional IR, RS-232 and CEC pass-through, HDR,
HDR10+, Dolby Vision and HLG function, and PoC (Power over Cable)
function.
Package Contents:
- 1 x CHE-HDBT250 (Transmitter & Receiver kit)
- 1 x IR Blaster cable (1.5 meters)
- 1 x 20~60KHz IR Receiver cable (1.5 meters)
- 4 x Mounting Ear
- 2 x 3-pin Phoenix connector
- 1 x 24V/1A Locking Power adapter
- 1 x User Manual
Specifications:
- HDCP Compliance: HDCP 2.2 / HDCP 1.4
- Video Bandwidth: 18Gbps
- Video Resolution:
- 4K2K 50/60Hz 4:4:4
- 4K2K 50/60Hz 4:2:2
- 4K2K 50/60Hz 4:2:0
- 4K2K 30Hz 4:4:4
- 1080p, 1080i, 720p, 720i, 480p, 480i
- All HDMI 3D TV formats
- All PC resolutions including 1920 x 1200
- Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth:
- 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
- 8-bit (4K60Hz 4:4:4 )
- LPCM 2.0/2.1/5.1/6.1/7.1, Dolby HDMI Audio Formats TrueHD,
Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA,
DTS-X - L/R Audio Formats
- ESD Protection
- Connection Transmitter:
- Inputs: 1x HDMI Type A [19-pin female]
- Outputs: 1x HDMI Type A [19-pin female]
- 1x HDBT OUT [RJ45, 8-pin female]
- Control: 1x IR IN [3.5mm Stereo Mini-jack]
Usage Instructions:
- Connect the HDMI input source to the transmitter unit using an
HDMI cable. - Connect the receiver unit to the display device using an HDMI
cable. - Connect the transmitter and receiver units using a single
Cat5e/6 cable. - Connect the IR Blaster cable to the transmitter unit and
position it near the source device’s IR sensor. - Connect the IR Receiver cable to the receiver unit and position
it near the display device’s IR sensor. - Connect the power adapter to the transmitter unit and plug it
into an electrical outlet. - Connect the power adapter to the receiver unit and plug it into
an electrical outlet. - Use the remote control to test the IR function and ensure that
it is working properly.
CHE-HDBT250
Pro AV/IT HDBaseTTM 4K60 18G HDMI Extender Kit with Audio, RS232, IR, PoC up to 492ft
VER 1.0
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Table of Contents
1. Introduction………………………………………………………………………………….. 1 2. Features. ………………………………………………………………………………………. 1 3. Package Contents. ………………………………………………………………………. 2 4. Specifications……………………………………………………………………………….. 2 5. Operation Controls and Functions………………………………………………… 4
5.1 Transmitter Panel…………………………………………………………………….. 4 5.2 Receiver Panel. ………………………………………………………………………. 5 5.3 IR Pin Definition. ………………………………………………………………………. 6 6. Application Example……………………………………………………………………. 8
1. Introduction
The CHE-HDBT250 HDBaseT HDMI Extender can extend high-definition video / audio signals, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single Cat5e/6 cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embedded audio for L/R audio output and PoC function. In addition, the CHE-HDBT250 is equipped with two-way IR pass-through which allows for source and display control.
This CHE-HDBT250 includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carrying the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR control signal.
The CHE-HDBT250 offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
2. Features
HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant Supports 18Gbps video bandwidth The maximum extended transmission distance via a single Cat5e/6 cable:
394ft / 120 meters for 4K2K signal; 492ft / 150 meters for 1080P signal Supports one HDMI loop output on the transmitter De-embedded audio to analog stereo output on receiver With bi-directional IR, RS-232 and CEC pass-through HDR, HDR10+, Dolby Vision and HLG function supported Supports PoC (Power over Cable) function Compact design for easy and flexible installation
1 / 8
3. Package Contents
Qty Item
1
CHE-HDBT250 (Transmitter & Receiver kit)
1
IR Blaster cable (1.5 meters)
1
20~60KHz IR Receiver cable (1.5 meters)
4
Mounting Ear
2
3-pin Phoenix connector
1
24V/1A Locking Power adapter
1
User Manual
4. Specifications
Technical
HDCP Compliance Video Bandwidth
Video Resolution
HDCP 2.2 / HDCP 1.4
18Gbps
4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200
Color Space
RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 )
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby HDMI Audio Formats TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS
HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats ESD Protection
PCM 2.0 Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
2 / 8
Connection Transmitter
Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port]
Receiver
Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter / Receiver: 140mm [W] x 65mm [D] x 18mm [H]
Weight
Transmitter: 160g, Receiver: 155g
Power Supply
Input: AC 100 – 240V 50/60Hz Output: DC 24V/1A (Locking connector)
Power Consumption 9.36 W
Operating Temperature
32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)
Resolution / Distance
4K2K
394ft / 120M
1080P
492ft / 150M
Resolution / Cable Length
4K60 –
4K30 –
1080P60 –
Feet / Meters Feet / Meters Feet / Meters
HDMI IN / OUT
16ft / 5M
32ft / 10M
50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.
3 / 8
5. Operation Controls and Functions

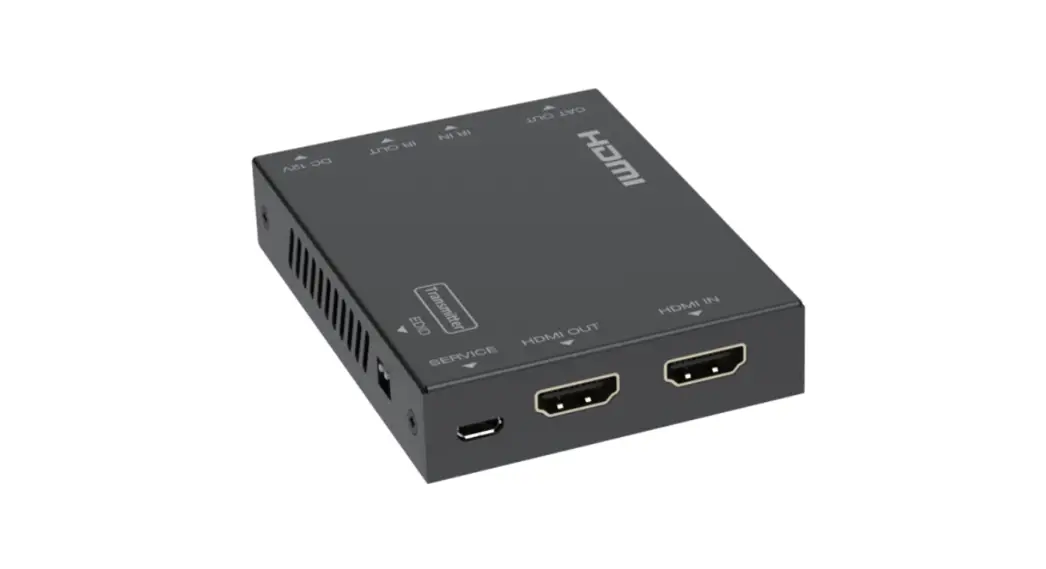

5.1 Transmitter Panel
SERVICE
1
2
DC 24V HDBT OUT
HDMI OUT
HDMI IN
IR IN IR OUT
3
5 4 6
7
8
9 10
11
No. Name
Function Description
1 Power LED Red LED indicates that the transmitter is powered on.
2 SERVICE port Firmware update port.
3 DC 24V
DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply.
4 HDBT OUT
RJ45 connector for connecting the HDBT IN port of receiver with a CAT 5e/6 cable.
Illuminating: Transmitter and Receiver are in good
Connection connection status.
5 Signal
Flashing: Transmitter and Receiver are in poor connection
Indicator lamp status.
Dark: Transmitter and Receiver are not connected.
6
Data Signal Indicator lamp
Illuminating: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. Dark: No HDMI signal.
7 HDMI OUT 8 HDMI IN 9 IR IN
10 IR OUT
HDMI loop output for display.
HDMI source input. IR input port for receiving the signal of IR remote. IR output port for control of source device. This IR output signal is from the IR IN port of receiver.
4 / 8
11 RS-232
3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.
5.2 Receiver Panel
SERVICE
1
2
DC 24V HDBT IN
HDMI OUT
AUDIO OUT
IR IN IR OUT
3
5 4 6
7
8
9 10 11
No. Name
Function Description
1 Power LED Red LED indicates that the receiver is powered on.
2 SERVICE port Firmware update port.
3 DC 24V
DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply.
4 HDBT IN
RJ45 connector for connecting the HDBT OUT port of transmitter with a CAT 5e/6 cable.
Illuminating: Transmitter and Receiver are in good
Connection connection status.
5 Signal
Flashing: Transmitter and Receiver are in poor connection
Indicator lamp status.
Dark: Transmitter and Receiver are not connected.
6
Data Signal Indicator
Illuminating: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. Dark: No HDMI signal.
7 HDMI OUT HDMI output for display. 8 AUDIO OUT 3.5mm stereo connector for analog audio output.
5 / 8
9 IR IN 10 IR OUT
11 RS-232
IR input port for receiving the signal of IR remote.
IR output port for control of display device. This IR output signal is from the IR IN port of transmitter.
3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.
5.3 IR Pin Definition IR Receiver and Blaster pin’s definition is as below:
IR RECEIVER IR Blaster
IR Receiver
IR BLASTER
IR Blaster Signal Power NC
IR Signal Power Grounding
6 / 8
The following is IR system diagram about IR cable use method.
TV remote
DVD remote
CAT 5e/6 cable
IR Receiver cable
D C 24V H D B T OUT
D C 24V HDB T IN
Transmitter
H D M I OUT
HD MI I N
IR IN
I R OUT
Receiver
HD MI O UT
AUDI O O UT
IR IN
I R OUT
IR Blaster cable
DVD
TV
Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters.
7 / 8
6. Application Example
DVD or Blu-ray Player
Transmitter
RX
LAN
USB
USB
RS-2 32
DC 12V
Controller
DC 24V HDBT OUT
LAN
HDMI OUT
HDMI IN
IR IN IR OUT
Power Supply CAT 5e/6 cable
UHDTV
DC 24V HDBT IN
Receiver
H DMI OUT
AUDIO OUT
IR IN IR OUT
IR Blaster IR Receiver IR Receiver
IR Blaster
UHDTV
2.0 Speakers
