XTENDEX® Series
ST-FO4K18GB-RSLA-LCV2
4K 18Gbps HDMI Extender with Stereo Audio
And Local HDMI Loop-Through via One LC
Singlehood or Multimode Fiber Optic Cable
Installation and Operation Manual
ST-FO4K18GB-RSLA-LCV2 4K 18Gbps HDMI Extender

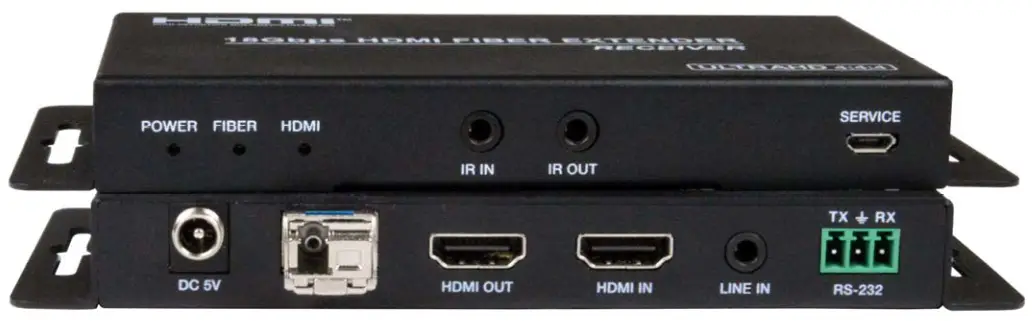

Front View (Remote Unit) and Rear View (Local Unit)
TRADEMARK
XTENDEX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners.
COPYRIGHT
Copyright © 2022 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
INTRODUCTION
The XTENDEX® 4K 18Gbps HDMI Extender via Fiber Optic Cable locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display, IR, stereo audio, and RS232 up to 6.21 miles (10 km) away from a 4K HDMI source using a single LC singlehood fiber optic strand and 984 feet (300 meters) using OM3 multimode fiber optic cable. Each extender consists of a transmitter that connects to an HDMI source and a local display via the HDMI loop output, and a receiver that connects to an HDMI display.
Features
- Signal transmission via single-strand singlehood or multimode LC fiber optic cable.
o Using singlehood 9-micron cable, extend to 6.21 miles (10kilometers).
o Using multimode 50-micron OM3 (or better) cable, extend to 984 feet (300 meters). - Supports Ultra-HD 4Kx2K resolutions to 3840×2160 and 4096×2160 @30/50/60Hz YUV 4:4:4, HDTV resolutions to 1080p @120Hz, and up to 1920×1200 (WUXGA).
- HDMI features supported:
o HDMI 2.0
o 8-bit, 10-bit, and 12-bit Deep Color
o Dolby Trued, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 2/5.1/7.1CH, DTS 5.1, and DTS:X
o YUV 4:4:4, 4:2:2, and RGB
o Bandwidth up to 600 Mhz (18Gbps)
o 3D (1080p @60Hz)
o HDR - HDCP 2.2 and 1.4 compliant.
- Supports local and remote HDMI displays.
- Supports audio embedding and de-embedding.
o Use the switch on the transmitter to select HDMI digital audio or analog stereo audio source.- Simultaneously outputs both HDMI digital audio and analog stereo audio.
- When HDMI audio is selected, the extender passes the embedded digital audio to the HDMI connector and also converts/de-embeds the digital signal to analog stereo audio.
- When LINE audio is selected, the extender passes the analog stereo audio to the 3.5mm analog audio connector and also converts/embeds the analog signal to digital audio.
- Bi-directional IR control from input and output locations.
- Support full-duplex RS232 up to 115200 baud.
- Plug-and-play functionality – no software needed.
- Low RFI/EMI for sensitive applications.
- Cables can be installed in conduit prior to extender installation.
- Integrated mounting brackets for easy surface/wall mounting.
MATERIALS
Materials supplied with this kit:
- One transmitter unit with fiber transmitter module installed
- One receiver unit with fiber receiver module installed
- Two IR emitters
- Two IR receivers
- Two AC Adapters- 100 to 240 VAC at 50 or 60Hz; DC 5V, 1A
- US, UK, EU, AUS power supply plugs included.
- Two 3-screw terminal blocks for RS232
- URL Slip with path to this manual
Materials Not supplied but REQUIRED:
- Interface cables between the video source/display and the transmitter/receiver are required for proper operation.
o Supports cable lengths to 20 feet.
o Cables longer than 20 feet can be used provided they have a built-in video equalizer (also known as “active HDMI cables”). - Use HD-xx-MM cable to connect an HDMI source or display.
- Use DVI-HD-xx-MM cable to connect a DVI source or display.
- Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
o HD-ACT-20/25/30/40/50/60-MM supports resolutions to 4K@60Hz (18 Gbps).
o HD-ACT-75/100-MM supports resolutions to 4K@30Hz (10.2 Gbps). - Use a simplex LC singlehood 9/125-micron fiber optic cable to extend the receiver from the transmitter up to 6.21 miles (10 km).
- Use a simplex LC multimode 50/125-micron OM3 (or better) fiber optic cable to extend the receiver from the transmitter up to 984 feet (300 meters).
where:
xx is the length of the cable in feet
MM indicates male-to-male connector
Cables can be purchased from Network Technologies Inc by calling (800) 742-8324 (800-RGB-TECH) in the US and Canada or (330) 562-7070 (worldwide).
FEATURES AND FUNCTIONS

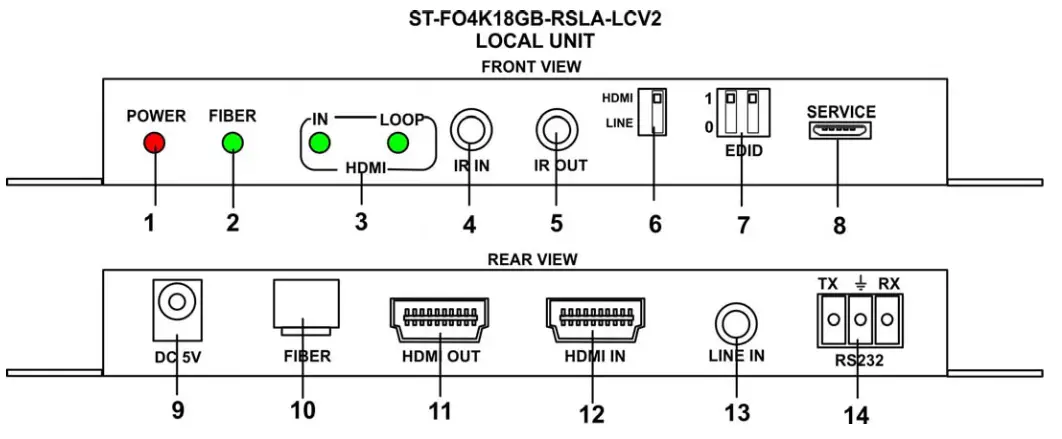

| # | LABEL | CONNECTOR/LED | DESCRIPTION |
| 1 | POWER | Red LED | Illuminates to indicate proper power to the unit |
| 2 | FIBER | Green LED | Illuminates solid to indicate the Local and Remote units have a normal signal connection |
| 3 | HDMI IN-LOOP | Green LED (x2) | IN: ON when there is a signal on the HDMI IN port LOOP: ON when the HDMI OUT port of the Transmitter is sending signals to the HDMI display device. |
| 4 | IR IN | 3.5mm Jack | Connect the IR Receiver cable here. Signal will be sent to the IR OUT port on the Remote Unit |
| 5 | IR OUT | 3.5mm Jack | Connect the IR Blaster cable here. The IR signal is from the IR IN port of the Remote Unit. |
| 6 | HDMI-LINE | Audio Switch | Switch to select audio signal source (HDMI IN for digital or LINE IN for analog stereo). When there is no video signals input, audio signals can be transmitted separately |
| 7 | EDID | DIP Switch | Dial switch to set EDID: 11 : Copy the RX HDMI OUT 10: Copy the TX HDMI LOOP OUT 01: 4K60_2CH 00: 1080P_2CH |
| 8 | SERVICE | USB Female | For performing a firmware update |
| 9 | DC 5V | 2.1×5.5mm Power Jack | For connection of power supply |
| 10 | FIBER | Fiber module socket | Installed Transmitter optical fiber module for connection of the fiber optic signals to the Remote Unit. |
| 11 | HDMI OUT | HDMI Female | HDMI video loop output port for connection to an HDMI display device |
| 12 | HDMI IN | HDMI Female | HDMI signal input port for connection to an HDMI source. |
| 13 | LINE IN | 3.5mm Jack | Audio signal input port, connect to audio source device |
| 14 | RS232 | Terminal Block | Pass-through terminals for transmitting RS232 command signals between the Local and Remote Unit |

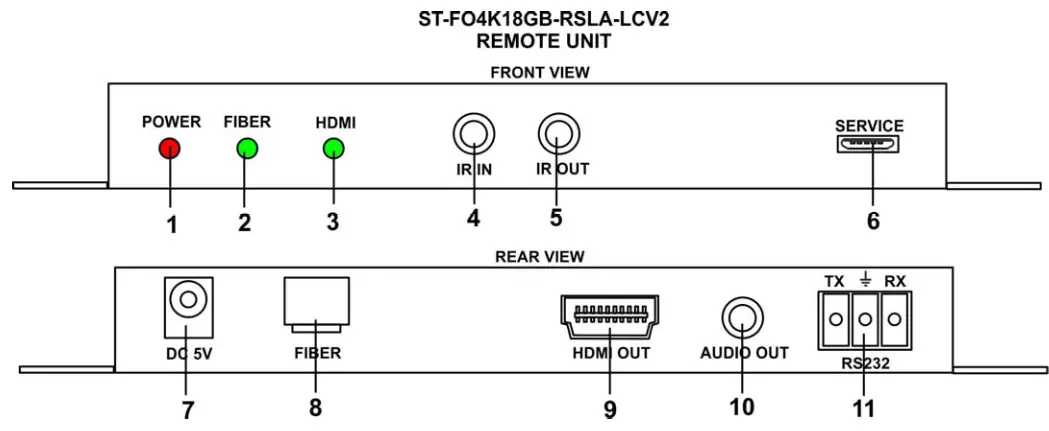

| # | LABEL | CONNECTOR/LED | DESCRIPTION |
| 1 | POWER | Red LED | Illuminates to indicate proper power to the unit |
| 2 | FIBER | Green LED | Illuminates to indicate the Local and Remote units have a proper signal connection |
| 3 | HDMI | Green LED | Illuminates when the HDMI OUT port is sending signals to the HDMI display device. |
| 4 | IR IN | 3.5mm Jack | Connect the IR Receiver cable here. Signal will be sent to the IR OUT port on the Local Unit |
| 5 | IR OUT | 3.5mm Jack | Connect the IR Blaster cable here. The IR signal is from the IR IN port of the Local Unit. |
| 6 | SERVICE | USB Female | For performing a firmware update |
| 7 | DC 5V | 2.1×5.5mm Power Jack | For connection of power supply |
| 8 | FIBER | Fiber module socket | Installed Receiver optical fiber module for connection of the fiber optic signals to the Remote Unit. |
| 9 | HDMI OUT | HDMI Female | HDMI video loop output port for connection to an HDMI display device |
| 10 | AUDIO OUT | 3.5mm Jack | For connection of self-powered amplifier or speakers – Audio signal extracted from the HDMI OUT signal |
| 11 | RS232 | Terminal Block | Pass-through terminals for transmitting RS232 command signals between the Local and Remote Unit |
CONNECTIONS

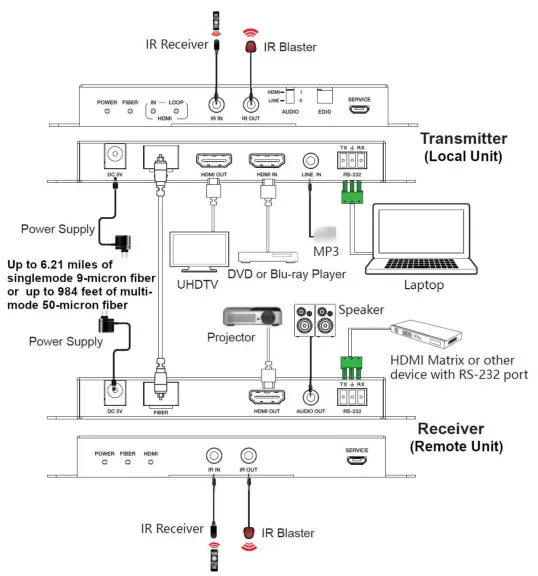

See below connections made in a typical application.
TECHNICAL SPECIFICATIONS
| Local Unit | |
| Connections | One female HDMI connector for source. One female HDMI connector for local display. Two female 3.5mm ports for connecting an IR emitter and receiver (included). -IR frequency: 20KHz to 60KHz One female 3.5mm port for stereo audio input. 3-pin screw terminal for RS232. -Supports full-duplex RS232 up to 115200 baud. One simplex female LC fiber optic port for sending video/audio, IR, and RS232 signals. Female USB Micro Type B connector for firmware updates. |
| Resolution | Supports Ultra-HD 4Kx2K resolutions to 3840×2160 and 4096×2160 @30/50/60Hz YUV 4:4:4, HDTV resolutions to 1080p @120Hz, and up to 1920×1200 (WUXGA). |
| HDCP | Supports HDCP 2.2 and 1.4 |
| Remote Unit | |
| Connections | One female HDMI connector for display. Two female 3.5mm ports for connecting an IR emitter and receiver (included). -IR frequency: 20KHz to 60KHz One female 3.5mm port for stereo audio output. 3-pin screw terminal for RS232. -Supports full-duplex RS232 up to 115200 baud. One simplex female LC fiber optic port for sending video/audio, IR, and RS232 signals. Female USB Micro Type B connector for firmware updates. |
| Resolution | Supports Ultra-HD 4Kx2K resolutions to 3840×2160 and 4096×2160 @30/50/60Hz YUV 4:4:4, HDTV resolutions to 1080p @120Hz, and up to 1920×1200 (WUXGA). |
| HDCP | Supports HDCP 2.2 and 1.4 |
| Data Rate | 18Gbps |
| General | |
| Max Distance | · 6.21 miles (10 km)over singlehood 9/125-micron LC simplex fiber optic cable. · 984 feet (300 meters) over multimode 50/125-micron OM3 (or better) LC simplex fiber optic cable. |
| Operating environment temperatures and RH | Operating temperature: 32 to 104°F (0 to 40°C). Storage temperature: -4 to 140°F (-20 to 60°C). Operating and storage relative humidity: 20 to 90% non-condensing RH. |
| Power Supply | Local and remote unit: 100 to 240 VAC at 50 or 60Hz via AC adapter. · Input voltage: 5VDC, 1A · US, UK, EU, AUS power supply plugs included. |
| Power Consumption | Local unit: 3.75W Remote unit: 3W |
| Weight | 2.305 lbs. |
| Size (In.) WDHP | 6.32×3.20×0.73 (161x81x18 mm) |
| Approvals | CE,FCC,RoHS |
IR Receiver and Blaster Pinout

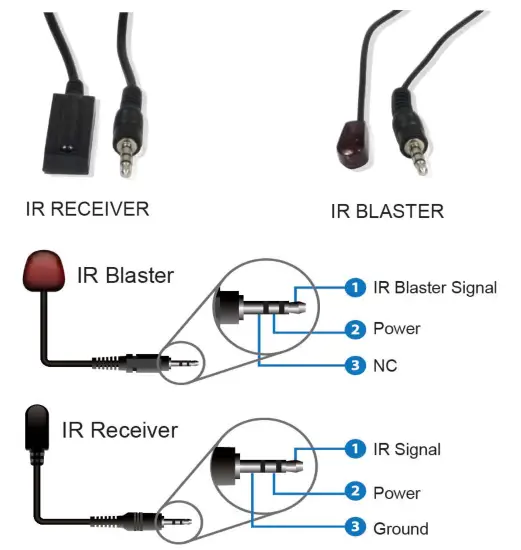

IR Receiver and Blaster pin’s definition as below:
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
NETWORK TECHNOLOGIES INCORPORATED
1275 Danner Dr
Aurora, OH 44202
www.networktechinc.com
Te1:330-562-7070
Fax:330-562-1999
MAN423 Rev. 8/10/22
