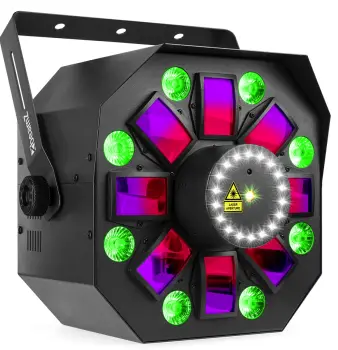

beamZ Multibox 100w Rgbwap 4 Popular Effects Light

beamZ-Multibox-100w-Rgbwap-4-Popular-Effects-Light-PRODIUCT

LASER SAFETY

READ FOR THE COMMISSIONING OF THE LASER ALL SAFETY INSTRUCTIONS AND TECHNICAL DATA OF THIS MANUAL CAREFULLY AND THOROUGHLY.

CAUTION

  • Do not point lasers at people or animals.
  • Never look into the laser aperture or laser beams, this can potentially cause instant eye injury or blindness if laser light directly strikes the eyes.
  • Do not point lasers in areas in which people can potentially get exposed, such as uncontrolled balconies, etc.
  • Install the laser units such that laser beams above the audience move See section later in this manual.
  • Test the laser units always first before the public is present.
  • Do not point lasers into the public or at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser reflections can be hazardous.
  • Never point a laser at aircraft or into the sky, this is a federal offense.
  • Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
  • Do not expose the output optic (aperture) to cleaning chemicals.
  • The operation of a laser is only allowed if the show is controlled by a skilled and well-trained operator familiar with the requirements that are needed.
  • Do not use laser if housing is damaged or open, or if optics appear damaged in any way.
  • Never leave this device running unattended.
  • Always use appropriate lighting safety cables when hanging lights and effects overhead.

The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the leg al requirements at the location/country of use.

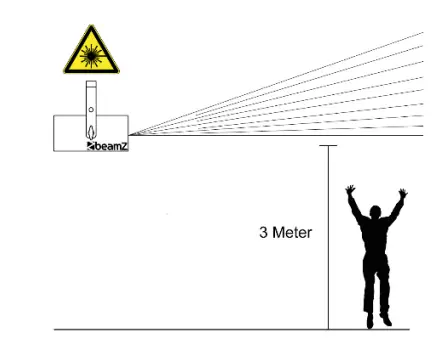

INSTALLATIONbeamZ-Multibox-100w-Rgbwap-4-Popular-Effects-Light-FIG-1

CAUTION
Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers. Use of controls, adjustments, or performance of procedures other than what is specified herein may result in hazardous radiation exposure!

  • The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
  • Always use the supplied mounting bracket to hang the fixture.
  • The fixture should aid of a mounting bracket (not included) to the supplied mounting bracket to be confirmed.
  • The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
  • Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
  • The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
  • The operator has to make sure that safety-relating and machine-technical installations are approved by a
    skilled person once a year.
  • The fixture should be installed in the position where persons cannot reach.
  • For your own safety and for others, we do strongly recommend you to use this laser emergency kill switch.
    (ref.no: 152.958)
  • When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min 0.5 meter.

DMX CHANNELS

1Dimmer000-255Master dimming (0-100%)
2Strobe Wash000-255Washing Stroboscope (Rate 0-100%)
3Colour Wash000-255Red (0-100%)
4000-255Green (0-100%)
5000-255Blue (0-100%)
6000-255UV (0-100%)
7Strobe Derby000-255Effect Stroboscope (Rate 0-100%)
8Colour Derby000-255Red (0-100%)
9000-255Green (0-100%)
10000-255Blue (0-100%)
11000-255White (0-100%)
12000-255Amber (0-100%)
13000-255Pink (0-100%)
14Rotation Derby000-009No function
010-129Effect motor clockwise rotation ( From slow to fast )
130-255Effect motor un-clockwise rotation ( From slow to fast )
15Laser000-009No function
010-059Laser Red
060-109Laser Green
110- 159Laser Red + Green
160255Laser rainbow effectFrom slow to fast
16Rotation Laser000-009No function
010-129Laser motor clockwise rotationFrom slow to fast
130-255Laser motor un-clockwise rotationFrom slow to fast
17Strobe SMD000-009No function
010-255SMD Stroboscope (Rate 0-100%)
18Mode000-009No function
010-019Auto program1
020-029Auto program2
030-039Auto program3
040-049Auto program4
050-059Auto program5
060-069Auto program6
070-079Sound program1
080-089Sound program2
090-099Sound program3
100-109Sound program4
110-119Sound program5
120-255Sound program6
19Program Speed000-255Auto and Sound program speed (Slow-fast)
