Beamz Light Box 5 Party Effect - Par User Manual (+ PDF)

WARNING! Before carrying out any operations with the unit. careful& read this instruction manual and keep* with care for future reference It contains important information about the installation usage and maintenance of the unit

Unpack and check carefully that there is no transportation damage before using the unit
Please read these instructions carefully and follow the instructions.
Observe all safety warnings. Never remove safety warnings or other information from the equipment.
Be sure that no ventilation sites are blocked: otherwise, the unit will overheat.
WARNING! Before connecting the equipment to the power outlet first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or the power adapter does not fit in your wall outlet. contact your electrician.
After connecting the unit check all cables in order to prevent damage or accidents. e.g.due to tripping hazards.
Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time
Always disconnect power from the mains. when the unit is not used or before cleaning! On& handle the power cord by the plug. Never pull out the plug by tugging the power cord.
Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
Do not switch the unit on and off in short intervals.
Do not connect the unit to a dimmer pack.
Install the unit in a well-ventilated place.
Never place any material over the lens.
Never let the sunlight light directly to the front lens .even when the unit is not working.
Always allow free air space of at least 50 cm around the unit for ventilab011.
Make sure that the area below the installation place is blocked when rigging. digging or servicing the unit.
For mounting height >100 cm always fix the unit with an appropriate safety rope Fix the safety rope at the correct fixation points only. The safety rope must never be fixed at the transport handles!
Never look directly at the light beam Please note that Fast changes in lighting. e.g. flashing light. may trigger epileptic seizures in photosensitive persons or persons with epilepsy.
This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.
WARNING! If the power cord of the unit is equipped with an earthing contact then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
Make sure that the unit is not exposed to extreme heat, moisture, or dust.
Clean the unit using a dry cloth.
Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least S minutes before handling
This unit is designed exclusively for indoor use. do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment – in this case, observe the special instructions noted below). Do not expose this unit to flammable materials. Ai, ids or gases.
If the unit has been exposed to drastic temperature fluctuation (e.g after transportation). do not switch A on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
Never attempt to bypass the thermostatic switch or Fuses.
Do not dismantle or modify the unit
For replacement use fuses/bulbs of the same type and rating only.
Repairs. servicing and electric connection must be carried out by a qualified technician
The ambient temperature must always be between -5°C and +45° C
If this unit is operated in any of her ways. then the one described in this manual. the product may suffer damages and the warranty becomes void.
Plastic bags must be kept out of reach of children.
The unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment By ensuring this product is disposed of correctly. you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources For more detailed information about recycling of this product. please contact your local Civic Office. your household waste disposal service or the shop where you purchased the product

LASER SAFETY

READ FOR THE COMMISSIONING OF THE LASER ALL SAFETY INSTRUCTIONS AND TECHNICAL DATA OF THIS MANUAL CAREFULLY AND THOROUGHLY.

Laser Light is different from any other light source with which you may be familiar. The light from this product can potentially Ily cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other rid of the light source. This concentration of light power can cause instant eye injuries. primarily by burning the retina (the light-sensitive portion at the back of the eye). Even if you cannot feel “heat” from a laser beam train still potentially injure or blind you or your audience. Even very small amounts of laser light are potentially hazardous even at long distances. Laser eye injuries can happen quicker than you can blink.
It is wrong to assume that a single beam of a bundle of hundreds by the laser beams made. it cannot cause injury.
It is also incorrect to assume that A is safe to boric at a moving beam In the laser safety regulation. it is not legal to aim Class 36/4 lasers n areas in which people can get exposed also on a dance floor.
CAUTION;

Do not point lasers at people or animals.
Never look into the laser aperture of laser beams. this can potentially cause instant eye injury or blindness if laser light directly strikes the eyes.
Do not point lasers in areas in which people can potentially get exposed such as uncontrolled balconies. etc.

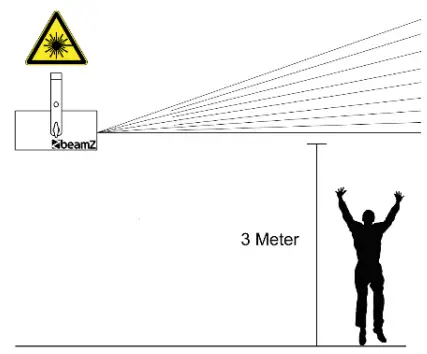

Install the laser units such that laser beams above the audience move See the section later in this manual
Test the laser units always first before the public is present
Do not point lasers into the public or at highly reflective surfaces such as windows. mirrors and shiny metal. Even laser reflections can be hazardous
Never point a laser at aircraft or into the sky. this is a federal offense
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
Do not expose the output optic (aperture) to cleaning chemicals

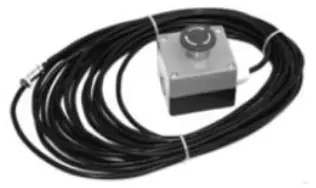

The operation of a laser is only allowed if the show is controlled by a skilled and well-trained operator familiar with the requirements that are needed.
Do not use laser if housing i damaged or open. or if optics appear damaged in any way.
Never leave this device running unattended.
Always use appropriate lighting safety cables when hanging lights and effects overhead.

The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal requirements at the location/country of use This unit contains laser components with high power. live parts and parts that emit radiation. Therefore. DO NOT OPEN the housing. THIS CAN BE FATAL! It can also cause blindness skin burns and fires.
EYE DAMAGE OCCURS FASTER THAN YOU CAN BLINK YOUR EYES.
Further guidelines and safety programs for the safe use of lasers can be found in the ANSI Z136.1 Standard -For Safe Use of Lasers. available from “wwwlaserinstAute.org“. Many local governments. corporations. agencies. military and others. require all lasers to be used under the guidelines of ANSI Z136.t Laser Display guidance can be obtained via the International Laser Display Association.www.laserist.org.
ATTENTION! The use In France is only thawed to the professional user and not to the end-user. See ded don: tooth’?” h-arce.gouv.fr

INSTALLATION

CAUTION Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealer! This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect is properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor. International laser safety regulations require that lasers must be operated in the fashion illustrated below. with a minimum of 3 meters (9.8 ft) of vertical separation between the floor and the lowest laser light vertically. Additionally. 25 meters of horizontal separation is required between laser light and the audience or other public spaces.

CAUTION Use of controls. adjustments. or performance of procedures other than what is specified herein may result in hazardous radiation exposure!

The installation of the fixture has to be built and constructed in a way that it can hold ID times the weight for I hour without any harmful deformation.

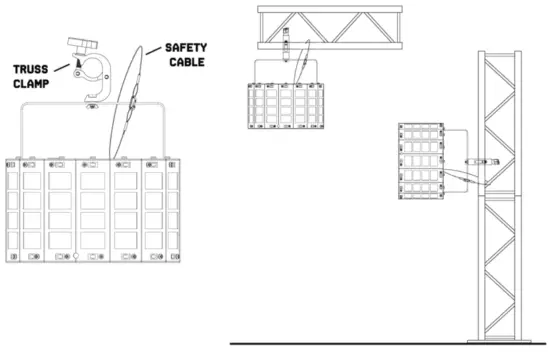

Always use the supplied mounting bracket to hang the fixture.
The fixture should all of a mounting bracket (not included) to the supplied mounting bracket be confirmed.
The installation must always be secured with a secondary safety attachment. e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
Make sure the area below the installation place is free from unwanted persons during rigging. de-rigging and servicing.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking them into operation for the first time and after changes before taking them into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
The fixture should be installed in a position where persons cannot reach
For your own safety and for others. we do strongly recommend you to use this laser emergency kill switch. (ref.no:152.958)

CAUTION When installing the device. make sure there is no higher inflammable material (decoration articles. etc.) in between a distance of min OS meter.

UNPACKING INSTRUCTION

CAUTION Immediately upon receiving the product. carefully unpack the carton and check the contents to ensure that all parts are present. and have been received in good condition. Notify the shipper immediately and retain the packing material for inspection if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory. it is important that the product be returned in the or in factory box and packing. If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation). do not switch it on immediately. The arising condensation water might damage your unit Leave the unit switched off until it has reached room temperature.

POWER SUPPLY

The label on the backside of the unit is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified. the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply. WARNINGIAlways connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

RIGGING

The unit may be set up on a stable and even surface. By means of the king facilkiesof the baseplate. the unit can also be mounted upside down to a truss. see below picture. For Posing. certified clamps with correct save working load are required. According to the figure. the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times the unit’s weight Secure the unit with a safety cable so that it cannot fall down.
When carrying out any ins installation. always comply with European and national guidelines concerning rigging, truss, and all other safety issues. Always let the installation be checked out by an authorized dealer!

LASER LIFETIME

Follow the below advice to enjoy a longer bar lifetime:

0 quick on/off switching of this device will reduce the durable it of the laser diode dramatically.
Ensure that the device does not get overheated:
o, Switch off the device when it is not needed. Diodes are switched on and can wear out even if there is no visible user output.
o Switch off the device after I hour and let the laser cool down for 15 minutes.
o, Ensure that the fans and heat sinks are free of dust and dirt.

DMXS12 CONTROL

If you are using a standard DMX controller. you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION At the last unit you must close the DMX line with a terminating resistor. Tale an XLR connector and solder a 120 Ohm resistor between signal Hand signal C.) and connect k to the DMX output of the last unit in the line.

REMOTE CONTROLLER

Sets the unit into a blackout on or off
Puts the unit into auto mode
Select the color of the derby
UV light on or OFF
Puts the unit into a sound mode
No function
Strobe white LEDs
Derby affects the motor speed
Sets the speed of color change, color fade, sound active, and strobe modes
Sets the sound sensitivity level – Use the ‘+’ and ‘-’ buttons to change the desired sound sensitivity level (note: only available in sound active mode)

CAUTION The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the remote control. Otherwise, the operation of the remote control is not possible. If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press, the small bar with the groove to the right (1) and at the same time remove the battery support (2). For operation, one 3 V button cell type CR 2025 is required. When inserting, pay attention that the positive pole of the button cell shows upwards in the support.

CLEANING

The buildup of dust, dirt, and other airborne particles will reduce the unit’s light output. It will also prevent the unit from cooling correctly, and this will reduce the unit’s lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit’s cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.
To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.
Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.
Use the following guidelines:

Disconnect the unit from power and allow it to cool completely before cleaning.
Do not use solvents, abrasives, or any other aggressive product to clean the unit.
Vacuum or use low-pressure compressed air to remove dust and lose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug the mains lead.
Procedure:
Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.

TROUBLESHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from the unit	No power to the unit. Fuse has blown or internal fault.	Check that power is turned on. Check cables and connections. Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove the base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or services that are not described in this User Manual unless you have both authorizations from Beamz support or Beamz’s authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected. Bad DMX-line. DMX-line has no end resistance. Incorrect unit addressing. A unit is defective and is disturbing data transmission on the DMX line. Pin 2 and 3 are reversed in the XLR connection.	Connect controller. Inspect connections and cables. Correct poor connections. Repair or replace damaged cables. Insert DMX terminator plugin DMX output socket of the last unit on DMX-line. Check the unit address and DMX mode settings. Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained. Has the defective unit been serviced by an authorized technician? Inspect connections and cables. Install a phase reversing cable between the units or swap pins 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	The effect requires mechanical adjustment.	Check the unit’s software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	A unit too hot. LEDs damaged. The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around the unit. Clean unit if necessary. Disconnect the unit and contact Beamz support or Beamz authorized service partner. Disconnect unit. Check settings and correct if necessary.

CONTROL MANU

MENU		DESCRIPTION
A001	A001-A512	DMX address setting
LE1	LE11-LE19	Magic ball red, 1-9 adjust motor speed
LE2	LE21-29	Magic ball green. 1-9 adjust motor speed
LE3	LE31-39	Magic ball blue, 1-9 adjust motor speed
LE4	LE41-LE49	Magic ball white, 1-9 adjust motor speed
LES	LE51-LE59	Magic ball autorun. 1-9 adjust motor speed
LS	LS1-LS9	Laser autorun, 1-9 adjust motor speed
PU	PU1-PU9	UV light
PAR	Perl-PAr9	PAR lamp auto program
FL	FLI-FL9	Strobe, 1-9 adjust the light speed
AU1	Aull-A19	Auto program. 1-9 adjust the run speed
51	5II-5I9	Sound programs 1,1-9 adjust the sensitivity
S2	S21-529	Sound program 2,1-9 Adjust the sensitivity

DMX CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Speed	000-255	Rotation speed, from slow to fast
2	Jellyball motor	000-255	Rotation 0-340°
2	Jellyball motor	128-255	Automatic rotation
3	Laser rotation	000-009	No function
3	Laser rotation	010-255	Rotation from slow to fast
4	Master dimmer	000-255	Dimmer. 0-100%
5	Master strobe	000-010	No function
5	Master strobe	011-255	Strobe all, from slow to fast
6	Colour Jellyball	000-255	Red, 0-100%
7		000-255	Green. 0-100%
8		000-255	Blue. 0-100%
9		000-255	White. 0-100%
10	Laser	000-255	Red laser.0-100%
11		000-255	Green laser, 0-100%
12	Colour LED	000-255	Red, 0-100%
13		000-255	Green. 0-100%
14		000-255	Blue. 0-100%
15		000-255	White. 0-100%
16	UV	000-255	UV. 0-100%
17	White strobe	000-010	No function
17	White strobe	011-255	Strobe from slow to fast
18	Macro	000-050	No function
		051-150	Auto program
		150-255	Sound program

TECHNICAL SPECIFICATIONS

Rated voltage
LED
Flash rate
Laser
Fuse
DMX Channels
Functions
Dimensions per unit
Weight (per unit)

: 100-240VAC, 50-60Hz, 0.8-0.4A
: PAR 4x 6Watt RGBW / Jellyball 12Watt / UV/White 4x 3 Watt
: 1-19Hz
: 120mW Red + 30mW green / Class 3B
: F3A 250V
: 18
: DMX, Automatic programs, and Sound to light
: 220 x 180 x 110mm
: 1,0 kg

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

Low Voltage (LVD) 2014/35/EU
Electromagnetic Compatibility (EMC) 2014/30/EU
Restriction of Hazardous Substances (RoHS) 2011/65/EU
