STROBEMOON
153.694 V1
LIGHTBOX7
QUICCK START GUIDE

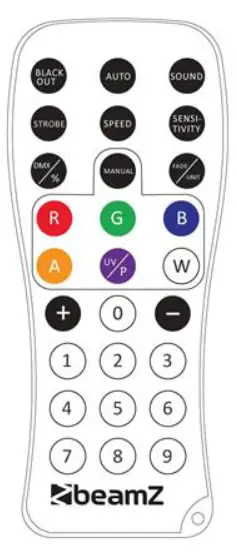

REMOTE CONTROLLER
BLACK OUT MODE
MODE
Press <BLACK OUT> off existing modes. Press <BLACK OUT> return the last modes.
AUTO MODE
Automatic mode will enable you to run the automatic programs on the product.
To turn on Automatic mode
- Press <AUTO> on the remote controller.
- Press (4) or (-) to choose between the different auto programs.
SOUNLI MODE
Sound-Active mode will enable the product to respond to the music.
To turn on Sound-Active mode:
- Press <SOUND> on the remote controller.
- Press (•1 or (-) to choose between the different sound programs.
STROBE MODE
To adjust the strobe speed of the automatic program and the sound active program.
- Press <STROBE> on the remote controller.
- Press 0.> or (-) to either increase or decrease the speed of the program.
- Press <STROBE> again to turn off the strobe.
SPEED MODE
To adjust the speed of the automatic program and the sound active program.
- Press <SPEED> on the remote controller.
- Press (•) or (-) to either increase or decrease the speed of the program.
SENSITIVITY MODE
To adjust sound sensitivity for in Sound-Active mode
- Press <SENSITIVITY> on the remote controller.
- Press 01 or to either increase or decrease sound sensitivity.
OMX / % MODE To enable DMX or disallow DMX on the product. Press CIMX> on the remote controller, the product work on the OMX controlling modes.
MANUAL MODE
- Press <MANUAL> on the remote controller.
- Press <R>.<6>.<13>. de. <A>. <P> (red. green. blue. white. amber a purple) to choose your colour.
- Press again <R>.<64, <B>. db. <A>, <P> (red. green. blue. white. amber or purple) to close your colour.
- Press 0> or <-> to either increase or decrease the percentage of each colour.
FADE/UNIT MODE
To adjust the FADE speed of the automatic program, the sound active program and the manual mode.
- Press <FADE> on the remote controller.
- Press <FADE> again to turn off the Fade mode. NUMBER 1-9 To adjust the brightness value of the automatic program.
the Sound active program and Manual Mode. Press digit a) to Oh to change different brightness on the device.
| MENU | DESCRIPTION | ||
| ADDR | 24CH | d001-d512 | DMX channel mode and address setting |
| 8CH | |||
| STAT | S 01-19 | Select static colours | |
| AUTO | Au 1-4 | Select auto program | |
| SOUN | So 1-4 | Select sound program | |
| SPEE | SP 1-9 | Adjust program speed | |
| SENS | SE 1-9 | Adjust microphone sensitivity | |
| DIMM | dIl-d19 | Master dimming | |
| SILE | on/oFF | Silent scene by sound program | |
| SLAV | Slave | Slave | |
| INFR | on/oFF | Enable or disenable IR remote |
DMX CHANNELS
| CHANNEL | FUNCTION | VALUE | DESOUTTION |
| 1 | Dimmer | 000-255 | Master dimming (0-100%) |
| 2 | Strobe | 000-255 | Moon stroboscope From slow to fort |
| 3 | 000-255 | Per stroboscope from slow to Fast | |
| 4/5 | 000-009 | No Functen | |
| 010-02 | Red | ||
| 020-029 | Green | ||
| 030-039 | Blue | ||
| 040-049 | Y/h4e | ||
| 050-059 | Amber | ||
| 060-003 | Pink | ||
| 070-079 | Red. +Green | ||
| 080-003 | Red.+ Out | ||
| 090-099 | Red+ White | ||
| 100-103 | Green.+ Out | ||
| 110-10 | Blue+ White | ||
| 120-29 | White+ Amber | ||
| 130-139 | Amber+ Pink | ||
| 140-169 | Red+ Green+ Blue | ||
| Green+ Blue+ White | |||
| 150-89 | Blue+ White+ Amber | ||
| Green. Blue. What | |||
| 160-169 | Blue+ White+ Amber | ||
| 170-179 | White+ Amber+ Pink | ||
| 180-189 | Red. Blue. Amber | ||
| 190-199 | Red+ Blue+ Amber | ||
| Green. Wilde. Amber | |||
| 200 255 | Red+ Blue+ Amber | ||
| Red+ Green+ Blue+ White+ Amber+ Pink | |||
| E 7 | 000-009 | No functen | |
| 010-019 | Red | ||
| 020-029 | Green | ||
| 030-1139 | Blue | ||
| 040-049 | Whig | ||
| 504159 | Yellow | ||
| 060-003 | Magenta | ||
| 070-079 | Cyan | ||
| 080-089 | Berk orange | ||
| …. | …. | ||
| 130-09 | Orange | ||
| 1413-149 | straw | ||
| 150-159 | Lavender | ||
| 160-103 | Light blue | ||
| 170-179 | Dark blue | ||
| 180-189 | Pink | ||
| 190-255 | Full on | ||
| 8 | 000-009 | No function | |
| 010-039 | Auto program 1 | ||
| …. | …. | ||
| 100-129 | Auto program 4 | ||
| 130. | Sound program 1 | ||
| … | …. | ||
| 220-255 | Sound program 4 | ||
