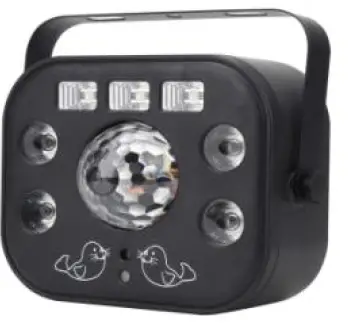

Shenzhen Zhuoqiong Technology RCKM Five-In-One Effect Light
| Menu | Function | Description |
| DMX control | A001-A512 | Up and down keys to set the address code |
|
Magic ball | LED11-LED | Magic ball-red light; the up and down buttons can adjust the |
| LED21-LED | Magic ball-green light; the up and down buttons can adjust the | |
| LED31-LED | Magic Ball-Blue; the up and down buttons can adjust the | |
| LED41-LED 49 | Magic ball-white light; the up and down buttons can adjust the motor speed | |
| LED51-LED 59 | Magic ball-jump change; the up and down keys can adjust the motor speed | |
|
Laser | LS11-LS19 | Laser-red; the up and down buttons can adjust the motor speed |
| LS21-LS29 | Laser-green; the up and down buttons can adjust the motor | |
| LS31-LS39 | Laser-red + green; the up and down buttons can adjust the | |
| LS41-LS49 | Laser-red and green jump; the up and down buttons can adjust | |
| UV | Pu 1-Pu 9 | UV control; up and down buttons can adjust the brightness |
|
Par Light | Pa11-Par19 | Par light-red light; up and down buttons can adjust the |
| Par21-Par29 | Par light-green light; up and down buttons can adjust the | |
| Par31-Par39 | Par light-blue light; up and buttons buttons can adjust the | |
| Par41-Par49 | Par light-white light; up and down buttons can adjust the | |
| Par51-Par59 | Par light-jumping; the up and down buttons can adjust the | |
| White strobe | FL 1- FL 9 | White strobe; press up and down to adjust the speed |
| AUTO | Au11-Au19 | AUTO ; the up and down buttons can adjust the speed |
| Sound Control 1 | S1 1 – S1 9 | Sound control for 1, 3 seconds without sound, turn off the |
| Sound Control 2 | S2 1 – S2 9 | Sound control 2, no light off; the sensitivity can be adjusted by |
Channel description: 18 channels
| Channel | Function | NO. | Remarks |
| CH1 | Magic ball motor | 0-255 | The larger the value, the faster the speed |
| CH2 | Magic ball motor mode | 0-127 | Fixed position |
| 128-255 | Swing back and forth, the speed is controlled by | ||
| CH3 | Laser motor | 0-9 | Stop |
| 10-127 | Clockwise | ||
| 128-255 | Anticlockwise | ||
| CH4 | Total dimming | 0-255 | 0-100% dimming |
|
CH5 |
Total strobe | 0-9 | No strobe |
| 10-255 | Strobe, the larger the value, the faster the |
| CH6 | Magic Ball-Red | 0-255 | 0-100% dimming |
| CH7 | Magic | 0-255 | 0-100% dimming |
| CH8 | Magic | 0-255 | 0-100% dimming |
| CH9 | Magic Ball-White Light | 0-255 | 0-100% dimming |
| CH10 | Laser-red light | 0-255 | |
| CH11 | Laser-green light | 0-255 | |
| CH12 | Par Light-Red | 0-255 | 0-100% dimming |
| CH13 | Par Light-Green | 0-255 | 0-100% dimming |
| CH14 | Par Light-Blue | 0-255 | 0-100% dimming |
| CH15 | Par light-white | 0-255 | 0-100% dimming |
| CH16 | UV | 0-255 | 0-100% dimming |
| CH17 | White strobe | 0-255 | The larger the value, the faster the speed |
| CH18 | model | 0-50 | Manual dimming, CH1-CH17 effective |
| 51-150 | Auto | ||
| 151-255 | Sound control |

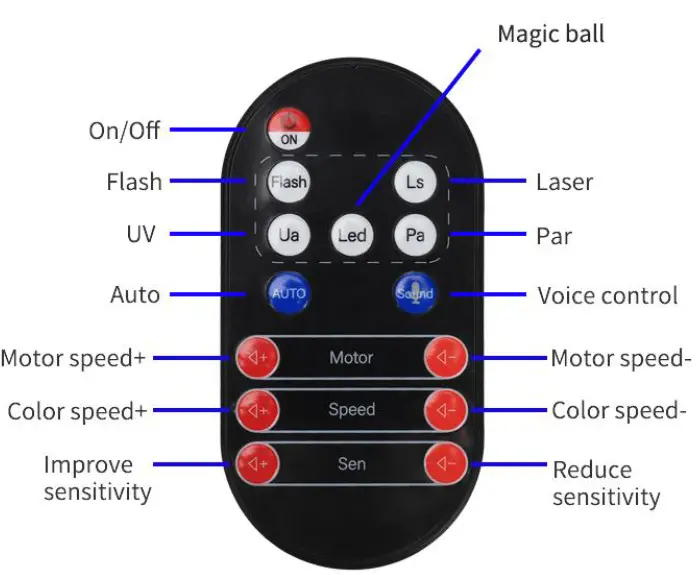

Remote control instructions
Remote Control
Model: RC KM-5
