B12 Series LED Beacons
User Manual
B12 Series LED Beacons

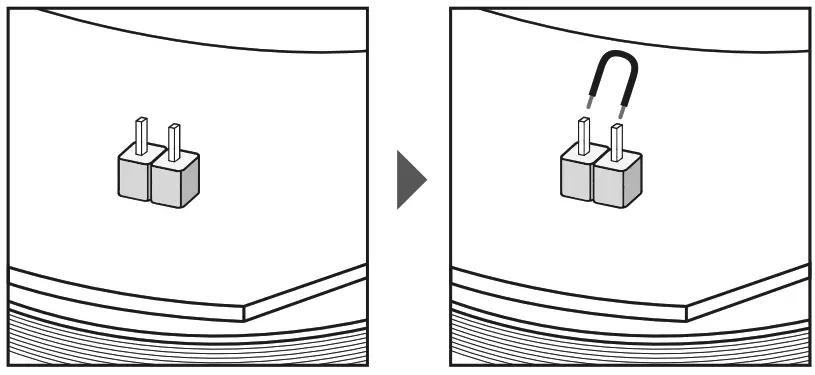

Use an electrical conducting item and momentarily contact both pins:
- Once for next pattern
- Quickly 3 times for reset to FP#0
| FP# | FLASH PATTERNS |
| 0 | Ultra (default) |
| 1 | Double |
| 2 | Triple |
| 3 | Quad |
| 4 | Quint |
| 5 | Single |
| 6 | Mega |
| 7 | Single-Triple-Quint |
| 8 | Single H/L |
070710
