I1499 Sensor Fireplace
Installation Guide

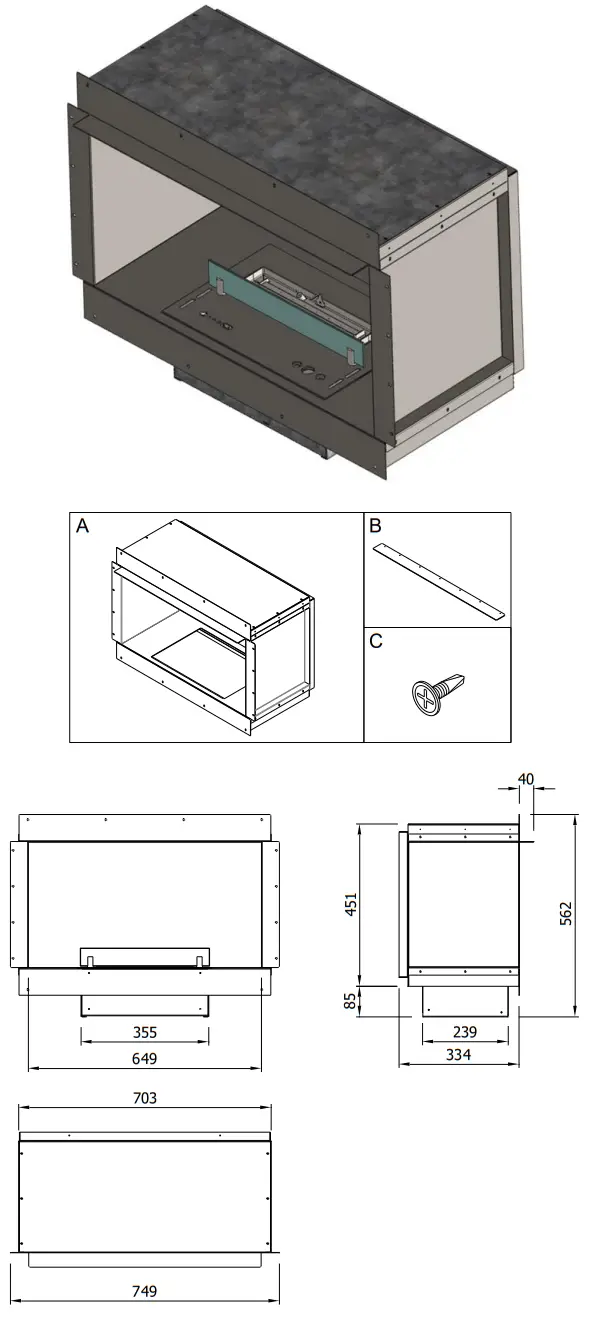

Sensor Fireplace

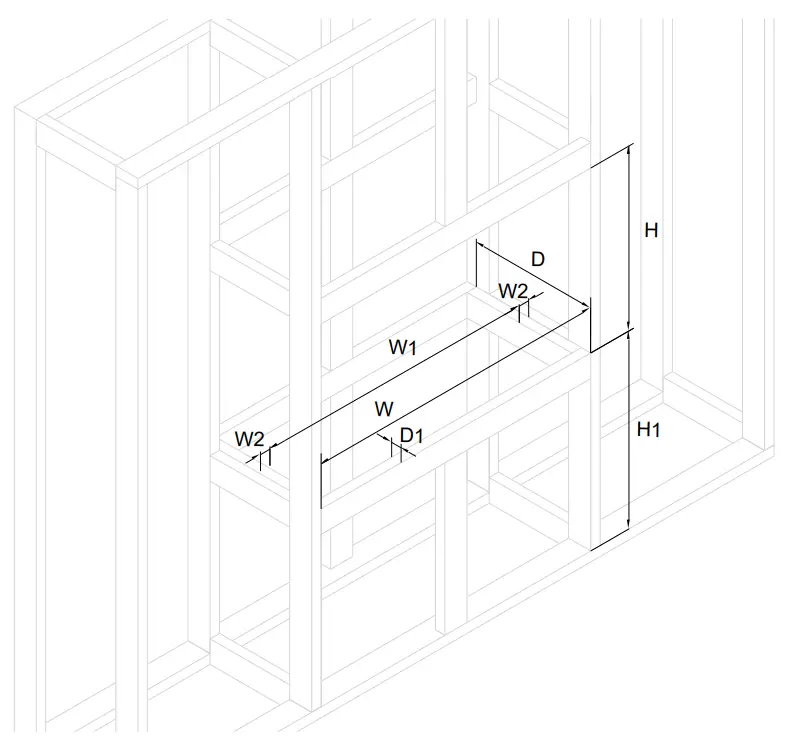

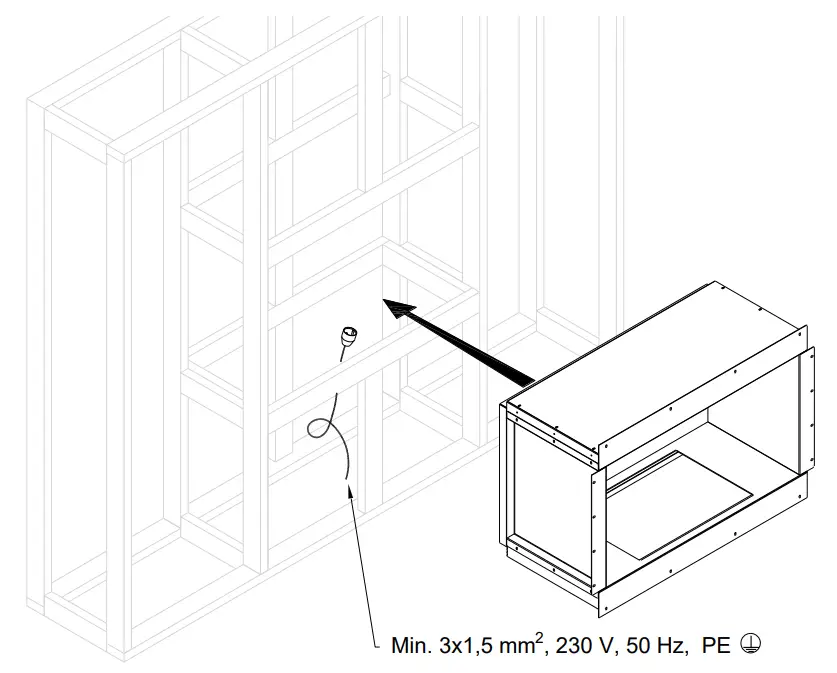

SINGLE SIDED
| W | W1 min | W2 max | D | D1 max | H | H1 min | |
| mm | mm | mm | mm | mm | mm | mm | |
| Sensor Fireplace Single Sided | 710 | 370 | 170 | 350 | 25 | 455 | 130 |

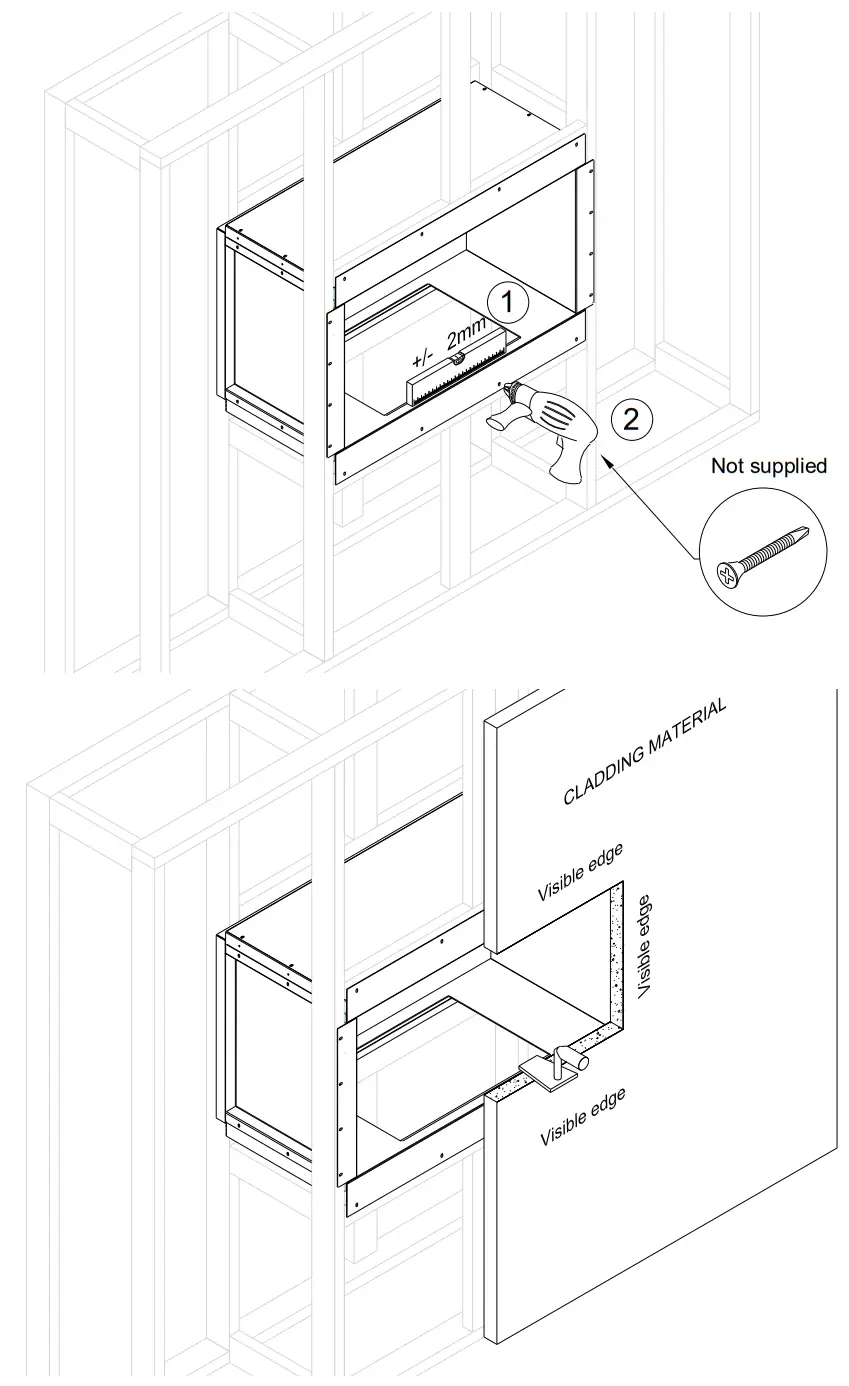

Make sure to finish the VISIBLE EDGE of the cladding material

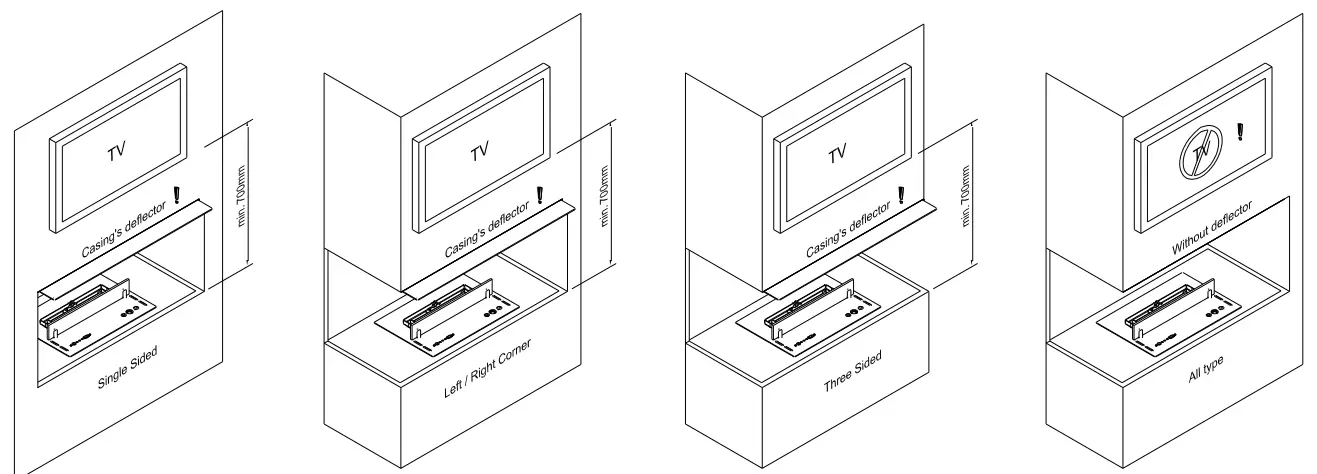

Selected installation options

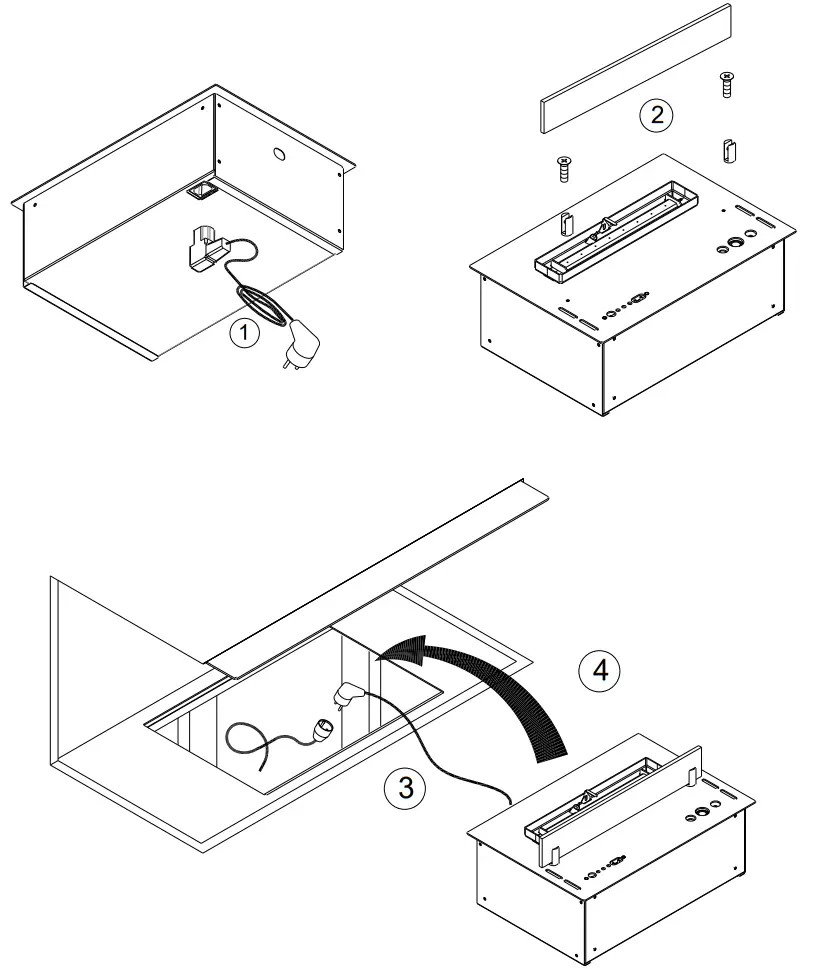

Installation manual Sensor Burner (I1495)
LEFT / RIGHT CORNER
| W | W1 min | W2 max | D | D1 max | H | H1 min | |
| mm | mm | mm | mm | mm | mm | mm | |
| Sensor Fireplace Left /Right Corner | 706 | 370 | 170 | 350 | 25 | 455 | 130 |

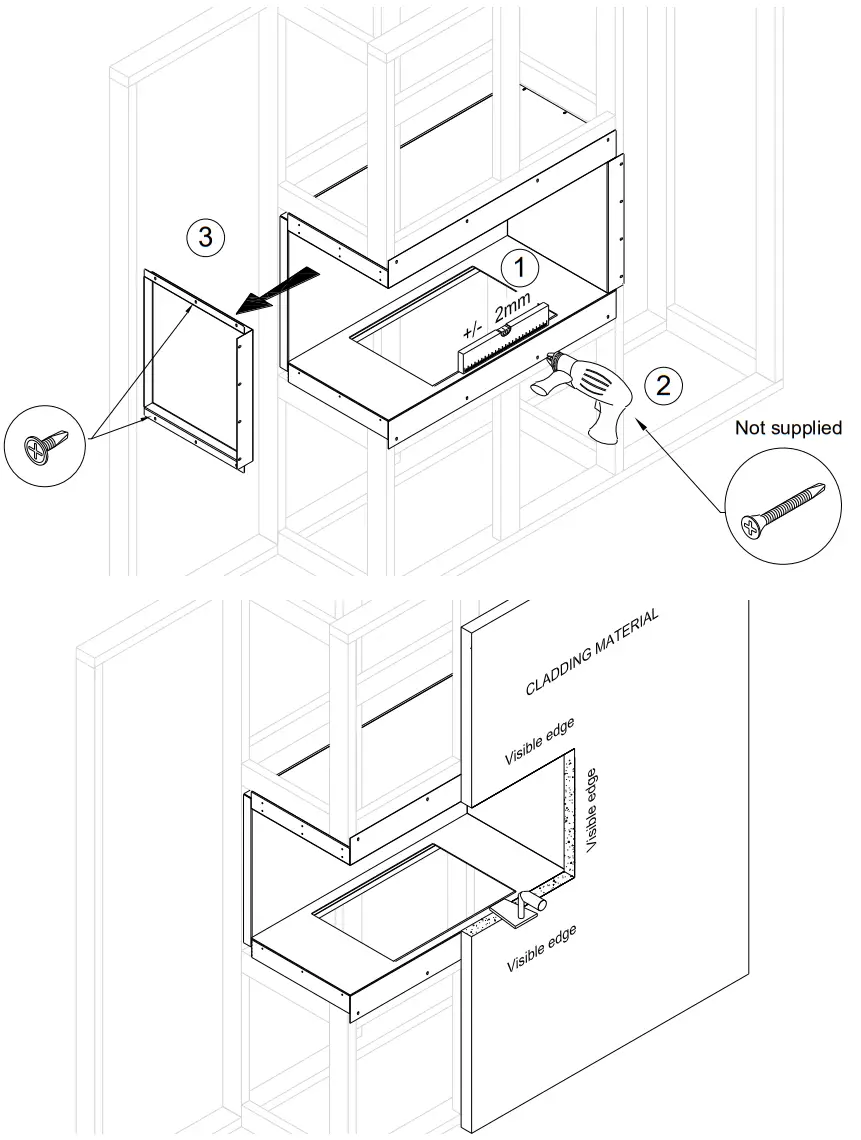

Make sure to finish the VISIBLE EDGE of the cladding material
Installation manual Sensor Burner (I1495)

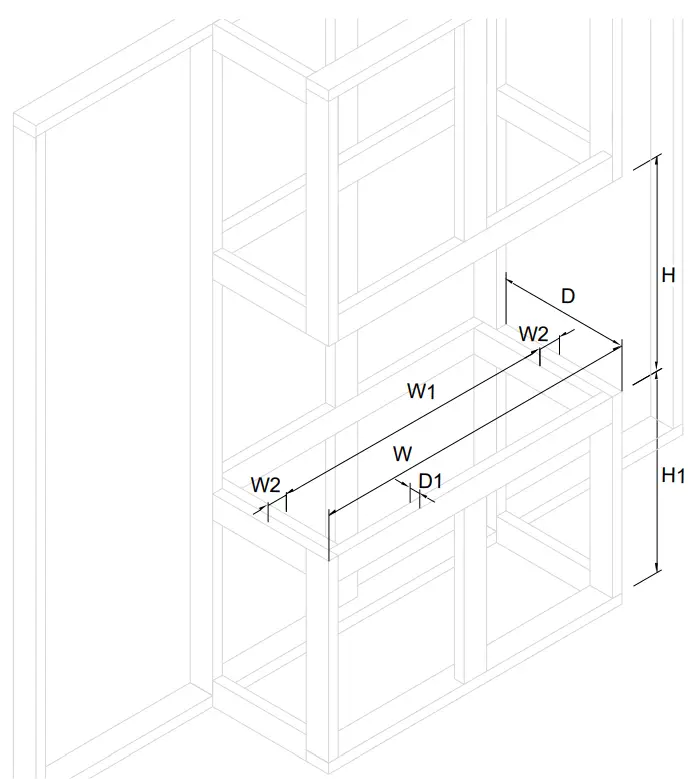

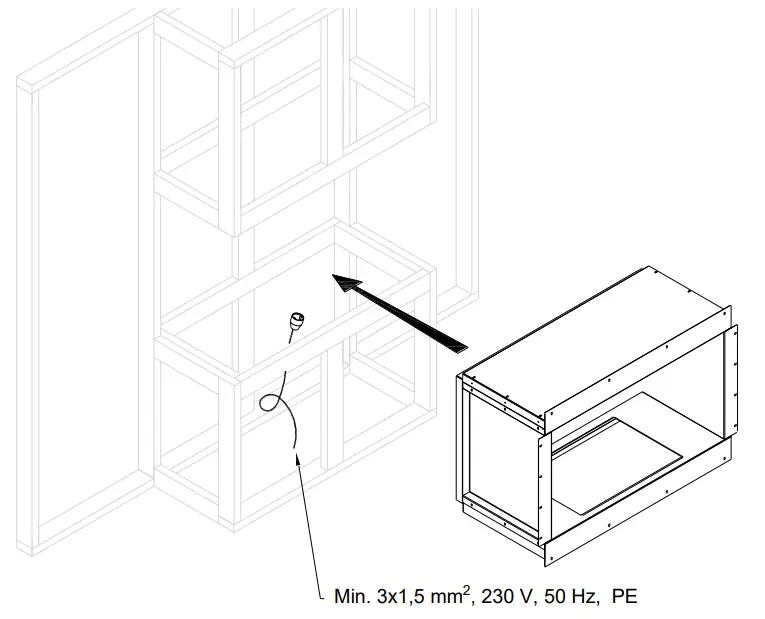

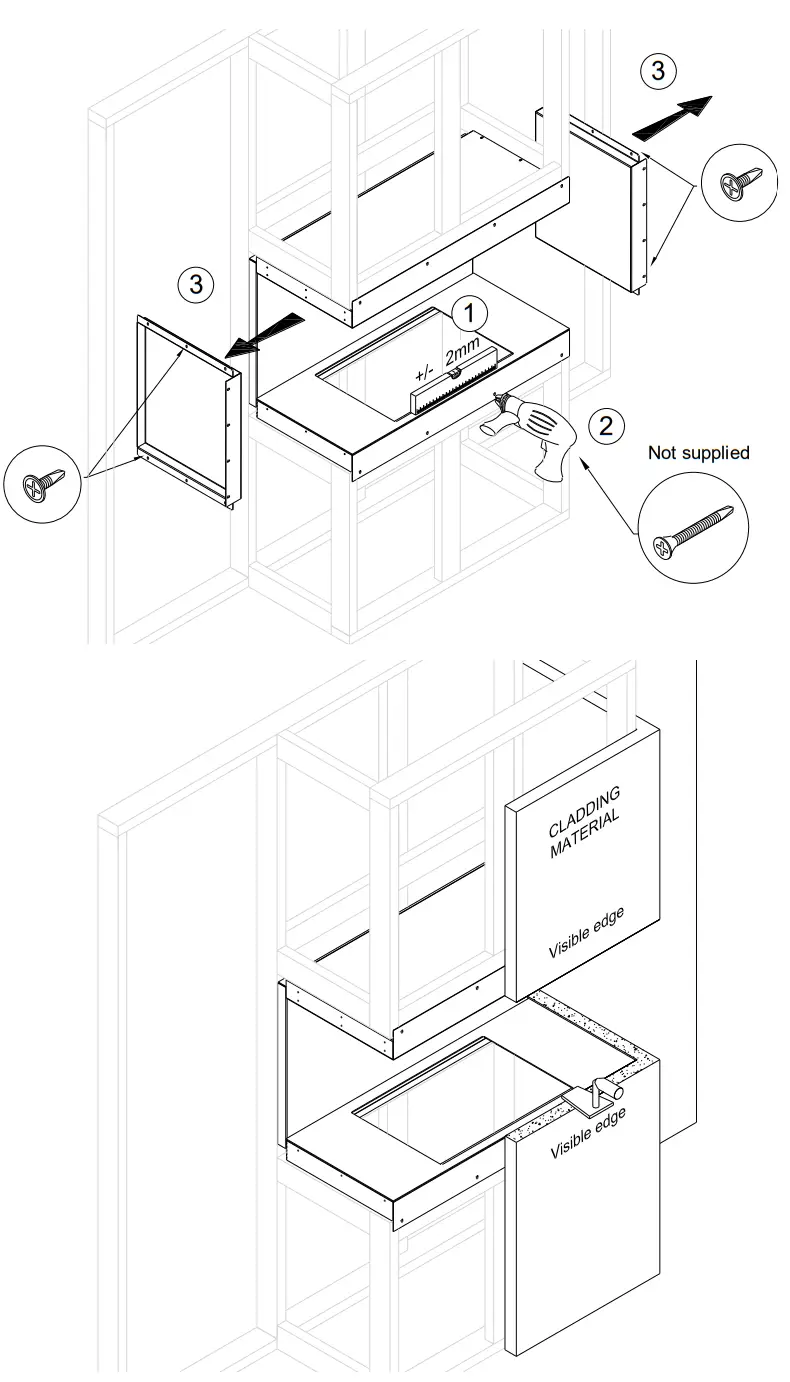

THREE SIDED
| W | W1 min | W2 max | D | D1 max | H | H1 min | |
| mm | mm | mm | mm | mm | mm | mm | |
| Sensor Fireplace Left /Right Corner | 706 | 370 | 170 | 350 | 25 | 455 | 130 |
Make sure to finish the VISIBLE EDGE of the cladding material
Installation manual Sensor Burner (I1495)
