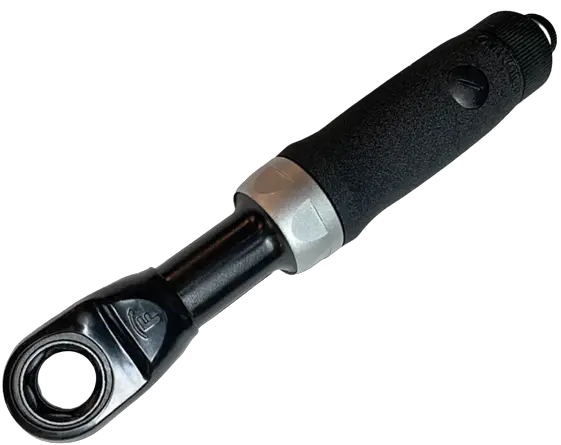

Taylor Pneumatic Tool Company T-9825NK Thru Hole Ratchet Instructions

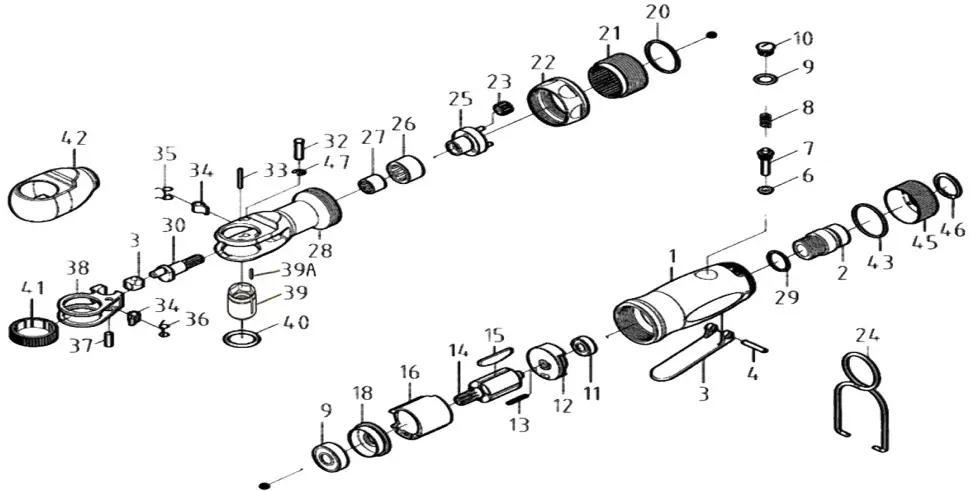

Product Diagram
USE 90 PSI MAXIMUM
| Ref # | Part # | Description | Qty. |
| 1 | 9825N01 | Housing | 1 |
| 2 | 9825NO2 | Air Inlet | 1 |
| 3 | 9825NO3 | Trigger | 1 |
| 4 | 9825N04 | Spring Pin | 1 |
| 6 | 9825N06 | Packing | 1 |
| 7 | 9825N07 | Throttle Valve | 1 |
| 8 | 9825N08 | Spring | 1 |
| 9 | 9825N09 | 0-Ring | 1 |
| 10 | 9825N10 | Screw | 1 |
| 11 | 9825N11 | Bearing | 1 |
| 12 | 9825N12 | Rear End Plate | 1 |
| 13 | 9825N13 | Spring Pin | 1 |
| 14 | 9825N14 | Rotor | 1 |
| 15 | 9825N15 | Rotor Blades(4 per set) | 1 set |
| 16 | 9825N16 | Cylinder | 1 |
| 18 | 9825N18 | Front End Plate | 1 |
| 19 | 9825N19 | Bearing | 1 |
| 20 | 9825N20 | Washer | 1 |
| 21 | 9825N21 | Internal Gear | 1 |
| 22 | 9825N22 | Lock Nut | 1 |
| 23 | 9825N23 | Gear | 1 |
| 24 | 9825N24 | Suspension Ring | 1 |
| 25 | 9825N25 | Gear Carrier | 1 |
| 26 | 9825N26 | Needle Bearing Needle | 1 |
| 27 | 9825N27 | Bearing Ratchet | 1 |
| 28 | 9825N28N | Housing | 1 |
| 29 | 9825N29 | 0-Ring | 1 |
| 30 | 9825N30 | Eccentric Shaft | 1 |
| 31 | 9825N31 | Drive Bushing | 1 |
| 32 | 9825N32 | Pin | 1 |
| 33 | 9825N33 | Spring Pin | 1 |
| 34 | 9825N34 | Ratchet Pawl | 2 |
| 35 | 9825N35 | Spring | 1 |
| 36 | 9825N36 | Spring | 1 |
| 37 | 9825N37 | Pin | 1 |
| 38 | 9825N38N | Yoke | 1 |
| 39 | 9825N39N | Bushing | 1 |
| 39A | 9825N39A | Key | 1 |
| 40 | 9825N40 | 0-Ring | 1 |
| 41 | 9825N41 N | Gear | 1 |
| 42 | 9825N42 | Cover | 1 |
| 43 | 9825N43 | 0-Ring | 1 |
| 45 | 9825N45 | Exhaust Deflector | 1 |
| 46 | 9825N46 | Inverted Retaining Ring | 1 |
| 47 | 9825N47 | E-Ring | 1 |
