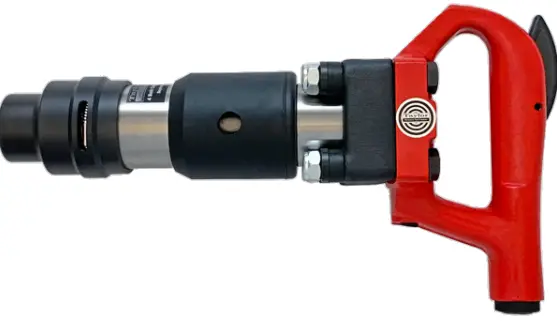

Taylor Pneumatic Tool Company T-#24B Chipping Hammer
OILING INSTRUCTIONS
OIL AFTER EACH USE WITH A FEW DROPS OF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR 1 SECOND TO COAT ALL INTERNAL PARTS.
OPTIONAL ACCESSORIES
- T-7516 .680/.580 HEX QUICK CHANGE BALL TYPE RETAINER

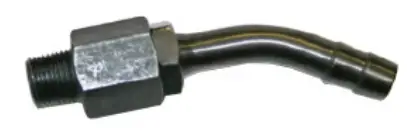

- T-23451 HOSE SWIVEL 3/8” NPT FITS ANY TOOL WITH 3/8” AIR INLET
CHISELS ARE NOT INCLUDED WITH THE TOOL

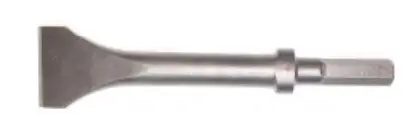

T-1101W2 : WIDE CHISEL

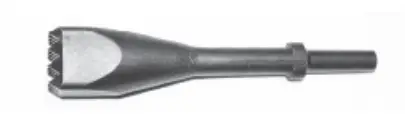

T-1103 : BUSHING TOOL
T-1108 : COLD CHISEL
T-1180 : MOIL POINT
THESE CHISELS FIT OUR T-#24B, T-#34B, T-#44B, T-#2, T-#3 & T-#4 CHIPPING HAMMERS AS WELL AS ANY CHIPPING HAMMER THAT ACCEPTS .680 ROUND SHANK OVAL COLLAR CHISELS. FORGED STEEL. THE T-1103 IS 9 1/2” LONG. THE OTHER THREE CHISELS AVAILABLE IN 9”, 12”, OR 18” LENGTH. .580 HEX CHISELS ALSO AVAILABLE FOR “BH” HAMMERS

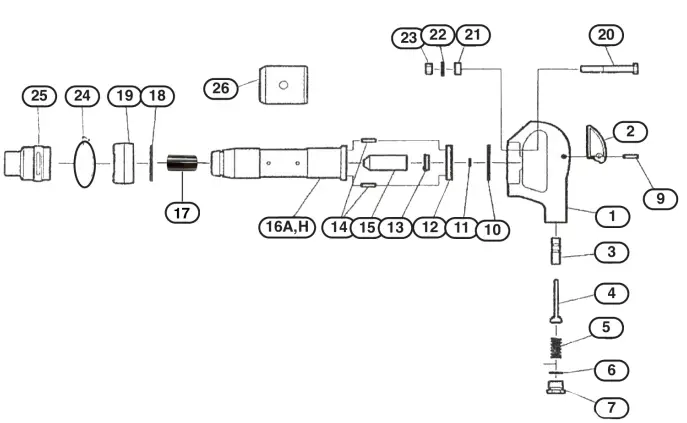

| REF # | PART # | DESCRIPTION HANDLE ASSEMBLY (PARTS 1-9) TRIGGER BUSHING VALVE STEM SPRING O-RING AIR INLET 3/8 NPT PIN O-RING DISC VALVE VALVE SEAT VALVE SEAT BUMPER DOWEL PIN #2 PISTON #3 PISTON #4 PISTON #2 CYLINDER W/.680 BUSHING #3 CYLINDER W/.680 BUSHING #4 CYLINDER W/.680 BUSHING | QTY |
| 1 | #2344B01A | 1 | |
| 2 | #2344B02 | 1 | |
| 3 | #2344B03 | 1 | |
| 4 | #2344B04 | 1 | |
| 5 | #2344B05 | 1 | |
| 6 | #2344B06 | 1 | |
| 7 | #2344B07 | 1 | |
| 9 | #2344B09 | 1 | |
| 10 | #2344B10 | 1 | |
| 11 | #2344B11 | 1 | |
| 12 | #2344B12 | 1 | |
| 13 | #2344B13 | 1 | |
| 14 | #2344B14 | 2 | |
| 15 | #24B15 | 1 | |
| 15 | #34B15 | 1 | |
| 15 | #44B15 | 1 | |
| 16A | #24B16A | 1 | |
| 16A | #34B16A | 1 | |
| 16A | #44B16A | 1 | |
| 16H | #24B16H | #2 CYLINDER W/.580 HEX | 1 |
| 16H | #34B16H | #3 CYLINDER W/.580 HEX | 1 |
| 16H | #44B16H | #4 CYLINDER W/.580 HEX | 1 |
| 17 | #2344B17 | ROUND BUSHING | 1 |
| 17H | #2344B17H | HEX BUSHING | 1 |
| 18 | #2344B18 | ABSORBER RING | 1 |
| 19 | #2344B19 | CYLINDER FLANGE | 1 |
| 20 | #2344B20 | BOLT | 4 |
| 21 | #2344B21 | VIBRATION SPACER | 4 |
| 22 | #2344B22 | WASHER | 4 |
| 23 | #2344B23 | NUT (NYLOC) | 4 |
| 24 | #23434N3 | LOCKCOIL SPRING | 1 |
| 25 | #23431N3 | SLEEVE-RETAINER | 1 |
| 26 | #234B26 | DEFLECTOR (#2 & #3) | 1 |
| 26 | #44B26 | DEFLECTOR (#4) | 1 |
| OPTIONAL ACCESSORIES | |||
| T-7516 | QUICK CHANGE RETAINER | ||
| T-#23451 | HOSE SWIVEL 3/8” NPT |
505 N. Railroad Ave. 33435
P.O. Box 1117 33425
Boynton Beach, FL
FOR WARRANTY INFORMATION &
WARRANTY REGISTRATION VISIT
www.taylorpneumatic.com
1122 / ALL RIGHTS RESERVED / COPYRIGHT 2022
Ph. (561)732-1111
Fax. (561)731-4412
Toll Free (800) 805-8665
