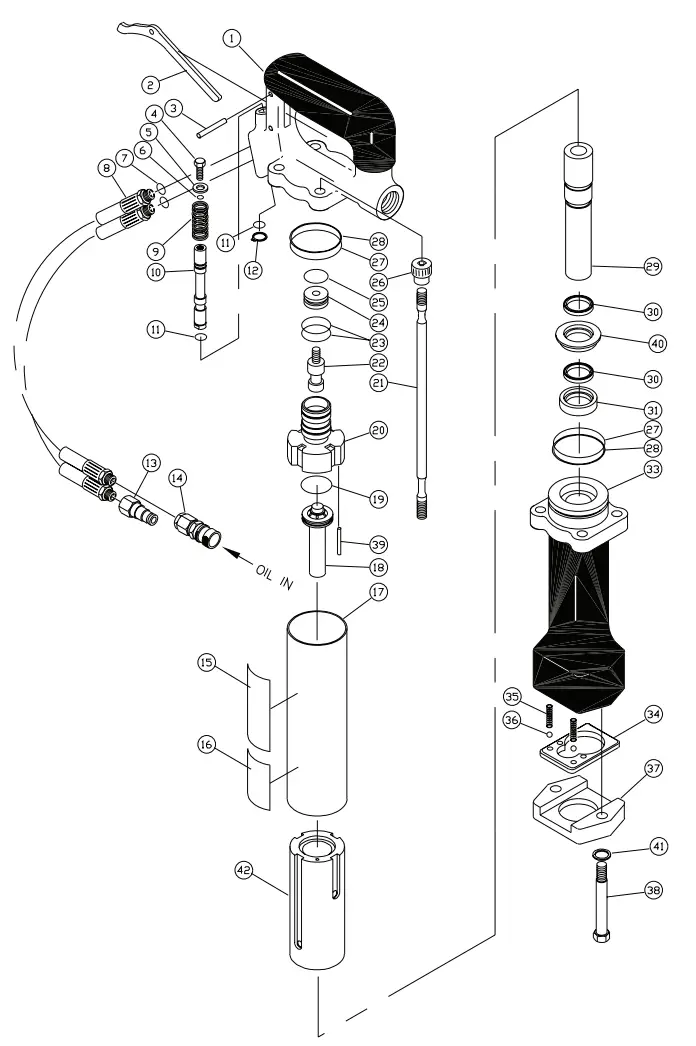

CH18 PARTS ILLUSTRATION
CH18 PARTS LIST
| ITEM NO. | PART NO. | CITY | DESCRIPTION |
| 1 | 2890 | 1 | HANDLE BODY ASSY (INCL ITEMS 11, 27, 28) |
| 2 | 2853 | 1 | TRIGGER |
| 3 | 24316 | 1 | DOWEL PIN |
| 4 | 2959 | 1 | SPOOL SCREW |
| 5 | 24348 | 1 | WASHER |
| 6 | 2901 | 1 | 0-RING |
| 7 | 3252 | 2 | 0-RING |
| 8 | 1412 | 2 | HOSE ASSY |
| 9 | 2846 | 1 | SPRING |
| 10 | 2881 | 1 | ON/OFF SPOOL – OPEN CENTER |
| 11 | 3252 | 2 | 0-RING |
| 12 | 752 | 1 | RETAINING RING |
| 13 | 3973 | 1 | MALE COUPLER BODY |
| 14 | 3972 | 1 | FEMALE COUPLER BODY |
| 15 | 28852 | 1 | NAME TAG |
| 16 | 3786 | 1 | GPM STICKER |
| 17 | 71475 | 1 | OUTER TUBE (IF PURCHASING OUTER TUBE YOU MUST ORDER P/N-71475 WHICH INCLUDES OUTER TUBE & ITEM 42 FLOW SLEEVE) |
| 18 | 3958 | 1 | OIL TUBE |
| 19 | 1259 | 1 | 0-RING |
| 20 | 3253 | 1 | VALVE BODY |
| 21 | 2848 | 4 | BOLT ASSY (INCL ITEM 26) |
| 22 | 2880 | 1 | REVERSING SPOOL |
| 23 | 211 | 2 | 0-RING |
| 24 | 3254 | 1 | VALVE GLAND |
| 25 | 1772 | 1 | 0-RING |
| 26 | 2454 | 4 | ALLEN NUT (FURNISHED WITH ITEM 21) |
| 27 | 2177 | 2 | 0-RING |
| 28 | 2865 | 2 | BACK-UP RING |
| 29 | 3959 | 1 | PISTON |
| 30 | 2907 | 2 | ROD SEAL |
| 31 | 4175 | 1 | INSERT |
| 32 | – | – | NO ITEM |
| 33 | 4015 | 1 | RETAINER NOSE (LAND MODEL) INCLUDES ITEMS 30, 31.33 THRU 38, 40 AND 41. |
| ITEM NO. | PART NO. | QTY | DESCRIPTION |
| 4014 | 1 | RETAINER NOSE (UNDERWATER) INCLUDES ITEMS 30, 31, 33 THRU 38, 40 AND 41. | |
| 34 | 4012 | 1 | RETAINER |
| 35 | 3190 | 2 | SPRING |
| 36 | 2436 | 2 | BALL |
| 37 | 4010 | 1 | RETAINER CAP |
| 38 | 2665 | 2 | CAPSCREW |
| 39 | 2843 | 1 | PIN |
| 40 | 7049 | 1 | INSERT |
| 41 | 3031 | 2 | LOCKWASHER |
| 42 | 71475 | 1 | FLOW SLEEVE ASSY. (NOTE: THIS ITEM INCLUDES ITEM 17 OUTER TUBE) |
| SEAL KIT PART NUMBER 03331 CH18-DR19 LAND | ||
| PART NO. | QTY | DESCRIPTION |
| 2901 | 1 | 0-RING |
| 3252 | 2 | 0-RING |
| 2865 | 2 | BACK-UP RING |
| 2177 | 2 | 0-RING |
| 3127 | 1 | ROD WIPER |
| 2302 | 1 | ROD SEAL |
| 1259 | 1 | 0-RING |
| 1772 | 1 | 0-RING |
| 211 | 2 | 0-RING |
| 2907 | 2 | ROD SEAL |
| SEAL KIT PART NUMBER 03843 U/W | ||
| PART NO. | QTY | DESCRIPTION |
| 3351 | 1 | 0-RING |
| 3364 | 1 | 0-RING |
| 2901 | 1 | 0-RING |
| 3252 | 2 | 0-RING |
| 2865 | 2 | BACK-UP RING |
| 2177 | 2 | 0-RING |
| 3127 | 1 | ROD WIPER |
| 2302 | 1 | ROD SEAL |
| 1259 | 1 | 0-RING |
| 1772 | 1 | 0-RING |
| 211 | 2 | 0-RING |
| 2907 | 2 | ROD SEAL |
