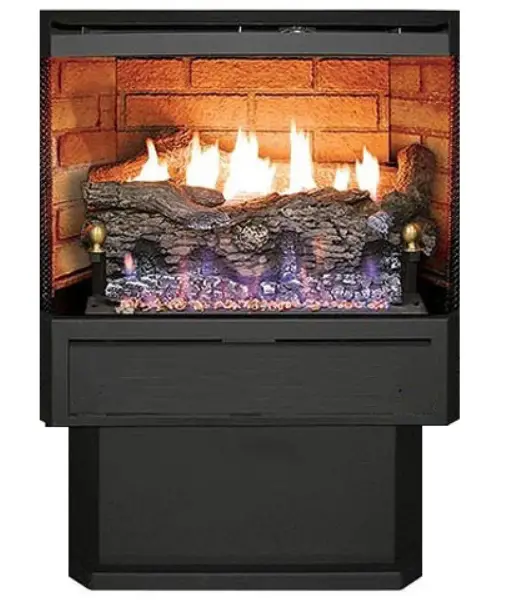

Heatilator GC1990 Gas Stove BV

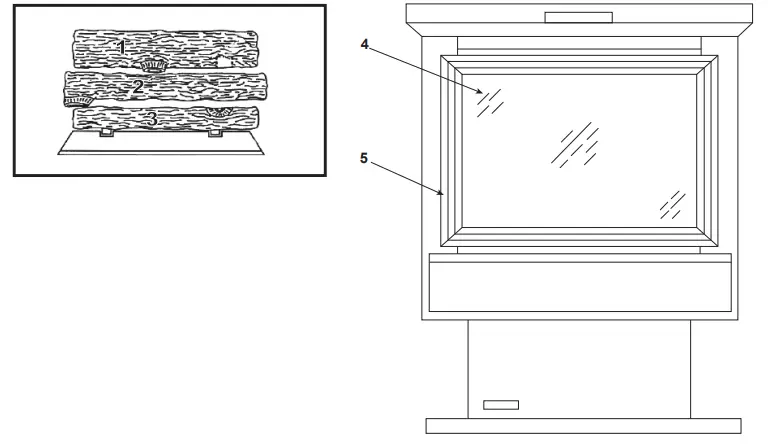

Log Set Assembly
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
DESCRIPTION
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Log Assembly | No longer available | 16769D | ||
| 1 | Back Log | No longer available | SRV15691 | |
| 2 | Middle Log | No longer available | SRV15693 | |
| 3 | Front Log | No longer available | 15690C | |
| 4 | Glass Panel | No longer available | 16274C | |
| 5 | Door Assembly | No longer available | 16273B | |
| Ashlip | No longer available | 17252B | ||
| Brass Trim | No longer available | 16253B | ||
| Mineral Wool | Qty 2 req | SRV14333 | ||
| Side Door Seal | No longer available | 16268B | ||
| Top Door Seal | No longer available | 16264A | ||
| Vermiculite | 28746 | |||
| Installation and Operating Instructions | 17222 | |||
Additional service part numbers appear on following page.

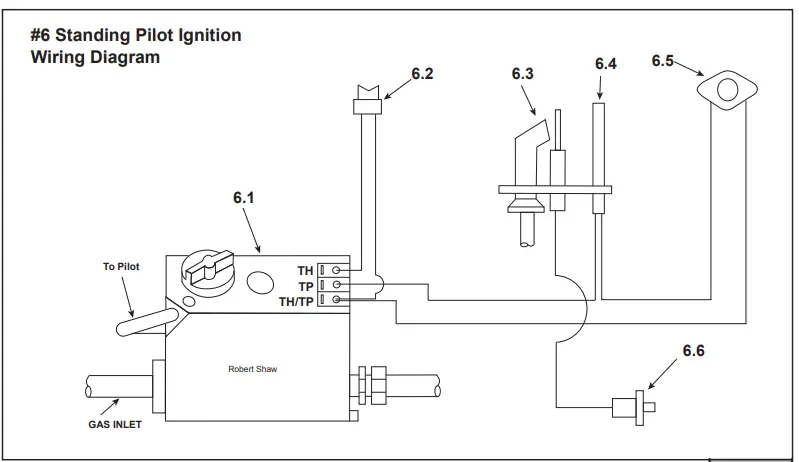

Standing Pilot Ignition Wiring Diagram
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Valve (R/S) – NG | 060-500 | Y | ||
| 6.1 | Valve (R/S) – LP | SRV25810 | Y | |
| Valve (W/R) – NG | SRV71492 | Y | ||
| Valve (W/R) – LP | No longer available | 71485 | ||
| 6.2 | ON/OFF, Switch | SRV32D0232 | Y | |
| 6.3 | Pilot Assembly – with Thermopile – NG | 4021-728 | Y | |
| Pilot Assembly – with Thermopile – LP | 4021-729 | Y | ||
| 6.4 | Thermopile | 2103-512 | Y | |
| 6.5 | High Limit Switch | SRV24968 | Y | |
| 6.6 | Push Button Ignitor | 291-513 | Y | |
| Burner | No longer available | 18072C | ||
| Burner Orifice (.093) – NG | SRV16752 | Y | ||
| Burner Orifice (.059) – LP | SRV13445 | Y | ||
| Burner Supply Tube | No longer available | 16242B | ||
| Pilot Tube Kit | 26471 | Y | ||
| Conversion Kit NG | Not available for | CKN | Y | |
| Conversion Kit LP | White Rogers | CKP | Y | |
| Pilot Orifice (.021) – NG | SRV446-505 | Y | ||
| Pilot Orifice (.0115) – LP | SRV446-517 | Y |
