Boya By-ws1000 Windshield And Suspension System For Shotgun Microphone Instruction Manual

BOYA BY-WS1000 Windshield and Suspension System for Shotgun Microphone Instruction Manual

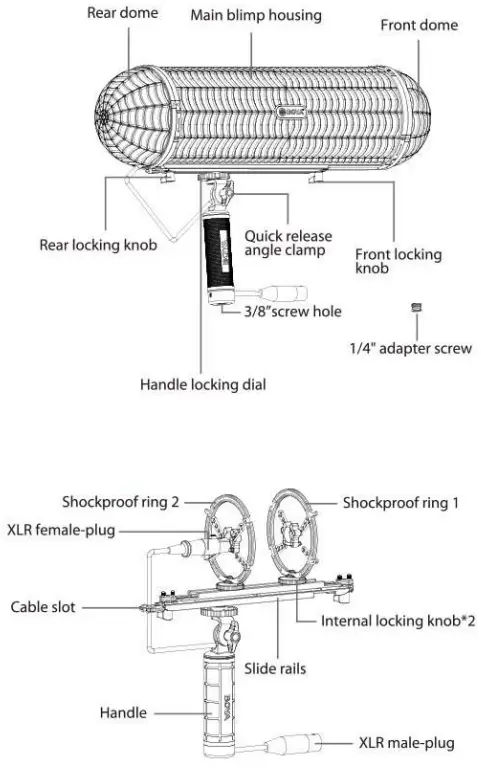

Product Structure

Adjustment

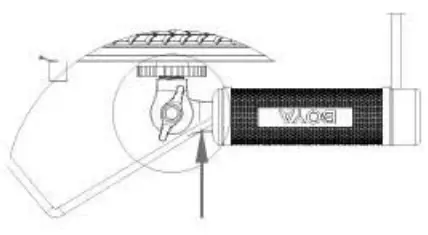

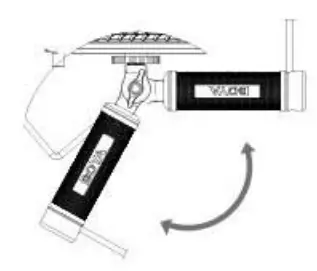

Handle angle

1. Initial default angle

2. Loosen the knob and adjust to desired angle

3. Tighten the knob after adjustment

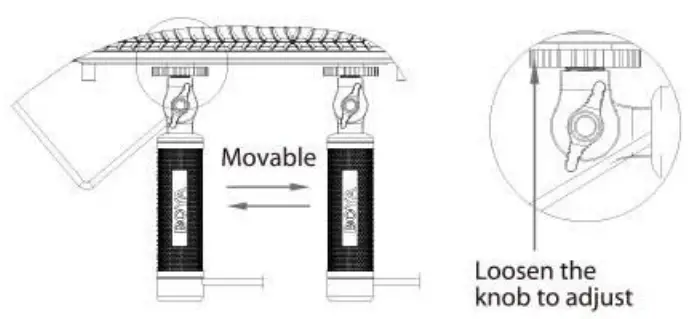

Handle Position

Operations

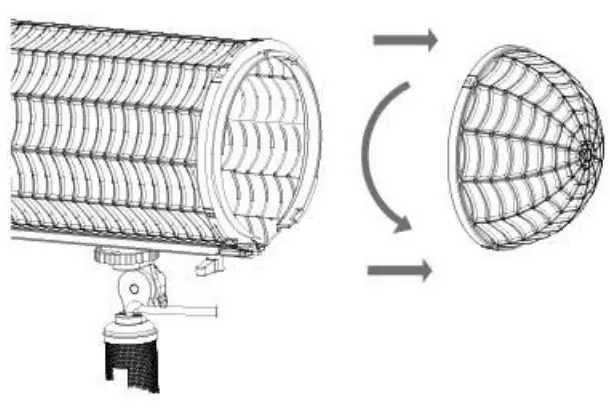

1. Unscrew and remove the rear dome
   Clockwise to tight, counter clockwise to loose

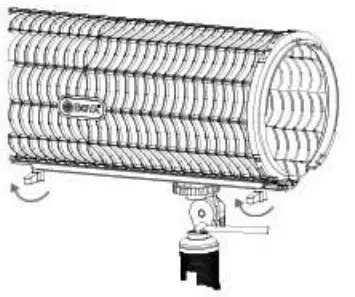

2. Loosen the front and rear knobs

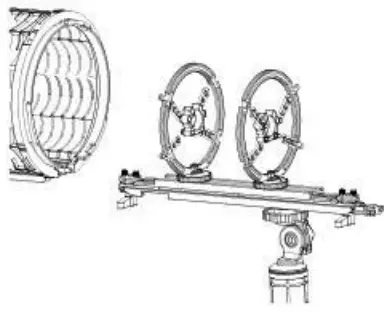

3. Slide the suspension body out of the main blimp housing

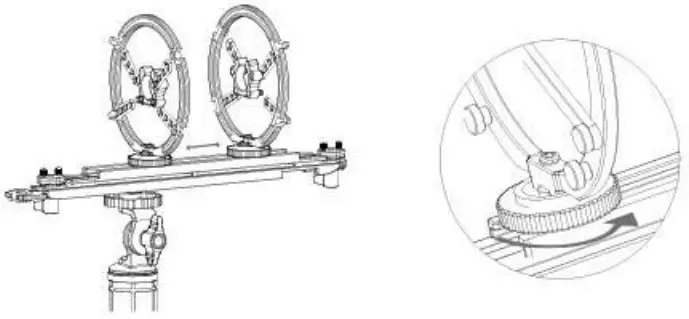

4. Loosen the locking knobs to adjust position of shockproof rings

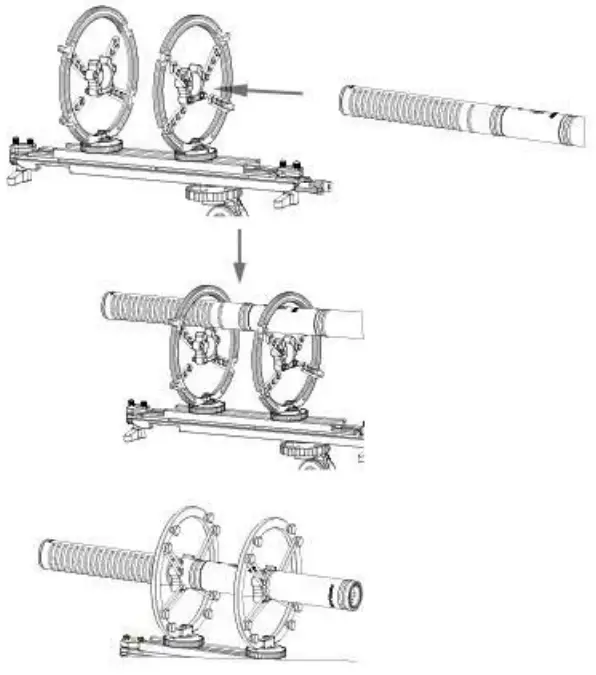

5. Place the microphone
   NOTE: Fits up to 320mm in length and 919-22mm shotgun microphone

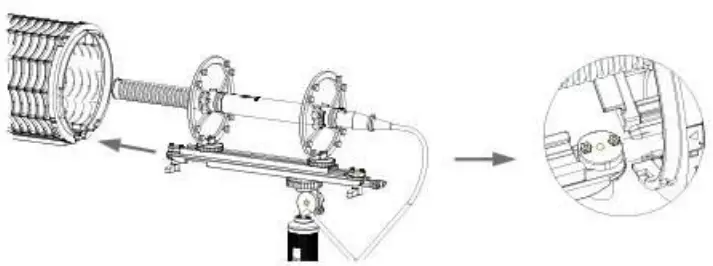

6. Connect the XLR plug

7. Place the suspension body back into the main blimp housing
   1. Slide in and align the rails with the main blimp housing

   2. Tighten the front and rear knobs

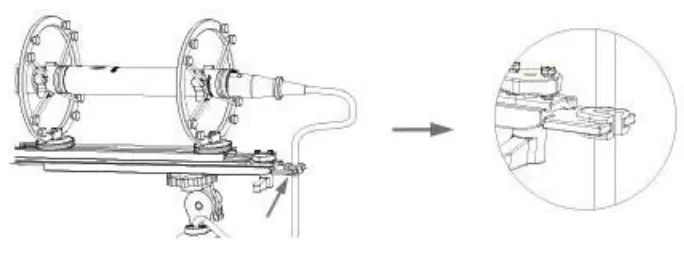

   3. Place the cable into the slot

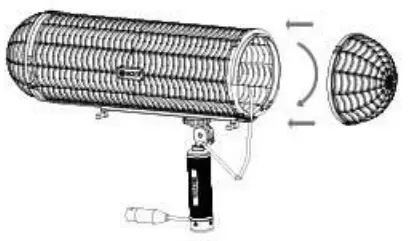

8. Replace and screw the rear dome

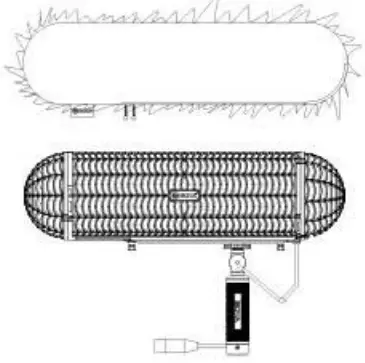

9. Using the fur windshield
   1.  Loosen the drawstring of fur windshield and stretch over the blimp body

   2. Straighten the fur windshield, than tighten and lock the drawstring


Using indoor

Using indoor without main blimp housing
