H A Compact Shotgun Condenser Microphone User Guide

Compact Shotgun
Condenser Microphone

Foreword
Thanks for purchasing H&A professional Mini Video Microphone, it is one delicate and cardioid Mic that is fully made of Aluminum and comes with a super anti-interference function; Installed with the super internal Mic, it can assist your camera and phone for professional video recording to make It to broadcasting level!

Notice

• When the Mic works with! phone 7 or another phone with Lightning Audio Input you need to connect with the original adapter cable.
• For the 105 system smartphone (phone),  the Mic works well either in Audio or Video mode.
• For the Android system smartphone, the Mic works well in Audio Mode; While in video mode, please try to use the video APP from the 3rd party if you find your smartphone doesn’t work.
• Please don’t put the device besides the heat or Interference source, like a radiator, Roaster or Aircondition, etc.
• Please keep this product in a dry environment.
• Do not expose this device in a rain or moist environment.

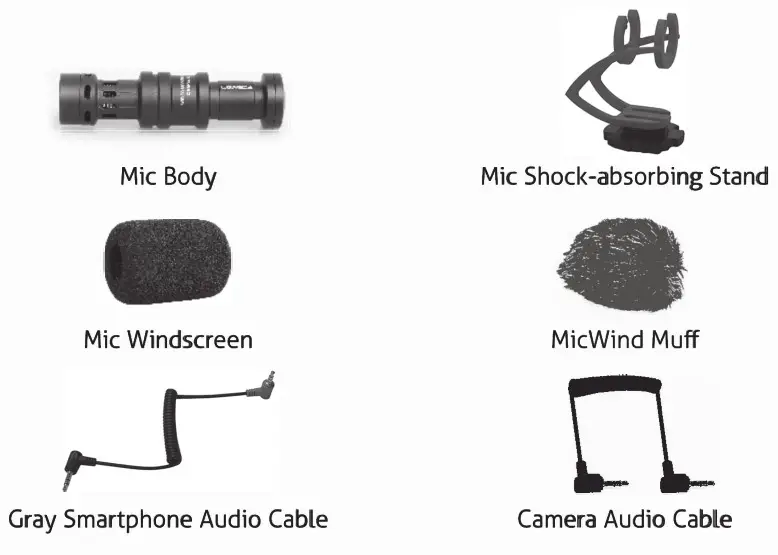

In the Box List

Operation

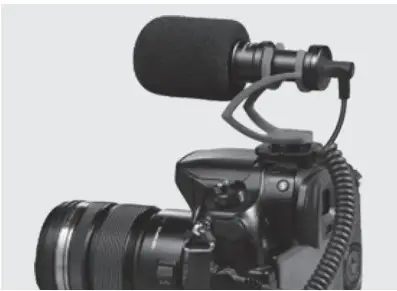

Installation

As an above illustration. install the Shock-absorbing stand onto the Mic body; Choose the windscreen or wind muff according to your own requirement.

Function

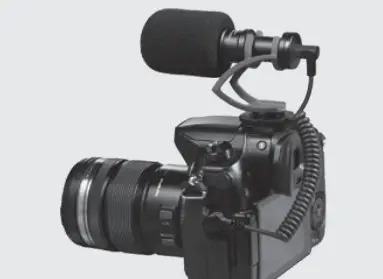

For DSLR or Micro Camera

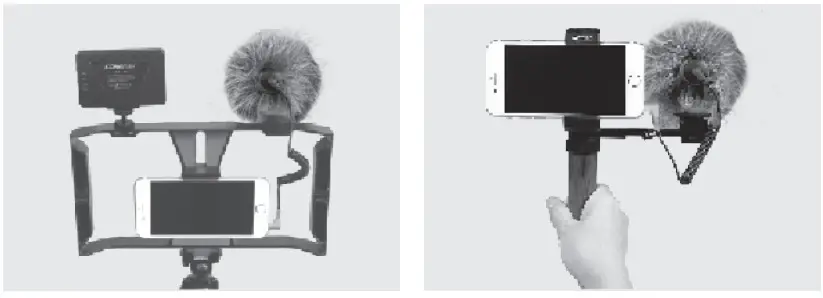

For Smartphone

Notice:
a. When the Mic works with iPhone 7 or another phone with Lightning
Audio input, you need to connect with the original adapter cable.
b. For the 105 system smartphone (phone), the Mic works well either in
Audio or Video mode.
c. For the Android system smartphone, the Mic works well in Audio Mode;
While in video mode, please try to use the video APP from a 3rd party if you find your smartphone doesn’t work.

Specifications

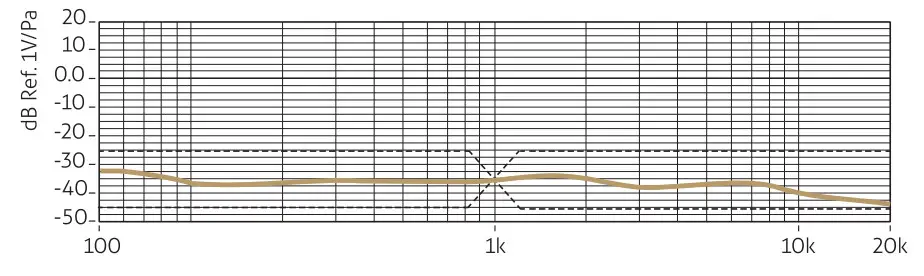

1. Frequency Response

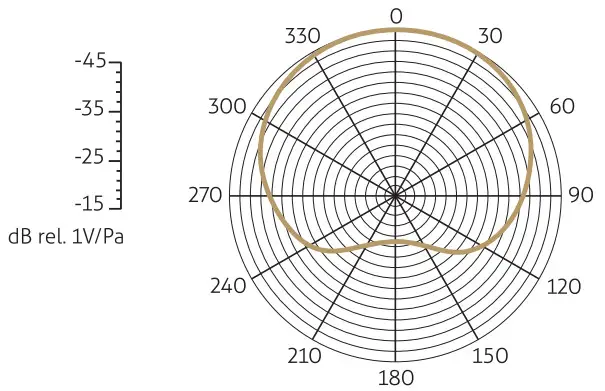

2. Polar Pattern
3. Technology Parameters


   Transducer Principle	Back Electronic Condenser
   Polar Pattern	Super-Cardioid
   Max. SPL	100 dB
   Frequency Range	80 HZ-16000 HZ
   THD	<1%
   Output Impedance	2.2 ±30%kO
   Dynamic Range	100 dB
   Sensitivity	-34dB±3 dB
   Signal to Noise Ratio	>58 d8
   Weight	34.2g
   Dimension	21 mm(D) x 85 mm(L)
