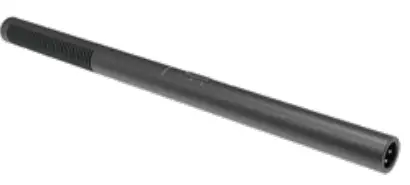

DCM2 Directional Condenser Shotgun Microphone
User Manual
DCM2
Supercardioid Condenser Shotgun Microphone
User Manual
Introduction:
The CKMOVA DCM2 is a professional broadcast-quality condenser shotgun microphone, specially designed for professional video, film and live stage applications. With 150hz High-pass filter prevent low end low-frequency noises to acquire dependable sound quality. Optional power required by 48V phantom power or AA battery, making it wide application condition.
Highlights：
- Broadcast-quality condenser microphone, designed for professional applications within the film, video, television and production industries
- With full frequency response, low noise circuitry and audio transparency, making it an ideal film, video, and voice over microphone
- 150hz High-pass filter prevent low end low-frequency noises to acquire dependable sound quality.
- 48V phantom power or AA battery power option
- Alloy-aluminum durable body construction
- Includes Foam windscreen, XLR output cable and two shock mounts
Speciafications:
| Type: | Condenser Microphone |
| Polar Pattern: | Supercardioid |
| Frequency Range: | 20Hz-20KHz |
| Sensitivity: | -32dB±2dB |
| Signal/Noise: | 75dB SPL |
| Maximum SPL: | 138dB |
| Equivalent Noise Level: | 22dBA |
| Output Impedance: | Phantom Power: 250Ω |
| AA Battery Power: | 300Ω |
| Power Requirement: | 48V Phantom Power or One AA Battery |
| Phantom Power: | 2.0mA |
| AA Battery Power: | 0.19mA |
| Output Connection: | 3-pin Balanced XLR Output |
| Weight: | 131g |
| Dimension: | 22x362mm |

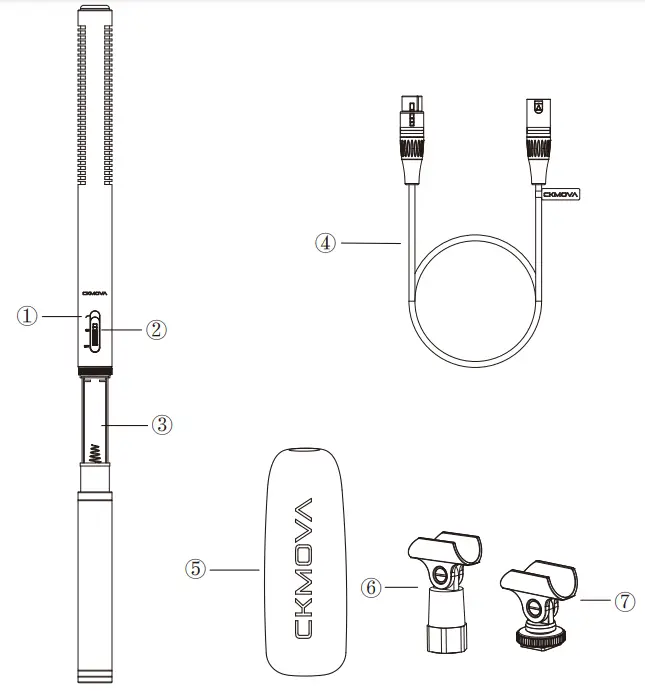

Product Structure:
- High-pass filter(150Hz)
- Power button
- Battery compartment
- XLR male to female cable
- Foam windscreen
- Shock mount
- Shock mount

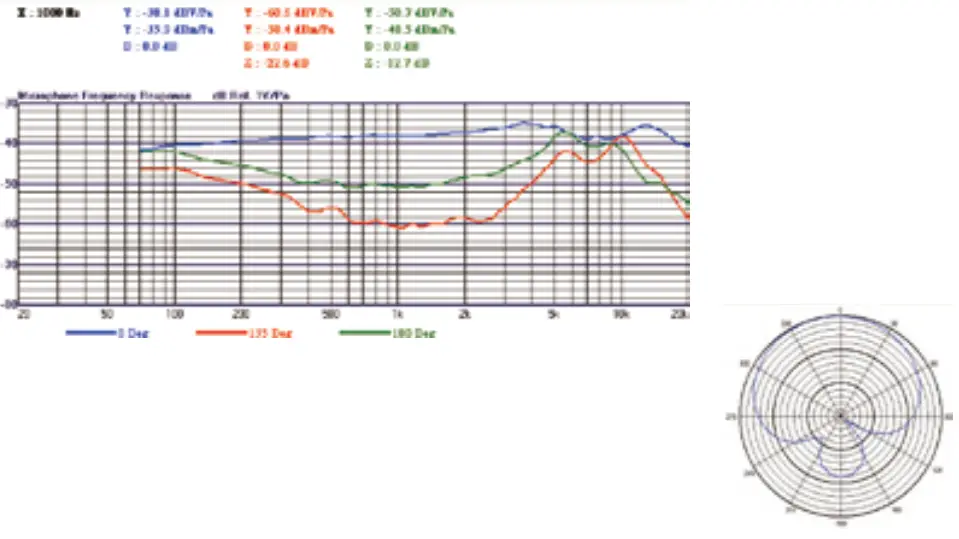

Frequency Response:
Packing List
Microphone *1
Foam windscreen *1
XLR balanced cable *1
Shock mount *2
User Manual *1
Shenzhen Shenyao Technology Co., Ltd
CKMOVA is the trademark of Shenzhen Shenyao Technology Co., Ltd
Add: Floor 6, 38th Building, BaoNan Street, LongGang District, Shenzhen
Guangdong, China
Email: [email protected]
Web: www.ckmova.com
