August REC100B Condenser Microphone User Guide
Product Features
- Recording
- Gaming
- Cardioid
- Live Stream
- Chat

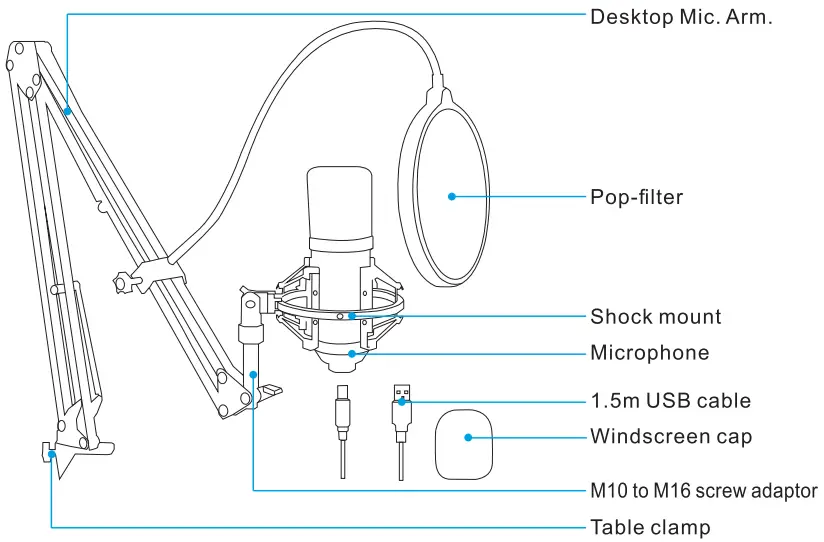

Product Overview

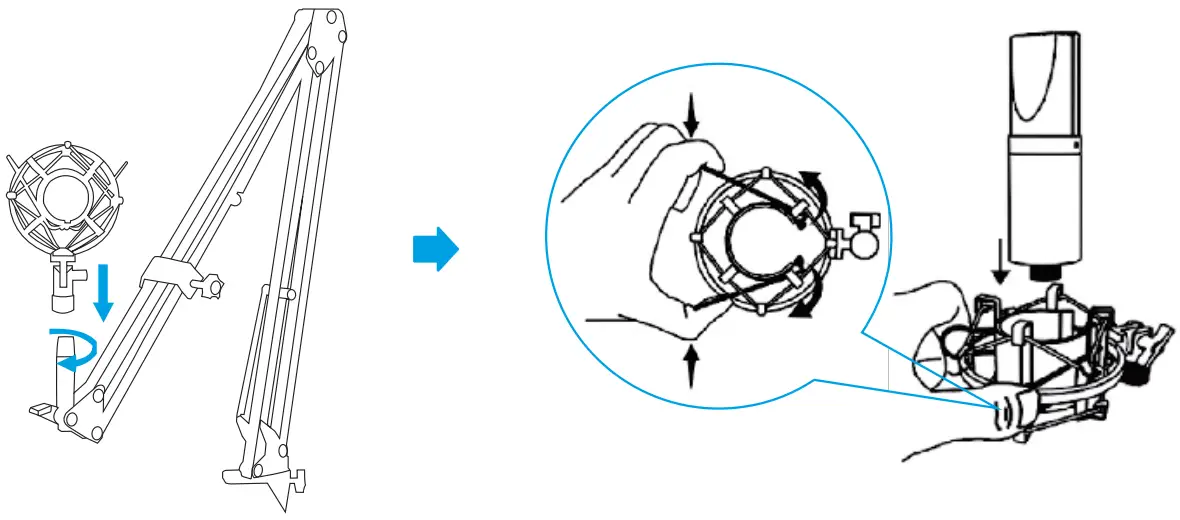

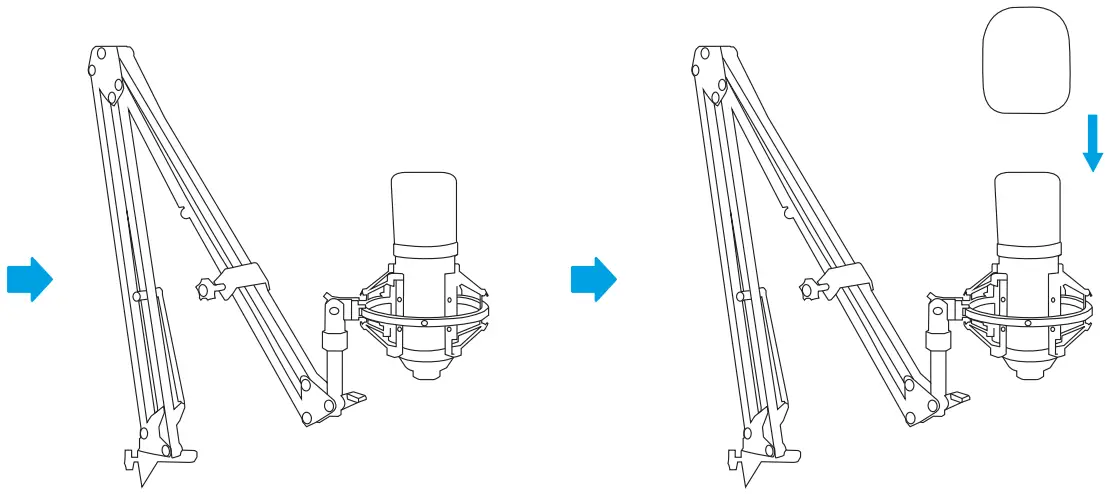

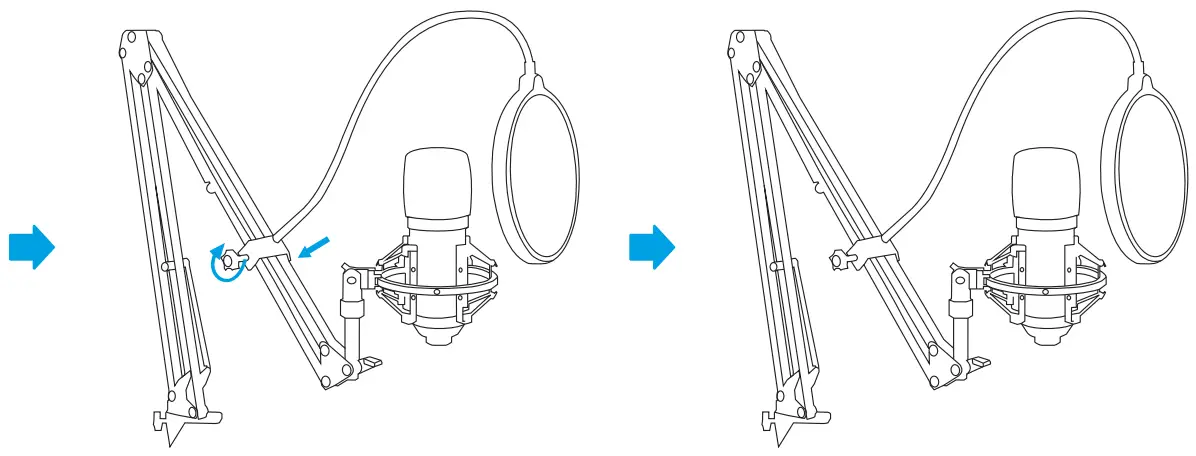

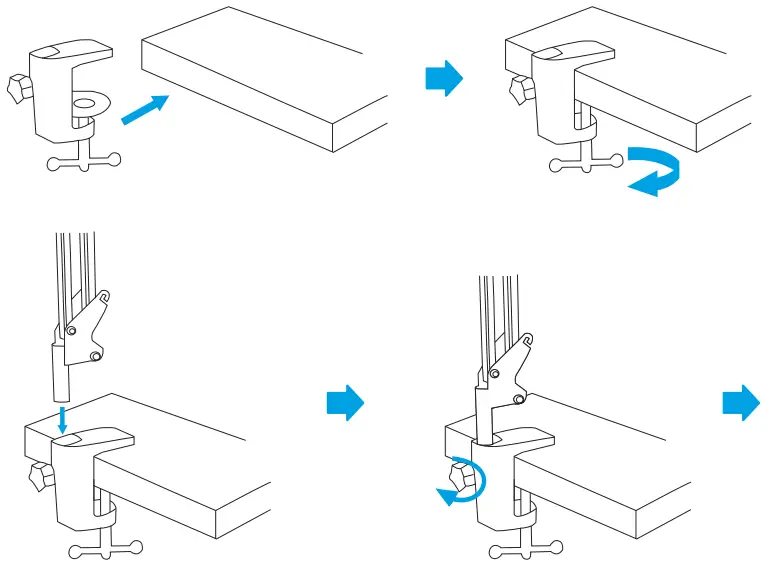

Installation instruction

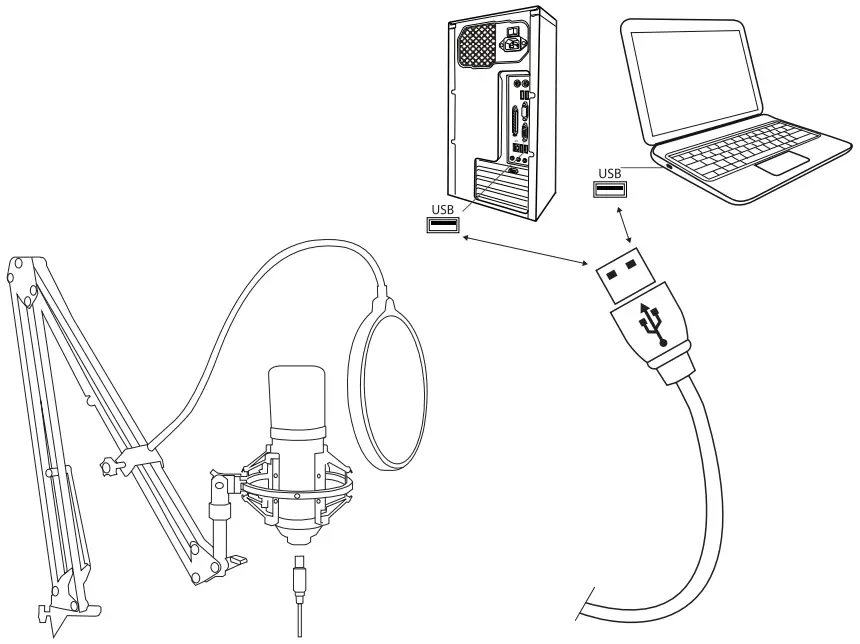

Connection instruction
Specification
| Transducer type | Condenser microphone |
| Equivalent sound noise level | 16dBA |
| Maximum sound pressure | 110dB (at 1khz s1 0T.H.D) |
| Polar pattern | Cardioid Uni-directional |
| Sampling rate | 192KHz / 24Bit |
| Frequency response | 20Hz-20KHz |
| Sensitivity | -32dB±2dB (OdB=1V/Pa at 1kHz) |
| S/N ration | 78dB |
| Current | 80-120mA |
| Operation temperature | -10°C to +70°C |
| Cable length | 2.5m |
Support
August International Ltd
Rawmec Business Park
Hoddesdon
EN11 OEE
United Kingdom
Tel: +44(0) 845 250 0586
EU Distributor:
Daffodil Germany GmbH
Bayernstr. 10 D-30855 Langenhagen
Germany
Tel: +49 (0) 511 97812978
www.augustint.com
