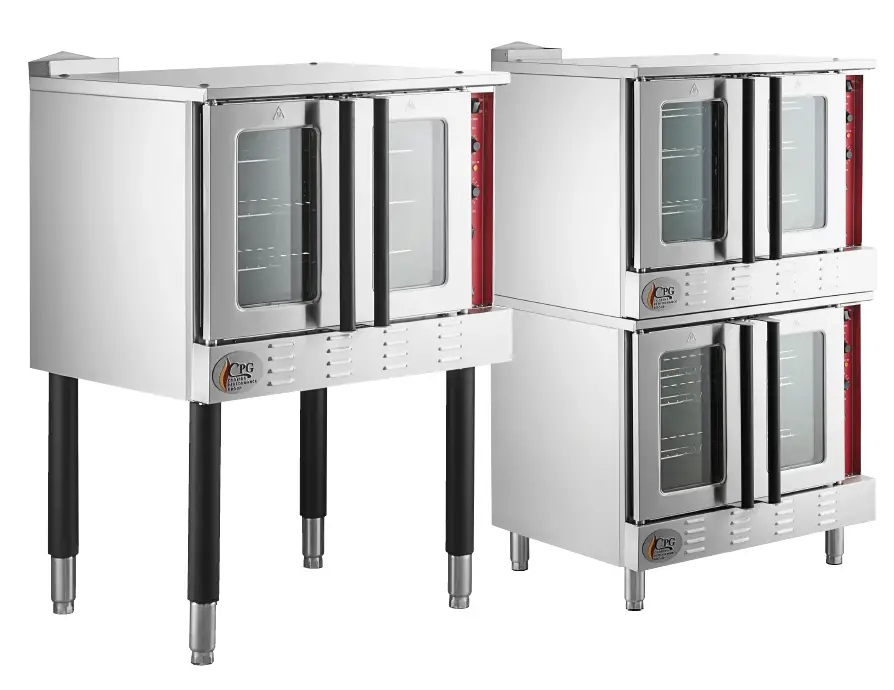

CPG 351FGC100 Gas Powered Convection Ovens
Safety Precautions
CAUTION:
- Failure to comply with the following operating instructions could lead to potential hazards and/or unsafe practices and could result in injury and damage to product and property.
NOTICE:
- Local codes regarding installation vary greatly from one area to another. The National Fire Protection Association, Inc., states in its NFPA96 latest edition that local codes are “Authority Having Jurisdiction” when it comes to requirements for installation of equipment. Therefore, installation should comply with all local codes.
- This product is intended for commercial use only. Not for residential use.
WARNING:
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other equipment.
- Improper installation, adjustment, alteration, service or maintenance could lead to property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing CPG equipment. This manual must be retained for future reference.
- A factory-authorized agent must handle all maintenance and repair.
Gas Pressure
- The appliance and its individual shutoff valve (to be supplied by the user) must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 PSI (3 .45 kPa).
- The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1 / 2 PSI (3 .45 kPa)

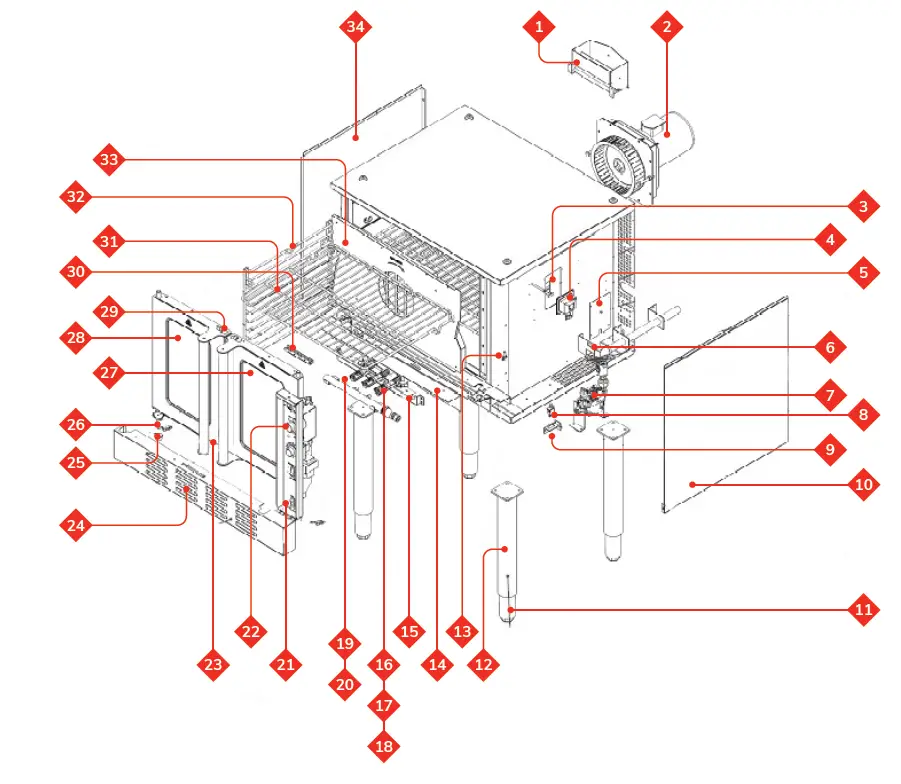

Whole Assembly
| Part # | CPG Item # | Description | QTY |
| 1 | – | Flue (Single) | 1 |
| 2 (A) | – | Motor Assembly | 1 |
| 3 | 351170022 | Thermocouple | 1 |
| 4 | 351130151 | Oven Light | 1 |
| 5 | – | Cover Plate | 1 |
| 6 | – | Fixed Plate | 1 |
| 7 (C) | – | Gas Pipeline Assembly | 1 |
| 8 | 351080021 | Safety Switch | 1 |
| 9 | – | Fixed Plate(Travel Switch) | 1 |
| 10 | – | Right Side Panel | 1 |
| 11 | 351302090088 | Adjustable Foot | 4 |
| 12 | 351090159 | Leg Assembly | 4 |
| 13 | – | Screw | 1 |
| 14 | – | Front Cover Plate | 1 |
| 15 | 35165002019 | Burner Assembly | 1 |
| 16 | 351150177 | Burner Orifice – No Hole | 3 |
| 17 | 351302150211 | 1.25mm Burner Orifice – NAT | 3 |
| 18 | 351302150212 | 2.00mm Burner Orifiace – LP | 3 |
| 19 | 351220004 | Flame Sensor | 1 |
| 20 | 351170039 | Hot Surface Ignitor | 1 |
| 21 (B) | – | Control Panel Assembly | 1 |
| 22 | 351110438 | Knob(Temp/Timer) | 2 |
| 23 | 35165002060 | Left Door Heat Shield | 1 |
| 24 | – | Lower Front Cover Plate | 1 |
| 25 | 351201928 | Door Shaft Bushing | 4 |
| 26 | 351080079 | Door Switch | 2 |
| 27 | 35165002053 | Right Door Assembly | 1 |
| 28 | 35165002054 | Left Door Assembly | 1 |
| 29 | 35165002016 | Door Latch/Stopper | 2 |
| 30 | 351228051023 | Guard Temp . Probe | 1 |
| 31 | 351110578 | Oven Rack | 3 |
| 32 | 351110577 | Rack Guide | 2 |
| 33 | 35165002009 | Fan Cover | 1 |
| 34 | – | Left Side Panel | 1 |
| 35 | 35165002129 | Aluminum Gas Tube (Not Pictured) | 1 |

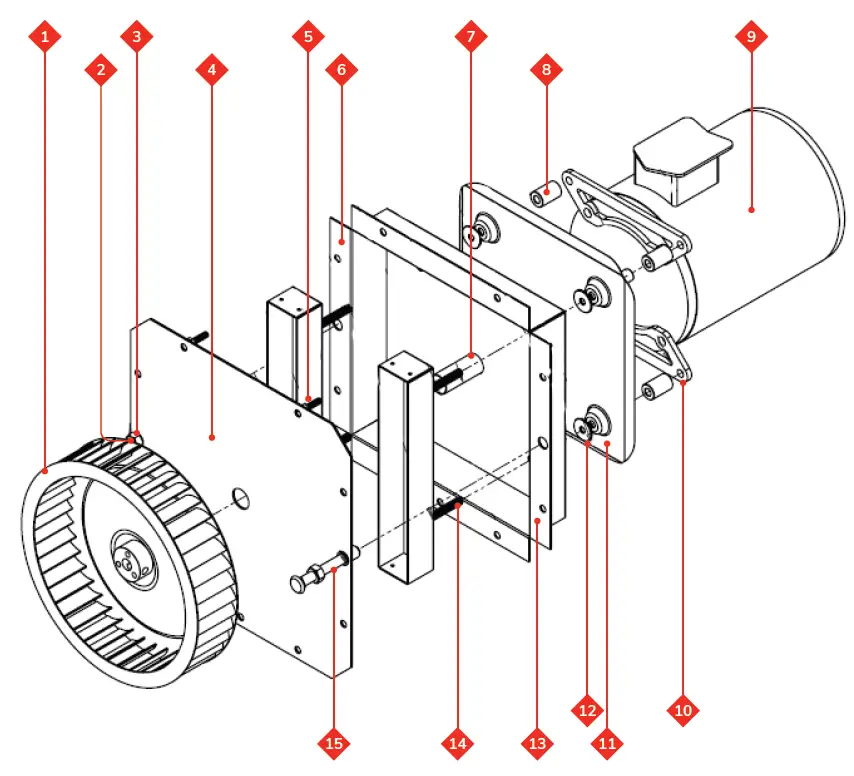

Motor Assembly (A)
| Part # | CPG Item # | Description | QTY |
| 1 | 351010263 | Blower Wheel | 1 |
| 2 | – | M10*90mm Bolt | 2 |
| 3 | – | M10 Nut | 2 |
| 4 | – | Heat Shield | 1 |
| 5 | – | M6*20mm Bolt | 2 |
| 6 | – | Reinforcement Plate | 2 |
| 7 | – | Bushing | 1 |
| 8 | 351202328 | Motor Mount Spacer | 4 |
| 9 | 351010262 | Motor | 1 |
| 10 | – | Fixed Flange | 2 |
| 11 | – | Baffle | 1 |
| 12 | 351201881 | Insulation Pad | 4 |
| 13 | – | Heat Shield | 1 |
| 14 | – | M8x50mm Bolt | 4 |
| 15 | – | M10 Rivet Nut | 2 |

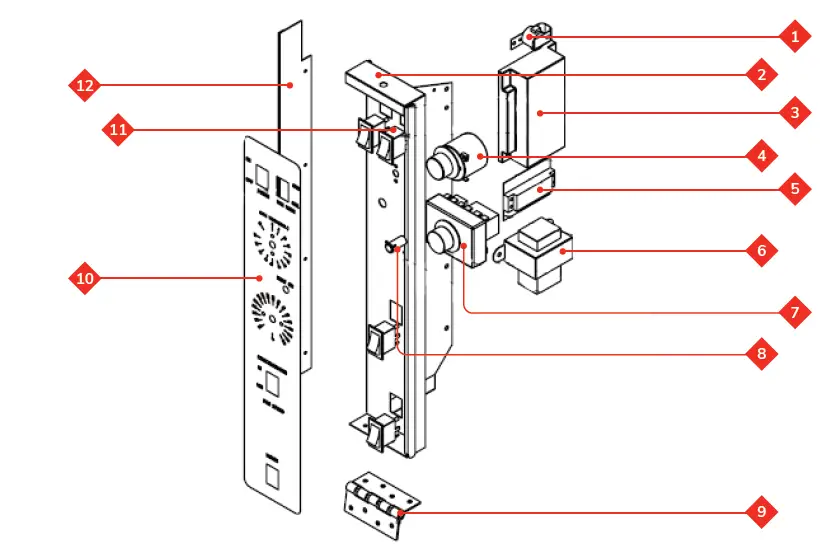

Control Panel (B)
| Part # | CPG Item # | Description | QTY |
| 1 | 351100086 | Buzzer | 1 |
| 2 | – | Control Panel | 1 |
| 3 | 351150304 | Automatic Ignition System | 1 |
| 4 | 351120028 | Timer | 1 |
| 5 | – | Terminal Block | 1 |
| 6 | 351100149 | Transformer | 1 |
| 7 | 351030169 | Electronic Thermostat | 1 |
| 8 | 351130140 | Orange Indicator | 1 |
| 9 | – | Hinge | 1 |
| 10 | – | Adhesive Sticker | 1 |
| 11 | 351080141 | Rocker Switch | 4 |
| 12 | – | Side Panel | 1 |

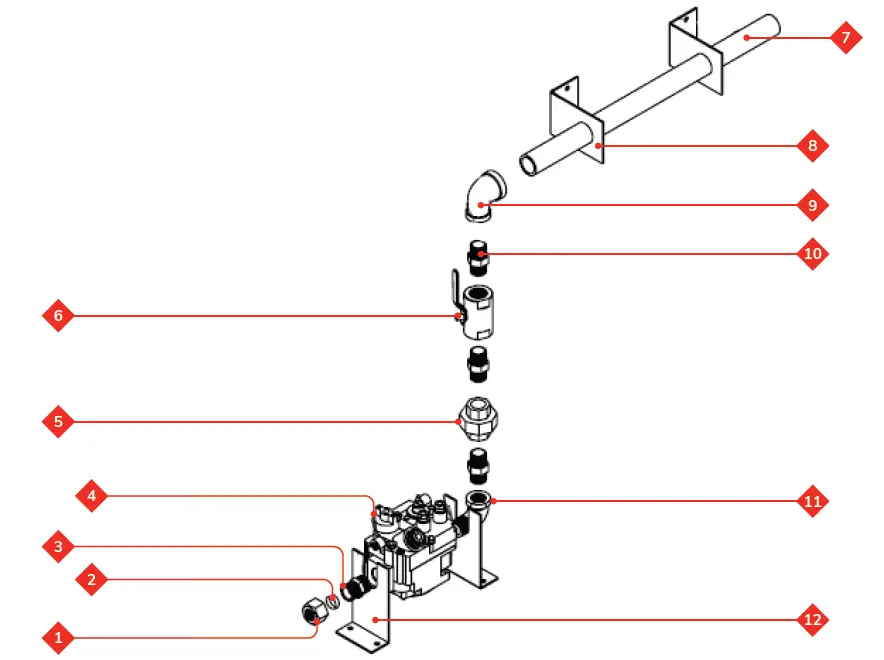

Gas Pipeline Assembly (C)
| Part # | CPG Item # | Description | QTY |
| 1 | – | M20 Nut | 1 |
| 2 | 351140079 | Compression Sleeve | 1 |
| 3 | 351140077 | Connector | 1 |
| 4a | 351220079 | Gas Safety Valve – NAT | 1 |
| 4b | 351220098 | Gas Safety Valve – LP | 1 |
| 5 | – | 1/2″ Union | 1 |
| 6 | – | 1/2″ Ball Valve | 1 |
| 7 | – | Gas Inlet Pipe | 1 |
| 8 | – | Fixed Plate (gas inlet pipe) | 2 |
| 9 | – | 1/2″ x 3/4″ Elbow | 1 |
| 10 | – | 1/2″ Connector | 3 |
| 11 | – | 1/2″ Elbow | 1 |
| 12 | – | Fixed Plate(valve) | 2 |
