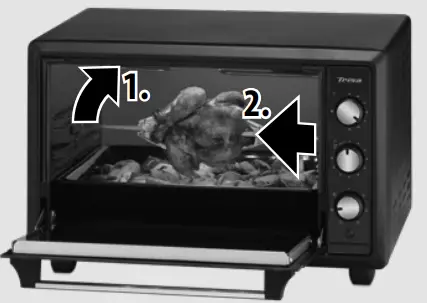

6 Accessories

7 Before using the appliance for the first time

8 Use

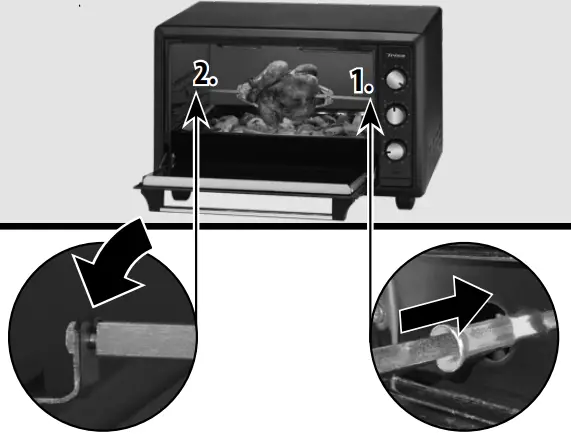

9 Rotisserie

10 Cleaning

11 Documents / Resources

11.1 References

12 Related Posts

Safety instructions

Mains connection: The voltage must comply with that shown on the appliance label.
Never pull on the mains cable/with damp hands. Disconnect mains plug in case of faults during use, prior to cleaning, relocation, after use. The plug must be within reach at all times.
Regulary check if the power cable/appliance/extension lead is defective. Never switch on damaged appliances (incl. mains lead) – have repairs carried out/obtain replacement from the manufacturer, the manufacturer’s service point or from qualified experts. Never open the appliance yourself – risk of injury!
Never carry or pull the appliance by the flex. Don’t pull the flex over sharp edges. Don’t wedge it. Don’t bend it. A short circuit can occur if the cable breaks.
Switch the appliance off and pull the plug out of the mains when it is not in use. Don’t wind the flex around the appliance.
Never immerse appliance in water/other fluids. Danger of short-circuiting!
Children aged 8 years or over and persons with reduced physical, sensory or mental capa- bilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
Children should not be allowed to play with the appliance. Keep the appliance and its power cable out of reach of children aged under 8. Never leave the appliance unattended while in operation.
Keep packaging (e.g. plastic bags) away from children
Never place the appliance/cable on hot surfaces or near open flames. Do not store/expose the appliance to intense heat (from radiators, prolonged sunshine). Only extinguish burning appliances using a fire blanket.
Do not use attachments not recommended/sold by the manufacturer.
The appliance is designed for household use and not for industrial operation. Do not operate the appliance outdoors.
Use the appliance on a dry, even, stable and heat resistant surface. Allow appliance to cool before storing away.
Do not use this appliance near the water (bath-tubs, washbasins, etc.) nor expose it to rain or other humidity. Ensure hands are dry when using appliance!
Only trained experts should repair electrical appliances. Unskilled repairs can cause consider- able danger to the user.
No warranty for any damage can be accepted if the appliance is used for improper purpose, wrongly operated or unprofessionally repaired. In such a case, any warranty claim is void.
The appliance is not intended to be operated or connected to an external timer or separate remote control switch.
Never place fingers or objects into appliance openings. Do not cover appliance opening.

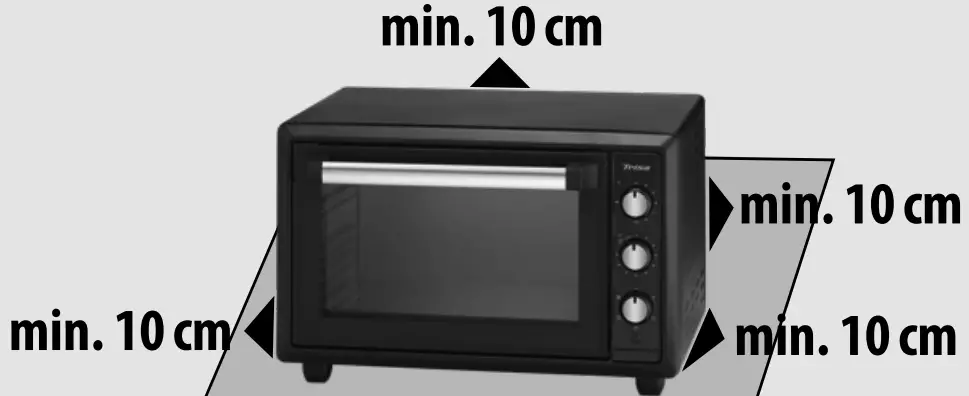

Place appliance on heat-resistant surface. In order to allow the air to circulate the appliance must have at least 10cm (30cm above) distance from the walls from all sides. Never place over table edges/corners.
Be careful of hot, rising steam when removing foods – risk of burn!
Do not place combustible or containers that can melt, living things or plants into oven
The door and the surface of the housing become hot – danger of burns!
The appliance will become very hot during use – do not touch, otherwise you may burn yourself.
Never cover appliance (e.g. with paper, cloths) – danger of ignition!

Disposal

Make worn out appliances unusable. Pull out the mains plug and sever the cord.
Electric appliances are to be returned to a shop of sale or handed over to an official dump.
No household waste. Must be disposed of in accordance with local regulations.

Welcome

Please read all the information provided in these instructions. Keep the instructions in a safe place and pass them on to further users. The appliance must only be used for the intended purpose according to these instructions. Observe the notes on safety regulations. Appliance is best operated using an RCD (max. 30mA).

Technical data

Output
Cable length
Dimension + Capacity
Dimension + Capacity
Timer
Temperature
Dimension + Capacity
Dimension + Capacity

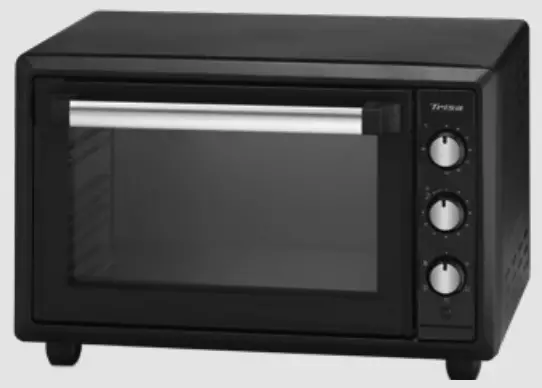

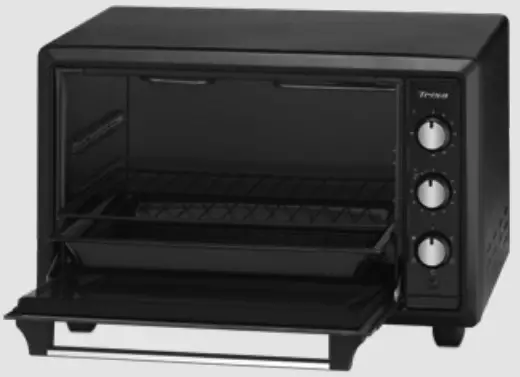

Appliance description

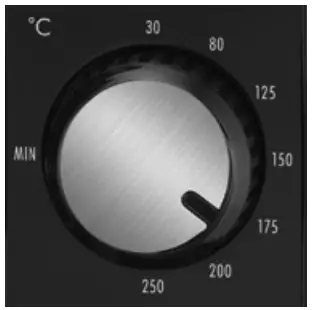

Baking temperature: 30 – 250 °C

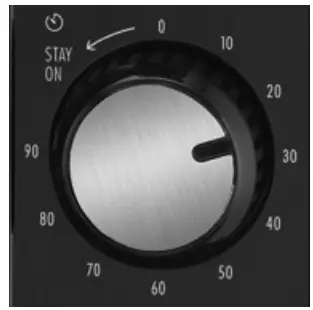

Baking time: 0 – 90 Mi

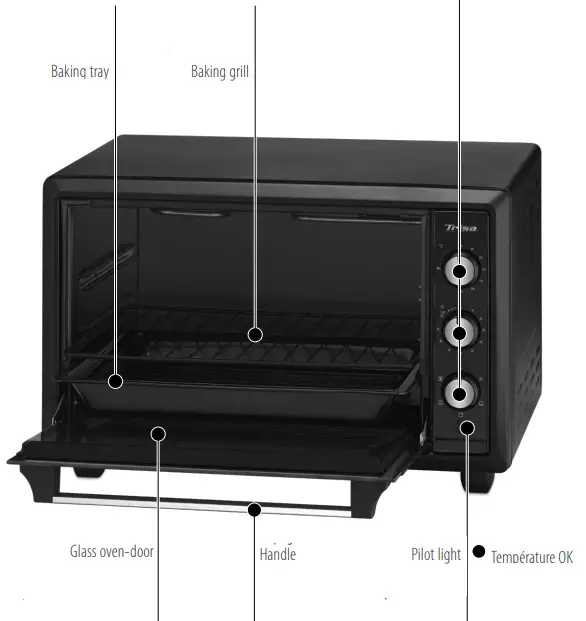

PRODUCT DESCRIPTION

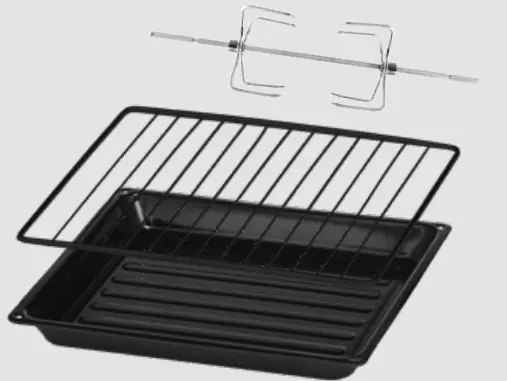

Accessories

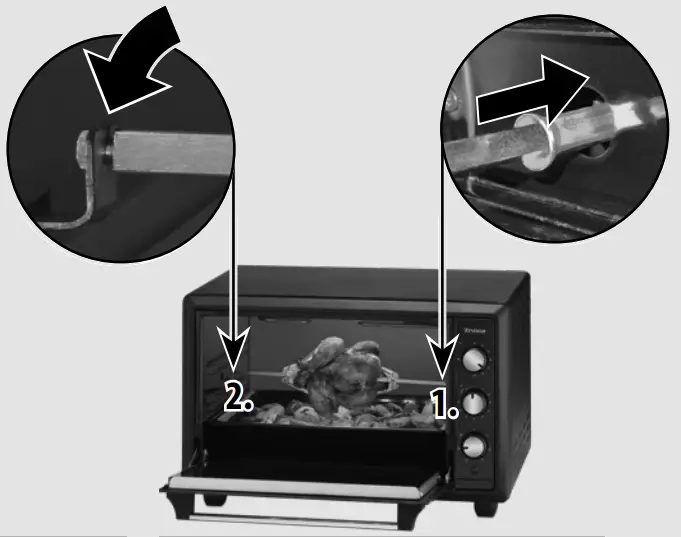

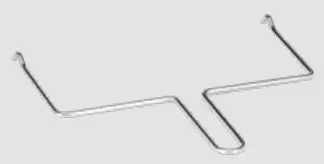

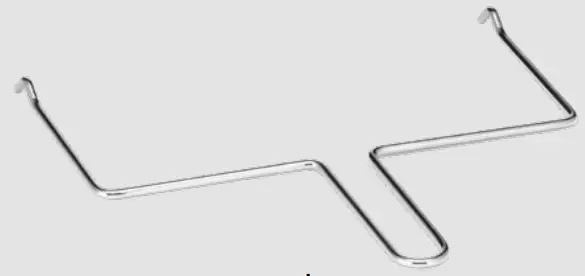

Holder for rotisserie

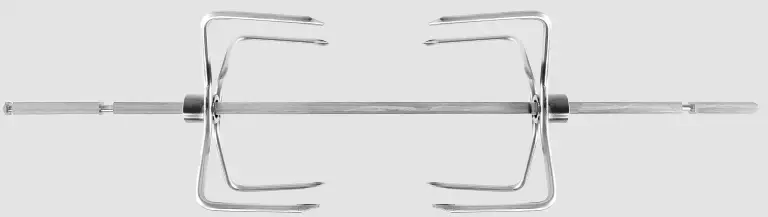

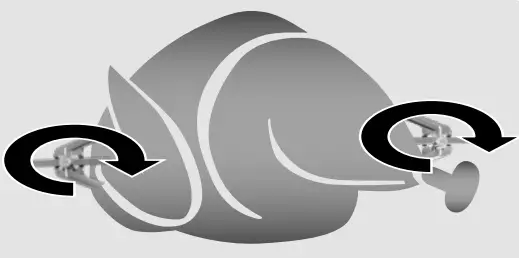

Rotisserie

Light
Top heat
Bottom heat
Top/Bottom heat
Circulating air function
Grill top heat

Before using the appliance for the first time

Setting up the appliance

Note surrounding spaces! Not suitable for building in.
Cleaning the appliance
See chapter «Cleaning»
Preparing the appliance

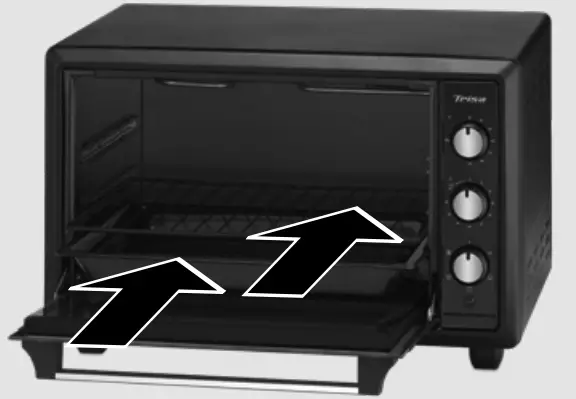

Insert tray and grill plate

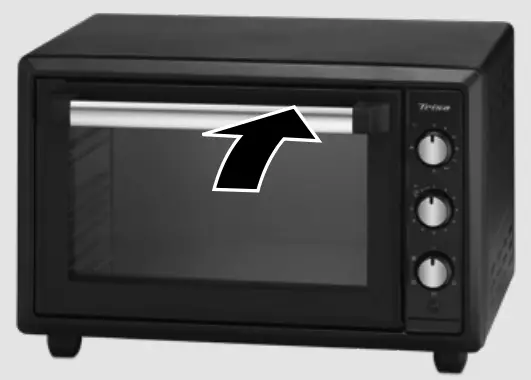

Close

Plug in
Heat up for 20 min.
Set temperature

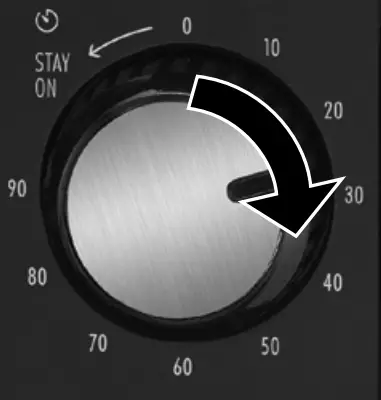

Select time

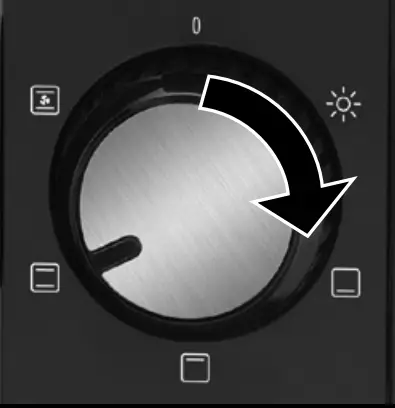

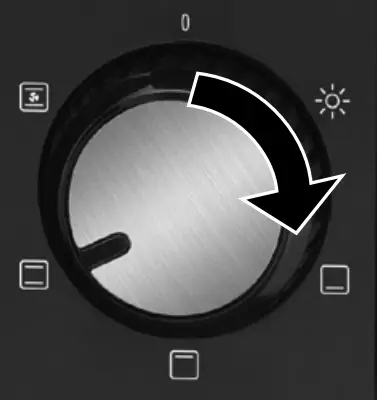

Select heating function

Residue from manufacturers is burned. Smell/smoke may develop – open a window!

Use

Pre-heat
Close

Set temperature

Select heating function

Heat up for 20 min

Oven pre-heated
Prepare

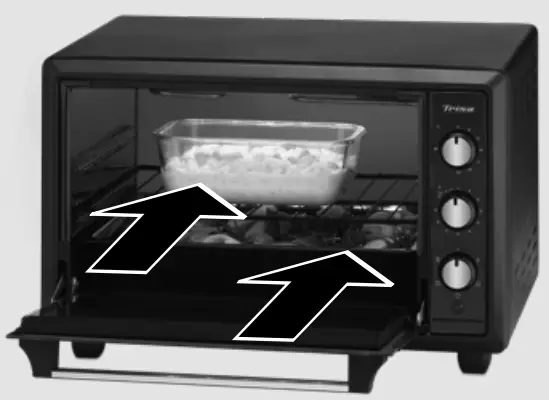

Insert food

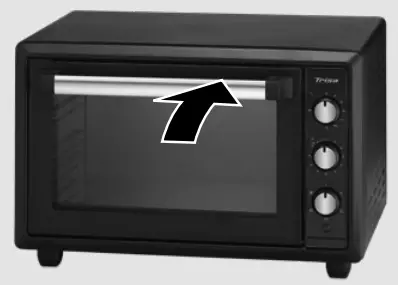

Close door properly

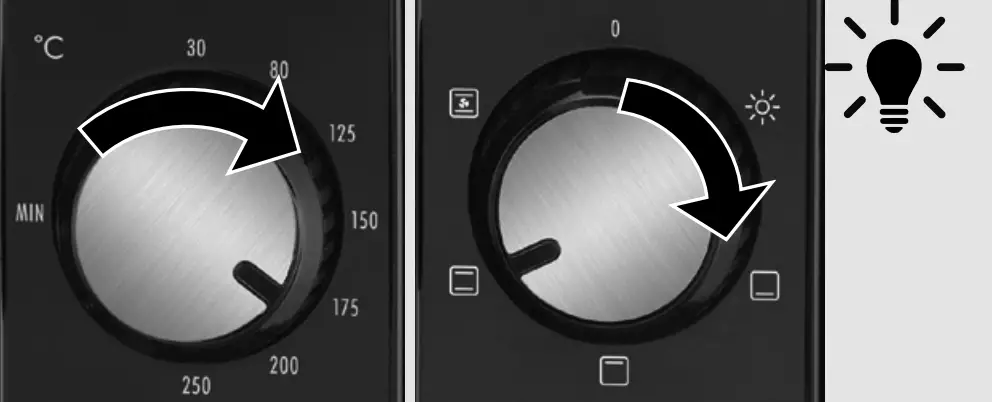

Select temperature and heater function

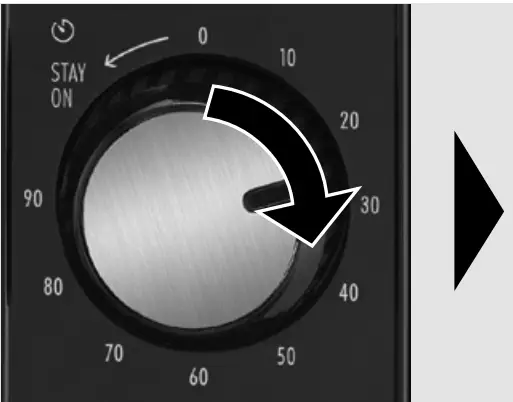

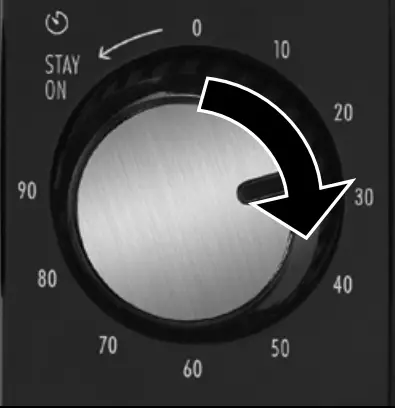

Select time

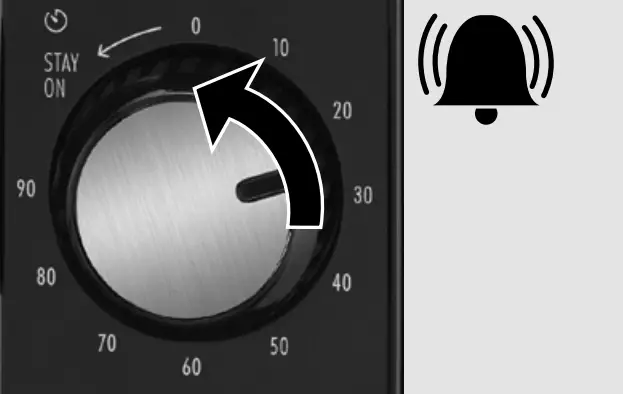

If required: finish earlier

Oven only works with timer or Stay On (function without timer)
Tray or baking grill as required. Plates up to Ø 23cm can be placed in the oven. (Rotisserie  p.40)
After processing

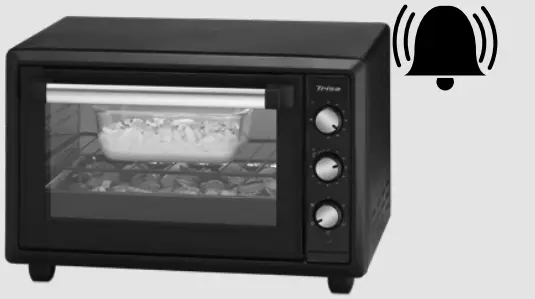

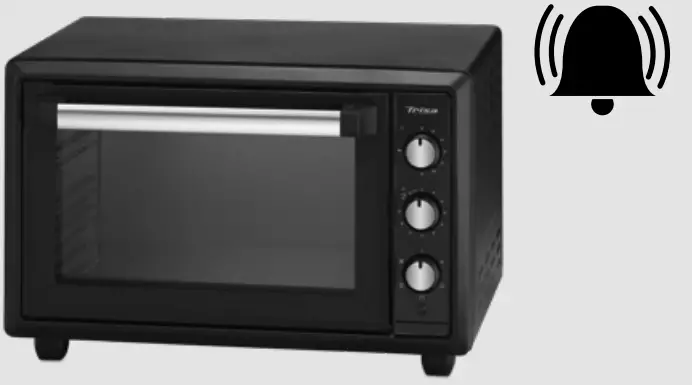

Program is finished automatically

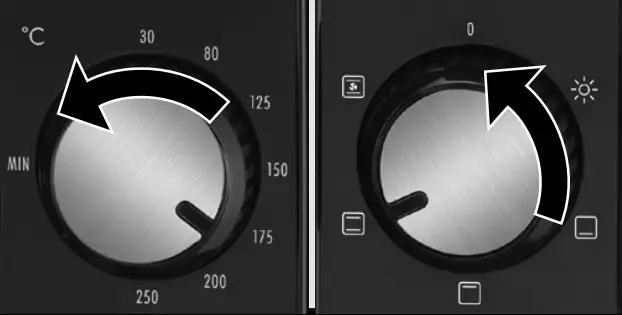

Switch off temperature and heater function

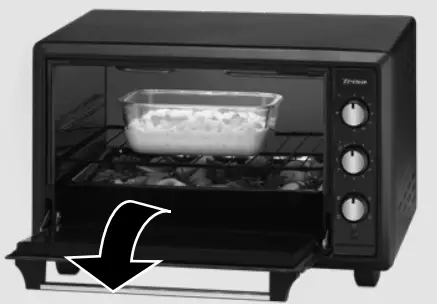

Open door

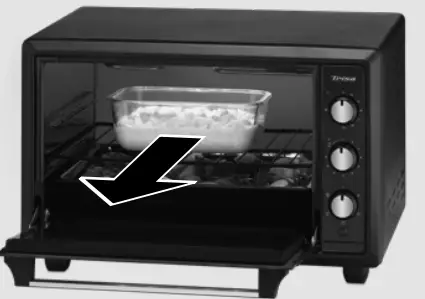

Remove food

Caution: hot! Use oven cloth or holder
