MVL
Omnidirectional Condenser Lavalier Microphone
General Description
The Shure MOTIV MVL is an omnidirectional condenser lavalier microphone, featuring a 3.5 mm (1/8″) Tip Ring Ring Sleeve (TRRS) plug for use with a portable recording-capable device. By plugging the MVL microphone into the headphone jack of a smartphone or tablet and opening recording apps such as the ShurePlus®MOTIV recording app, the user can easily and dis creatively capture high-quality audio. It is ideal for use in speech and other applications requiring minimum visibility.
Features
- Superior audio clarity
- Effective immunity to audible interference
- Low self-noise
- More even, natural response across the frequency range
- Less susceptible to distortion
- Matte black, sleek, low-profile design for inconspicuous placement
- Snug-fit foam windscreen provides additional protection from plosives and wind noise
- Includes protective storage pouch, tie clip, and windscreen
- The optional Rycote TM Mini Windjammer fits over the included windscreen
- Legendary Shure quality and reliability

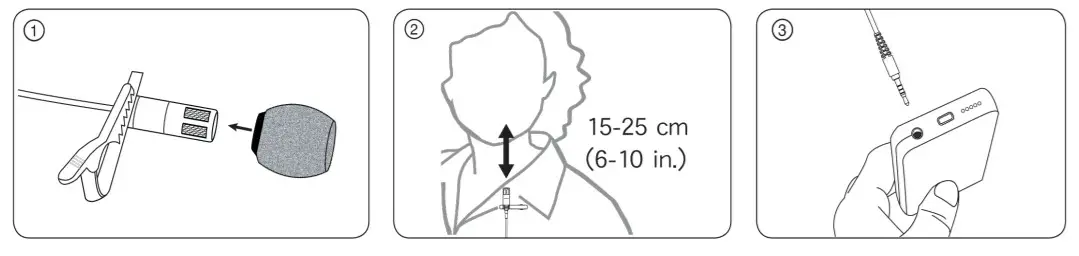

Using the Microphone
- Install the supplied snug-fit windscreen by sliding it over the microphone capsule.

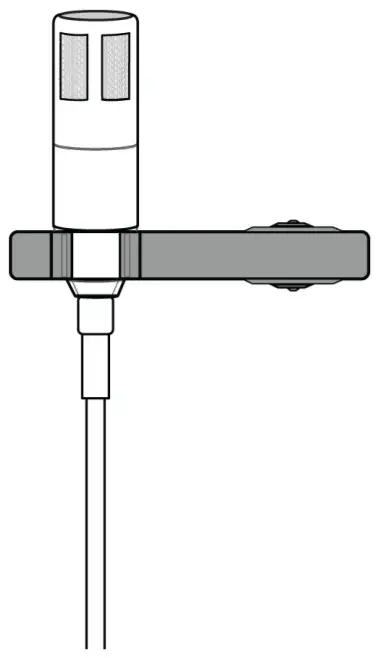

Note: Do not pull the windscreen too tightly over the microphone. Leave a small space inside the windscreen to allow for air movement. - Attach the microphone to a shirt or other garment using the supplied tie clip. For best results, the microphone should be 15-25 cm (6-10 in.) away from the mouth.
- Plug the 3.5 mm (1/8″) plug into your recording device.
To further reduce plosives and wind noise, use the optional Rycote Mini Windjammer, which fits over the included foam wind screen.
Specifications
| Microphone Capsule | MEMS |
| Polar Pattern | Omnidirectional |

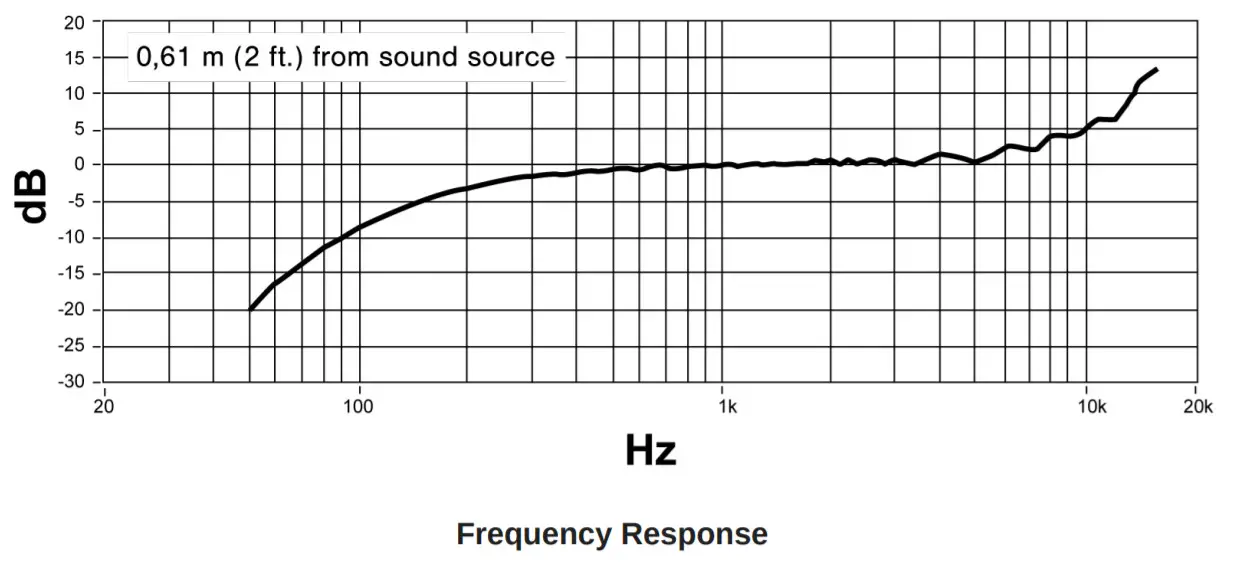

| Frequency Response | 40 Hz to 20,000 Hz (see frequency response graph) 350 Ω |
| Signal-To-Noise Ratio | 65 dB |
| Maximum SPL | 124 dB SPL |
| Dynamic Range | 95 dB typical |
| Sensitivity | 44.0 dBV at 1 kHz (Pa=94 dB SPL) |
| Equivalent Output Noise | 29 dB A-weighted |
| Microphone Connector | 3.5 mm (1/8″) TRRS () |
| Microphone Bias | 2.7 V DC through 2.2 K Ω resistor |
| Current Drain | 245 µA, typical |
| Housing | Cast Zinc |
| Dimensions | 15.2 mm x 5.5 mm x 132cm H x W x D |
| Cable Diameter | 1.6 mm |
| Net Weight with cable | 8.0 g (0.282 oz.) |

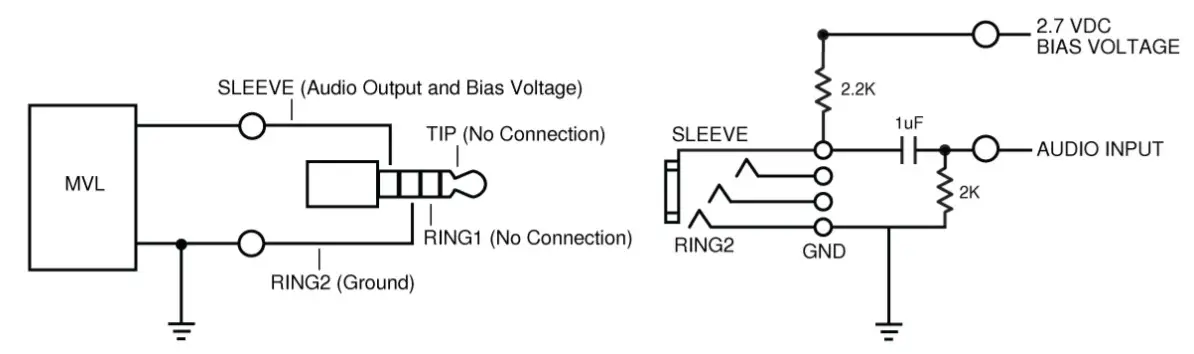

Microphone and Audio Input Connections for a Typical Device
Accessories
Furnished Accessories
| Carrying/Storage Bag | AMVL-BAG |
| AMVL-WS | |
| AMVL-CLIP |
Optional Accessories
| Rycote Mini Windjammer for MVL | AMVL-FUR |
Certifications
Note: Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC performance.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Global Compliance
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: +49-7262-92 49 0
Email: [email protected]
www.shure.com
The Shure omnidirectional condenser lavalier microphone, MVL, user guide.
Version: 3.0 (2021-I)
