White Shark Gk-2101 Spartan X Tenkeyless Rgb Mechanical Keyboard User Manual

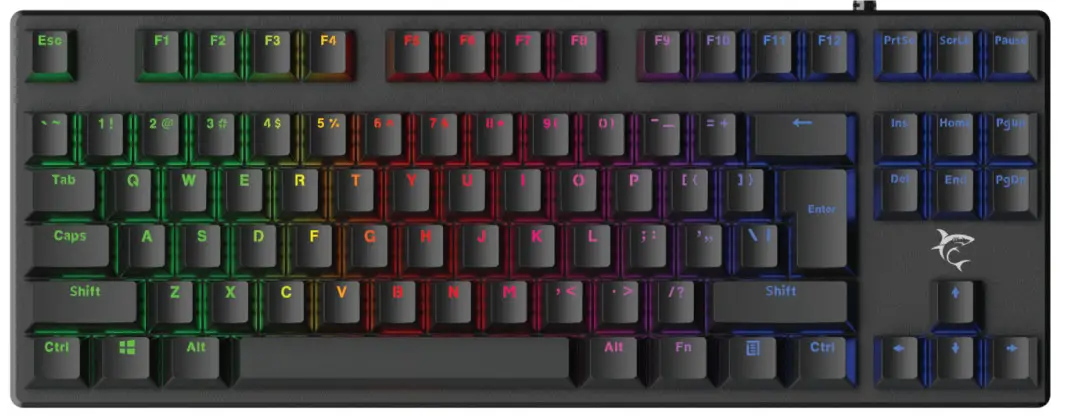

GK-2101 Spartan X Tenkeyless RGB Mechanical Keyboard
User Manual

Product description

• Buttons: 87 keys
• Key switch: OUTEMU Mechanical RED
• Anti-ghosting: Full keys
• Full key RGB LED backlight
• Top plate material: metal
•  Bottom material: ABS plastic
• Key lifespan: 50 million key presses
• Key pressure: 60 g±15 g
• Total key travel: 2 mm ±0.5 mm
• Weight: approx. 640 g
• Plug and play

Technical specification

• Keyboard size: 355 x 135 x 20 mm
• Operating Voltage: 5 V
• Operating current: <250 mA
• Operating Temperature: o •c ~ 45 •c
• Store Temperature: -40C- 85 •c

Keys function

: 14 kinds of LED mode switch
Fn +: 7 different LED colors to switch ( When the LED mode is a single color, press this key to switch 7 single colors successively)
When pressing the until the ASDW and Arrow keys light up, enter the FN+END, and the user can customize the color for each key, after finishing the customization,  press FN+END to store.
FN+ ScrLk: Switch the LED running speed
Fn +PrtSc Switch the LED running direction
FN+W/A/S/D can exchange with up, down, left, and right arrows.
Fn+WIN-L: Lock win

* Fn +[ Fl ~ Fl 2]: Implement multimedia functions
