SKILLER SGK30 Mechanical Gaming Keyboard
Owner’s Manual
RGB
ILLUMINATION
SPECIFICATIONS
| General: | SKILLER SGK30 RED | SKILLER SGK30 BLUE |
| Type: | Gaming Keyboard | Gaming Keyboard |
| Switch Technology: | Mechanical (Red) | Mechanical (Blue) |
| Illumination: | RGB | RGB |
| Adjustable Illumination: |  | |
| Lighting Effect: | | |
| Max. Polling Rate: | 1,000 Hz | 1,000 Hz |
| Gaming Mode: | | |
| Block: | 3-Block Layout | 3-Block Layout |
| Weight incl. Cable: | 867 g | 867 g |
| Dimensions (L x W x H): | 44.0 x 14.4 x 3.5 cm | 44.0 x 14.4 x 3.5 cm |
| Supported Operating Systems: | Windows | Windows |
| Key Properties: | ||
| Function Keys with Preset Multimedia Actions: | | |
| Anti-Ghosting Keys: | | |
| N-Key Rollover Support: | | |
| Arrow Keys Functions are Interchangeable with the WASD Section: | | |
| Operating Force: | 45 g | 50 g |
| Switch: | Linear | Tactile |
| Switching Point: | Undetectable | Detectable |
| Click Point: | Undetectable | Precisely Detectable |
| Distance to Actuation Point: | 2.0 ± 0.3 mm | 2.0 ± 0.3 mm |
| Operating Life Cycles of Keys: | Min. 50 Million Keystrokes | Min. 50 Million Keystrokes |
| Cable and Connectors: | ||
| Connector: | USB | USB |
| Textile Braided Cable: | | |
| Cable Length: | 180 cm | 180 cm |
| Gold-Plated USB Plug: | | |
| Software Properties: | ||
| Gaming Software: | | |
| Individually Configurable Key Functions: | | |
| Number of Profiles: | 20 | 20 |
| Onboard Memory for Game Profiles: | | |
| Capacity of Onboard Memory: | 64 kB | 64 kB |
| Package Contents: | ||
| SKILLER SGK30, Manual |

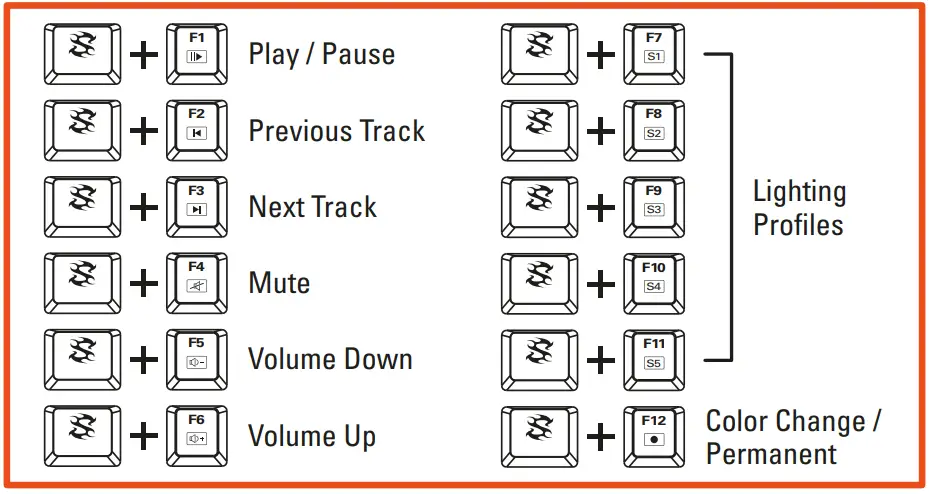

Function Keys with Preset Multimedia Actions

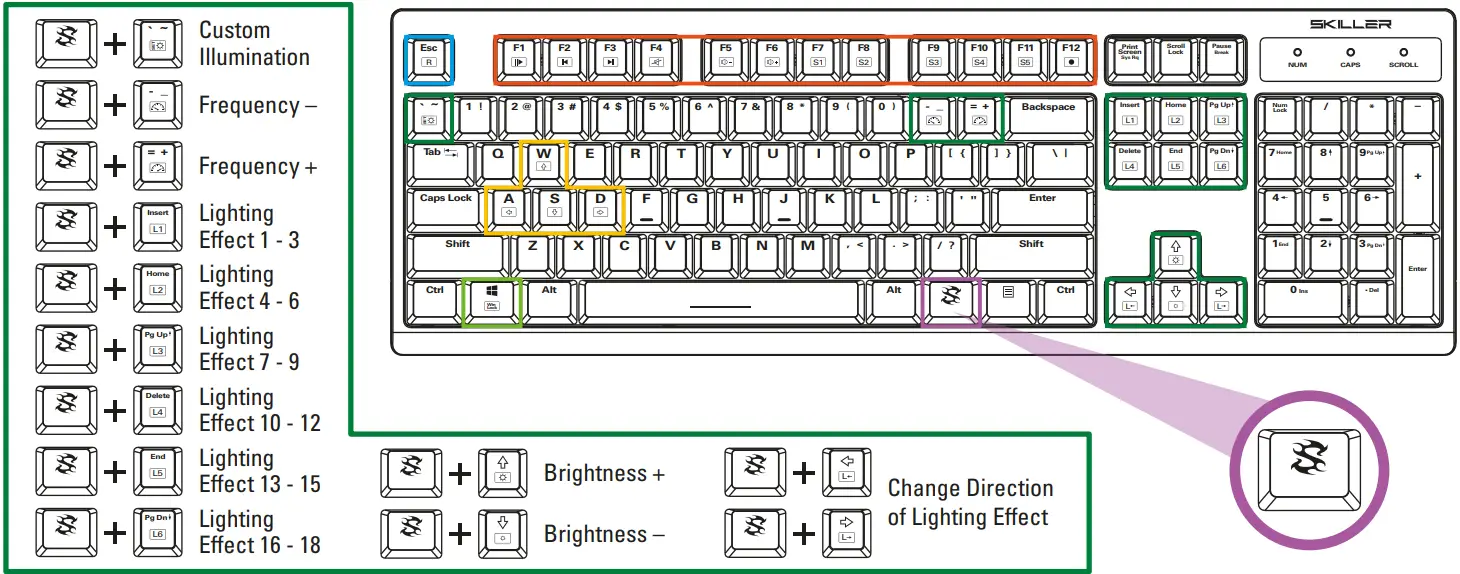

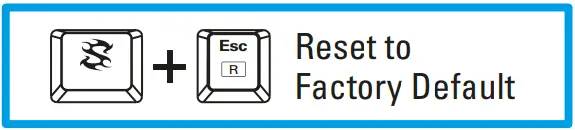

Additional Functions

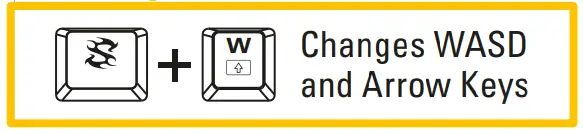

Arrow Keys Functions are
Interchangeable with the WASD Section

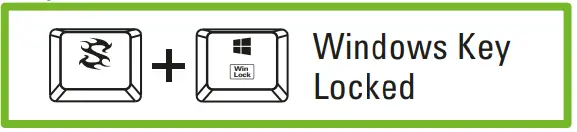

Key Lock Function
Lighting Effect
Legal Disclaimer
For potential loss of data, especially due to inappropriate handling, Sharkoon assumes no liability. All named products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected. As a continuing policy of product improvement at Sharkoon, the design and specifications are subject to change without prior notice. National product specifications may vary. All rights reserved especially (also in extracts) for translation, reprinting, reproduction by copying or other technical means. Infringements will lead to compensation. All rights reserved especially in case of assignation of patent or utility patent. Means of delivery and technical modifications reserved.
Disposal of your old products
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2012/19/EU.
Please be informed about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences to the environment and human health.
DETAILED MANUAL AND SOFTWARE
http://www.sharkoon.com/product/SKILLER%20MECH%20SGK30#download
