Pro Enhanced Autoclave Sterilization Controller
Instruction Manual

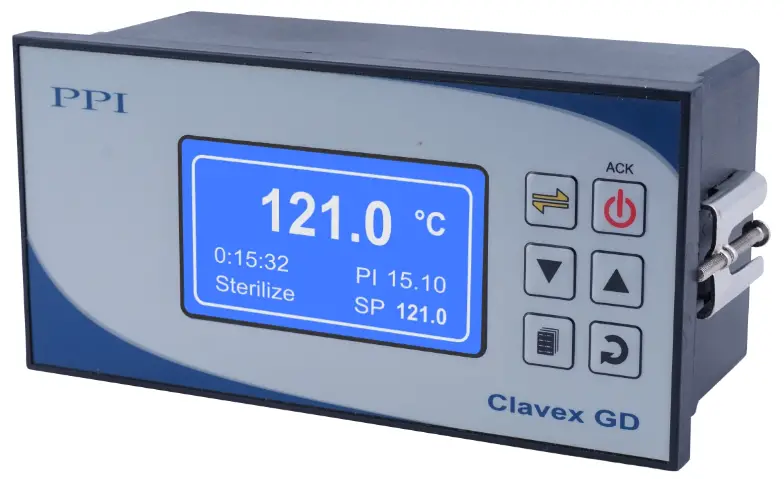

Clavex Pro Enhanced
Autoclave Sterilization Controller
Clavex Pro Enhanced Autoclave Sterilization Controller
Operation Manual
This brief manual is primarily meant for quick reference to wiring connections and parameter searching. For more details on operation and application; please log on to www.ppiindia.net
OPERATOR PARAMETERS : PAGE 0 | |
| Parameters | Settings (Default Value) |
Control Setpoint | Setpoint Low Limit to Setpoint High Limit (Default : 121.0) |
Air Outlet Setpoint | Setpoint Low Limit to Setpoint High Limit (Default : 100.0) |
Soak Time | 1 to 999 Minutes (Default : 20) |
High Alarm Deviation Setpoint | 1 to 10 or 0.1 to 10.0 (Default : 5.0) |
Fail-Safe Deviation Setpoint | 3 to 20 or 0.3 to 20.0 (Default : 10.0) |
Cycle Abort Command |  |
Cycle Abort Pass Code | 0 to 250 (Default : 0) |
| I/O CONFIGURATION PARAMETERS : PAGE 10 | |
| Parameters | Settings (Default Value) |
Input Type |  |
Hysteresis | 1 to 999°C or 0.1 to 999.9°C (Default :0.2) |
Setpoint Low Limit | Min. Range for the selected Input Type to Setpoint High (Default : 90.0) |
Setpoint High Limit | Setpoint Low to Max. Range for the selected Input Type (Default : 150.0) |
Units for Pressure |  |
| SOAK TIMER PARAMETERS : PAGE 15 | |
| Parameters | Settings (Default Value) |
Soak Time | 1 to 999 Minutes (Default : 20) |
| Parameters | Settings (Default Value) |
Timer-Start Band | 1 to 5 or 0.1 to 5.0 (Default : 1.0) |
Holdback Strategy |  |
Hold Band | 1 to 5 or 0.1 to 5.0 (Default : 1.0) |
End-of-Soak Alarm Time | 5 to 250 Sec. (Default : 10 Sec.) |
Power-fail Recovery Method |  |
| SUPERVISORY PARAMETERS : PAGE 11 | |
| Parameters | Settings (Default Value) |
Offset for Temperature Value | -1999 to 9999 or -199.9 to 999.9 (Default : 0.0) |
Digital Filter for Temperature Value | 0.5 to 25.0 Seconds in steps of 0.5 Seconds (Default : 1.0) |
Operator Parameter Locking |  |
Pass Code for Cycle Abort | 1 to 250 (Default : 22) |
Slave ID | 1 to 127 (Default : 1) |
Baud Rate |  |
| Parameters | Settings (Default Value) |
Parity |  |
Communication Write Enable |  |
Water Level Switch Logic |  |
Pressure View |  |
| ADDITIONAL CONTROL PARAMETER : PAGE 50 | |
| Parameters | Settings (Default Value) |
Setpoint Offset | 0.0 to 10.0(Default :0.0 ) |

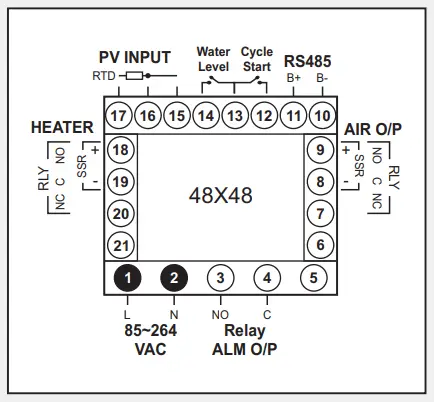

ELECTRICAL CONNECTIONS

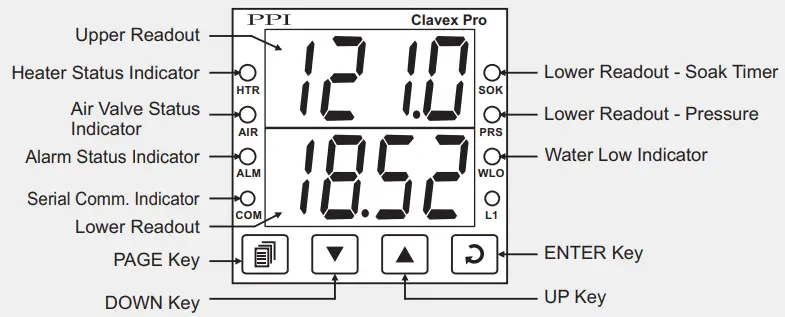

FRONT PANEL LAYOUT
Keys Operation
Symbol | Key | Function |
 | PAGE | Press to enter or exit set-up mode. |
 | DOWN | Press to decrease the parameter value. Pressing once decreases the value by one count; keeping pressed speeds up the change. |
 | UP | Press to increase the parameter value. Pressing once increases the value by one count; holding pressed speeds up the change. |
 | ENTER | Press to store the set parameter value and to scroll to the next parameter on the PAGE. |
PV Error Indications
Message | PV Error Type |
| Over-range (PV above Max. Range) |
| Under-range (PV below Min. Range) |
 | Open (Sensor open / broken) |
101, Diamond Industrial Estate, Namghar,
Vasai Road (E), Dist. Palghar – 401 210.
Sales : 8208199048 / 8208141446
Support : 07498799226 / 08767395333
E: [email protected],
[email protected]
Dec 2021
