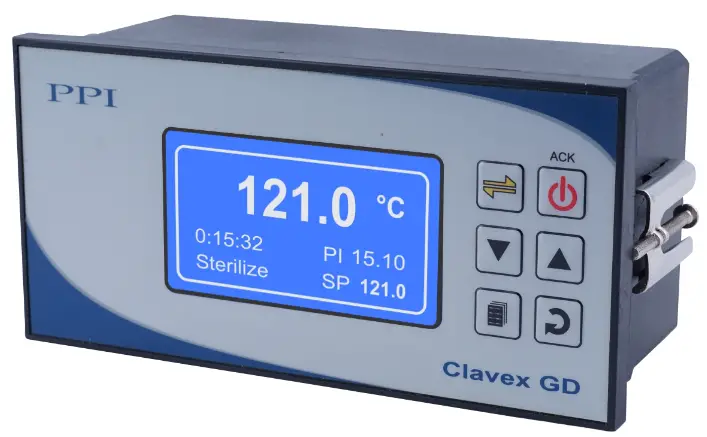

PPI Clavex GD Vertical Autoclave Controller with Graphic Display

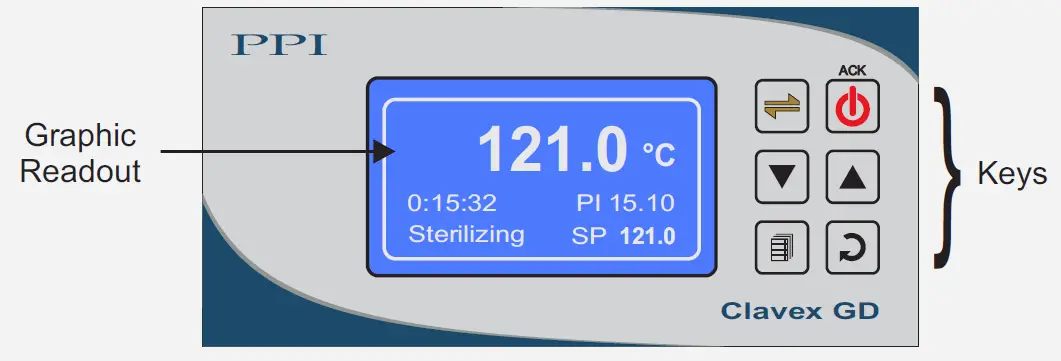

FRONT PANEL LAYOUT

Front Panel

Keys Operation

Symbol	Key	Function
	Scroll	Press to scroll through various Process Information Screens in Normal Operation Mode.
	Cycle Start & Alarm Acknowledge	Press to Start / Abort Autoclave Cycle. In case of process under alarm condition, press to acknowledge and mute the alarm output.
	DOWN	Press to decrease the parameter value. Pressing once decreases the value by one count; keeping pressed speeds up the change.
	UP	Press to increase the parameter value. Pressing once increases the value by one count; keeping pressed speeds up the change.
	SET-UP	Press to enter or exit set-up mode.
	ENTER	Press to store the set parameter value and to scroll to the next parameter.

PV Error Indications

Message	Error Type	Cause
OPEN	Sensor Open	RTD Pt100 / Thermocouple is Broken / Open
OVR	Over-range	Temperature above Max. Specified Range
UNR	Under-range	Temperature below Min. Specified Range

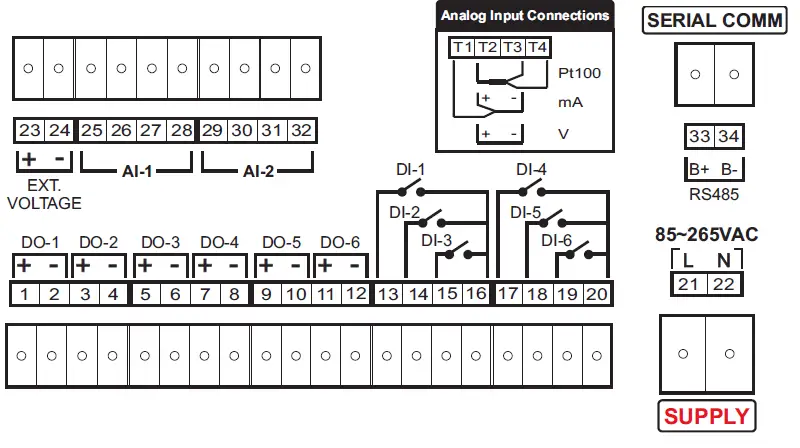

ELECTRICAL CONNECTIONS

Analog Input

AI-1: RTD Pt100 Sensor
AI-2: Pressure Sensor

Digital Output

DO-1: Heater Control
DO-2: Air Valve Control
DO-3: Event Alarm
DO-4: Unused
DO-5: Unused
DO-6: Unused

Digital Input

DI-1: Cycle Start
DI-2: Door Open
DI-3: Water Level
DI-4: Alarm ACK
DI-5: Unused
DI-6: Unused

Operation Instruction

OPERATOR PARAMETERS
Parameter	Settings (Default Value)
Ster. Temp SP >>	Setpoint LO Limit to Setpoint HI Limit (Default : 121.0 °C)
Air Outlet SP >>	Setpoint LO Limit to Setpoint HI Limit (Default : 100.0 °C)
Ster. Time (HH:MM) >>	0.01 to 99.59 (HH:MM) (Default : 00.10 min)
Change Password >>	1 to 100 (Default : 0)

SUPERVISORY SERIAL PARAMETERS
Parameter	Settings (Default Value)
Device Id >>	1 to 127 (Default : 1)
Baud Rate >>	2400, 4800, 9600 19200, 38400, 57600 (Default : 9600)
Parity >>	None Even Odd (Default : Even)
Serial Write >>	No Yes (Default : No)

SUPERVISORY CONTROL
Parameter	Settings (Default Value)
Setpoint LO Limit >>	0 to Setpoint HI Limit (Default : 90 °C)
Setpoint HI Limit >>	Setpoint LO Limit to 600.0 °C (Default : 150.0 °C)
Overshoot Temp >>	Sterilization SP to Control SP HI (Default :131 °C)
Cycle End Strategy >>	Immediate Stop Timer Based Stop Temp Based Stop (Default : Immediate Stop)
Cycle End Timer >>	1 to 60 Minutes (Default : 5 Min)
Cycle End Temp >>	Control SP LO to Sterilization SP (Default : 100.0 °C)
Ctrl Band >>	0.1 to 99.9 (Default : 0.2 °C)
EOP Alarm Time (sec) >>	0 to 250 Sec. (Default : 10 Sec)

SUPERVISORY STERILIZATION
Parameter	Settings (Default Value)
Steri. Stop Temp >>	Air Valve SP to Sterilization SP (Default : 120.5 °C)
Steri. Reset Temp >>	Air Valve SP to Sterilization SP (Default : 120.0 °C)

SUPERVISORY PV OFFSET
Parameter	Settings (Default Value)
Temp Zero Offset >>	-50.0 to 50.0 (Default : 0)
Pressure Offset >>	-500 to 500 Counts (Default : 0.0)

SUPERVISORY > PASSWORD
Parameters	Settings (Default Value)
Change Password >>	1000 to 1999 (Default : 123)

SUPERVISORY > EXIT
Parameters	Settings (Default Value)
Exit Setup Mode >>	Yes No (Default : No)

FACTORY TEMPERATURE INPUT
Parameter	Settings (Default Value)
Filter Constant >>	0.5 to 60.0 Sec. (Default : 0.5 Sec.)
Temperature SP Offset >>	0.0 to 10.0 ºC (Default : 0.0 ºC)

FACTORY > PRESSURE INPUT
Parameters	Settings (Default Value)
Pressure Indication >>	None Computed Measured (Default : None)
Units >>	PSI KG/CM2 BAR EU (Default : PSI)
Resolution >>	1 0.1 0.01 0.001 (Default : 0.1)

Parameter	Settings (Default Value)
Input Type >>	0-20mA 4-20mA 0-5V 0-10V 1-5V (Default : 0-5V)
Signal LO>>	Default : Signal Low 0.000 Signal High 5.000
Signal HI >>	Default : Signal Low 0.000 Signal High 5.000
Range LO >>	0 to 9999 Counts (Default : 0.0)
Range HI >>	0 to 9999 Counts (Default : 100.0)

FACTORY DIGITAL INPUTS
Parameter	Settings (Default Value)
Remote Cycle Start >>	No Yes (Default : No)
Water Level Detect >>	No Yes (Default : No)
Water Level Logic >>	Open : Water Lo Close : Water Lo (Default : Close : Water Lo)
Door Open Detect >>	Yes No (Default : No)
Door Open Logic >>	Close : Door Open Open : Door Open (Default : Close : Door Open)

FACTORY > FACTORY DEFAULT
Parameters	Settings (Default Value)
Set To Default >>	No Yes (Default : No)

FACTORY > PASSWORD
Parameters	Settings (Default Value)
Change Password >>	2000 to 2999 (Default : 321)

FACTORY > EXIT
Parameters	Settings (Default Value)
Exit Setup Mode >>	No Yes (Default : No)
