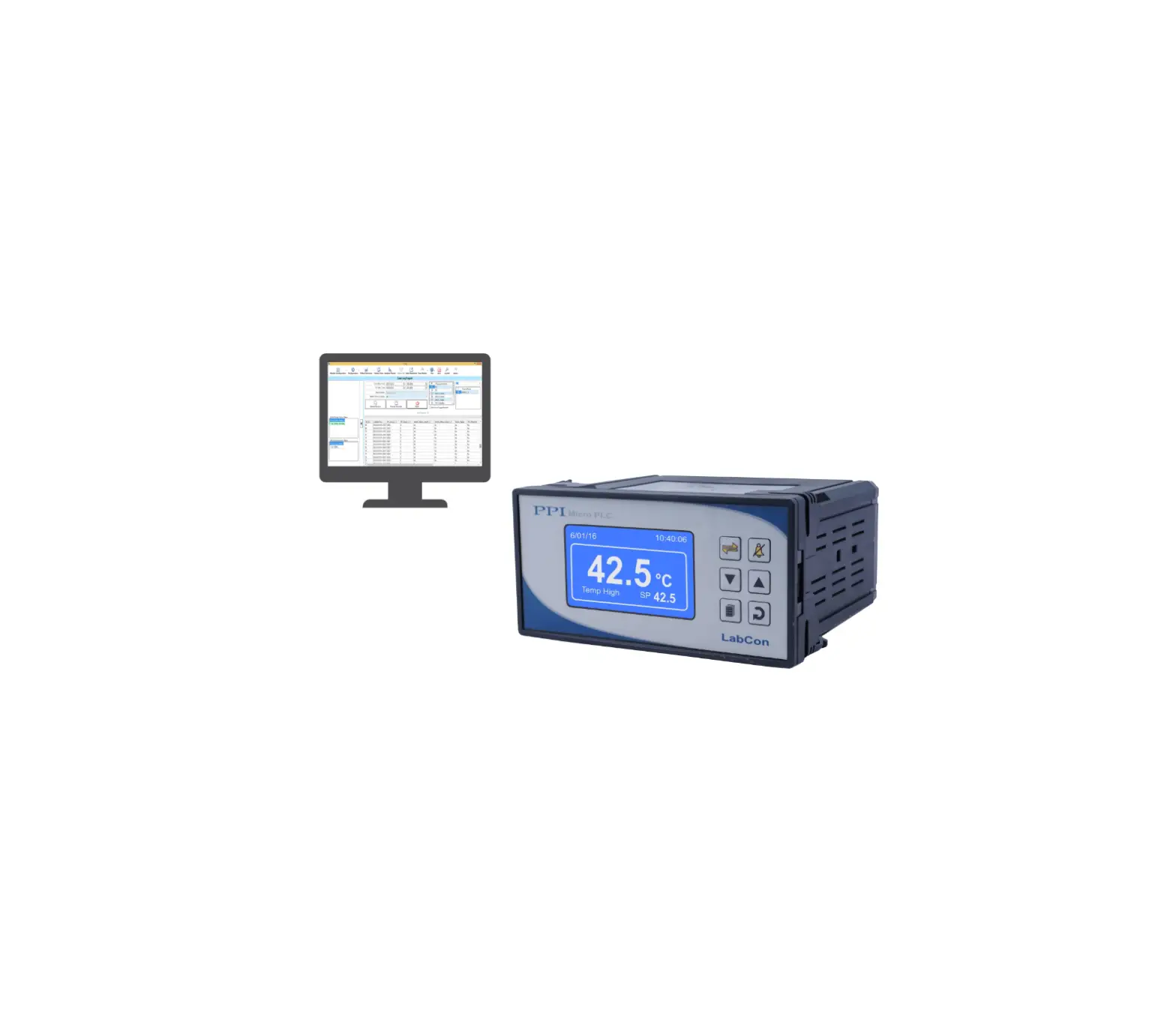

LabCon (PC)
Recording + PC Software
Operation Manual
LabCon Recording + PC Software
This brief manual is primarily meant for quick reference to wiring connections and parameter searching. For more details on operation and application; please log on to www.ppiindia.net
OPERATOR PAGE PARAMETERS
| Parameters | Settings (Default Value) |
| Time Start Command >> Time Abort Command >> | Yes No (Default : No) |
| Time Interval (H:M) >> | 0.00 to 500.00 (HH:MM) (Default : 0.10) |
| Ctrl Set Value >> | Setpoint LO limit to Setpoint HI limit (Resolution 0.1°C for RTD / DC Linear & 1°C for Thermocouple) (Default : 25.0) |
| Ctrl Lo Deviation >> | For RTD & DC Linear: 0.2 to 99.9 For Thermocouple: 2 to 99 (Default : 2.0) |
| Ctrl Hi Deviation >> | For RTD & DC Linear: 0.2 to 99.9 For Thermocouple: 2 to 99 (Default : 2.0) |
| Change Password >> | 1 to 100 (Default : 0) |
SUPERVISORY > SENSOR INPUT
| Parameters | Settings (Default Value) |
| Ctrl Zero Offset >> | -50 to 50 (Resolution 0.1°C for RTD / DC Linear & 1°C for Thermocouple) (Default : 0.0) |
SUPERVISORY > RECORDING
| Parameters | Settings (Default Value) |
| Rec. Interval (min) >> | 0 to 250 Min (Default: 5 Min) |
| Alarm Toggle Record >> | Enable Disable (Default: Enable) |
| Del PC Records >> | Yes No (Default: No) |
| Del Display Record >> | Yes No (Default: No) |
| GSM Machine ID >> (refer note) | 1 to 128 (Default: 1) |
| RTC Time >> | 0 to 23 for Hour 0 to 59 for Min (Default: NA) |
| RTC Date >> | 1 to 31 (Default: NA) |
| RTC Month >> | 1 to 12 (Default: NA) |
| RTC Year >> | 2000 to 2099 (Default: NA) |
| Device Id >> | 1 to 127 (Default: 1) |
SUPERVISORY > CONTROL
| Parameters | Settings (Default Value) |
| Tune >> | Yes No (Default: No) |
| Setpoint LO Limit >> | Min Range for the Selected Input Type to Setpoint HI Limit (Resolution 0.1°C for RTD / DC Linear & 1°C for Thermocouple) (Default: 0.0) |
| Setpoint HI Limit >> | Setpoint LO Limit to Max Range for the Selected Input Type (Resolution 0.1°C for RTD / DC Linear & 1°C for Thermocouple) (Default: 600.0) |
| Compressor Setpoint >> | 0 to 100 (Resolution 0.1°C for RTD / DC Linear & 1°C for Thermocouple) (Default: 45.0) |
| Compressor Hyst >> | 0.1 to 99.9 (Default: 2.0) |
| Heat Ctrl Action >> | ON-OFF PID (Default: PID) |
| Heat Hyst >> | 0.1 to 99.9 (Default : 0.2) |
| Heat Only Control | Heat + Cool Control Zone: Single | Heat + Cool Control Zone: Dual |
| Proportional Band >> 0.1 to 999.9 (Default: 50.0) | Proportional Band >> 0.1 to 999.9 (Default: 50.0) | Cz Prop Band >> Proportional Band for Cool Pre-dominant zone 0.1 to 999.9 (Default: 50.0) |
| Integral Time >> 0 to 3600 sec (Default: 100 sec) | Integral Time >> 0 to 3600 sec (Default : 100 sec) | Cz Integral Time >> Integral Time for Cool Pre-dominant zone 0 to 3600 sec (Default: 100 sec) |
| Derivative Time >> 0 to 600 sec (Default: 16 sec) | Derivative Time >> 0 to 600 sec (Default : 16 sec) | Cz Derivative Time >> Derivative Time for Cool Pre-dominant zone 0 to 600 sec (Default: 16 sec) |
| Cycle Time >> 0.5 to 100.0 sec (Default: 10.0 sec) | Cycle Time >> 0.5 to 100.0 sec (Default: 10.0 sec) | Hz Prop Band >> Proportional Band for Heat Pre-dominant zone 0.1 to 999.9 (Default: 50.0) |
| Overshoot Inhibit >> Enable Disable (Default: Disable) | Overshoot Inhibit >> Enable Disable (Default: Disable) | Hz Integral Time >> Integral Time for Heat Pre-dominant zone 0 to 3600 sec (Default: 100 sec) |
| Cutoff Factor >> 1.0 to 2.0 sec (Default: 1.2 sec) | Cutoff Factor >> 1.0 to 2.0 sec (Default: 1.2 sec) | Hz Derivative Time >> Derivative Time for Heat Pre-dominant zone 0 to 600 sec (Default : 16 sec) |
| Cycle Time >> 0.5 to 100.0 sec (Default: 10.0 sec) | ||
| Overshoot Inhibit >> Enable Disable (Default: Disable) | ||
| Cutoff Factor >> 1.0 to 2.0 sec (Default: 1.2 sec) |
SUPERVISORY > PASSWORD
| Parameters | Settings (Default Value) |
| Change Password >> | 1000 to 1999 (Default : 123) |
SUPERVISORY > EXIT
| Parameters | Settings (Default Value) |
| Exit Setup Mode >> | Yes No (Default : No) |
FACTORY > CONTROL SENSOR INPUT
| Parameters | Settings (Default Value) | ||||||||||||||||||
| Input Type >> | Refer Table 1 (Default : RTD Pt100) | ||||||||||||||||||
| Signal LO >> |
| ||||||||||||||||||
| Signal HI >> |
| ||||||||||||||||||
| Range LO >> | -199.9 to RANGE HI (Default: 0.0) | ||||||||||||||||||
| Range HI >> | RANGE LO to 999.9 (Default: 100.0) |
FACTORY > ALARM PARAMETERS
| Parameters | Settings (Default Value) |
| Hysteresis >> | 0.1 to 99.9 (Default: 0.2) |
| Inhibit >> | Yes No (Default: Yes) |
FACTORY > HEAT COOL SELECT
| Parameters | Settings (Default Value) |
| Control Strategy >> | Heat Only Cool Only Heat + Cool (Default: Heat + Cool) |
| Control Strategy: Cool Only | |
| Time Delay (sec) >> | 0 to 1000 Sec (Default : 200 Sec) |
| Control Strategy: Heat + Cool | |
| Compressor Strategy >> | CONT. OFF CONT. ON SP BASED PV BASED (Default: CONT. ON) |
| CONT. ON | SP BASED | PV BASED |
| Time Delay (sec) >> 0 to 1000 Sec (Default: 200 Sec) | Boundary Set Value >> 0 to 100 (Resolution 0.1°C for RTD / DC Linear & 1°C for Thermocouple) (Default : 45.0) | Time Delay (sec) >> 0 to 1000 Sec (Default: 200 Sec) |
| Control Zones >> Single Dual (Default: Single) | ||
| Time Delay (sec) >> 0 to 1000 Sec (Default : 200 Sec) |
FACTORY > SOAK TIMER PARAMETERS
| Parameters | Settings (Default Value) |
| Enable >> | No Yes (Default: No) |
| Start Band >> | 0 to 999.9 (Default: 0.5) |
| Holdback Strategy >> | None Up Down Both (Default: None) |
| Hold Band >> | 0.1 to 999.9 (Default: 0.5) |
| Heat Off >> | No Yes (Default: No) |
| Cool Off >> | No Yes (Default: No) |
| Power Recovery >> | Abort Restart Continuous (Default: Restart) |
FACTORY > DOOR OPEN
| Parameters | Settings (Default Value) |
| Enable >> | Yes No (Default: No) |
| Switch Logic >> | Close: Door Open Open : Door Open (Default: Close: Door Open) |
| Door Alrm Dly (sec) >> | 0 to 1000 Sec (Default : 60 Sec) |
FACTORY > MAINS FAILURE
| Parameters | Settings (Default Value) |
| Enable >> | Yes No (Default: No) |
| Switch Logic >> | Close: Mains Fail Open: Mains Fail (Default: Close: Mains Fail) |
FACTORY > SMS ALERT
| Parameters | Settings (Default Value) |
| Enable >> (refer note) | Yes No (Default: No) |
| Reset GSM Module >> (refer note) | Yes No (Default: No) |
Note: These parameters are available only if the controller supplied with GSM module version.
| FACTORY > PASSWORD | |
| Parameters | Settings (Default Value) |
| Change Password >> | 2000 to 2999 (Default: 321) |
| FACTORY > FACTORY DEFAULT | |
| Parameters | Settings (Default Value) |
| Set To Default >> | Yes No (Default: No) |
| FACTORY > EXIT | |
| Parameters | Settings (Default Value) |
| Exit Setup Mode >> | Yes No (Default: No) |
| TABLE 1 | ||
| What it means | Range (Min. to Max.) | Resolution |
| Type J Thermocouple | 0 to +960°C | Fixed 1°C |
| Type K Thermocouple | -200 to +1376°C | |
| Type T Thermocouple | -200 to +385°C | |
| Type R Thermocouple | 0 to +1770°C | |
| Type S Thermocouple | 0 to +1765°C | |
| Type B Thermocouple | 0 to +1825°C | |
| Type N Thermocouple | 0 to +1300°C | |
| Reserve | Reserved for customer specific Thermocouple type not listed above. The type shall be specified in accordance with the ordered (optional on request) Thermocouple type. | |
| 3-wire, RTD Pt100 | -199.9 to 600.0°C | Fixed 0.1°C |
| 0 to 20mA DC current | -199.9 to 999.9 units | Fixed 0.1 unit |
| 4 to 20mA DC current | ||
| 0 to 5.0V DC voltage | ||
| 0 to 10.0V DC voltage | ||
| 1 to 5.0V DC voltage | ||
PV ERROR INDICATIONS
| Message | Error Type | Cause |
 | Sensor Open | Sensor (RTD Pt100) Broken / Open |
 | Over-range | Temperature above Max. Specified Range |
 | Under-range | Temperature below Min. Specified Range |
FRONT PANEL KEYS
| Symbol | Key | Function |
 | Scroll | Press to scroll through various Process Information Screens in Normal Operation Mode. |
 | Alarm Acknowledge | Press to acknowledge and mute (if active) alarm output. |
 | DOWN | Press to decrease the parameter value. Pressing once decreases the value by one count; keeping pressed speeds up the change. |
 | UP | Press to increase the parameter value. Pressing once increases the value by one count; keeping pressed speeds up the change. |
 | SET-UP | Press to enter or exit set-up mode. |
 | ENTER | Press to store the set parameter value and to scroll to the next parameter. |

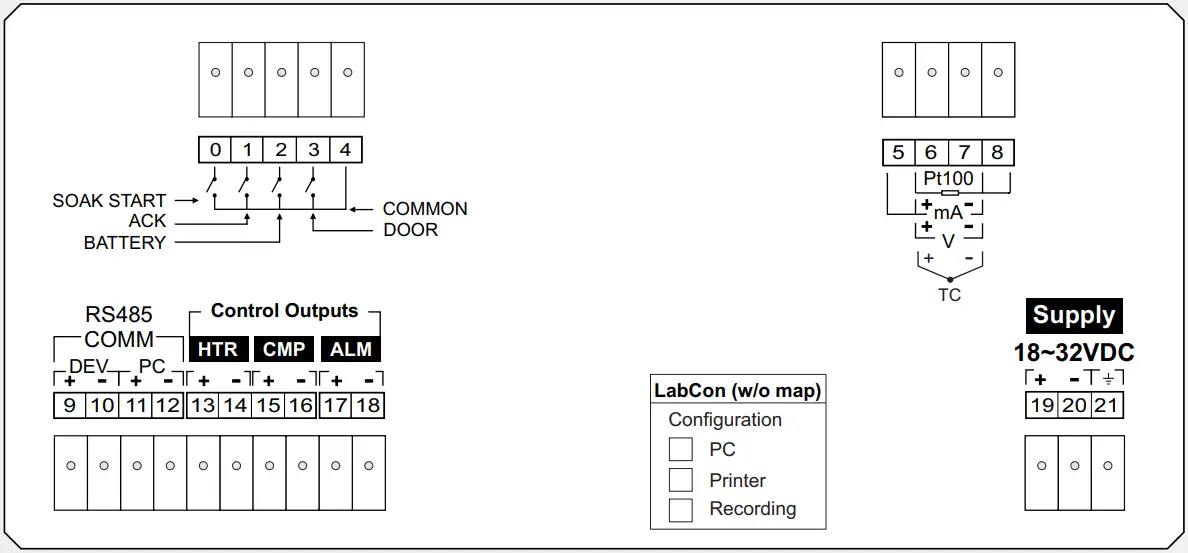

ELECTRICAL CONNECTIONS
101, Diamond Industrial Estate, Navghar,
Vasai Road (E), Dist. Palghar – 401 210.
Sales: 8208199048 / 8208141446
Support: 07498799226 / 08767395333
E: [email protected],
[email protected]
Jan 2022
